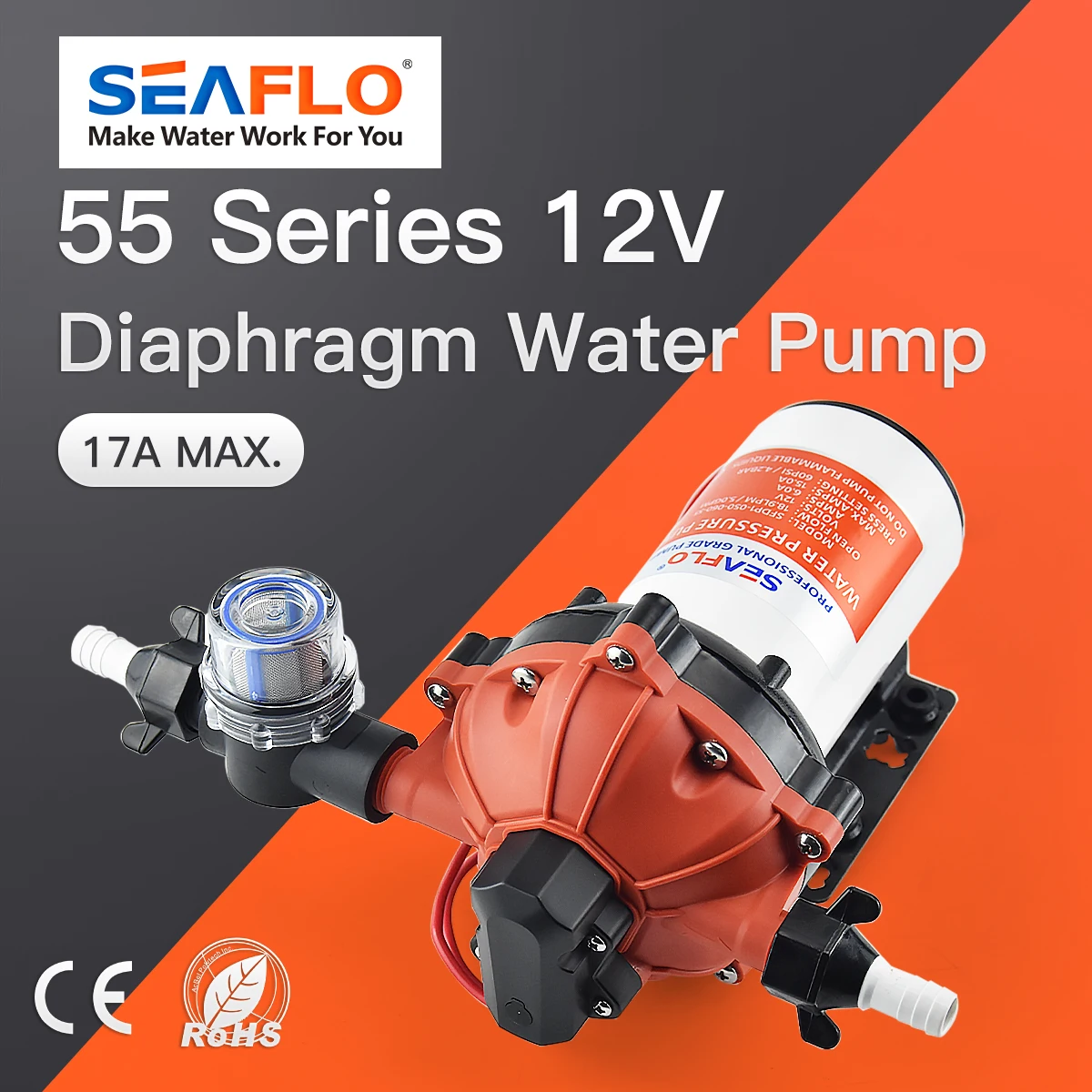

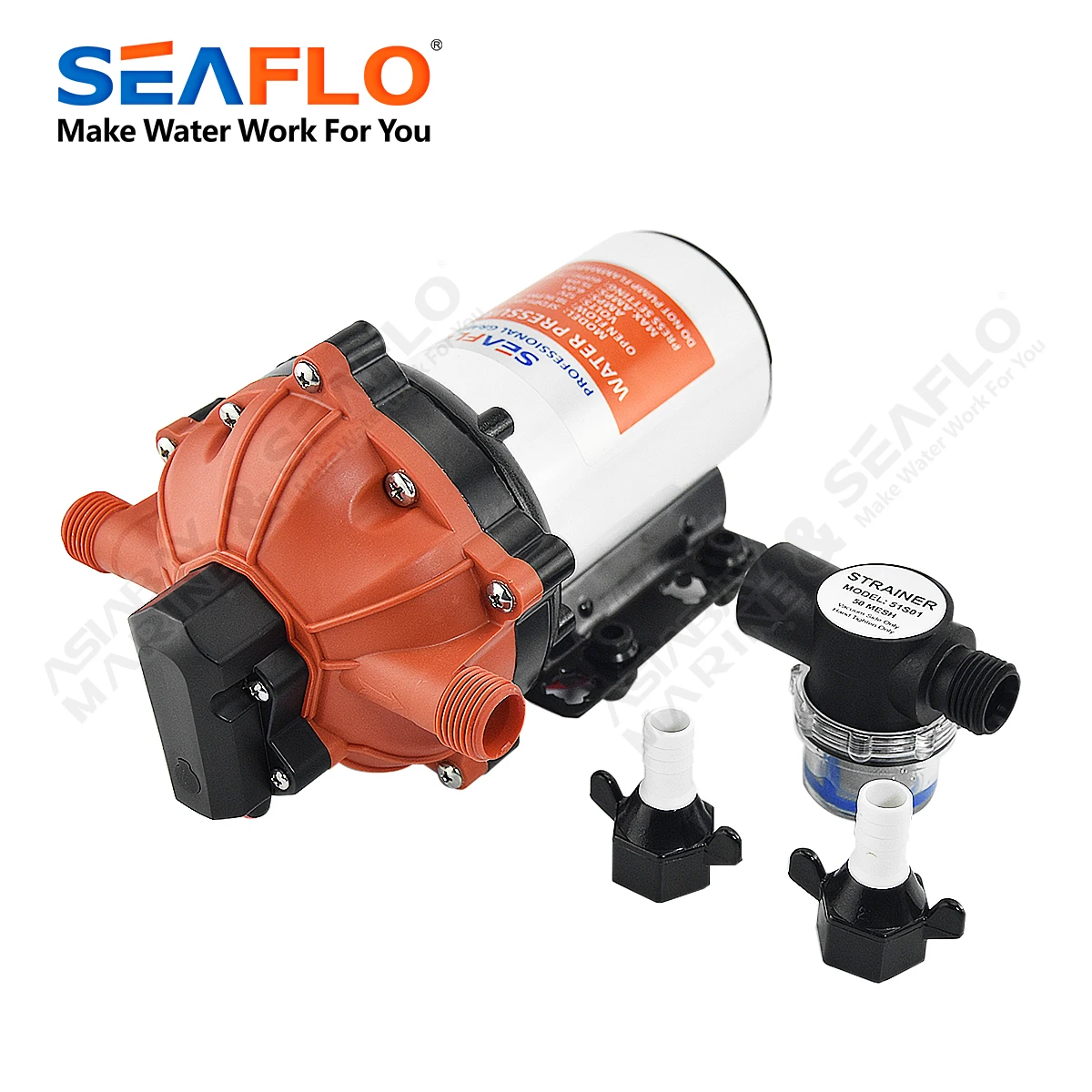

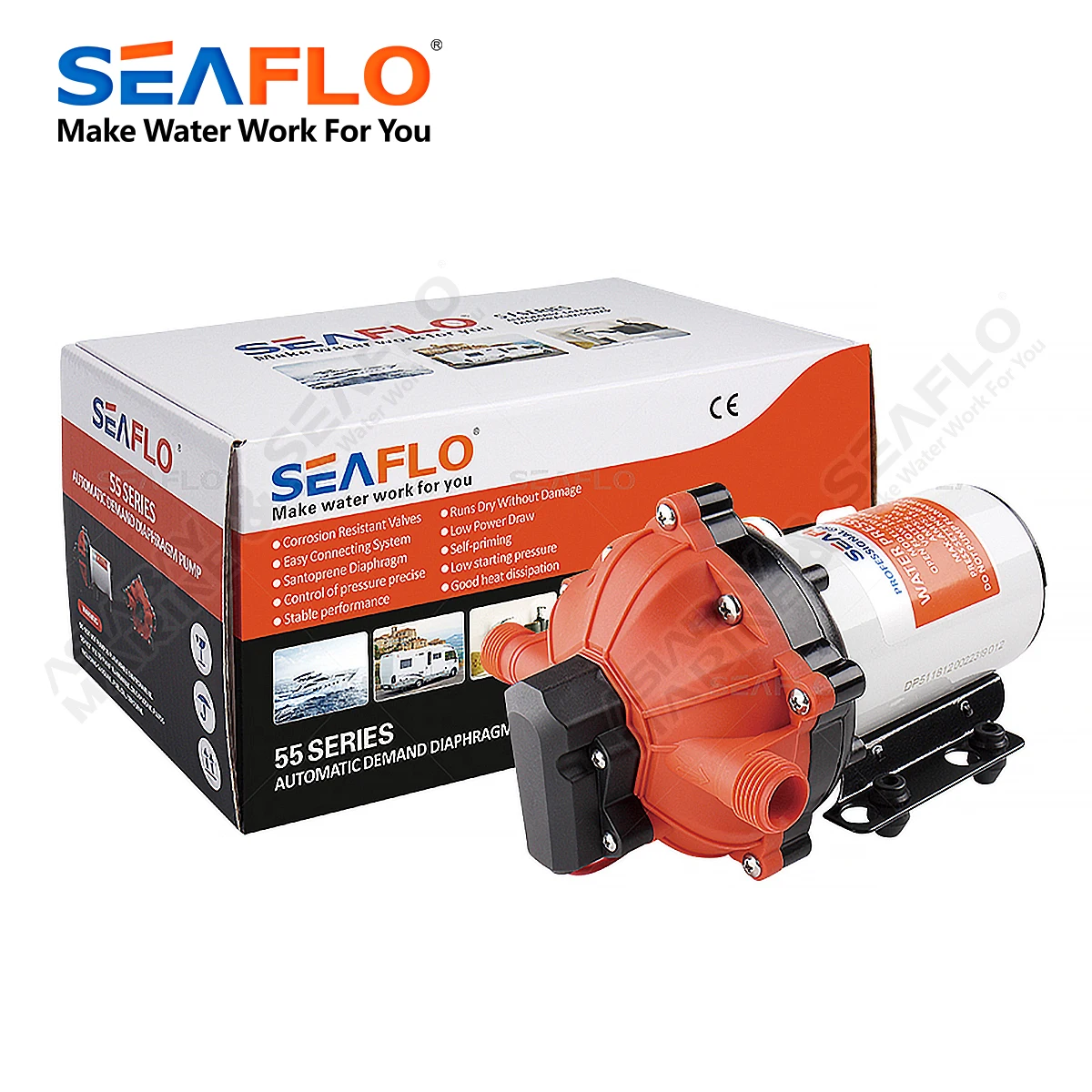

SEAFLO 55 Series Diaphragm Water Pump 5.0GPM 60PSI 12 Volts Electric Yacht Boat Marine RV Caravan High Pressure Supply 5 Chamber |

SEAFLO 55 Series Diaphragm Water Pump 5.0GPM 60PSI 12 Volts Electric Yacht Boat Marine RV Caravan High Pressure Supply 5 Chamber |

Description:

The 55 Series is our Heavy-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. These models are designed to run on water systems with no accumulator tank necessary, and up to five fixtures! It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 5.0 gallons per minute. The 55-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed.They are easy to install service and winterize

Specification:

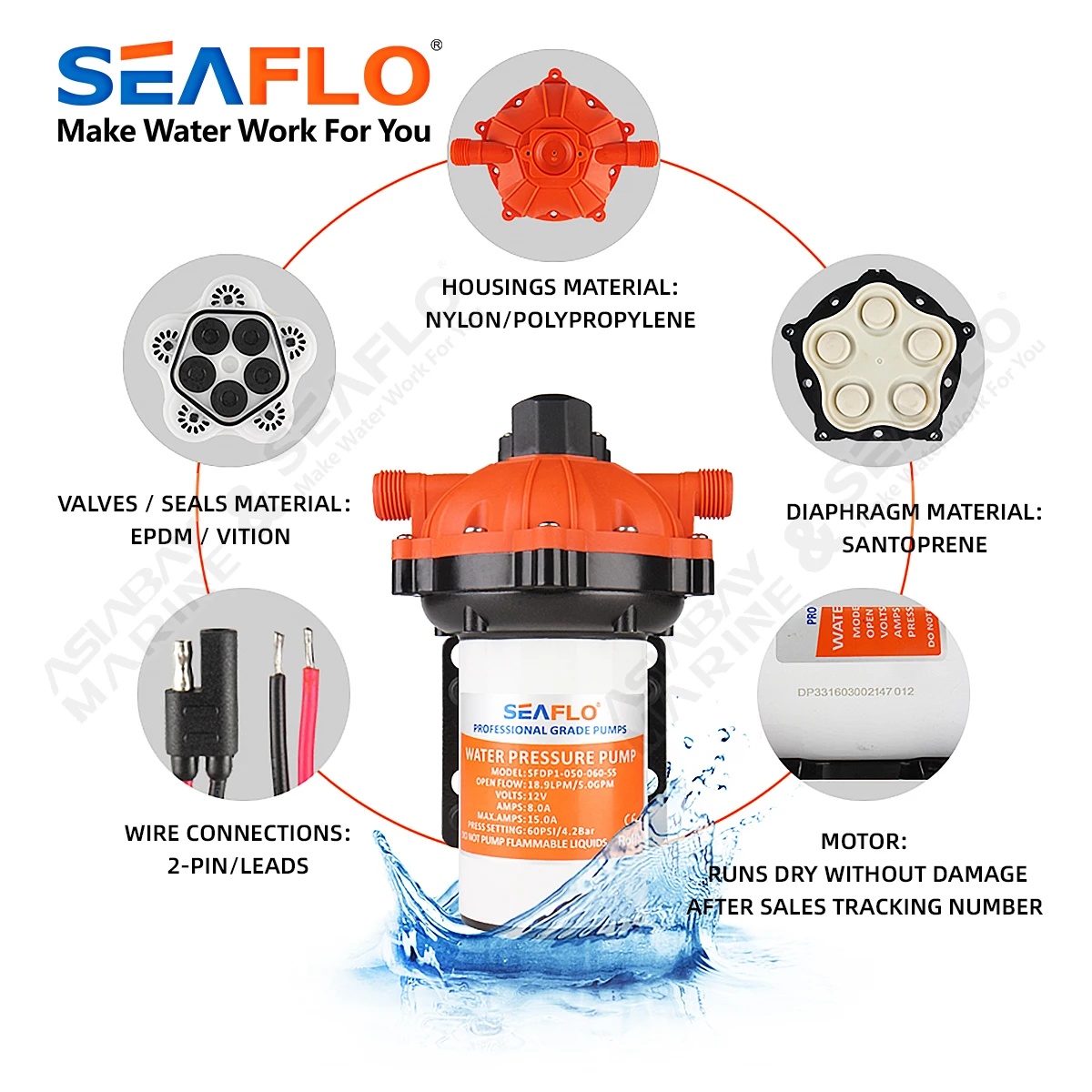

5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry

Type:SFDP1-050-060-55
Control Type:Pressure switch & By pass control
Max Recommended Temperature:60° C（140° F）
Priming Capabilities:6 feet (1.8 m) suction lift
Shut-on Pressure 20 PSI ：20 PSI ±3 PSI
Shut-off Pressure 60PSI : 50PSI ±3 PSI
Inlet/Outlet Ports:1/2"-14 MNPT
Max.Amp Draw:17 A
Voltage：12V

Package Includes:

1 Piece
