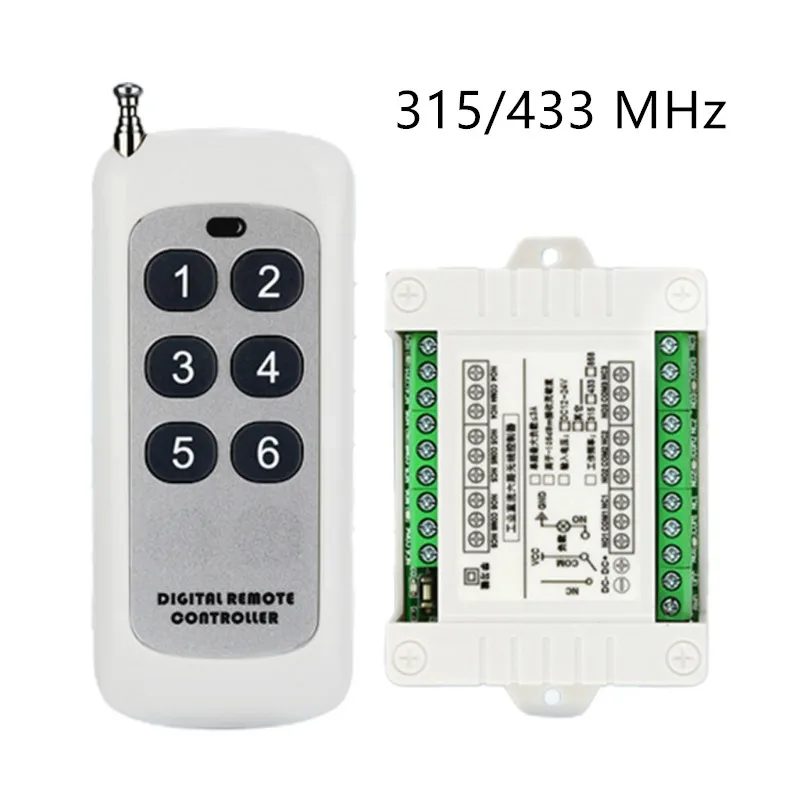

315/433mhz DC 12v 6ch 6ch Rf Wireless Remote Control Switch System, Transmitter + Receiver, 3000m Long Distance

Features：

100% brand new and high quality

Control lights, motors, fans, electrically operated doors/locks/windows/shutters/cars or other appliances with ac220v, AC85V-260V or dc12v.

You can turn on/off the receiver with transmitter (remote control) from anywhere within a reliable distance; the wireless rf signal can pass through walls, floors and doors.

This switch can learn different encoding remote controls (such as 2262,1527 ect.). Operating frequency: 315 mhz/433 mhz.Wireless control, easy to install.

One/many transmitters can control one/many receivers simultaneously.Wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, line jump or dial code switch encoding.

If you use two or more receivers at the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it won't affect each other.

Package Includes:

1 x Remote Control Switch.

Specifications:

Channel: CH 6

RadioFrequency: 315 mhz/433 mhz

Working Voltage: DC12V

Operation Type: Jog/Momentary/Unlocked (press and hold-> on, release-> off)

Lock/Locked (press->on; press another button->off)

Auto-lock/Toggle (press->on, press again->out)

Coding Type: Learning Code

Maximum Working Current: 10A

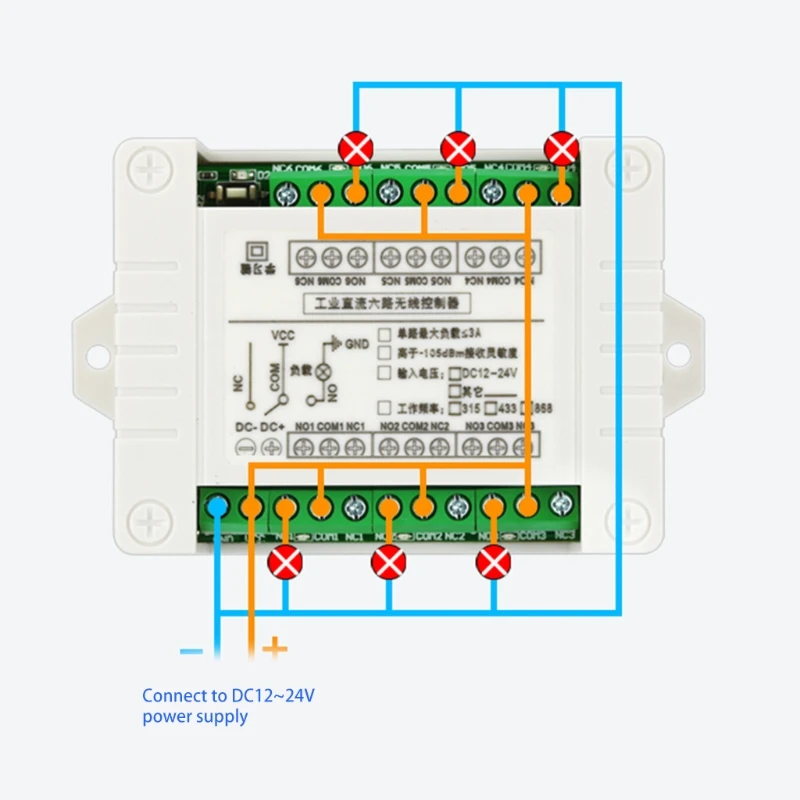

Output Mode: no Voltage Output (also called contact output)

Step-down Approach: Resistance-Capacity (rc)
