Bleed Kit Filler For Seastar Hydraulic Steering Systems Bridge Tube & Hose High Quality Boat Accessories | Спорт и развлечения

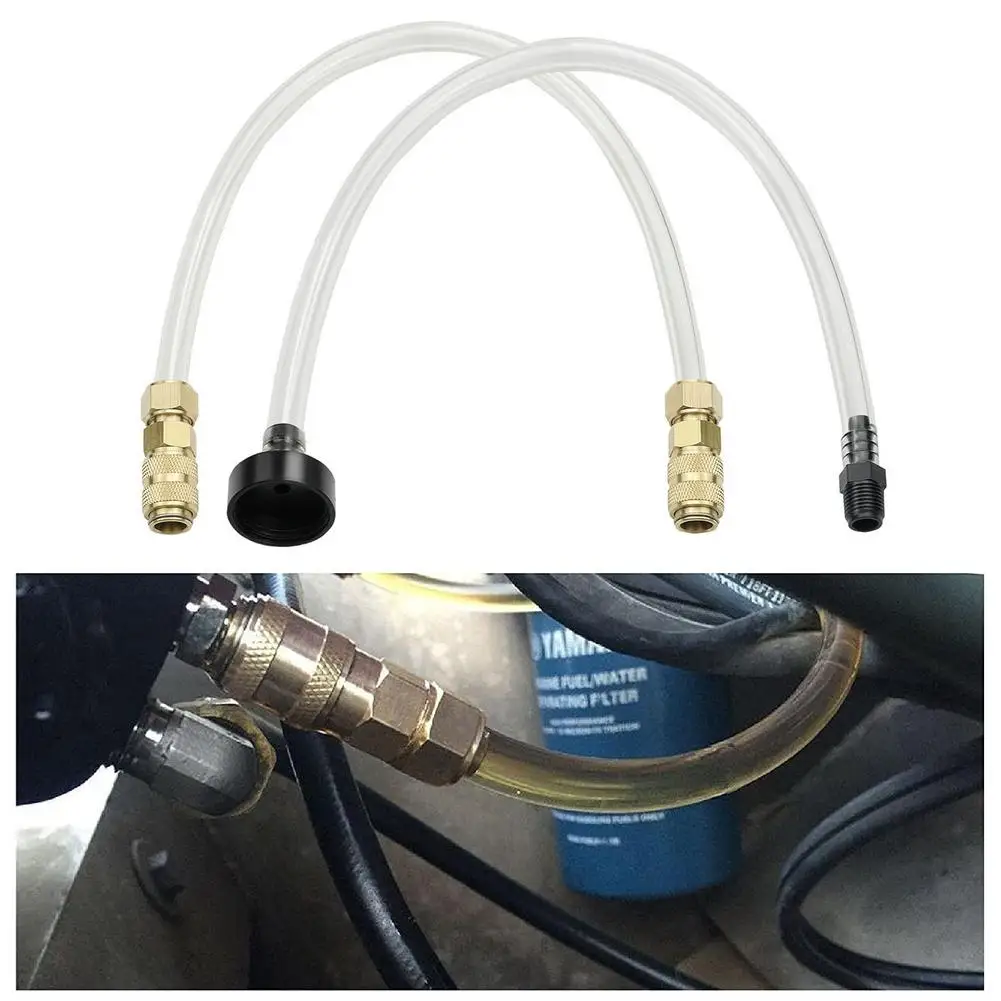

Bleed Kit Filler Kit For Seastar Hydraulic Steering Systems Bridge Tube & Hose High Quality Boat Accessories

Bullet Points:

1、Product Compatiblity: Compatible with Seastar hydraulic steering system, suitable for Seastar inboard and outboard hydraulic rudders.
2、High Quality: High-quality brass pipe fittings and PVC pipes ensure perfect mechanical and physical functions, with excellent oxidation resistance, corrosion resistance and durability.
3、Quick to Install: You can quickly connect the brass fittings with ABS screw caps, without any leakage, which can help you easily clean the liquid on the ship while keeping the items clean. (The kit includes a hose with a screw cap suitable for SeaStar, which is the same as the oil bottle, and also includes a bridge tube connected to the discharge accessories).
4、How to Use: One bridge tube screwed to the fuel tank, and one bridge tube connected to the bleed fitting.

5、Kind Reminder: Position the discharge fitting upward when pumping fluid with the rudder pump, it will allow air to be out from the cylinder.

Instructions:
1. Connect the bottle to the helm water tank (don't pierce the bottle and don't let the bottle empty).
2. Connect the bridge tube to the drain joint on the steering cylinder and loosen the joint.
3. Use the rudder to pump fluid through the system by turning the wheel in one direction. The bubbles will be pushed to the helm of the reservoir.
4. Through the fully articulated joint, manually swing the outboard motor to release the trapped air, and confirm the good air-out.
5. Note: Position the discharge fitting upward when pumping fluid with the rudder pump, it will allow air to be out from the cylinder.
6. Repeat step 3 and step4 as needed until no air can be seen in the bridge tube.
7. Tighten the drain joint before removing the bridge tube.

Specifications:
Size:
Black Tube: Length about 46cm/18.11in
Yellow Tube: Length about 45cm/17.72in

Packing List:
1 x Tube Connected to the Bleed Fitting
1 x Tube Screwed to the Fuel Tank

Notes:
Due to the lighting effects and shooting angles, there is color difference in the product, please understand.
Due to manual measurement, there is tolerance in the product size.
