Монитор полевой камеры DSLR с сенсорным экраном FEELWORLD F5 Pro V2 диагональю 5,5 дюйма, 3D LUT, HDMI 4K и беспроводной передачей с LED-подсветкой.

Монитор полевой камеры DSLR с сенсорным экраном FEELWORLD F5 Pro V2 диагональю 5 дюйма 3D LUT HDMI 4K и беспроводной передачей LED-подсветкой.

Kit 1 Package Listing:

1× Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Disassemble Wrench
1× TYPE-C to USB
1× Manual

1× Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Disassemble Wrench
1× TYPE-C to USB
1× Manual

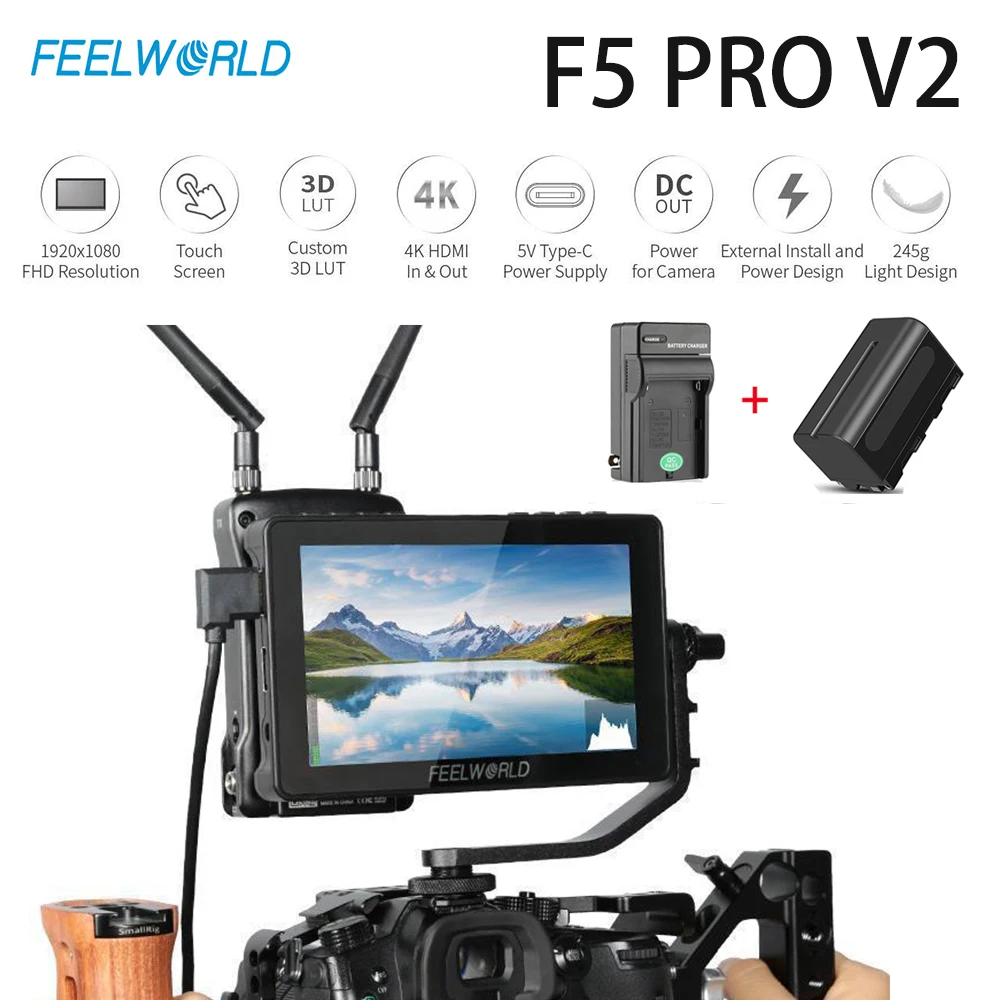

5.5" LCD, 1920x1080 Resolution

High resolution, brighter full of colors

The
F5 Pro V2 provides a sharp image, ideal for focus pulling and image
analysis on set and in the field. With native 1920x1080 high resolution
and 16:9 display, 500cd/m2 brightness, 1000:1 contrast ratio, delivers
excellent detail, so you can enjoy sharper and richer colors image. The
wide viewing angle of IPS 160 degrees is convenient for monitoring from
multiple angles. FEELWORLD follows the standard of REC-709 and
calibrates each monitor so that it can eliminate the trouble of color
cast.

Some
cameras can output logarithmic colors pace to preserve the dynamic
range, which is great for later post production, however when these
files are viewed on a monitor they can look flat and washed out. 3D LUTs
solve this problem because they allow you to apply a "look" to the
monitor so you get an idea of how the finished images will look like
when editing. You could use 4 built-in LOG to Rec.709 video or upload
.cube files ( A single file must not exceed 7.9M, supports files with
LUT_3D_SIZE of 16, 17, 32, 33, 64, 65.). F5 Pro V2 allows you to load
internally up to custom LUTs (Up to 32 user files can be imported),
looks or profiles at any time via the TYPE-C interface to USB . Slot and
instantly select between them, maintaining creative intent, always.Some
cameras can output logarithmic colors pace to preserve the dynamic
range, which is great for later post production, however when these
files are viewed on a monitor they can look flat and washed out. 3D LUTs
solve this problem because they allow you to apply a "look" to the
monitor so you get an idea of how the finished images will look like
when editing. You could use 4 built-in LOG to Rec.709 video or upload
.cube files ( A single file must not exceed 7.9M, supports files with
LUT_3D_SIZE of 16, 17, 32, 33, 64, 65.). F5 Pro V2 allows you to load
internally up to custom LUTs (Up to 32 user files can be imported),
looks or profiles at any time via the TYPE-C interface to USB . Slot and
instantly select between them, maintaining creative intent, always.

Easy Touchscreen Controls, Freely Zoom In and Out

Adopt full touch screen control, you can easily and intuitively zoom in and Out of your shot with the pinch-to-zoom gesture.

All Control At Your Fingertips

Use simple tap and swipe gestures to make adjustments!

The
built-in monitor is also an interactive touchscreen that makes setting
up the F5 Pro V2 incredibly intuitive. All of the functions are at your
fingertips, allowing you to use simple tap and swipe gestures to change
function settings. When you need to turn off the touch screen function
to prevent misuse, you can turn it off in the menu setting function.

Designed for Every Situation

When
attached to your camera, the size and weight of your monitor matters.
We shaved F5 Pro V2 down to just 245g and added 1/4-20 screw mounts top,
bottom and right for ease of cage, adaptor rigging, and tilt arm. There
are an F970 battery plate and an install/ power kit on the back of the
monitor, the install/ power kit can power and install the external
equipment, like wireless transmitter, LED light and others which
equipped with Sony F970 battery plate. F5 Pro V2 is compatible with most
cameras and HDMI-ready devices and is the perfect companion for the
shooters that are always on the go.

Wide Compatibility

F5
Pro V2 monitor is compatible with various cameras, like SONY,
Canon,Nikon, Panasonic, FUJIFILM, Leica, OLYMPUS. PENTAX, etc.
compatible with various cameras, like SONY, Canon,Nikon, Panasonic,
FUJIFILM, Leica, OLYMPUS. PENTAX, etc.

Have Professional Tools for Framing, Focusing and Exposing

The
F5 Pro V2 is sure to add instant production value for mirrorless and
DSLR shooters. Its bright touch screen, professional software tools, and
convenient mounting is invaluable for shooters looking to do more with
less gear. The monitor includes a plethora of useful features such as
histogram, false color, focus assist, embedded audio, pixel to pixel,
frame guides, nine grid etc.

True Color · Professional Color Calibration

Use Rec.709 color standard

FEELWORLD
uses the professional Rec.709 HD color standard, and uses the color
calibration technology, with the professional instrument calibration at
the factory, it can achieve monitor calibration efficiently and get
accurate color reproduction easily, do not distort the color, show the
real image when you shooting video.

Accurate Color Reproduction

FEELWORLD
monitor support ITU standards and HD video Rec.709 standard consistent
color space, advanced image processing technology, so that the image
clearly presented, the color is extremely natural, to ensure accurate
color reproduction, to reproduce the physical nature of shooting,
enabling users to accurately evaluate the quality of various input video
signals.

Brightness Histogram

The
Brightness Histogram is a quantitative tool to check the picture
brightness.The feature shows the distribution of brightness in an image
as graph of brightness along the horizontal axis (Left:Dark,
Right:Bright)and a stack of the number of pixels at each level of
brightness along the vertical axis.

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possib

le
picture. When activated, the internal processor will display a colored
highlight on the screen where sharp edges appear. You can switch the
putline color between red, green, blue according to different tone of
the subject.

The
False Color filter is used to aid in the setting of camera exposure. As
the camera Iris is adjusted, elements of the image will change color
based on the luminance or brightness values. This enables proper
exposure to be achieved without the use of costly, complicated external
test equipment.

Exposure (zebras)

The
Exposure is used to assist in exposure adjustment in the mode of Zebra
Pattern. It is considered overexposed and displays the moving warning
lines onto the over exposed areas. 1-100IRE adjustable.

Zoom In (4X, 9X, 16X)

Image magnification is HD signal in any part, an amplification for high quality close-up.

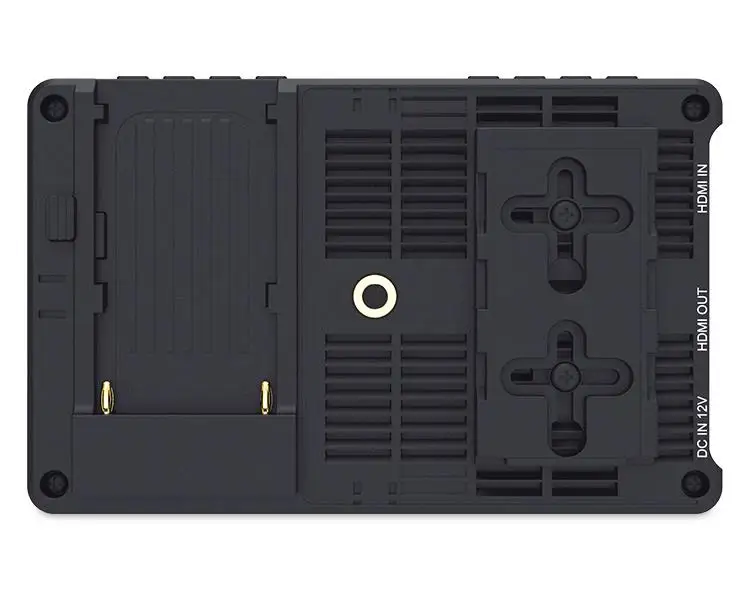

Innovative External Install and Power Design

Simplify your photography equipment
A
Sony F970 external install and power kit design is added to the back of
the monitor. The external kit can be used to install and install the
external equipment, like wireless transmitter, LED light, video
converter and others which can be powered by Sony F970 battery. This
innovative external power supply design reduces the need for
photographers to connect to external wireless transmission, LED light
and other equipment, greatly saving the space occupied by the equipment
and reducing the weight of photography equipment.
The kit has two
cross slots, you can adjust the position of the external device by
loosening the screws. When you don't need the kit, you can directly
loosen the screws to remove the kit.

Intuitive Controls and Menus

You
can touch the screen or physical buttons to browse the menu and set
functions. F5 Pro's key distribution design is simple and easy to
operate. At the top of the monitor, there are 2 custom function buttons,
you can set them as commonly used functions. You can also set the
shortcut function of the left and right keys directly in the menu
setting function, which can be set to backlight adjustment or volume
adjustment, directly press "﹤" to decrease the value; directly press "﹥"
to increase the value. And the monitor will automatically save the
parameters you have previously set, and keep the original settings when
you turn it on next time. It does not need to be reset, which is
convenient and simple.

Touch Screen Operating Instruction

1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
2.
Swipe up from the bottom of the screen to open the shortcut menu and
click on the corresponding menu to open or set the corresponding
function. Double-click the shortcut menu function and select the
function setting with the "<" or ">" key.
3. On the left side
of the screen (1/2 split screen), you can directly adjust the brightness
of the screen backlight; on the right side of the screen (1/2 split
screen), you can directly adjust the volume.
4. Click any space beside menu to exit the menu.

4K HDMI Input & Loop Output

The
F5 Pro V2 has 4K HDMI in and loop-out, allowing it to not only display
live signals, but also send them out to other monitors simultaneously.
It's the ability to display live picture on multiple displays at once
while still maintaining the original video quality. Plus, you can
monitor audio using the 3.5mm stereo headphone jack.

HDMI Output Application

Connect to Wireless Transmitter
Transmission
to film crew director monitoring at the same time. Without the cable
more flexible to transition between scenes effortlessly for outdoor
shooting.

Connect to Director Monitor
Display live picture on multiple displays simultaneously.

Power Your DSLR or Mirrorless Camera

The
FEELWORLD F5 Pro V2 is an ideal camera-top monitor for DSLR and
mirrorless camera shooters. Because the F5 Pro provides auxiliary power
out; allowing shooters to power their cameras. With a battery adapter
cable (Optional), the F5 Pro extends camera run-time, while providing a
more usable display.

Multiple Power Supply WaysIn
addition to the power supply through the F970 battery plate and 12V DC
power input, it also supports 5V Type-C input, which can be powered by
mobile phone charger or power bank. (At least 5V/2A)
Note: The 5V Type-C port is only used for power supply, not for data transmission, and cannot provide loop-out power.

Convenient Mounting - Tilt Arm

Every
F5 Pro V2 monitor will ship with a cold shoe mounted Tilt Arm. Shooters
will have a secure way to position their monitor while maintaining a
low profile.
• Allows the F5 Pro monitor to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.

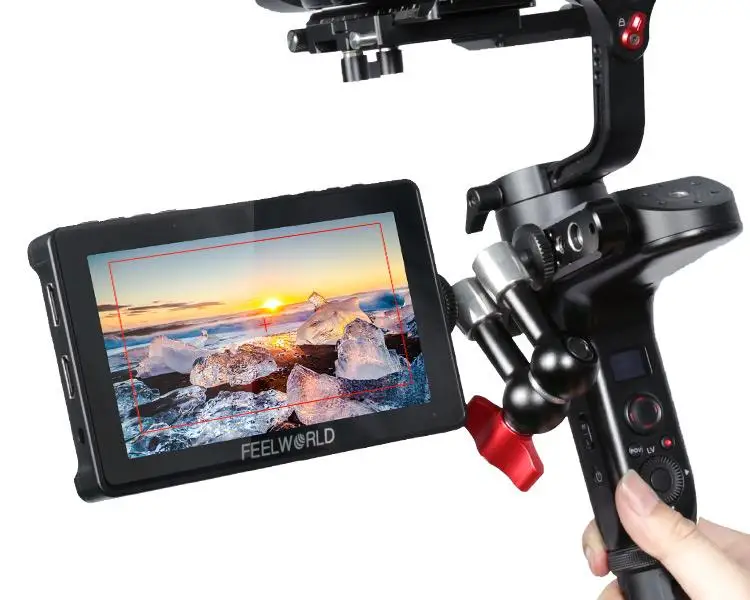

Flexible Install Both on Camera and Gimbal

To convenient the various angles monitoring

F5
Pro V2 features standard 1/4" mount points (top, bottom, right, middle
back) for attaching it to cameras and rigs. Not only you can install it
on a monitor through tilt arm, but also you can mount it on a handheld
stabilizer or securely attach it to the top of your camera as the
ultimate HD viewfinder! If you install it on the bottom of the device,
you can also combine the image flip function to maintain the correct
orientation of the screen!

Portable Sunshade, Easy Install

The
F5 Pro V2 monitor is equipped with a sunshade, which allows the
photographer to focus more on the video and avoid the interference of
strong light, providing a better visual experience. The installation
process is simple and fast, which is very suitable for outdoor shooting.
