1.Description:
It is a multi-function relay module.This module uses a single-chip microcomputer as the main control core with high time accuracy.The microcontroller has a built-in watchdog circuit and a dedicated reset chip,which is stable and reliable.

2.Feature:
1).The delay error does not exceed 2% under different temperature and humidity.
2).It has high adjustment accuracy and high sensitivity.
3).It can loop indefinitely and there is no limit on the number of times.

3.Parameter:
1).Product Name:Multi-Function Relay Module
2).Working Voltage:DC 5V
3).Adjustment Time:0 to 15 minutes
4).Work Temperature:-25℃~85℃
5).Work Humidity:5%~95%RH

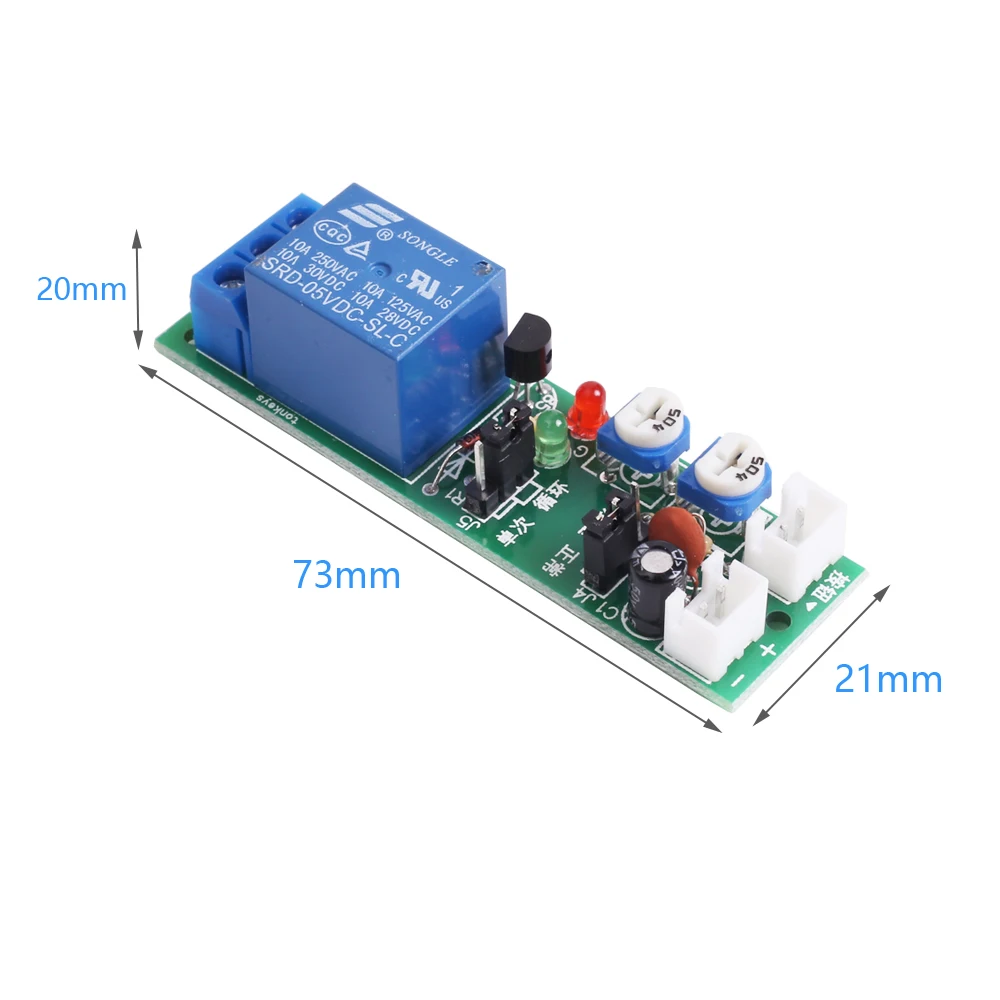

6).Size:73*21*20mm

4.Applications:
1).Time-limited working equipment,such as automatic power-off after 5 minutes after each keystroke.
2).The machine repeats the test circuit,for example,power on for 1 minute and then power off for 1 minute.
3).The fish tank water pump pumps water and oxygen intermittently.
4).Control equipment at other times.

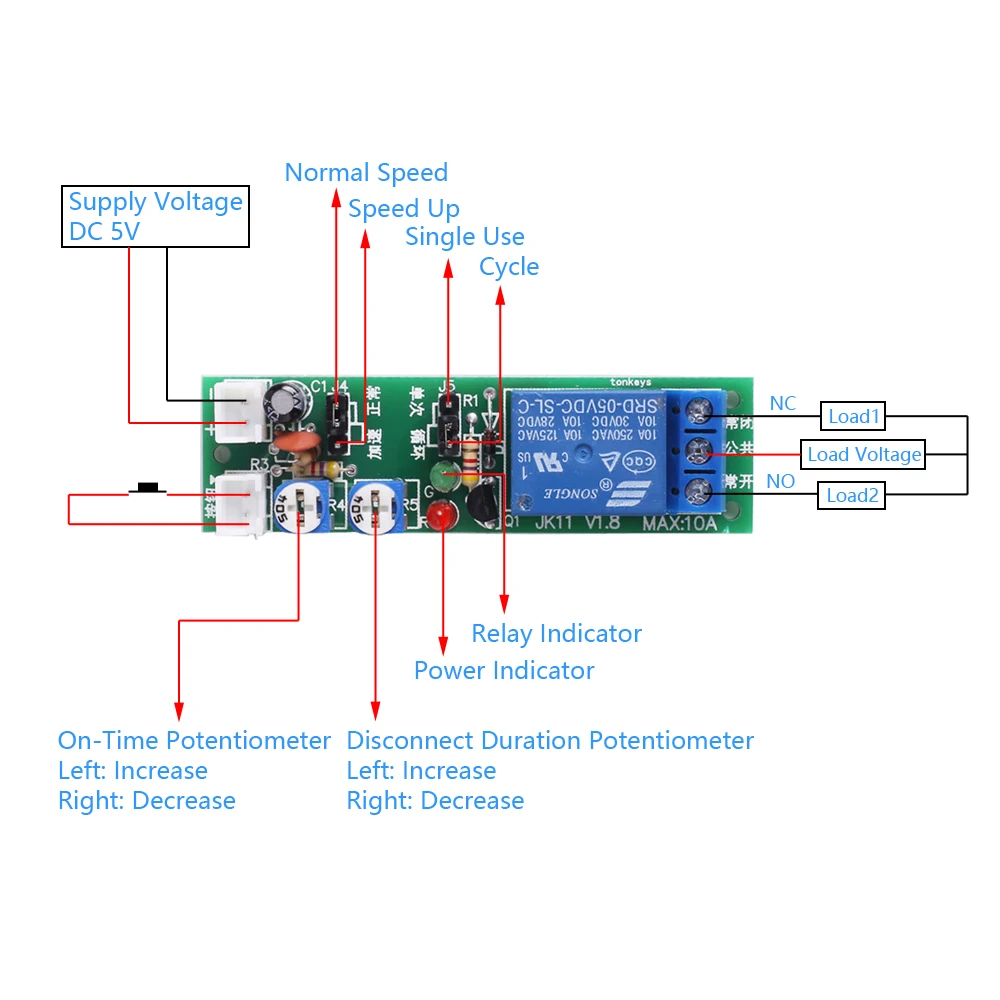

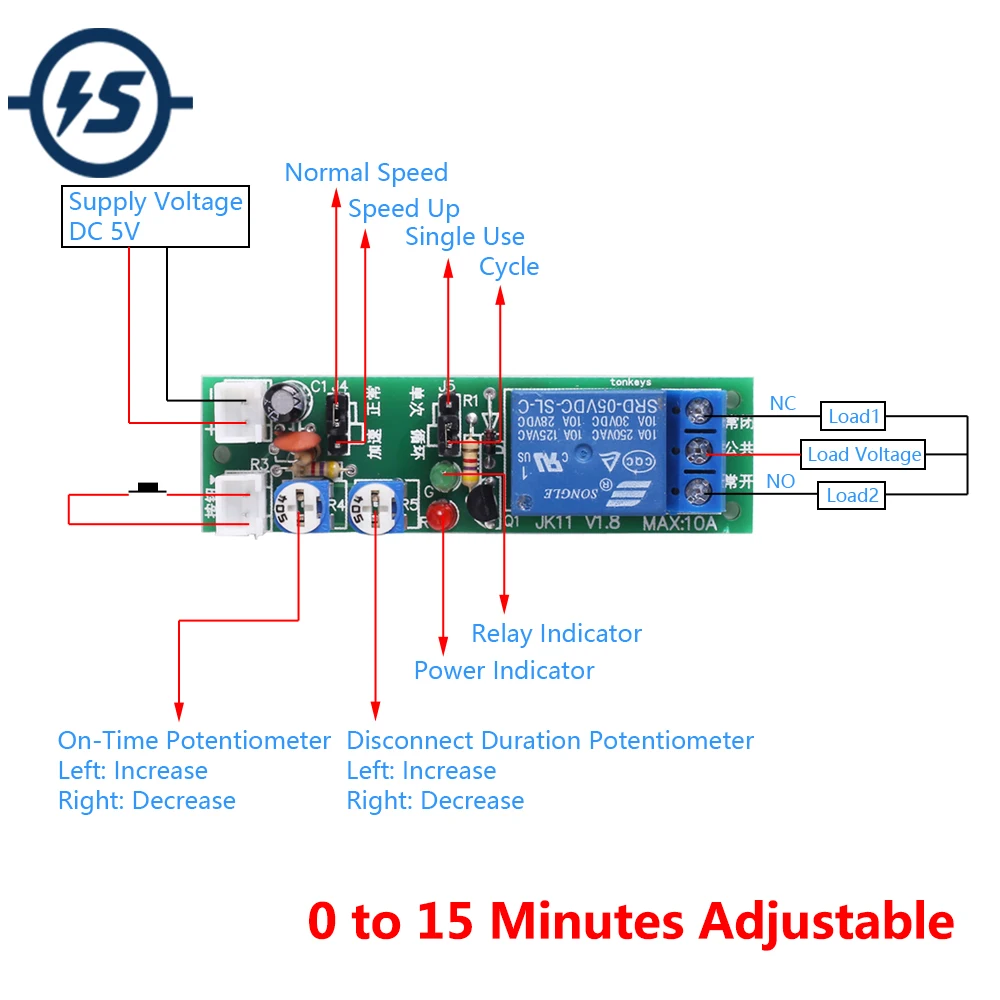

5.Single Mode:
1.No action after power on,the relay will be turned on after triggering,and will be turned off when the time is reached.
2.In the delay process after the relay is turned on,if it is triggered again,the delay will be interrupted immediately.

6.Package:

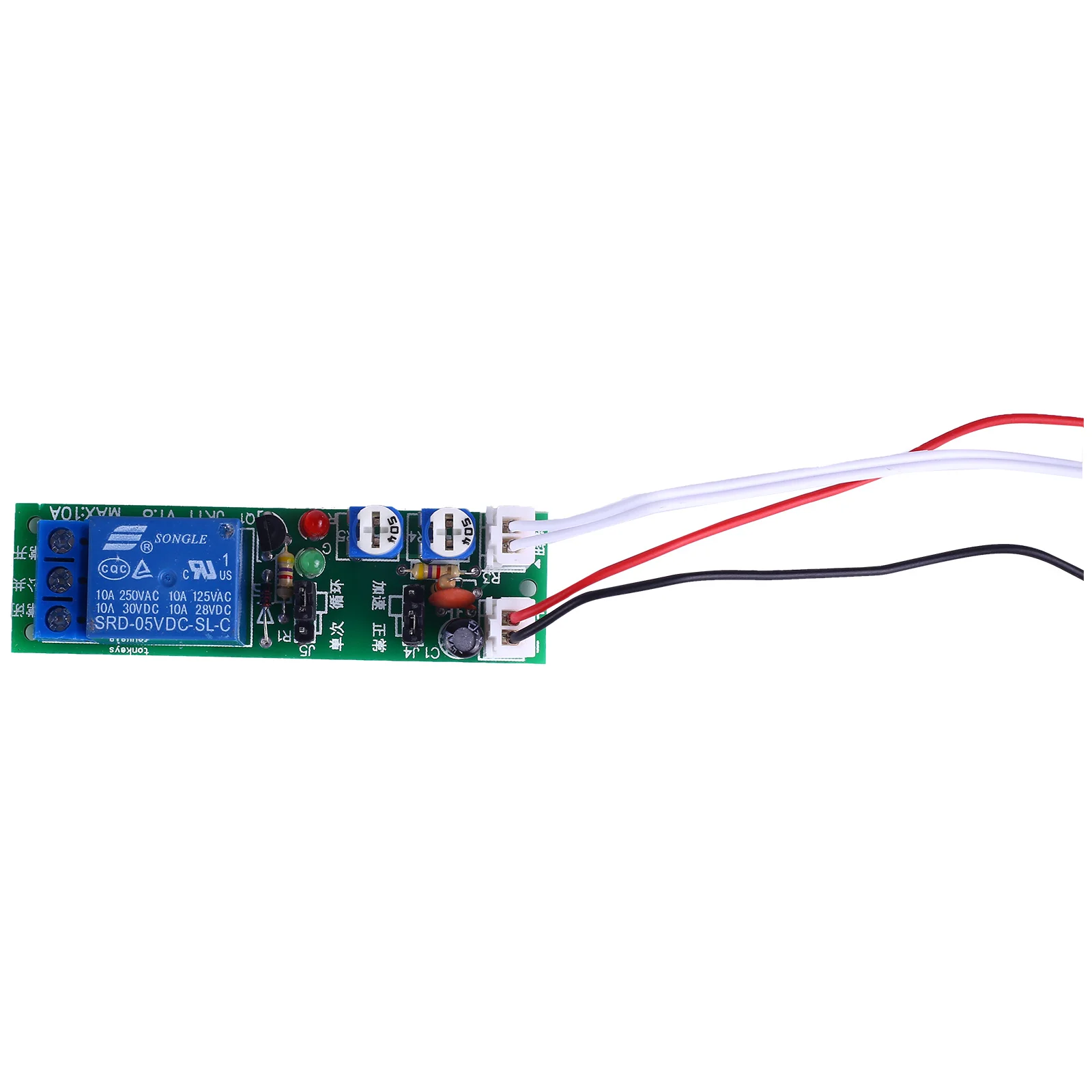

1).1pc Multi-Function Relay Module
2).2pcs 10cm Wire
