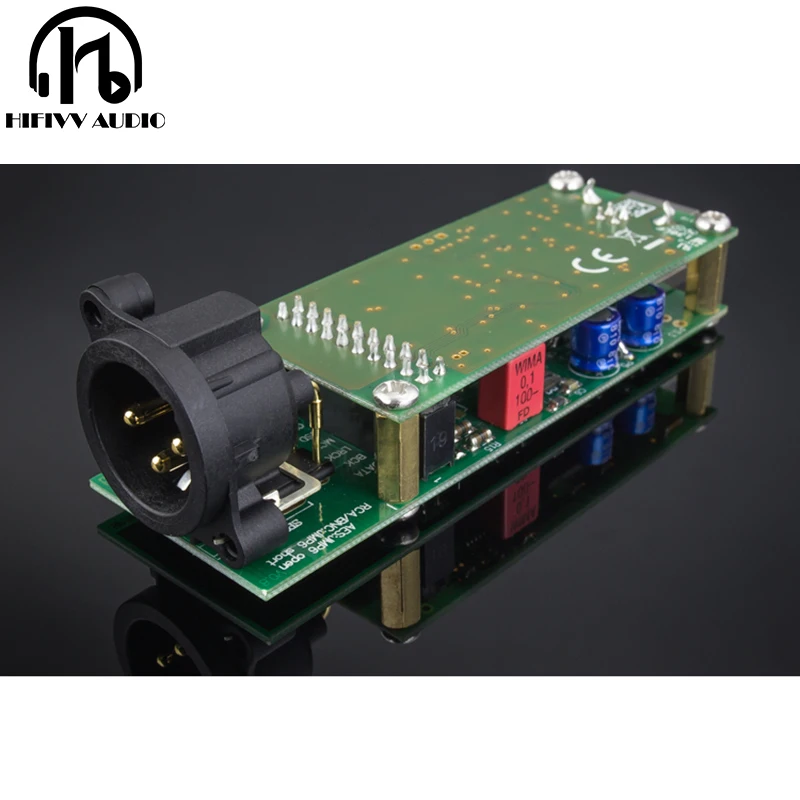

HiFi USB amplifier DAC Digital interface Of 100% Original Amanero Combo384 decoder USB to XLR output

Features:
Information Reference: http: //amanero.com
Driver Download: http: //amanero.com/drivers.htm

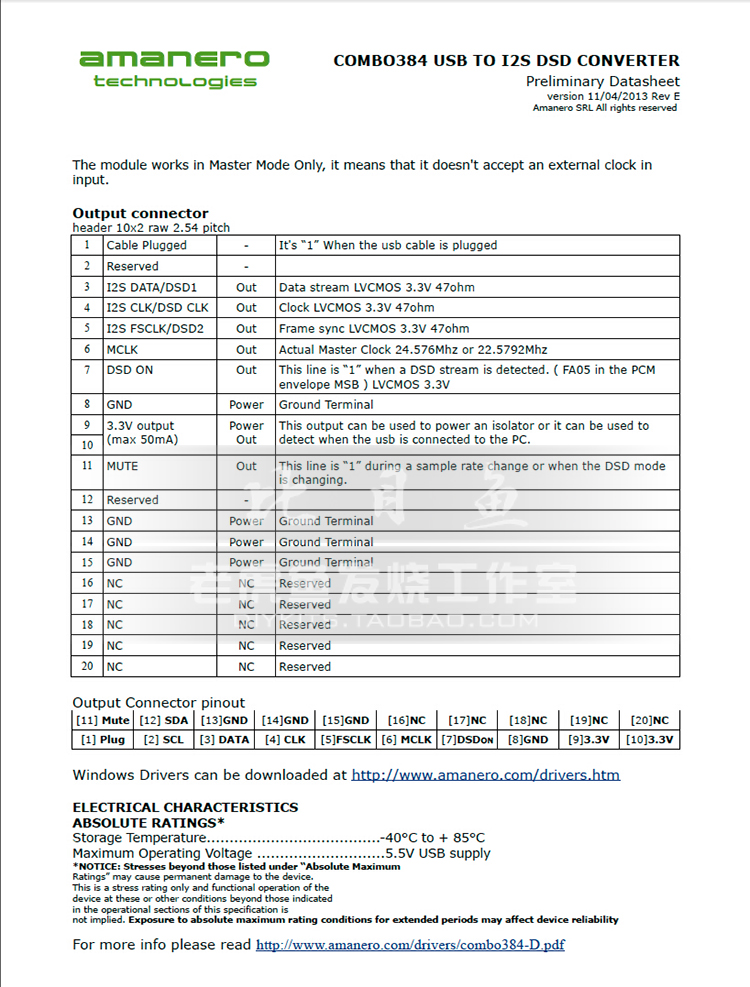

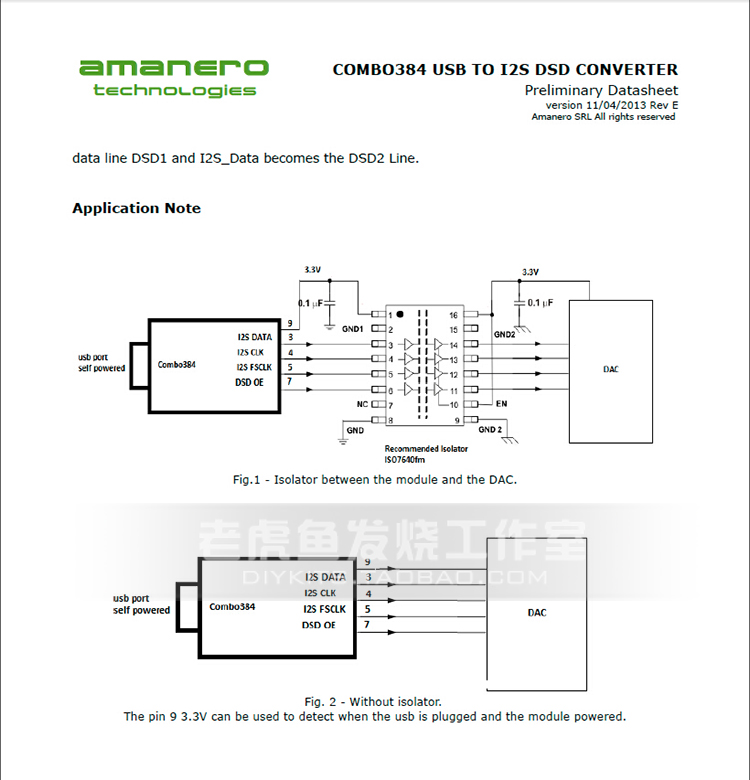

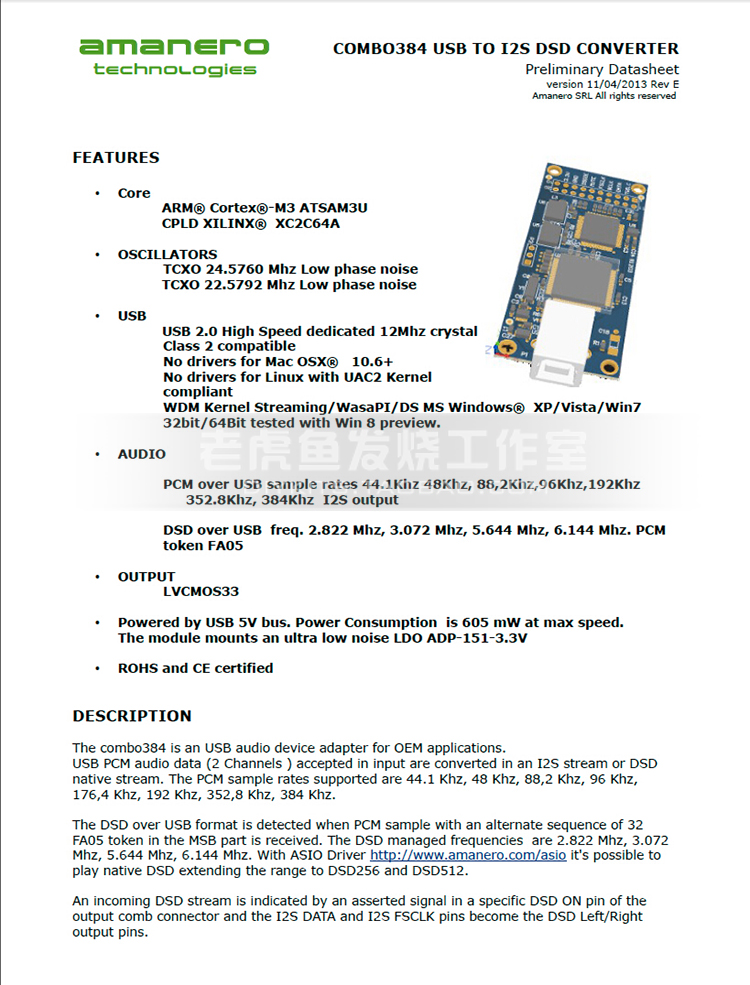

Circuit diagram: http: //amanero.com/USB_E.pdf

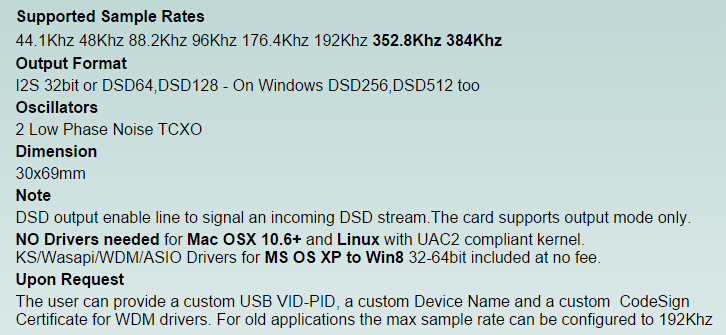

Parameters:
1. upported Sample Rates :
44.1Khz 48Khz 88.2Khz 96Khz 176.4Khz 192Khz 352.8Khz 384Khz
2. Output Format :
I2S 32bit or DSD64,DSD128 - On Windows DSD256,DSD512 too
3. Dimension: 30x69mm
4.Note
DSD output enable line to signal an incoming DSD stream.The card supports output mode only.
NO Drivers needed for Mac OSX 10.6+ and Linux with UAC2 compliant kernel.
KS/Wasapi/WDM/ASIO Drivers for MS OS XP to Win8 32-64bit included at no fee.

Amanero digital interface master card

Brand: amanero, Italy;

Origin: Italy

Input: USB 2.0;

Output: I2S

Crystal oscillator: 2 low phase noise XO

Current: About 100mA

PCB: green gold deposition process;

Chip: CPLD

Size (mm): 30mm * 69mm L x W x H = 94x47x30 (RCA / BNC finished product with box)

Output specification: IIS (the master card only has IIS output)

PCM: 44.1kHz 48kHz 88.2kHz 96kHz 176.4kHz 192kHz 352.8kHz 384kHz

DSD：32Bit or DSD64，DSD128，DSD256，DSD512

Package include:
USB to coaxial product  * 1pc

USB to coaxial board  * 1pc
