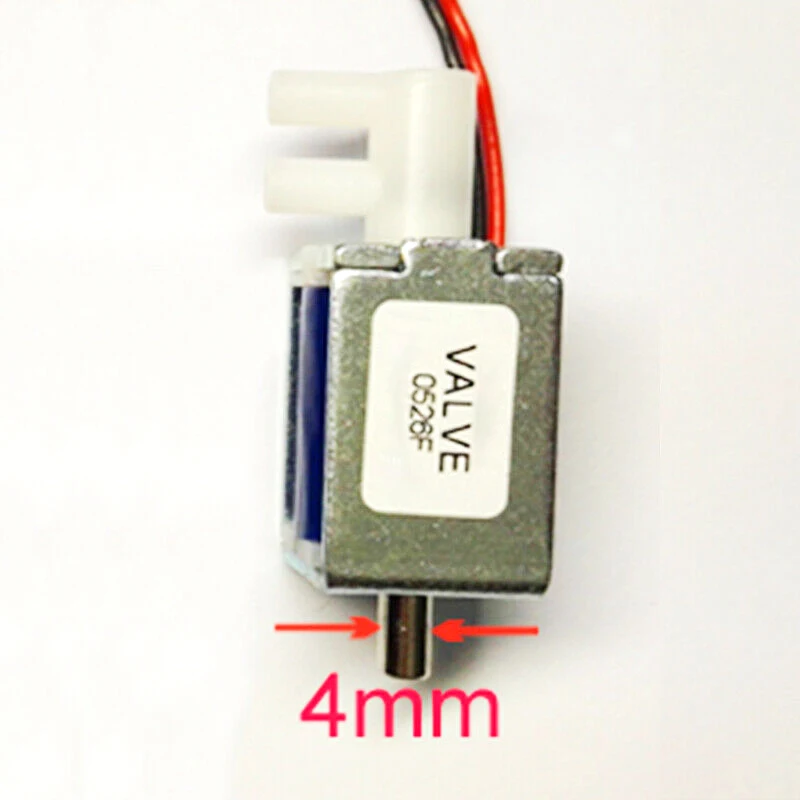

1шт. Воздушный клапан 2-позиционный 3-ходовой постоянного тока 6В 12В 24В с портом 4 мм, миниатюрный микроэлектрический соленоидный выключатель для выпуска газа.

Description
Specification:

Type 1--DC 6.0V Air Valve:   Rated voltage: DC 6.0V    Rated current: <320mA
Type 2--DC 12V Air Valve:   Rated voltage: DC 12V     Rated current: <180mA
Type 3--DC 24V Air Valve:   Rated voltage: DC 24V     Rated current: <100mA

Venting speed: <3S (the time required for the air pressure to degas from 300mmHg to 15mmHg in a 500cc container)

Pressure range: 0-350mmhg

Sealability: The inflation is stopped after the inflation pressure is from 0 to 300 mmHg in a 500

cc container, and the reduced pressure is less than 5 mmHg/min after 30 seconds of stabilization.

Use fluid: Air

Service life: In a 500CC container, inflate for 10 seconds, exhaust for 5 seconds, test for more

than 50,000 cycles.

Operating temperature range: 0°C ~ 55°C

Noise: Put a 5cm sponge under the air pump, 30cm away from the noise meter (<60dB).

Power: <2.5W

Package Include:

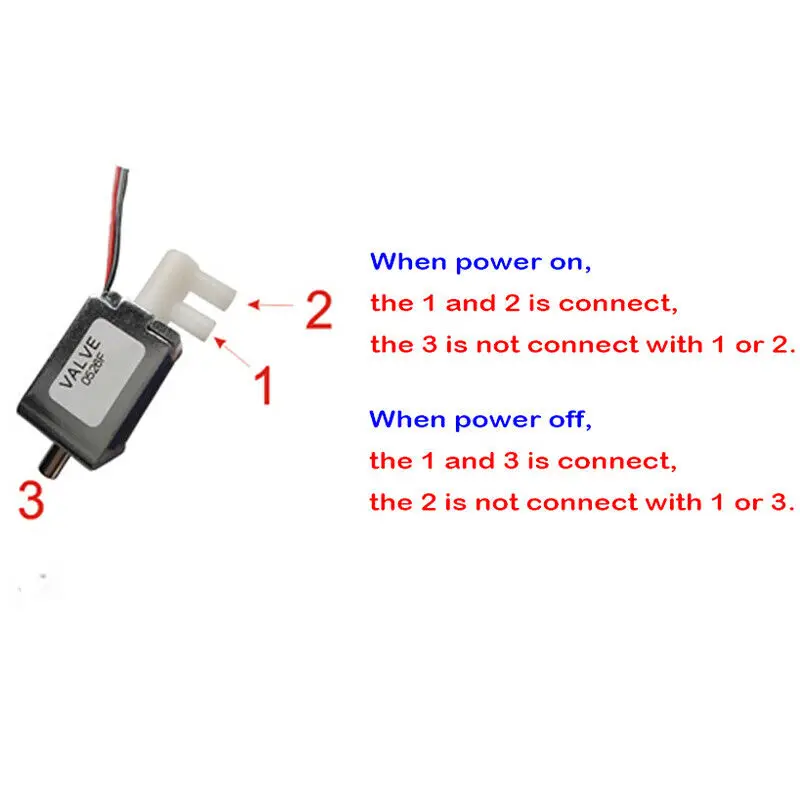

1PCS*  2-position 3-way Valve


---
