50KV DC3.6V-6V Pulse High Voltage Arc Generator Inverter Ignition Transformer
OOTDTY

Features:
High-voltage module should be used to avoid high-voltage no-load power, power must be adjusted before the high-voltage line of the appropriate distance, high-voltage line arc distance and the battery voltage and capacity is proportional to.
The test arc distance from the short to long experimental, power is strictly prohibited beyond the longest arc distance, because the high-pressure energy can not be released, easily damaged module.
The module power, the internal should not heat, so it can not work for a long time.
To determine whether the battery capacity can drive the maximum output power is the way to measure the arc when the battery voltage. If you can drive about 6V maximum power.
The small capacity of the two series of 7.2V in series, in the arc state measurement voltage has dropped to about 4V, the smaller the capacity of the lower voltage pull. It is recommended to use more than 2000MA lithium, the best condition with more than 4000MA battery.

Specification:
Input voltage: DC3.6V-6V
Input current: 0.5A-1A
Input wire length: 11 cm
High voltage type: pulse DC type
Output voltage:50KV (please pay attention to safety when using)
Output current: 0.05A
Output length: approximately10cm
High voltage bipolar discharge distance: 0.5 cm -1.5 cm

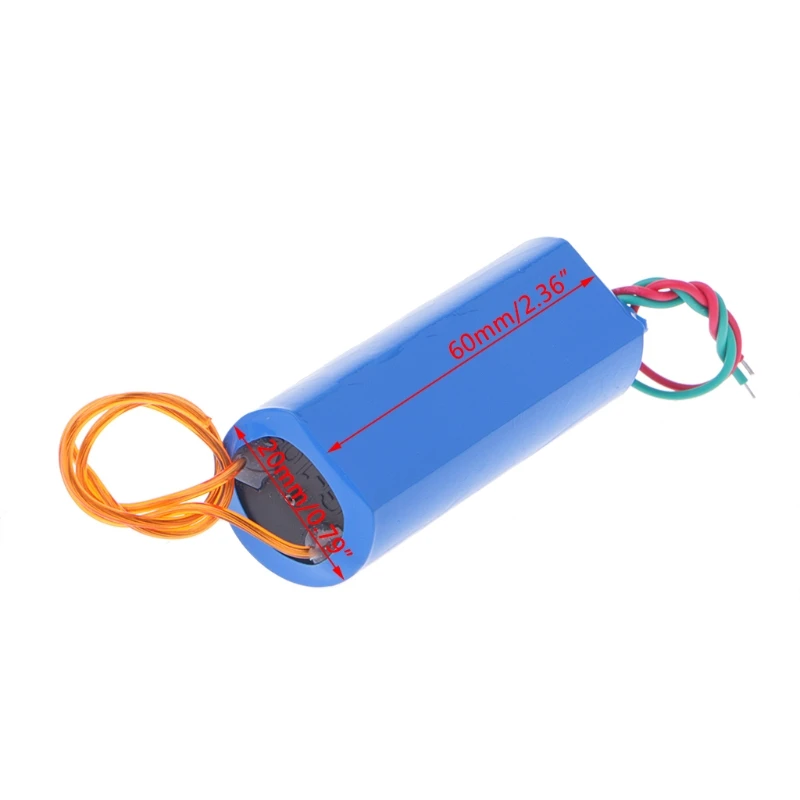

Size:60x20mm
Quantity: 1 Pc

Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package include:

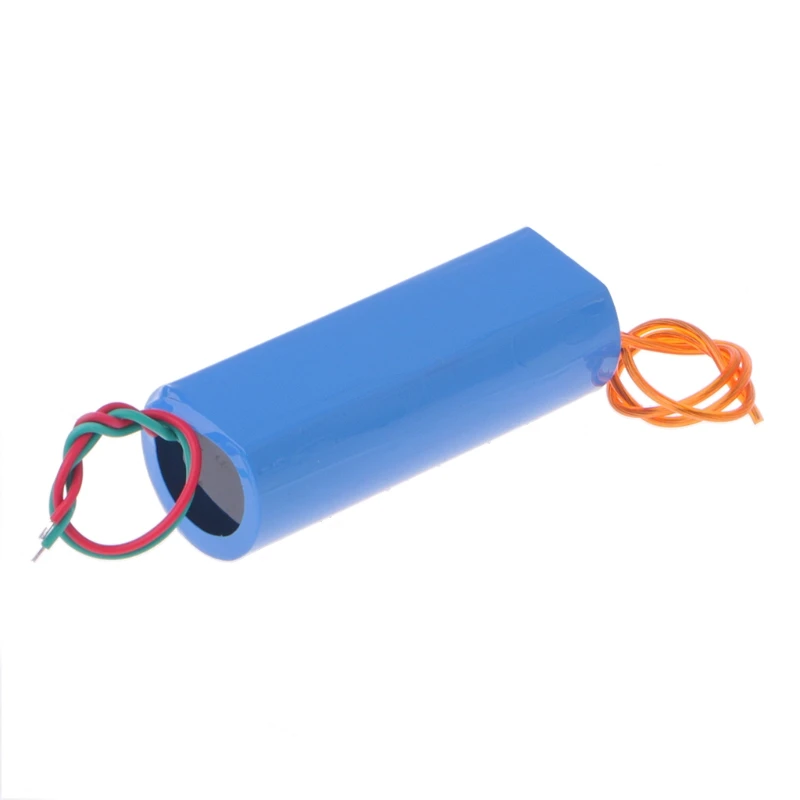

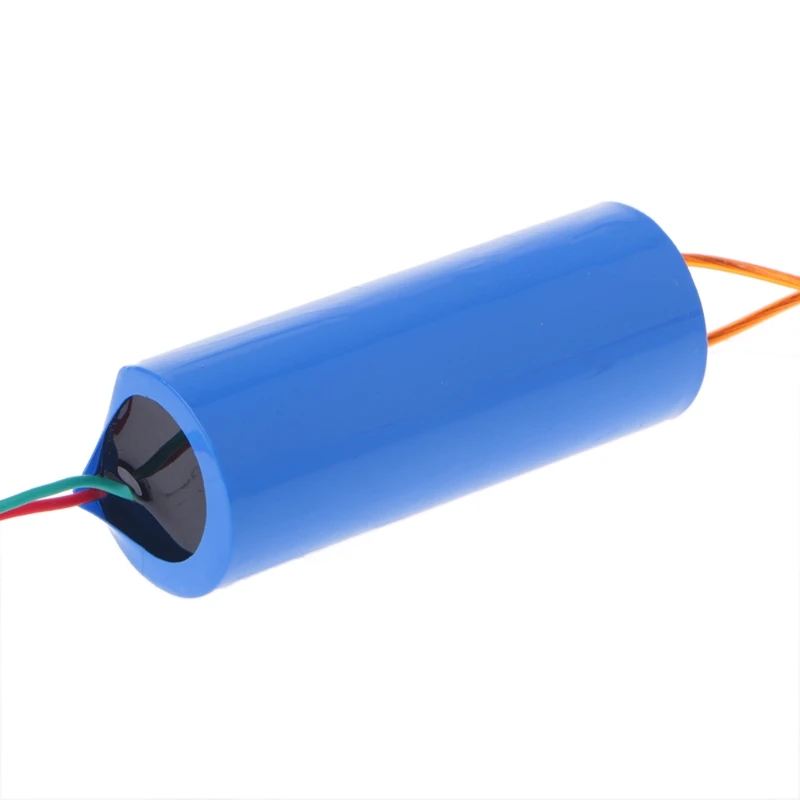

1 x High voltage inverter

---
