Newest Wifi Control AC220V Electric Linear Actuator 300kgs Engine Motor System Automatic Swing Gate Opener

List Of Kit Package:

kit a:1 set full kit swing gate opener with 2 remote controls
kit b:1 set full kit swing gate opener with 2*remote controls,1*Smart life wifi controller+1*pair photocells,1*flash light
kit c:1 set full kit swing gate opener with 4*remote controls
kit d:1 set full kit swing gate opener with 2*remote controls,1*pair photocells,1*flash light
kit e:1 set full kit swing gate opener with 4*remote controls,1*pair photocells,1*flash light

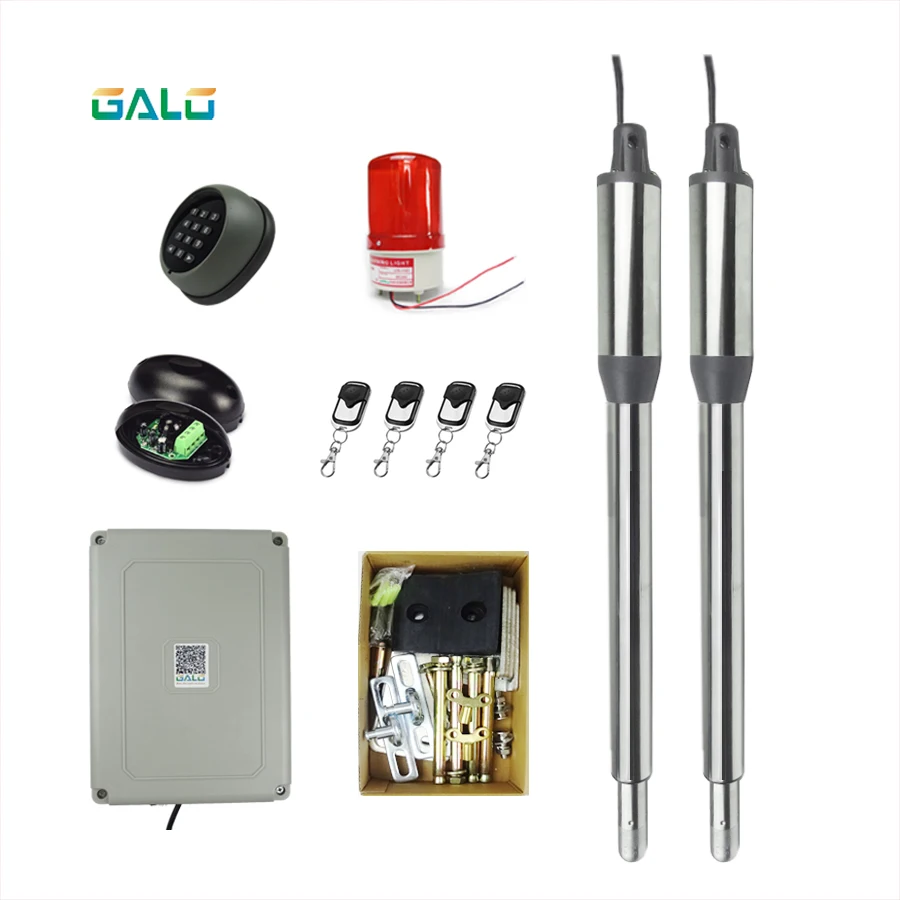

kit f:1 set full kit swing gate opener with 4*remote controls,1*Wireless touch keyboard,1*pair photocells,1*flash light
kit g:1 set full kit swing gate opener with 4*remote controls,1*wifi control Module,1*pair photocells,1*flash light
kit h:1 set full kit swing gate opener with 4*remote controls,1*in car remote,1*pair photocells,1*flash light
kit i:1 set full kit swing gate opener with 4*remote controls,1*Wireless inside camera,1*pair photocells,1*flash light
kit j:1 set full kit swing gate opener with 4*remote controls,1*Wireless outside camera,1*pair photocells,1*flash light
kit k:1 set full kit swing gate opener with 4*remote controls,1*Wireless outside camera,1*pair photocells,1*flash light

Produrct feacture：

1.Easy to install and operate,and easy to connect wired.
2.Open and close the gate by remote control and keypad.
3.Time promotation function.when open gate,speed is slow,then a little quick,and when close the door,speed is slow again.
4.In case of power failure,release the clutch easily,and can operate the gate manually.
5.Stop working when gate meets with obstacle.
6.Rod's max travel is 300mm.
7.Motor's Poweer : 24VDC 40W
8.Running Speed :1.6cm/s
9.Run travel : 300mm
10. Max single leaf gate width: 2.5M
11.Max single leaf gate weight: 300KG

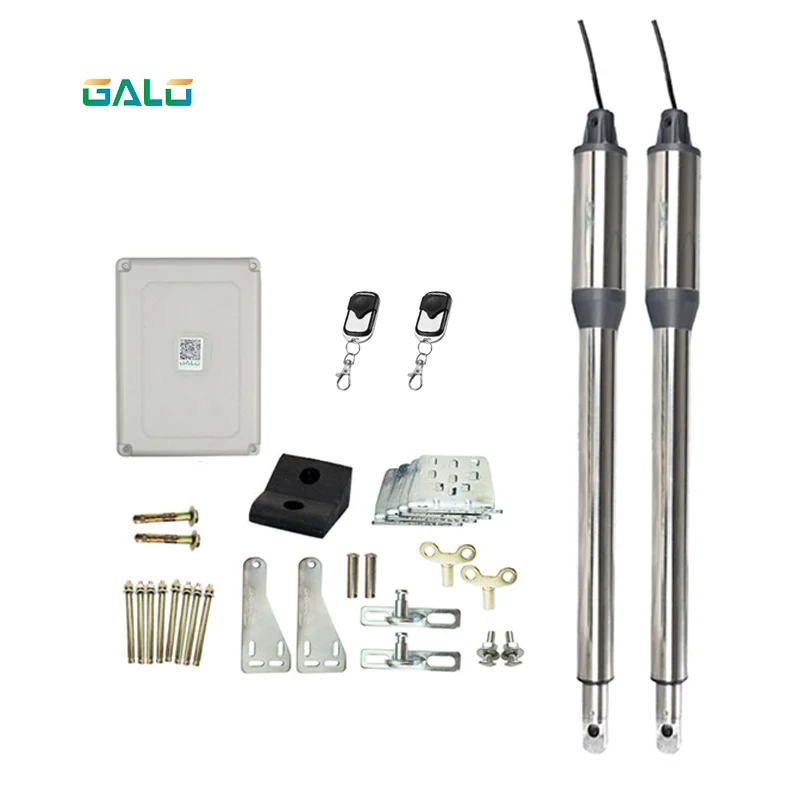

Standad kit components：

①2* Arms Gate Openers(drive motor)
②1* Control Box(with transformer)
③1* A set of Hardware Accessories
④1*Rubber stopper
⑤2* Remote Control
⑥1* Manual English
Accessories optional, select color kit shown in photo
In some countries the cold climate, we add antifreeze oil inside the motor, It can work in cold environment.

Show Details:

Full kit include Necessary installation accessories

Control Box details

Input AC110V or AC220V order mark or Message seller.Distributed by country of use by default.

Outdoor waterproof design

The closed control bin, IP44 waterproof rating, can directly face harsh weather conditions.

Extra security IR photocells(Optional accessories)

Auxiliary accessories. Open the system's own smart chip, and the door will rebound in the event of a collision. To prevent children or pets from hitting the door, additional protection devices are necessary.
When the door is closeing, cut-off the infrared sensor, door will opening automatically.

Flashing warning light(Optional accessories)

When the door opener is turned on at night, the flash can alert intruders in the dark.(The color of the lamp is optional. Pay attention to the color when placing the order.)

Wireless password keyboard(Optional accessories)

When there are many people in your family, then you need a keyboard. As long as you know the password, he will open the door for the master.

The remote control in car(Optional accessories)

There are too many keys in life today, and my belt is full, which is simply a burden.
Don't worry, the remote control button inside the car is hung on the sun visor, and it is more convenient to open the door

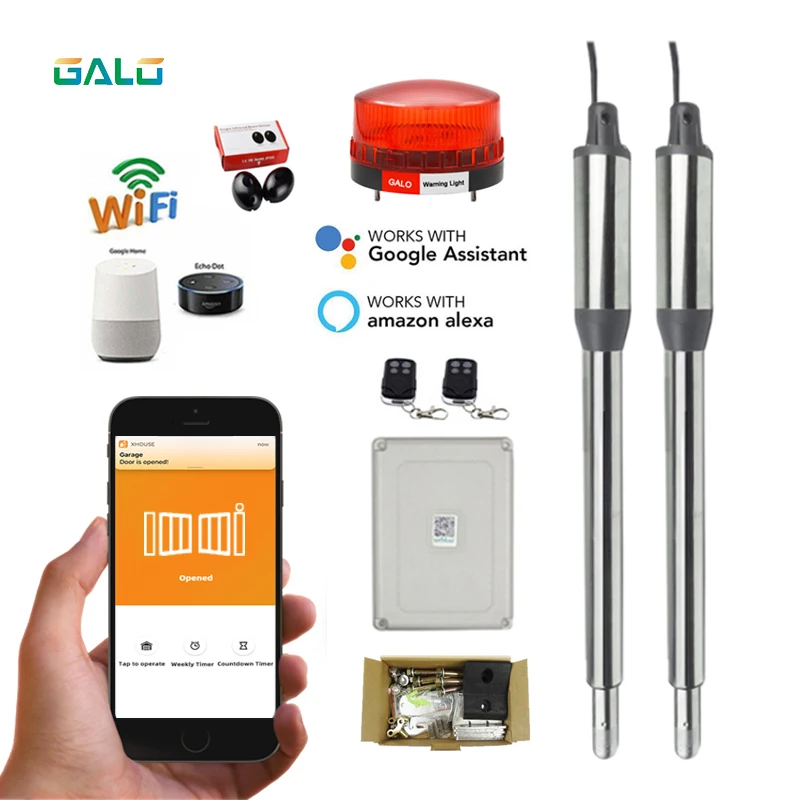

Wifi control Module(Optional accessories)

Load the wifi module, you can control the opening of the door directly on the mobile phone app. Remote control, not limited by distance, need to ensure the device is networked, support 2.4G wireless network

GSM Remote control/wifi camera(Optional accessories)

Mobile app remote control, mobile phone card SIM needs to be installed,2G only
The camera is a separate app and needs to be connected to the Internet. In order to see the working status of the gate and record security, optional accessories

Gate lock(Optional accessories)

In order to ensure the safety of the door and prevent the door from being blown by the strong wind, please use additional door locks, automatic door locks

Support for solar systems(Optional accessories)

Can be plugged into a solar system, using a home circuit, or solar powered. Note that we cannot transport the batteries and need to prepare the batteries yourself.

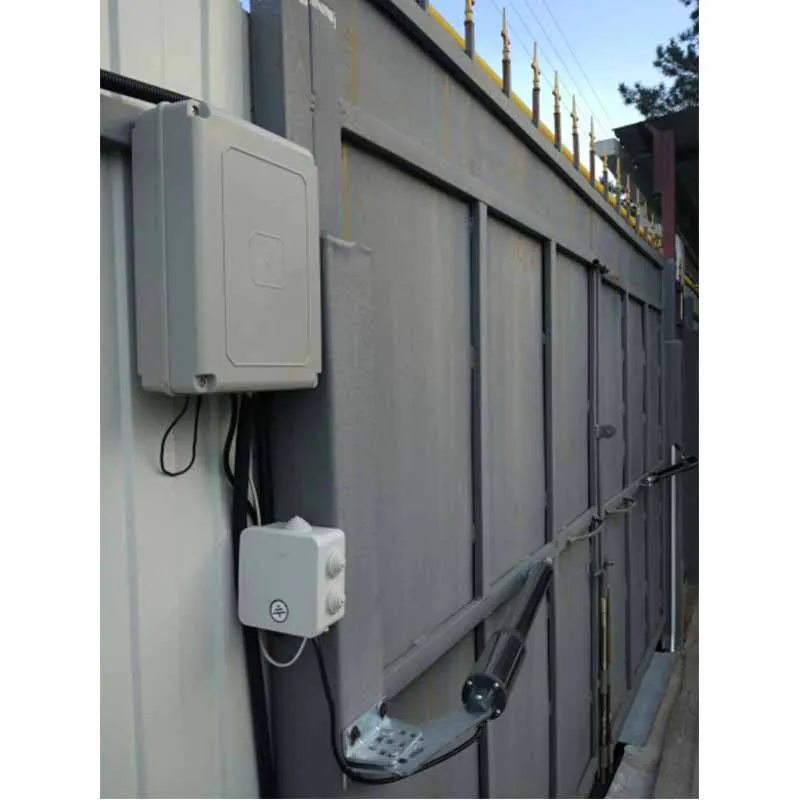

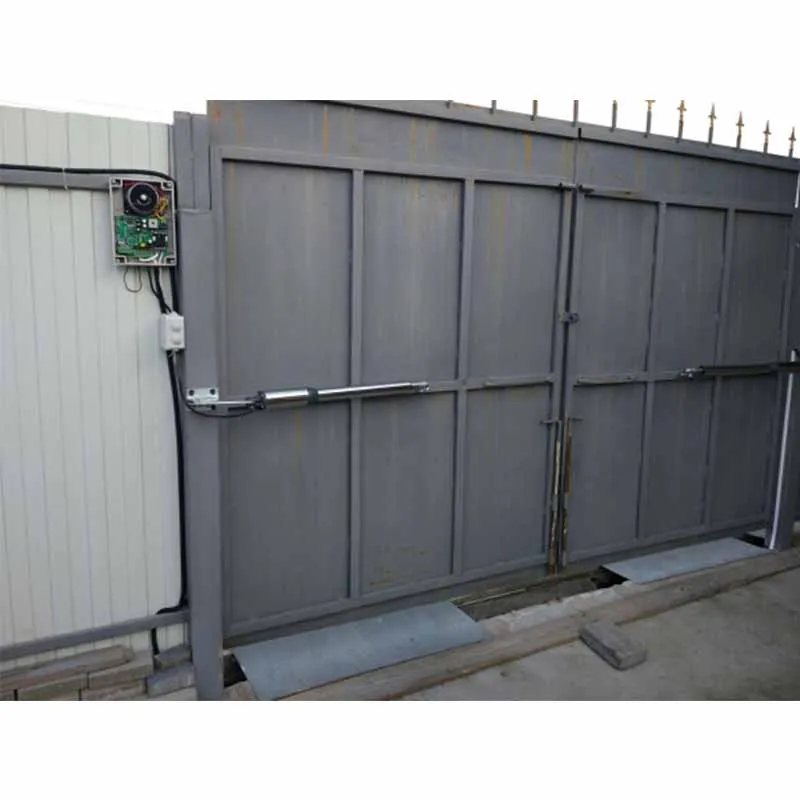

Installation details

Please prepare the electric drill in advance, the wall needs to be punched and fixed

For stone walls, please reserve holes in advance, or prepare iron plates to fix the brackets.
Line protection tubes need to be prepared in advance. Lightning protection power switch is necessary

SWING GATE OPERATOR

Digital LED Menu brings a easy setting ,plug and play
Availble to set pedestrian mode
Adjustable working time
Adjustable resistance sensitiv
Adjust auto-closing time
Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc.
Custom rolling code makes the system more secure, high anti-theft performance

Smart Control Center

Function indication of corresponding port

1. 2 SIDE terminal is used for connecting any external device that operates double gate
2. COM terminal is COMMON used for connecting the ground” of external devices
3. 1 SIDE terminal is used for connecting any external device that operates single gate
4. Swipe Card terminal is used for connecting any external devices that will operate to open the gate
5. COM terminal is COMMON used for connecting the ground” of external devices
6. Infrared terminal is used for connecting photo electric sensor
7. 12V DC output is used for connecting photo electric sensor (Continuous output current <=200mA)
8. 24V battery output is used for connecting the back up battery +
9. 24V battery output is used for connecting the back up battery -
10. 24V DC output is used for connecting external device. (such as photo electric sensor, max current output 1A)
11. GND is used for connecting the ground” of external devices
12. 24V DC lamp output is used for connecting flash light +.
13. 24V DC lamp output is used for connecting flash light -.
14. 24V DC lock output—the NF terminal which used for connecting the electric lock
15. COM is COMMON used for connecting the ground” of lock
16. 24V DC lock output—the NA terminal which used for connecting the magnetic lock
17. 24V DC alarm output
18. 24V DC alarm output
19. and 20. Motor1 terminal is used for connecting the motor 1 installed on the gate that opens later and close first. This terminal connect 1st red wire (counted from your left hand side to right hand side)
21. and 22. Motor2 Delay terminal is used for connecting the motor 2 installed on the gate that opens first and close later. This terminal connect 1st blue wire (counted from your left hand side to right hand side). NOTE! If for single gate, the gate motor just can connect the Motor2 Delay terminal.
23. AC24V input is used for connecting the transformer
24. AC24V input is used for connecting the transformer
25. digital display is used for showing you the setting data
26. INC+ is used for figure increase when setting the data
27. FUN is used for store the data
28. DEC- is used for figure decrease when setting the data
29. Learning button is used for program/remove remote

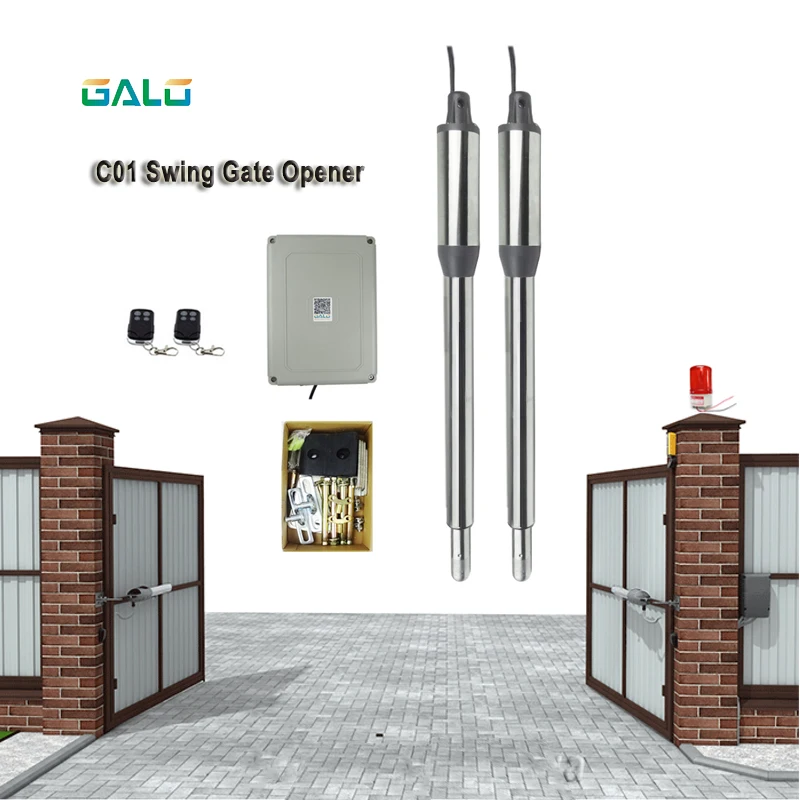

Support inward and outward opening
