body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 2 SAT signals input is supplied 6 users simultaneously.
High isolation, low insertion loss, very durable. Applicable to multi-satellite and multi-receiver usage.
IC in switch distribute and control power supply to LNB , reducing energy consumption.
13/18V supplied by satellite receiver through coaxial cable to switch corresponding port.
Capable of connecting two SATV signals simultaneously, which is switched through 13/18V.

Descriptions:
Zinc alloy crust
Easy installation without any other program needed
Power supplied from Receiver
Specifications:
LNB frequency range: 950-2150MHz
Insertion loss: 5dB
Return loss: 10dB
Isolation: 26dB
Switching voltage: 13~18V
DC current consumption: 30mA
Max. DC current to LNB: 500mA
Input and output: 75 ohm, F type connector
Model: JS-MS28
Colour: silver
Material: zinc alloy

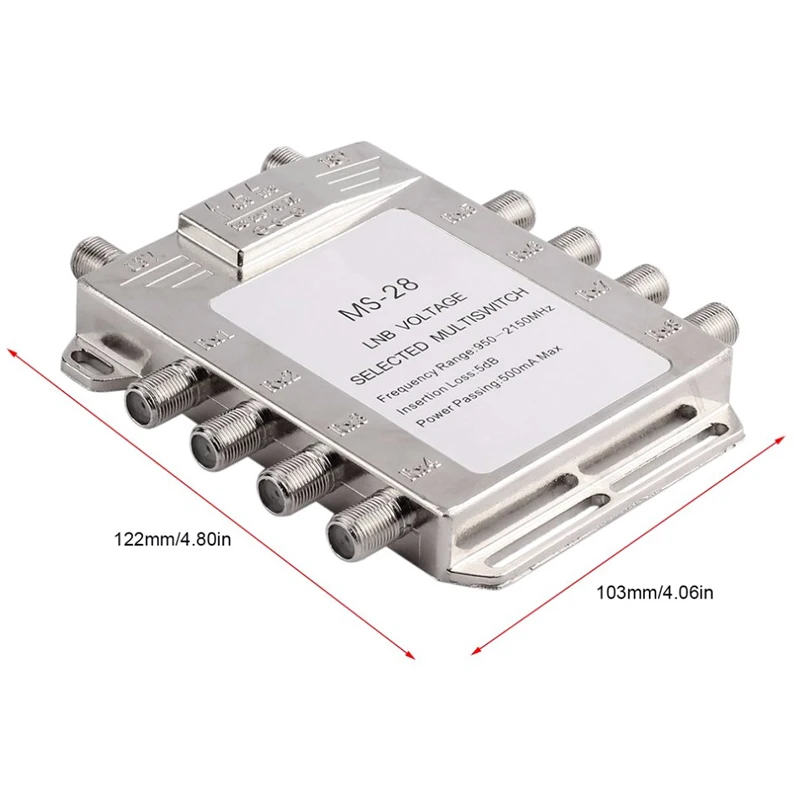

Size: 122 x 103mm

Package Contents:
1 x Satellite Signal Multiswitch

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
