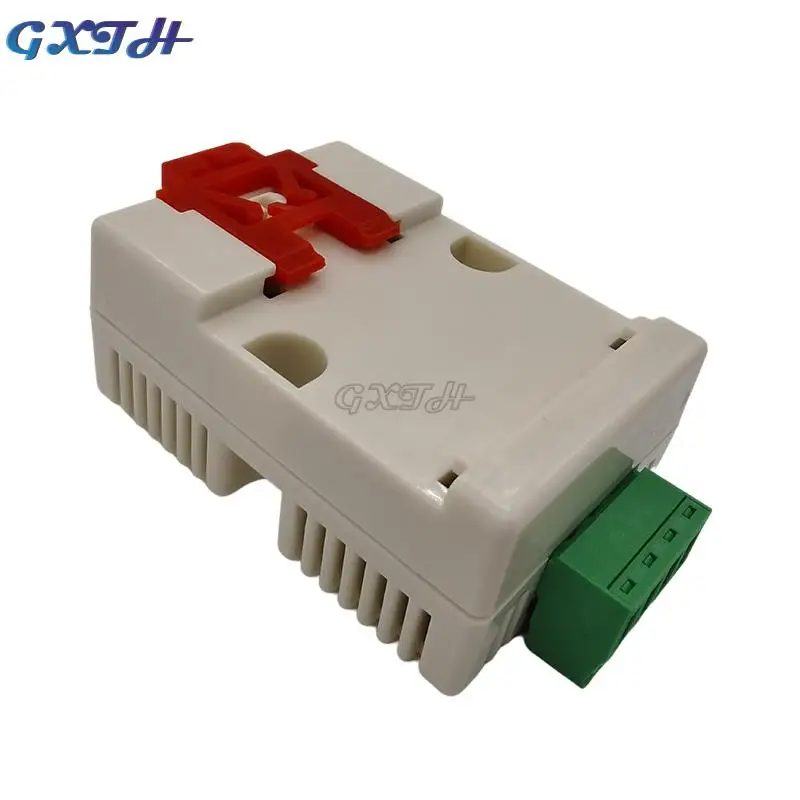

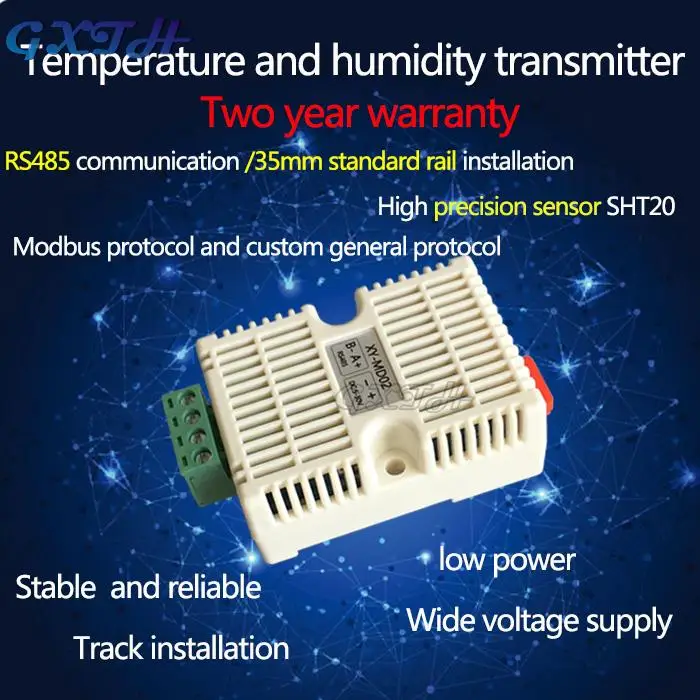

Product Description:

   Product adopts industrial-grade chip, high-precision SHT20 temperature and humidity sensors, ensure the products with good reliability, high precision and interchangeability.Adopt RS485 hardware interface (with the lightning protection design), the protocol layer compatible with standard industrial Modbus Rtu protocol.
   This product integrating MODBUS protocol with ordinary, users can choose communication protocols, common agreement with automatic upload function(Connect the RS485 serial interface mode tool by automatically output temperature and humidity).

Product Highlights:

Industrial products, high progress SHT20 temperature and humidity sensor, the RS485 communication;

Standard MODBUS protocol with ordinary at an organic whole, the user can choose communication protocol;

Baud rate can decide for themselves;

General agreement with automatic upload function, upload speed can decide for themselves.

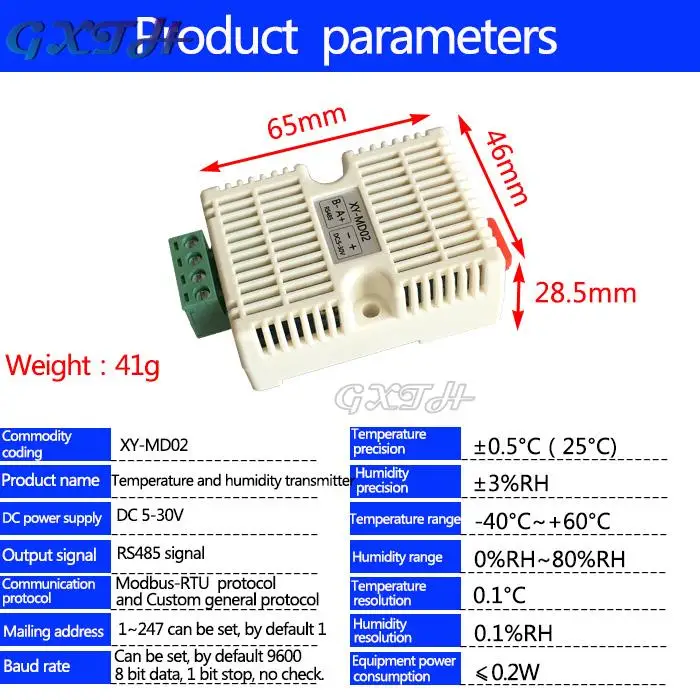

Product Parameters:

Work voltage: DC4-30 v (highest do not exceed 33 v) .

Most powerful: 0.2 W .

Workenvironment: Temperature 20℃- 60℃,Humidity 0-100.

Control precision:Temperature±0.3℃,Humidity ±3%RH.

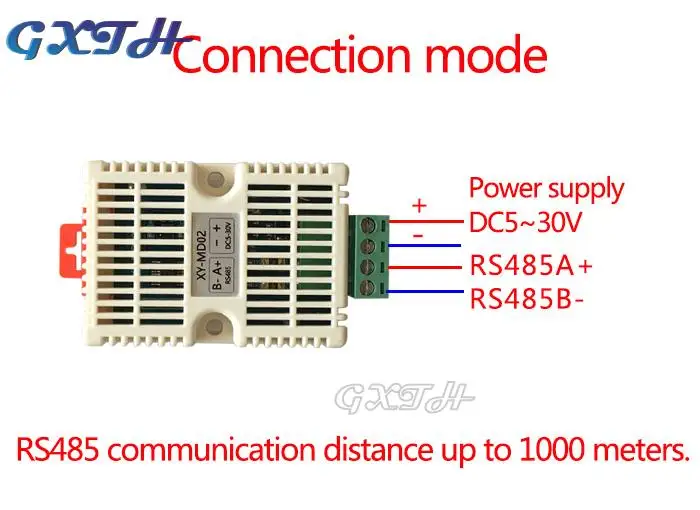

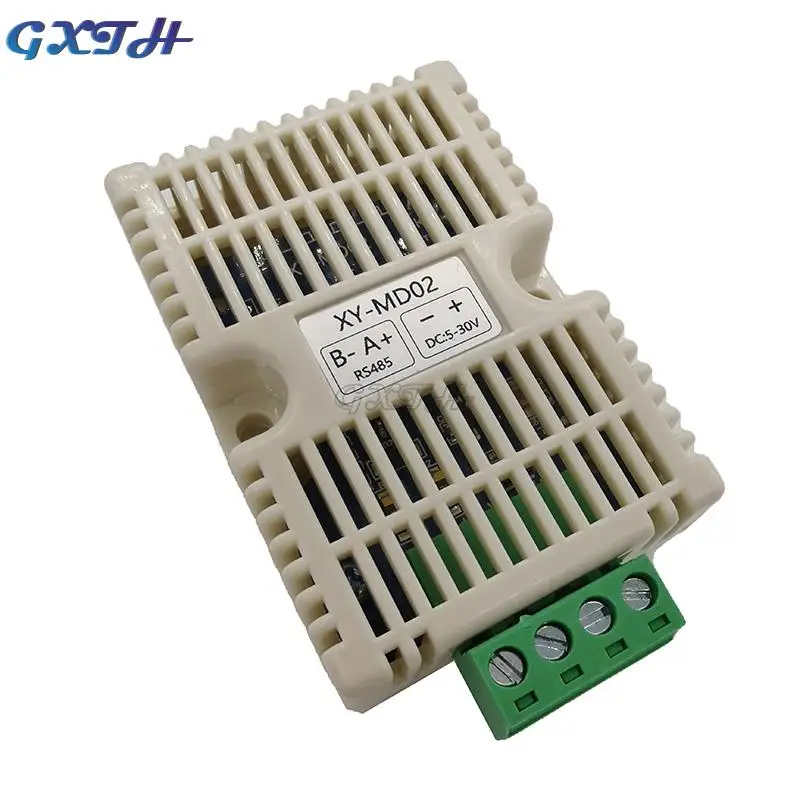

Output interface: RS485 communication (standard MODBUS protocol and custom ordinary), see note agreement device.

Device address: 1-247 can be set, the default is 1.

Baud rate: 9600(the user can set), 8bits, one stop, no check;

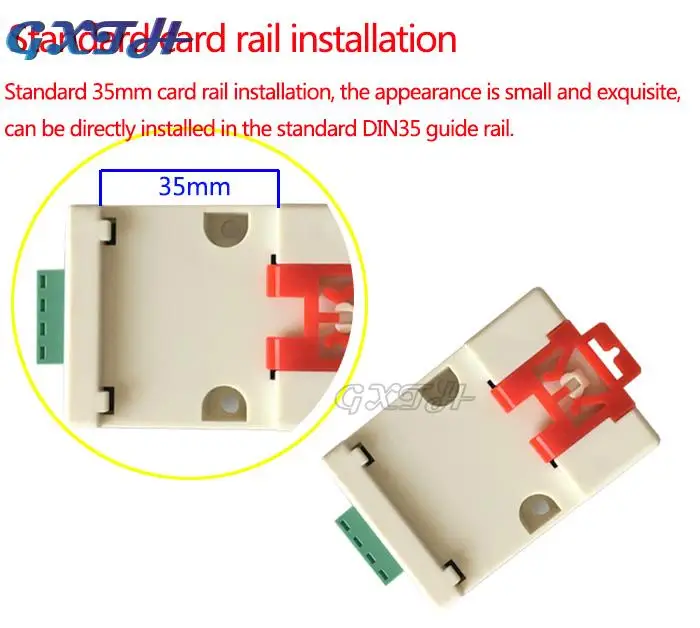

Shape size:60*30*18(mm)

0x03: Read keep register

0x04: Read input register

0x06: Write a single keep register

0x10: Write more keep registers

Register Type

Register Address

Register contents

Number of bytes

Input Register

0x0001

Temperature

2

0x0002

Humidity

2

Keep Register

0x0101

Device Address

2

0x0102

Baud Rate
0:9600
1:14400
2:19200

2

0x0103

Temperature correction(/10)
-10.0~10.0

2

0x0104

Humidity correction(/10)
-10.0~10.0

2

Modbus Frame format:

Master send format:

The responseformat of slave:

The response data from slave:

Temperature value=0x131,converted to a decimal305，the actual temperature value= 305 / 10 = 30.5℃

  Note: the temperature is signed hexadecimal number, temperature value = 0xFF33, converted to a decimal - 205, the actual temperature = -20.5℃;

Master read humidity command frame(0x04)

Continuous read temperature and humidity command frame(0x04)：

The response data from slave:

Humidity value = 0x222, converted to a decimal 546, actual humidity value = 546/10 = 54.6%;

The response data from slave:

Readdevice address from the slave:

The response data from slave:

Modify the slave address register：

Modify the slave address:0x08 = 8

The response data from slave(And send the same)：

Slave address :0x20 = 32

Baud rate :0x2580 = 9600

The response data from slave:

The default baud rates9600 (the user can set), 8 bits of data, one stop, no check

RS485

CMD

instructions

READ

Report triggered a temperature and humidity

(27.4℃,67.7%温度27.4℃湿度67.7%)

AUTO

Start the temperature and humidity automatically report function(Same as above)

STOP

Stop the temperature and humidity automatically report function

BR:XXXX

Set the baud rate

9600~19200

(BR:9600)

TC:XX.X

Set the temperature calibration(-10.0~10.0)

(TC:02.0温度修正值为2.0℃)

HC:XX.X

Set the humidity ration(-10.0~10.0)

(HC:-05.1湿度修正值为-5.1%)

HZ:XXX

Set the temperature and humidity reporting rate(0.5,1,2,5,10)

(HZ:2 reporting rate 2Hz)

PARAM

Read the system current Settings

PARAM CMD:

TC:0.0,HC:0.0,BR:9600,HZ:1 ->Temp calibration 0.0, Humi calibration0.0, Baud rate 9600,report rate 1Hz

SLAVE_ADD:1  ->MODBU Slave address 1
