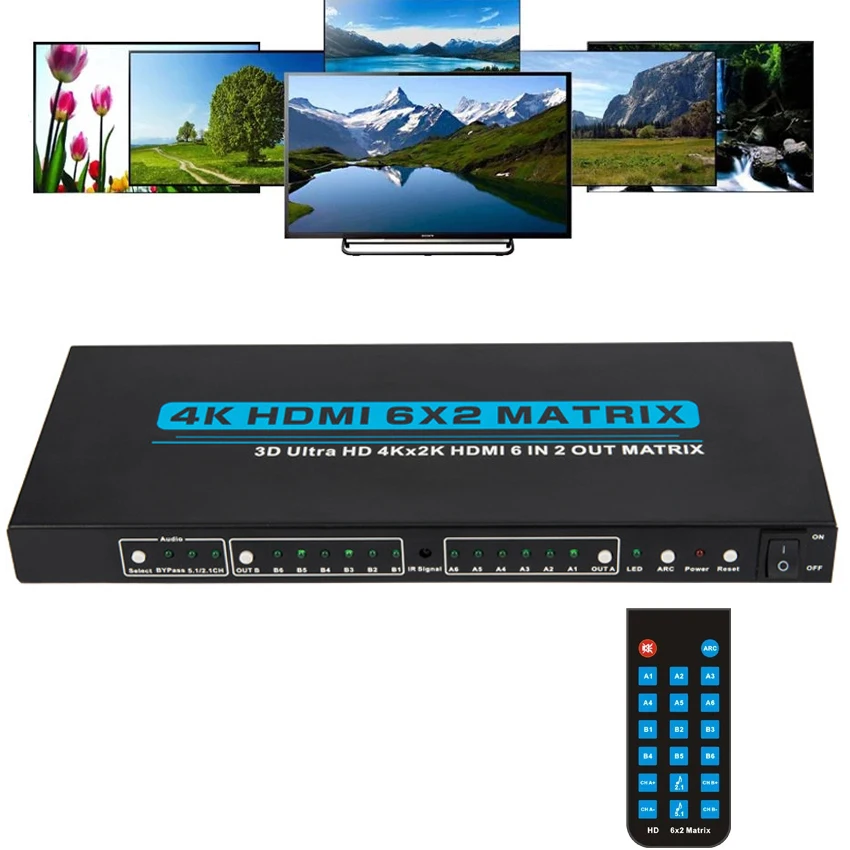

1.0     Product Description

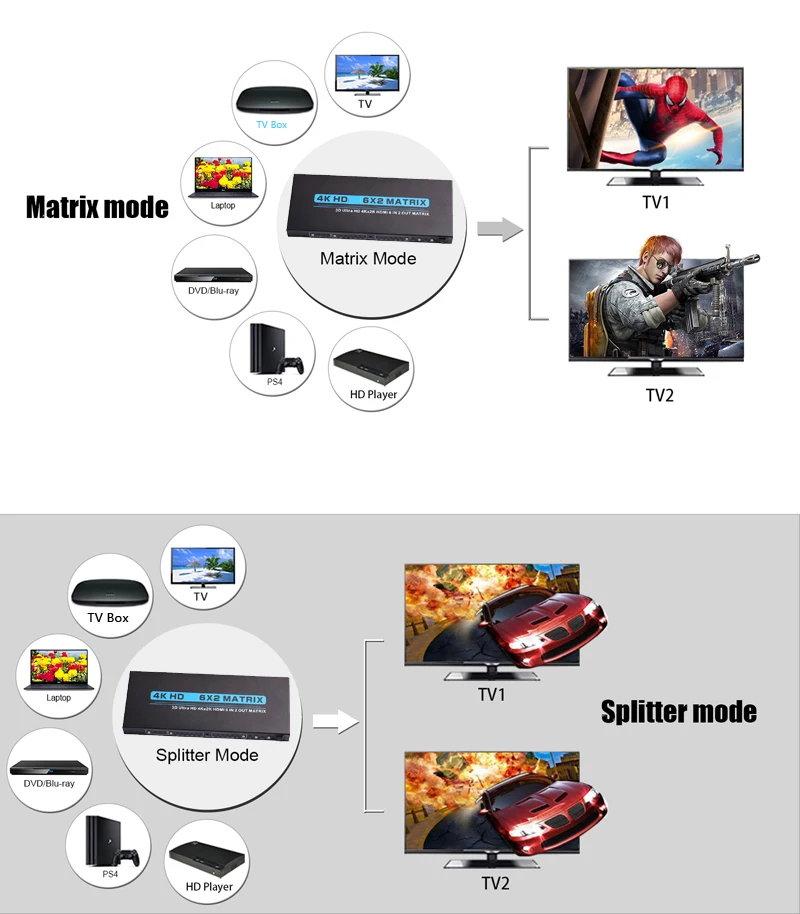

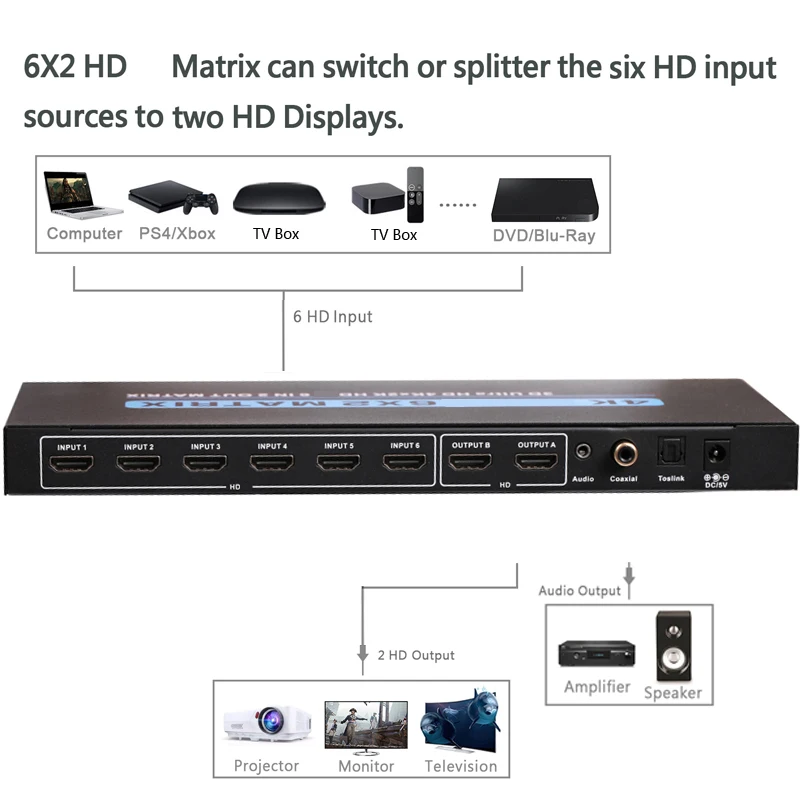

This 6x2 True Matrix is a perfect matrix product with detached external audio output ports, which can connect 6
different HDMI signal sources and 2 displays. It can easily switch any of 6 input signals to 2 displays by using remote
control or pushing button. The output signals can be same or different. By using this product can avoid the need to
disconnect and reconnect signal sources to displays frequently.
It can optimize your home theatre system to the best effect.


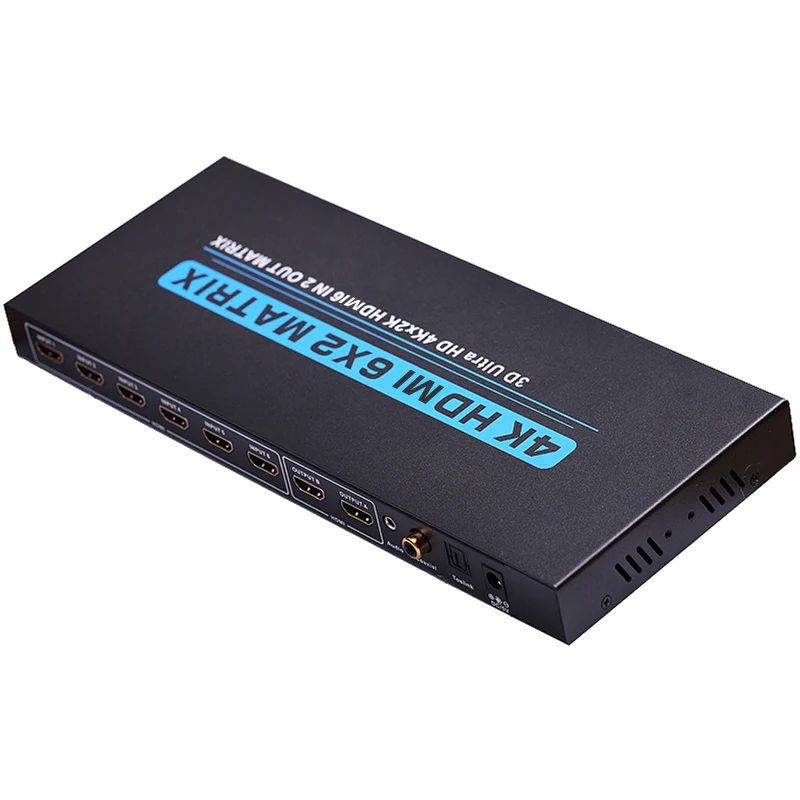

2.0   TECHNICAL PARAMETERS
HDMI Source Input Port    6
HDMI Display Device Output Port    2
Source Port Connector    Standard HDMI 19PIN
Display Device Port Connector    Standard HDMI 19PIN
HDCP Compliant    HDCP 1.4
Single Link Range    3840x2160
Support high resolutions up to 4Kx2K, including 480i/p, 576i/p,
720i/p, 1080i and 1080p,3840x2160@25/30Hz.
Input Video Signal    0.5-1.0 Volts P-P
Input DDC Signal    5 Volts P-P(TTL)
Deep Color    36bit
HDMI Version    1.4
Bandwidth    Up to 340Mhz
Signal Speed    Up to 10.2Gbps
The length of  input cable    PS3≤15M;BLUE DVD≤15M
The length of  output cable    ≤25M
The cable standard    26AWG HDMI1.4
Vertical Frequency Range    30Hz
Power Consumption(max.)    6.5Watts
Operation Temperature    0℃-70℃
Power Adaptor    5V 2A
Dimension: L*W*H(mm)    approx. 276*110*25

Explanation:
With different brands of the input or output device, the length of the connecting cables will differ too.

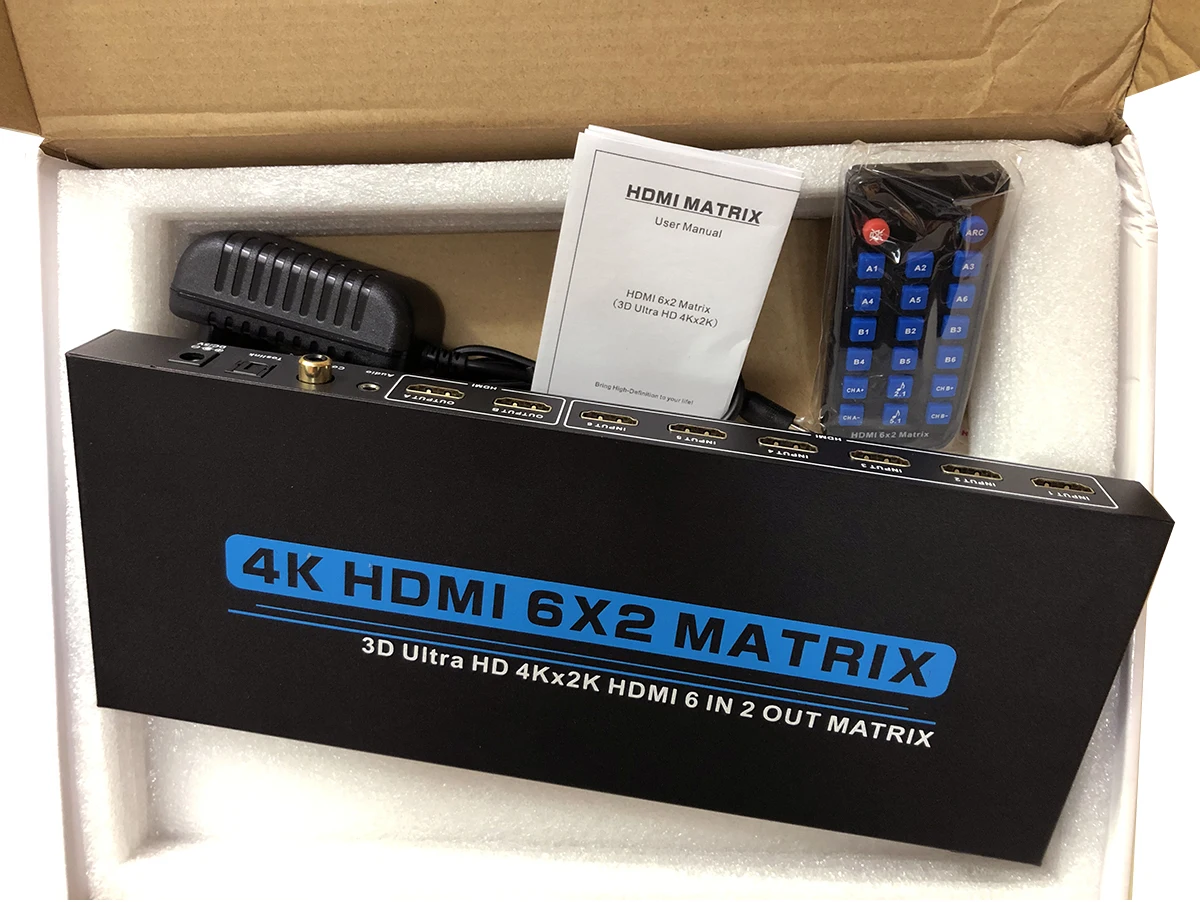

3.0 Package Content:
1.4K HDMI 6X2 Matrix ---------------------1PCS
2.DC 5V Power adapter----------------1PCS
3.Remote control without battery------------------------1PCS
4.User Manual----------------------------1PCS
NO Retail Package box,if need,pls contact us first

Features :
Support HDMI 1.4b/HDCP2.2
Support 3D video format
Support highest resolution up to 3840*2160/30Hz
Support 3.4Gbps x 3 data rate and tmds clock up to 340Mhz
Support deep color 8/10/12 bit
Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time
4 HDMI inputs switch and split to 2 HDMI displays.
Support LPCM/Dolby/DTS 5.1 channel

SPECIFICATIONS:

HDMI version...............................................................................................HDMI 1.4b

HDMI resolution ............................................................................up to 3840*2160/30Hz

Support video format ........................................................................8/10/12 bit deep color

Support audio format............................................................................LPCM/DTS/Dolby-AC3

Max bandwidth...............................................................................................340MHz

Max baud rate..........................................................................................3.4Gbps x 3

Input cable distance........ .....................................within 10m AWG26 HDMI 1.4 standard cable

Output cable distance............................................within 15m AWG26 HDMI 1.4 standard cable

HDMI Input.................................................................................................................4

HDMI Output.............................................................................................................2

Max working current.........................................................................................600mA

Power adapter format..............................Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Humidity range....................................................5 to 90%RH (No Condensation)

Dimension (L x W x H)..............................................................Approx.188x128x25 (mm)



EDID setting

Position 1

Position 2

Position 3

Position 4

Function

0

0

0

0

Copy the EDID of HDMI OUT 1

0

0

0

1

Copy the EDID of HDMI OUT 2

0

0

1

0

3D 1080P 2 CH LPCM

0

0

1

1

3D 1080P 5.1 CH (LPCM/Dolby/DTS)

0

1

0

0

2D 1080P 2 CH (LPCM)

0

1

0

1

2D 1080P 5.1 CH (LPCM/Dolby/DTS)

0

1

1

0

 3D 4k 2 CH (LPCM)

0

1

1

1

3D 4k 5.1 CH (LPCM/Dolby/DTS)

Noted: the dial switch to dial downward is 1, dial upward is 0
