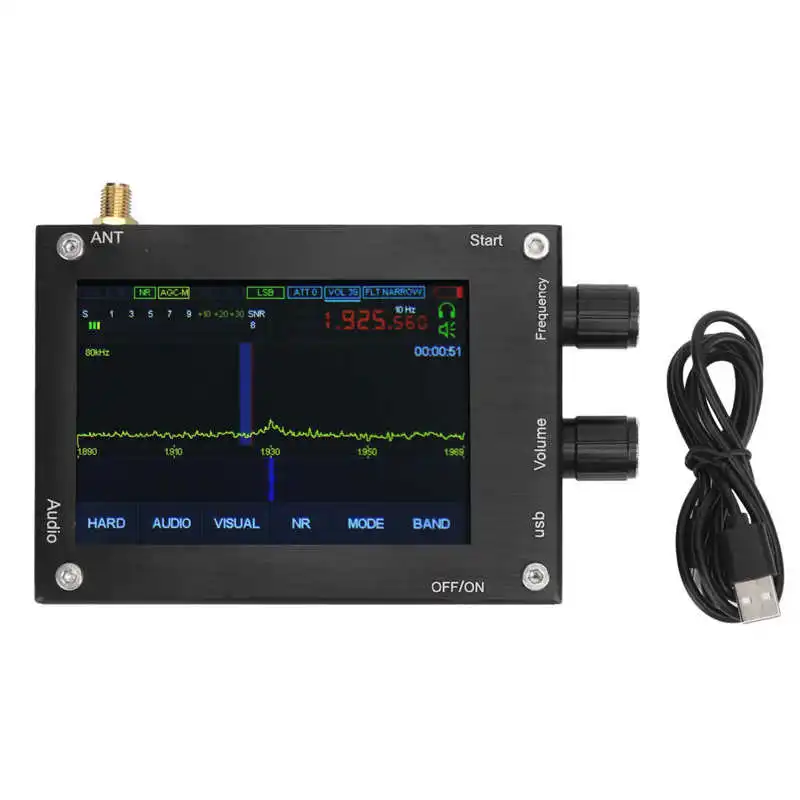

3.5in Radio Receiver 50KHz-2GHz DSP SDR Shortwave Receiver with Touch Screen for Malahit

Feature:

1. The demodulation modes include AM, LBS, NFM, WFM, (CW, MIN SNR). PS with cooling holes.
2. 3.5 inch capacitive touch screen, for Stlink V2 system, SMA internal thread antenna socket.
3. The radio is constructed based on the SRR principle, and the function is determined by the loading software.
4. Variable filter width, adaptive noise suppressor, threshold noise suppressor, used for noise blanket, AGC, equalizer.
5. The reception on the built‑in telescope or external antenna is to improve the HF reception of the telescope antenna, and an additional board with a source follower has been developed.
6. Under the condition of up to 250MHz, s/w is 0.3μV = 10dB. DSP SDR receiver for Malahit.
7. Due to the characteristics of the msi001 chip used, the dynamic blocking range is about 85dB.
8. Connect to the computer via USB, which can transmit Cat, IQ and audio. 160 kHz span, flexible.
9. Radio receiver uses powerful stm32H 743VIT6, the clock frequency is 480 MHz.

Specification:

Item Type: Radio Receiver
Material: Aluminum Alloy
Power Supply: powered by external Type-C interface or battery (built-in battery 3.7V 3800mA)
Consumption: 300mA when listening to headphones
Purpose: shortwave radio reception
Frequency Range: 50 KHz to 2.0GHz
Encoder: Encoder with buttons and touch screen

Package List:

1 x SDR Receiver Host

1 x USB Cable

1 x Antenna

1 x Manual

Note:

OFF/ON is a forced switch button, please turn it to ON if it is not necessary.
