YH800-3 3 Axis Grating Ruler Digital Display Meter Lathe Milling Machine Boring Grinder Electronic Ruler Liquid Crystal Display

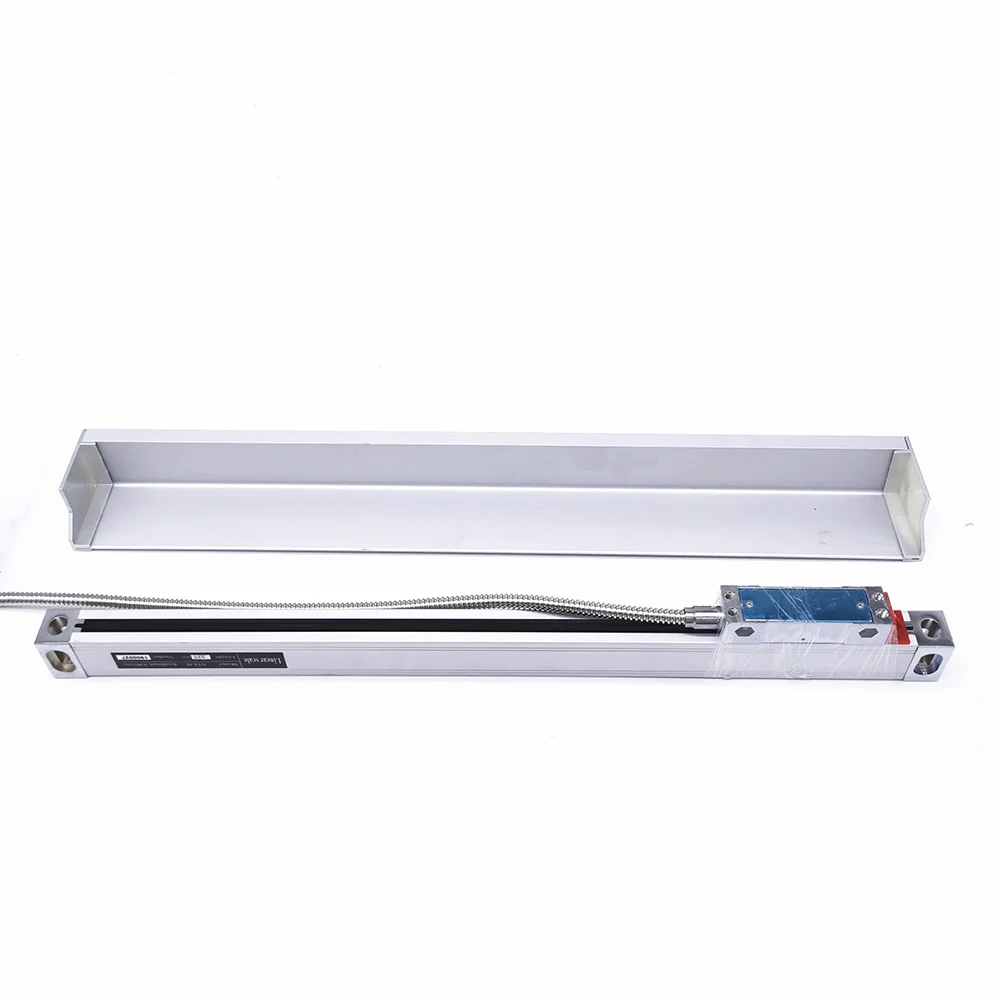

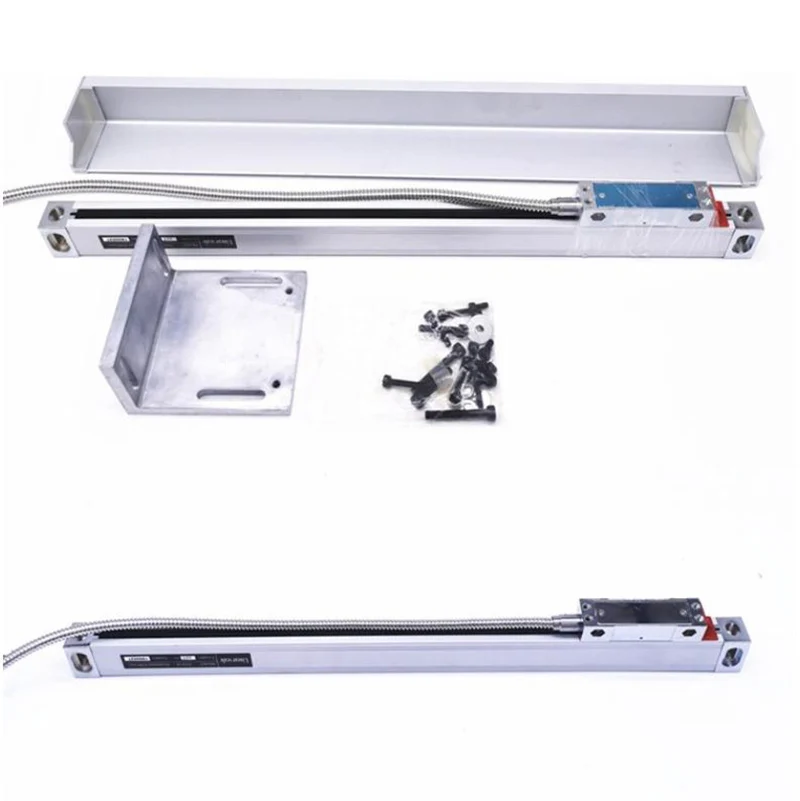

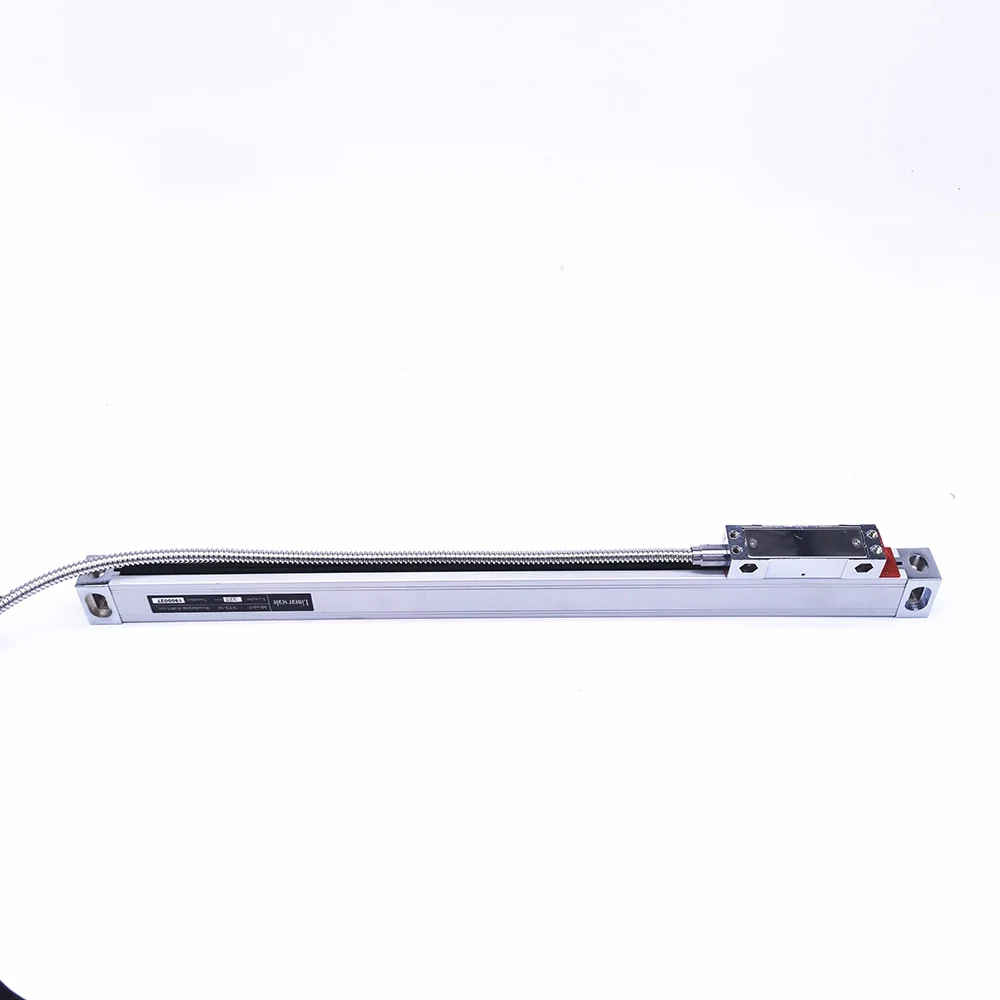

Technical parameters of grating ruler:

1. Grating pitch: 0.02mm (50 lines/mm)

2. Resolution: 5um,

3. Accuracy: ±5um (at 20±0.1℃)

4. Range: 70~1020mm every 50mm

5. Moving speed: ordinary ruler 40~50m/min

6. Power supply: +5v/+24v±5%, 80mA

7. Cable length: standard 3m

8. Working temperature: 0-45℃

9. Plug pin: factory default TTL square wave signal output, support RS-422 (EIA-422-A)

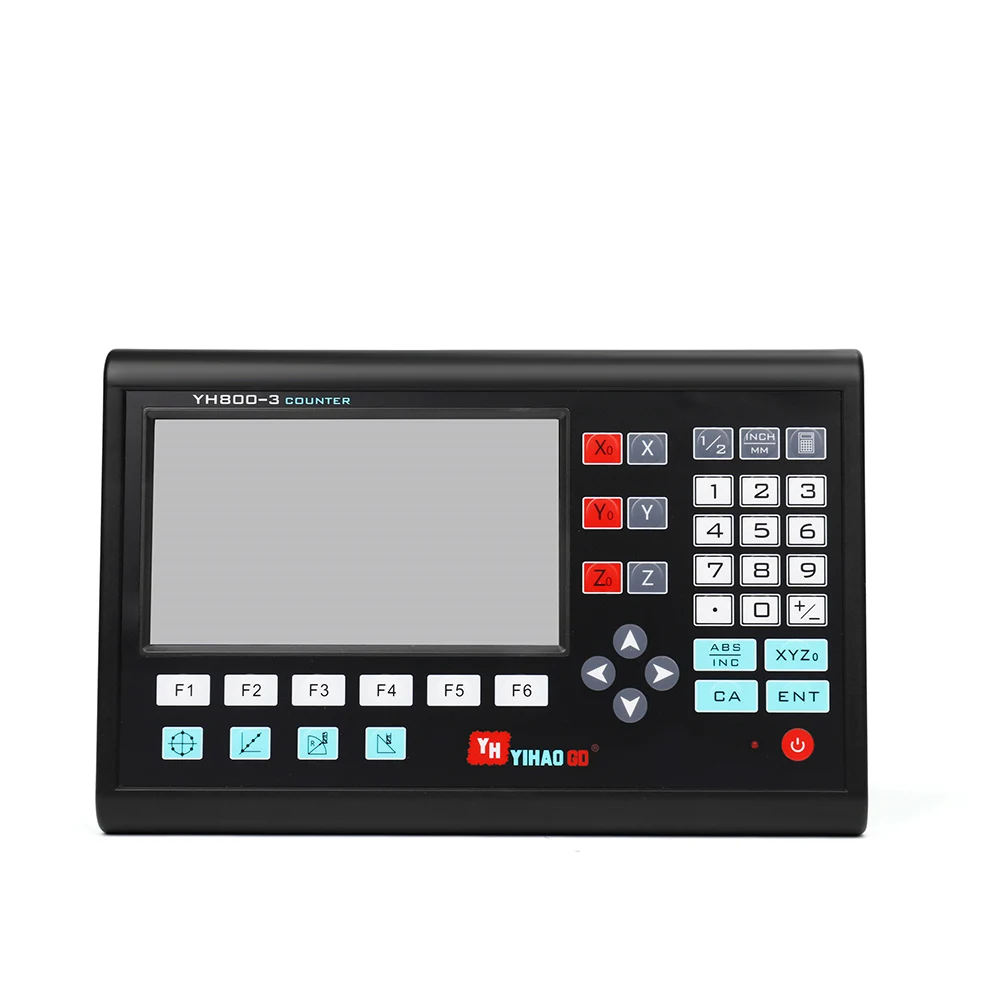

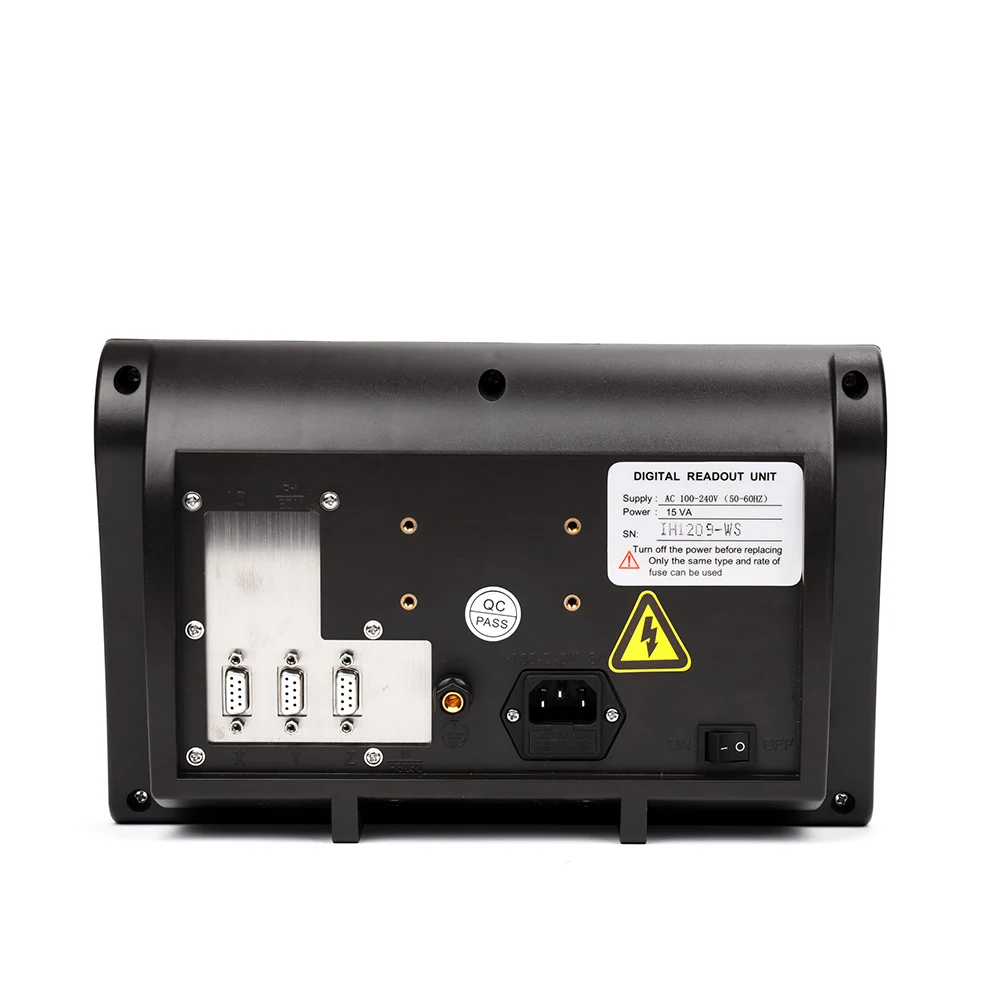

VM800 digital display meter is a multi-function 3-axis coordinate milling machine and lathe special LCD digital display meter. The meter has many graphics processing functions, including R arc function, equal division circle function, inclined surface processing function, and diagonal line punching function. , Progressive cavity processing functions, etc. With the aid of these functions, the difficulty of processing graphics can be greatly reduced.

The characteristics of the digital display;

1. Sorting function 2. Zero point assist

3. Absolute positioning (relative coordinate conversion) 4. Inch metric conversion

5. Memory function 6. Linear error compensation

7. Power-down memory function 8. Arbitrarily reset to zero

Digital display function

1. Running speed: more than 100 meters per minute.

2. Long-distance transmission: more than 100 meters, no need to add any interface in the middle.

3. The sliding part adopts 5 paper bearings, which has excellent repeatability of positioning.

4. The signal line is protected by a multi-layer isolation wire net and a metal soft shell, which is excellent in waterproof and anti-interference.

5. The ruler body is made of aluminum alloy profiles, anodized, and the ruler head part is made of alloy casting, hard chromium plating, corrosion resistance.

6 The dust-proof sheet is made of special plastic, which is corrosion-resistant, scratch-resistant, low friction resistance, easy to install and maintain, waterproof, dust-proof, and has a long service life.

Packing: 1PC
