USB 3.0 Мини PCI-E Райзер SATA на 4 Pin 6 16X Расширитель Адаптер Карта Кабель Питания для Внешней Графики на Ноутбуке

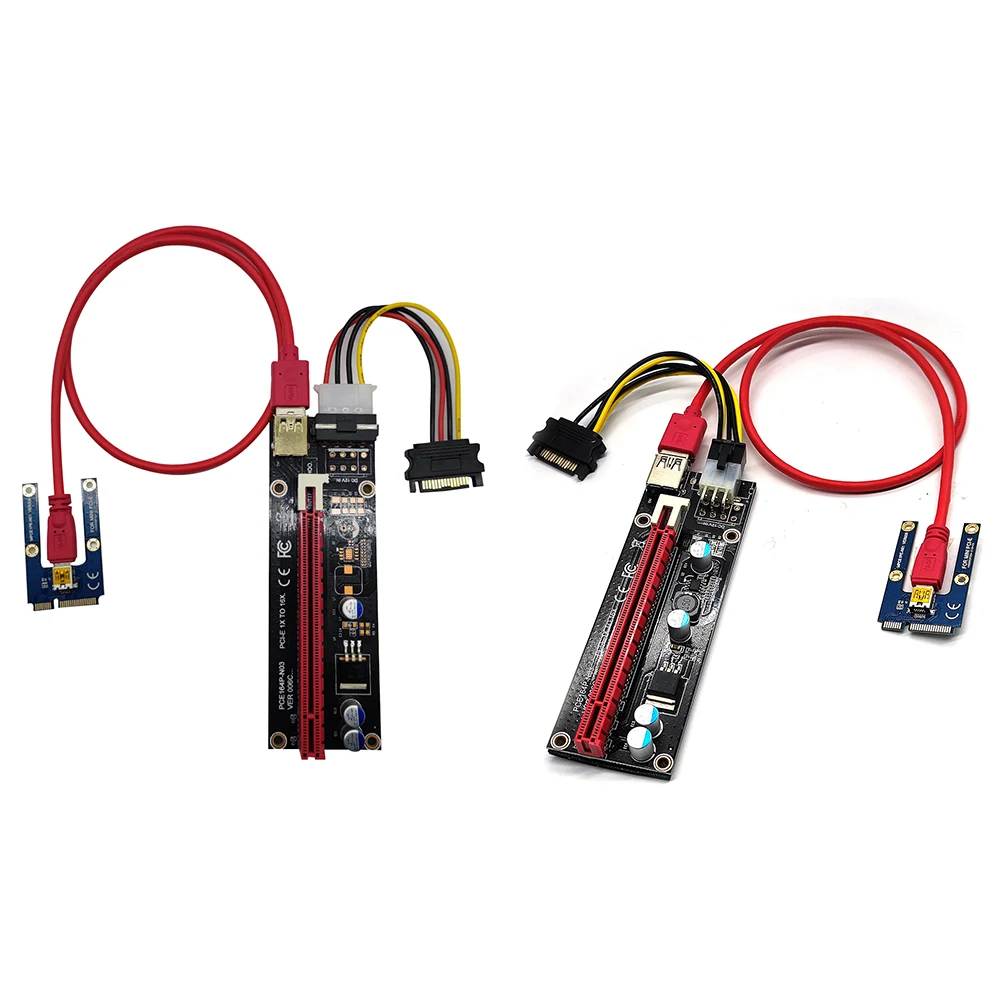

USB 3.0 Mini PCI-E Riser SATA to 4 Pin 6 Pin 16X Extender PCIE Riser Adapter Card Power Cable for PC Desktop
Feature:
1. The power supply of the graphics card uses 4 solid capacitors (the big 4PIN is 3 capacitors, and the 6PIN is 4 capacitors), which makes the power supply of the graphics card more stable and safe.
2. The adapter card has a graphics card 6PIN interface or a large 4PIN interface to make the graphics card power supply independent from the motherboard, thereby reducing the burden on the motherboard when multiple graphics cards are connected.
3. The slot is routed to the right to facilitate the wiring of the 2U chassis. The graphics card slot adopts the original imported connector, and the graphics card and the connector have better contact.
4. The PCI-E connector uses multi-layer shielded wire, which can be connected to a maximum of 3M without attenuating the signal.
5. The USB cable is soft and stable, easy to route, and the graphics card can be placed at will.
6. The slot is equipped with a fixed buckle, which is more convenient to remove and fix the graphics card, and the graphics card will not fall off from the slot.

Specification:
Product name: MINI PCI-E TO 16X
Cable length: 60cm USB3.0 cable
Product packaging: electrostatic bag
Product interface: PCI-E 1X PCI-E 16X
Support system: compatible with all WINDOWS systems, LINUX MAC

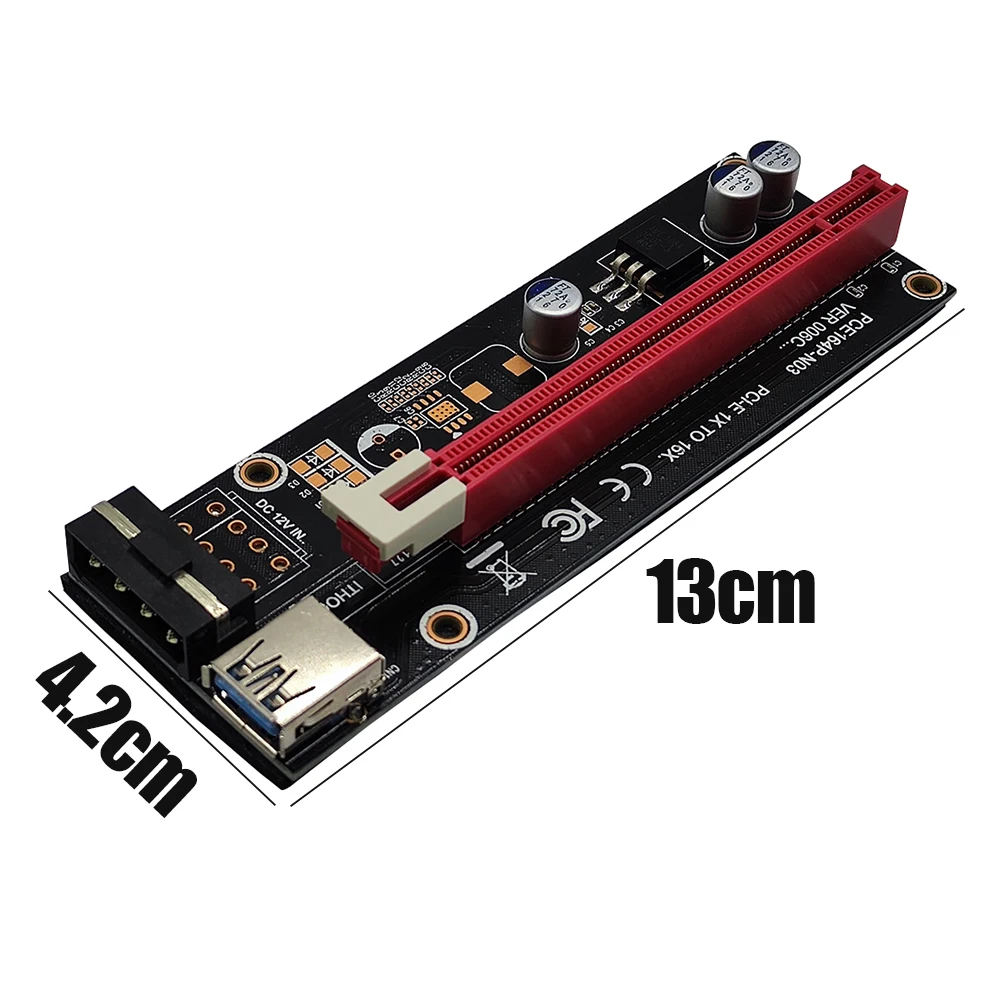

PCB board size: 13 cm * 4.2 cm * 1.6 cm
Weight: 85g

Tips:
1. This extension cable is suitable for use with a PCI-E slot on the motherboard, please plug in the SATA power cable. When plugging or unplugging the PCI-E extension cable, the computer must be disconnected and then plugged, and the precautions be sure to read clearly when using it!
2. The matching wire is customized, please don't plug it in just by looking for a wire!
3. Be sure to recognize the direction when plugging in, do not plug it in reverse or off-position to prevent burning of the device. When plugging in, hold the socket of the device before plugging in to avoid inserting the socket pins with excessive force.
4. It is recommended to use the old flat cable for dual-core graphics cards, and it is also recommended to use the old flat cable for motherboards with 16X motherboards.
5. Due to different production batches, the color of the buckle and capacitor of the graphics card socket may be different, but it will not affect the function. If you have special requirements, please contact customer service, please understand.
6. About the interface: Generally, the laptop needs to be disassembled with a wireless network card interface. There are two types of MINI PCI-E or NGFF for this interface. Please pay attention to the disassembly to verify which interface is used before purchase.
7. This product is a notebook external graphics adapter device. Graphics card and power supply need to be purchased separately. (Internal screen: To use the laptop's own monitor, the laptop need to have its own Intel (R) HD Graphics and an external Nvidia graphics card above GTS450. Otherwise, an external monitor is required)

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

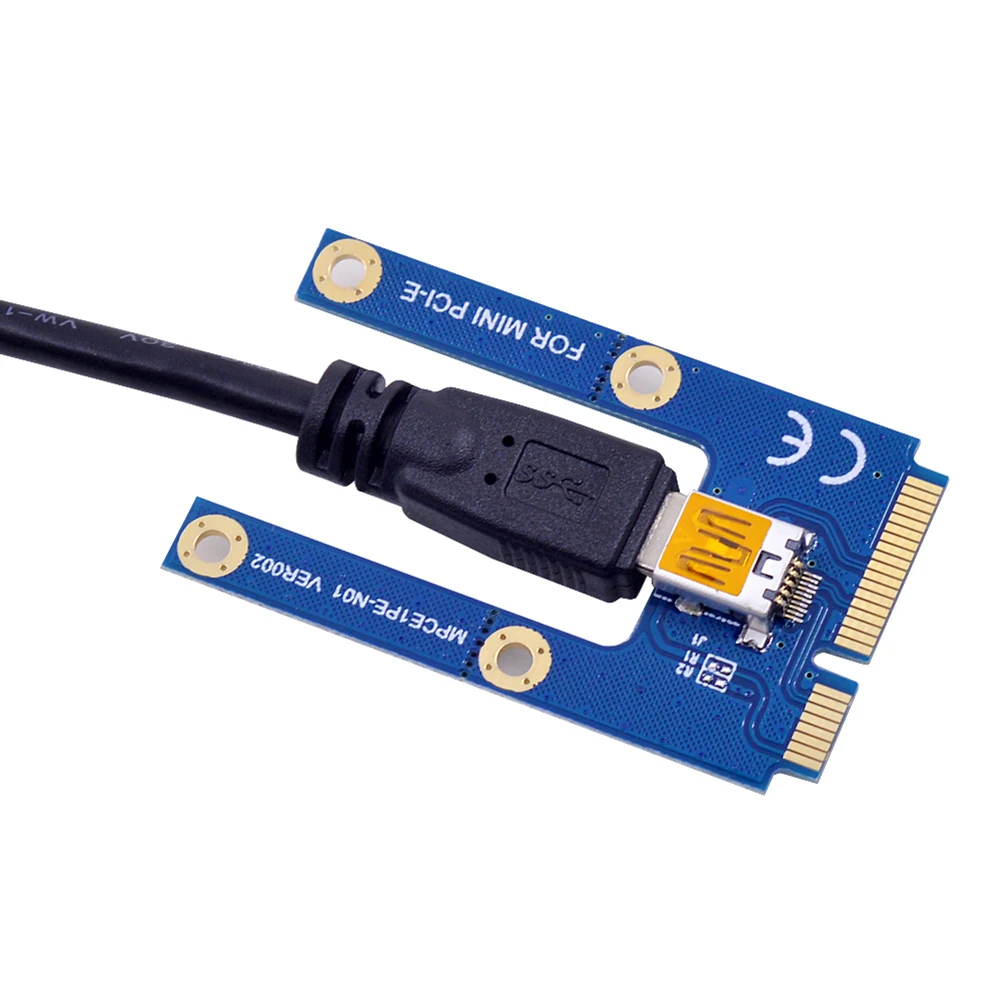

1 X MINI PCIE Head

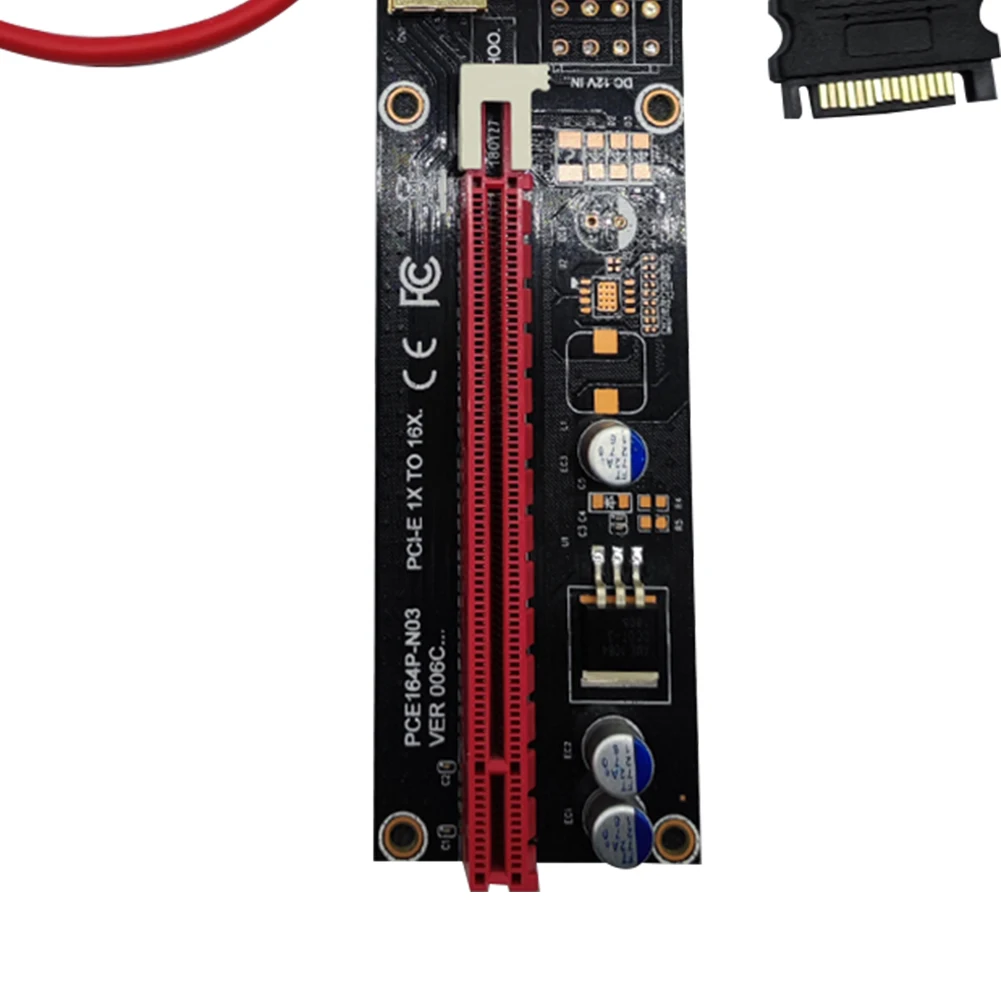

1 X PCIE 164Pin Motherboard
1 X USB 3.0 Cable
1 X 15cm SATA 4/6Pin Power Cord

---
