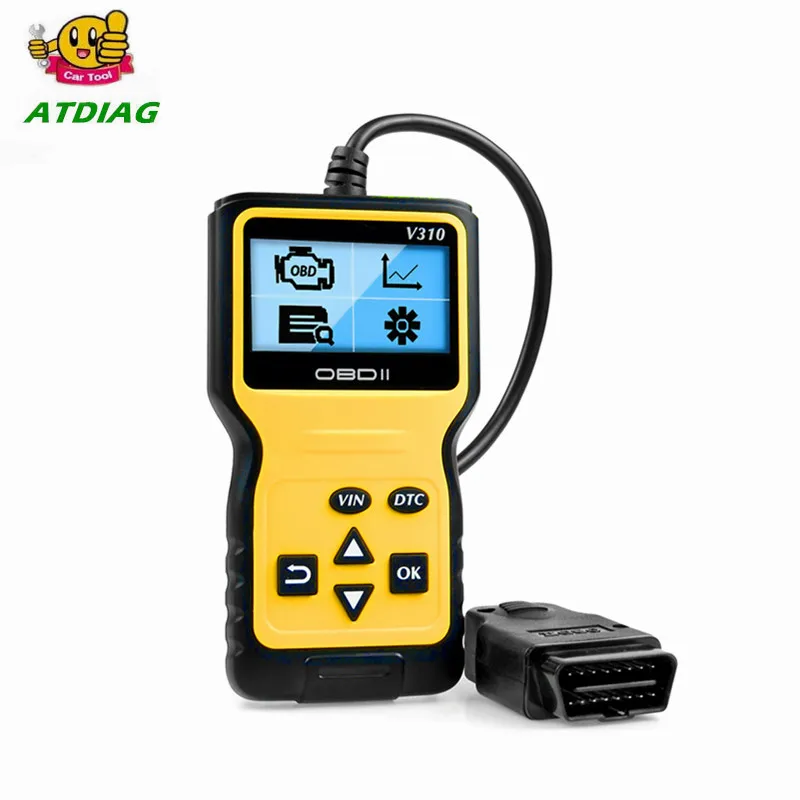

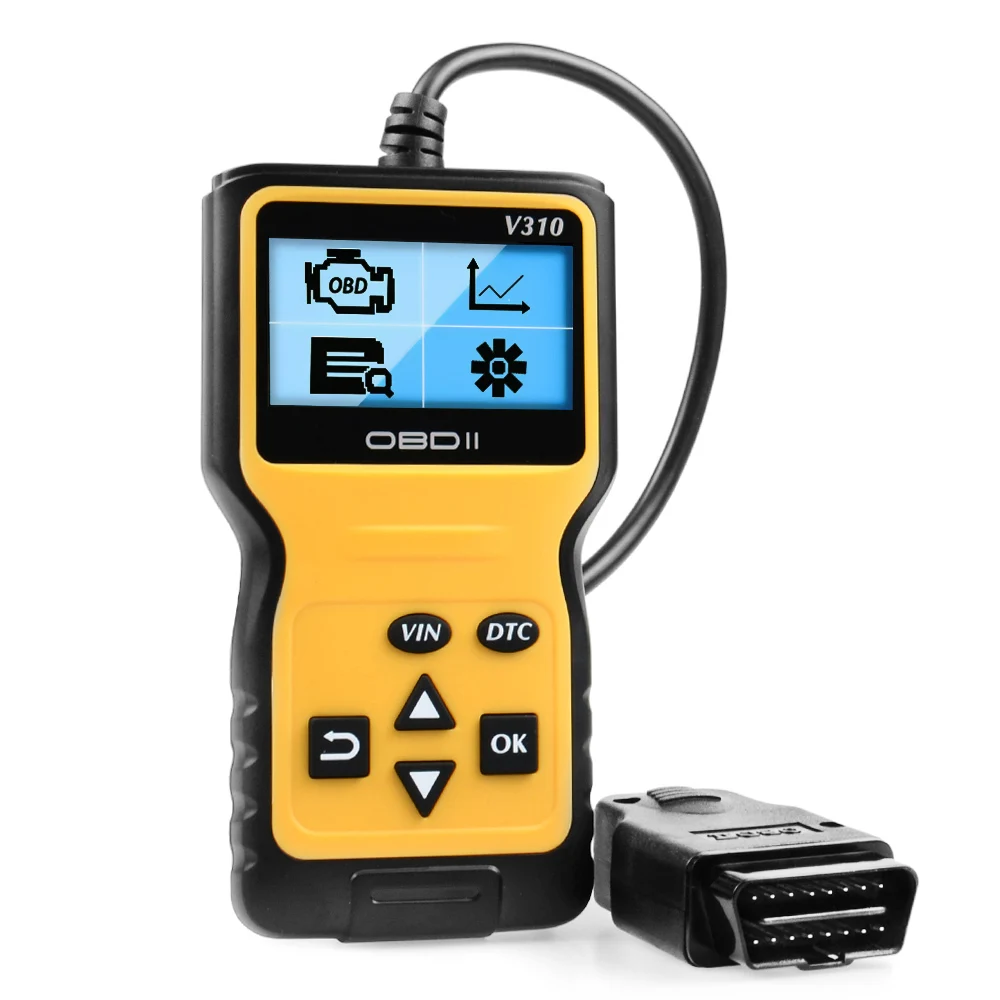

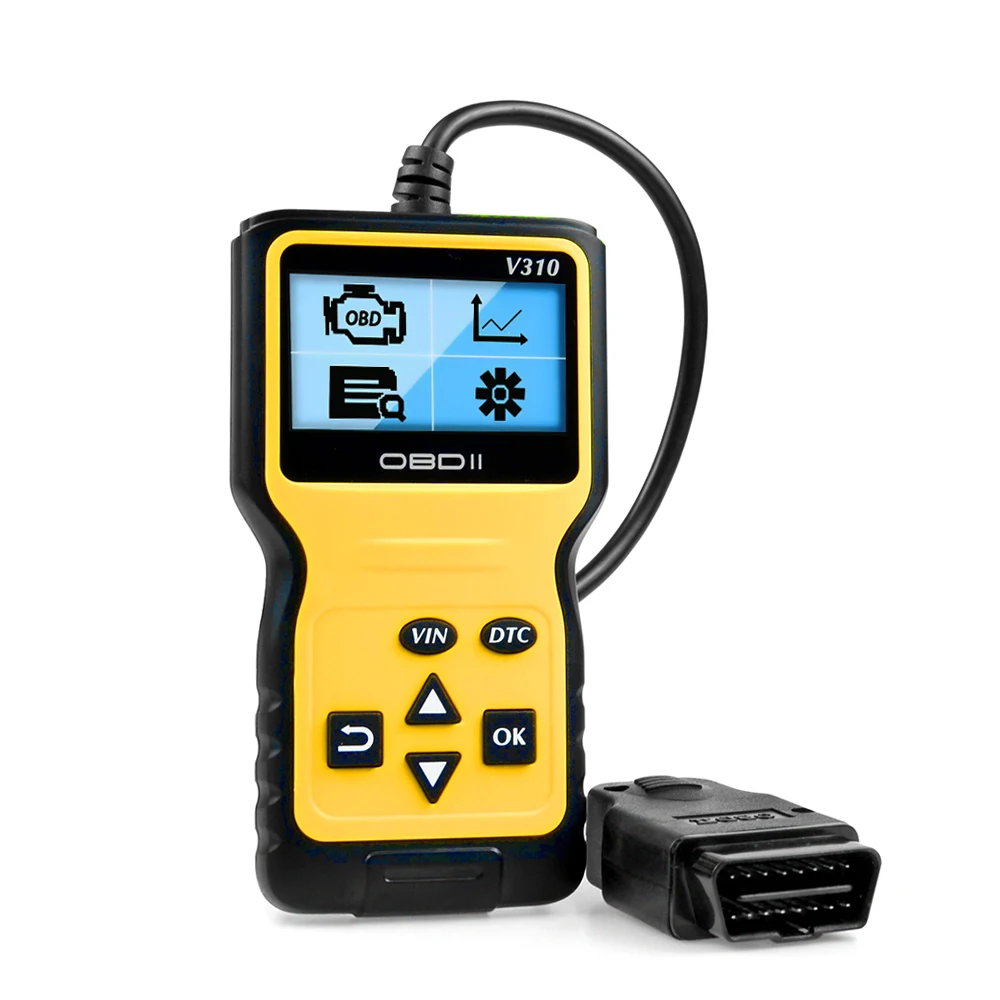

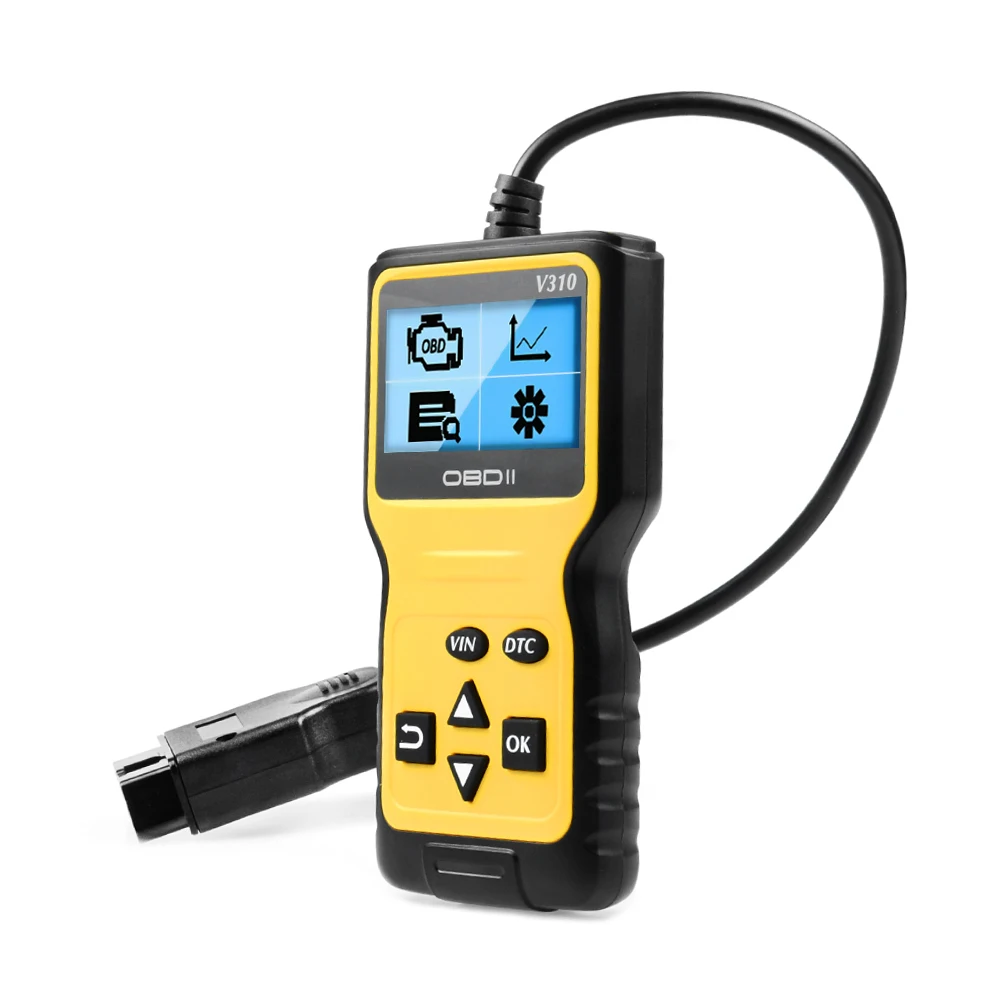

V310 OBDII EOBD Auto Code Reader 6 Languages Automobile Diagnostic Scanner For All OBD2 Protocols Cars LCD Display |

V310 OBDII EOBD Auto Code Reader 6 Languages Automobile Diagnostic Scanner For All OBD2 Protocols Cars LCD Display |

The V310 OBD II / EOBD code reader is specialized Designed for all OBD II compliant vehicles, including those Equipped with Next Generation Protocol - Control Area Network (were able). The US Environmental Protection Agency requires all vehicles and vehicles that were updated in 1996 (cars) Light trucks sold in the US must comply with the OBD II standard This includes all domestic, Asian and European vehicles.

A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify a 1994 or 1995 vehicle is OBD II compliant, check the Vehicle Emissions

Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate "OBD II Certified". Additionally, Government regulations mandate that all OBD II compliant vehicles must have a "common" sixteen-pin Data Link Connector (DLC).

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

Code Reader V310 Support Multi-Brands Cars

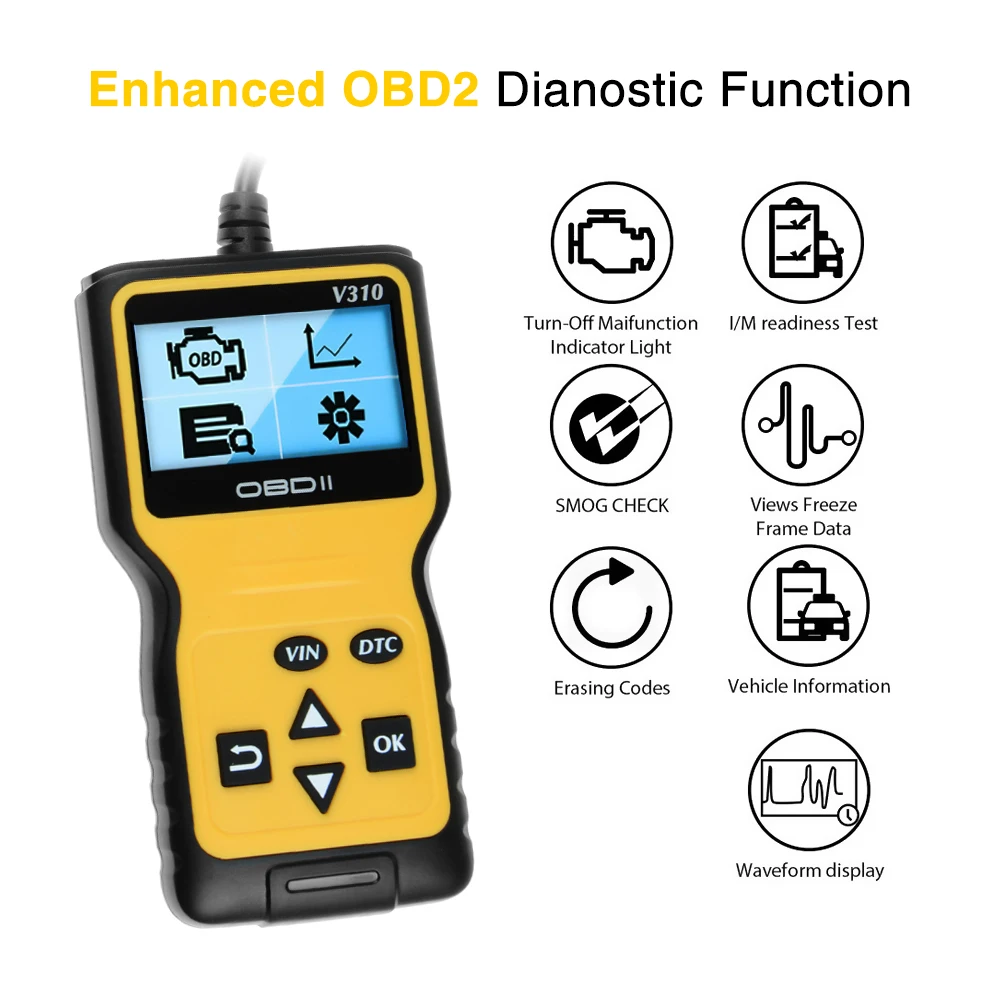

Code Reader V310 Features & Functions:

1. Support Multi-brand cars, works with all 1996 and later OBDII compliant US,European and Asian vehicles.

2. Multi-language supported: English, French, Italian, Spanish, German, Dutch.

3.Supporting shortcut key queries.(VIN,DTC)

4.Support Read/Clear diagnostic trouble codes,I / M readiness,Vehicle InFo,turn off the MIL ("Check Engine" light) an so on.

5. Display current sensor data, including:

6. Engine RPM

7. Calculated Load Value

8. Coolant Temperature

9. Fuel System Status

10. Vehicle Speed

11. Short Term Fuel Trim

12. Long Term Fuel Trim

13. Intake Manifold Pressure

14. Timing Advance

15. Intake Air Temperature

16. Air Flow Rate

17. Absolute Throttle Position

18. Oxygen sensor voltages/associated short term fuel trims

19. Fuel System status

20. Fuel Pressure

AND Many others...

Multi-Protocol Support:

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

V310 Specifications:

Display:Badit,128 x64 pixel display

Operating Temperature: 0~60℃( 32~140℉)

Storage Temperature:-20 ~70℃(-4 ~158℉)

External Power:8.0 to 15.0 Volts provided via vehicle battery

Dimensions:28*18.5*5CM

Weight:0.34Kg
