12V 24V 3A PWM Регулятор скорости постоянного тока для двигателя LED Димер Модуль безшаговый регулятор напряжения Регулятор мощности Переключатель управления.

12V 24V 3A PWM Регулятор скорости постоянного тока для двигателя LED Димер Модуль безшаговый регулятор напряжения мощности Переключатель управления.

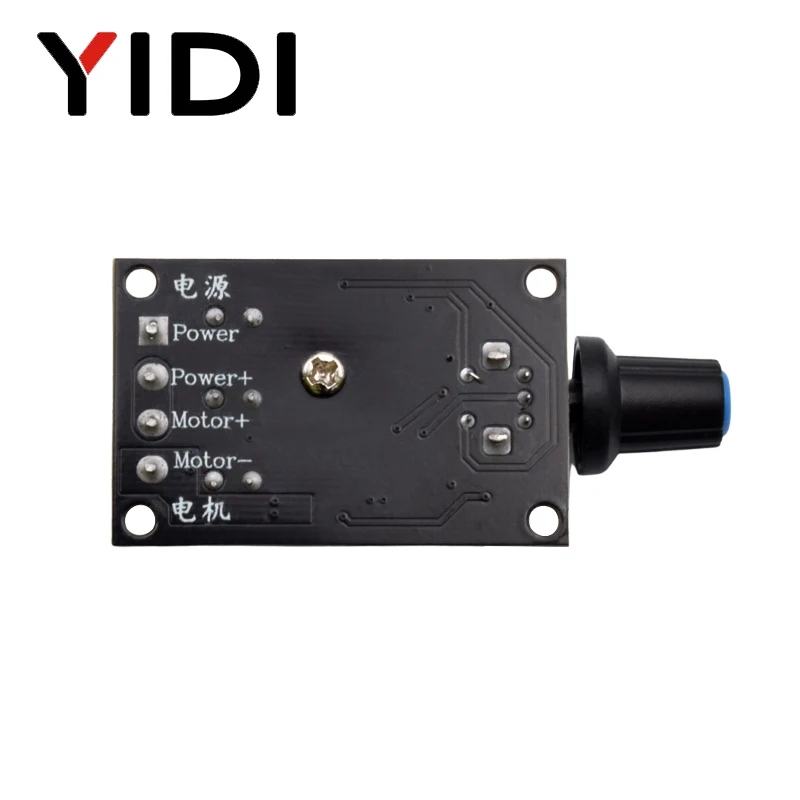

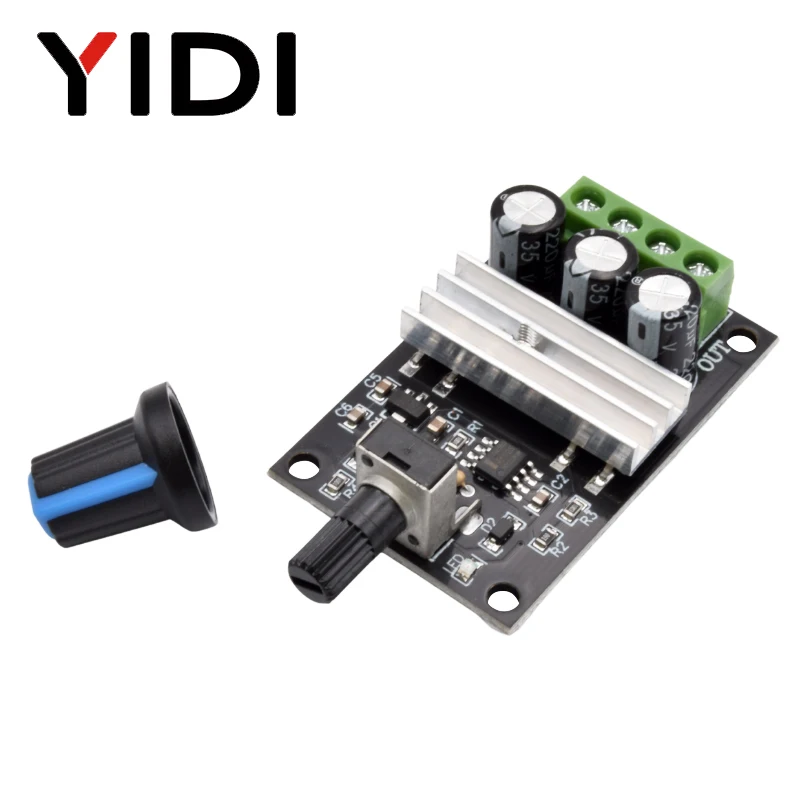

YIDI 12V 24V 3A PWM DC Motor Speed Controller LED Dimmer Dimming Module Stepless Voltage Regulator Governor Adjustable Power Controller Switch

Parameter:
Voltage: 6-28V DC
Max Current: 3A
Adjustable Range: 0-100%
Switch Function: Yes
Speed Control Mode: PWM stepless motor speed regulation / Adjust the light
Control Mode: Speed control potentiometer ( clockwise clicked open, continue to rotate clockwise from 0% to 100% speed)
Duty cycle: 0%-100% (0% position is the state of the switch off when the potentiometer is most on the left).

Note:
The governor is mainly used in motor speed control. If you use to LED dimming, must ensure that the LED can also work in direct power supply, the dimming range of the speed governor is from LED to LED directly connected to the power supply is completely extinguished between dimming. If LED is directly connected with a power that will burn through dimmer the dimming is burned, which typically requires a series current limiting resistor, if you don't know how much resistance can contact customer service.
