Product List

Control card*1
Signal line
Power supply 24V250W
Drive*4
Motor *4
All in the picture

MHD651

feature:
Supports up to 4 axis linkage control. The 4th axis can be set as the slave axis Output pulse 100K, using minimum error interpolation algorithm, high processing accuracy USB interface, suitable for any netbook, notebook, desktop with USB interface PC compatible computers such as computers and tablets Driver-free design, better compatible with various software and hardware environments (support WinXP And WIN7 system) Support automatic return to origin (zero return) The driven shaft is automatically leveled when returning to the origin Support automatic tool setting Support emergency stop input Support limit switch access Support spindle control (PWM mode and relay mode) Provide 4 digital signal inputs with optocoupler isolation Provides up to 12 digital signal inputs Provide 4 channels with optocoupler isolation relay output Support handwheel interface Anti-interference design, imported industrial grade components, high reliability

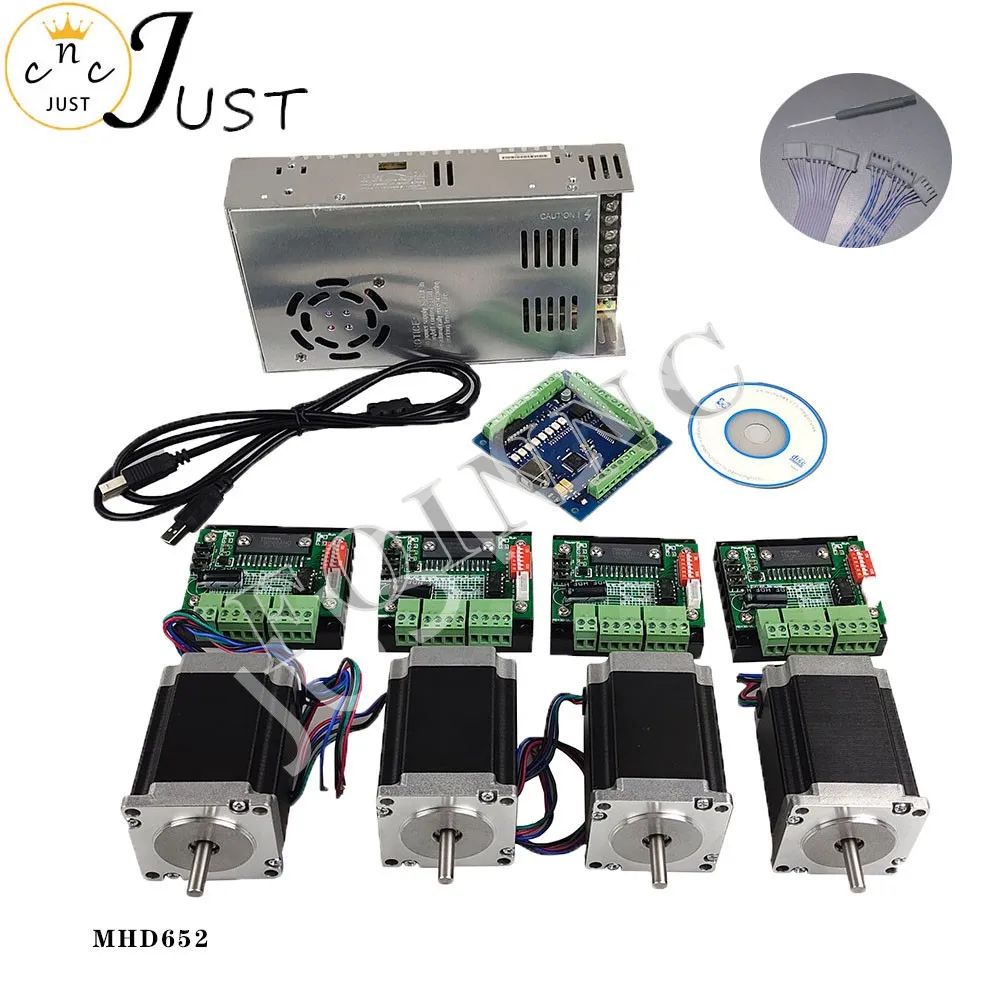

MHD652

Features:
1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;
2. Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;
3. 4 general-purpose opto-couplers isolation input : can connect the limit switch, emergency stop
switch, auto tool zero, home switch etc.
4. Support for connecting electronic handwheel; 5. Have 0-10V signal output , you can use mach3 software to control the spindle motor speed.
6. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling
the spindle starts, forward rotating and reverse rotating, pumps or other device;
7.1 status LED, indicate connection status on the board.

MHD653

Features:
1. Support for 5-axis linkage, you can connect four stepper motor drives or
servo drives;
2. Maximum step-pulse frequency is 100KHz,which is suitable for the servo
or stepping motor;
3. 4 general-purpose opto-couplers isolation input : can connect the limit
switch, emergency stop switch, auto tool zero, home switch etc.
4. Support for connecting electronic handwheel;
5. Have 0-10V signal output , you can use mach3 software to control the
spindle motor speed.
6.4 general-purpose isolated relay drive output interface, can drive
four relays for controlling the spindle starts, forward rotating and
reverse rotating, pumps or other device;
7. 1 status LED, indicate connection status on the board.

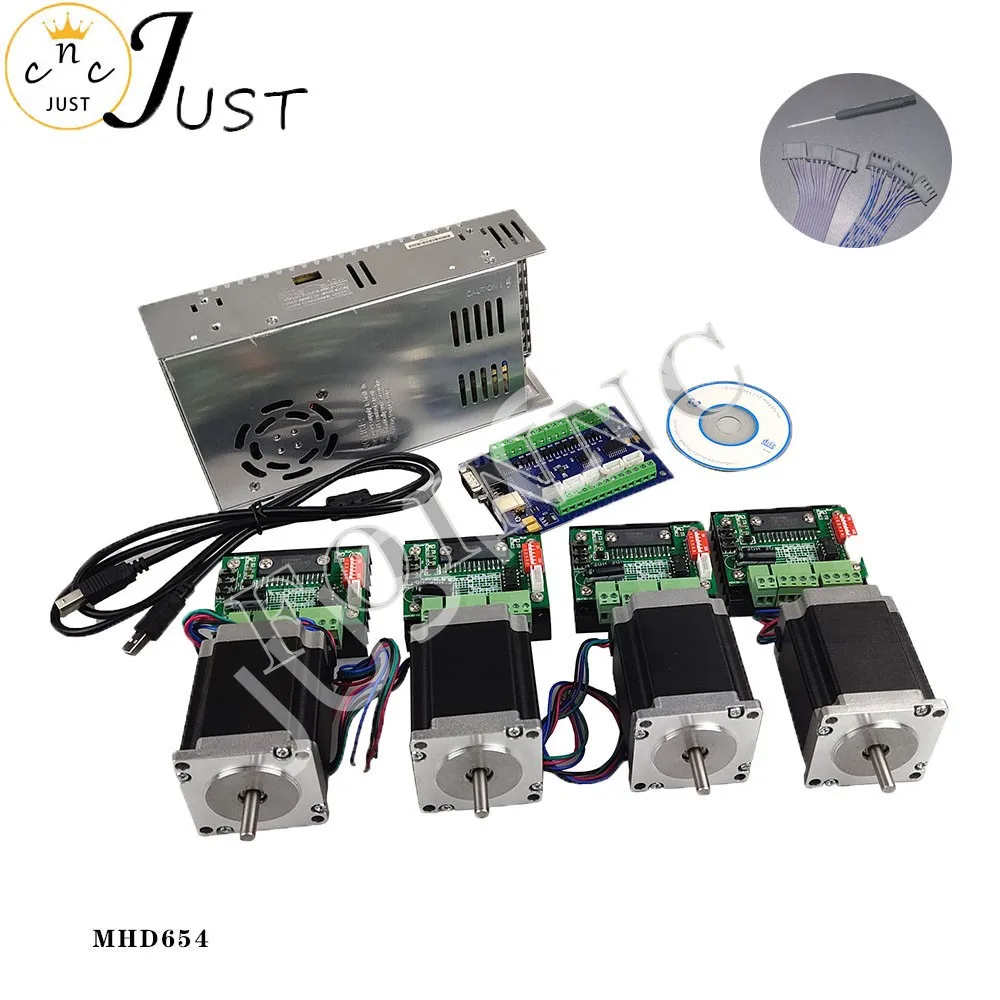

MHD654

feature:
1. Support five-axis linkage, which can connect four stepper motor drives or servo drives
2. The maximum stepping pulse frequency is 100KHz, suitable for servo or stepping motors;
3. 4 universal photoelectric coupler isolation inputs: can be connected to limit switches, emergency stop switches, automatic zero adjustment tools, origin switches, etc.
4. Support the connection of electronic handwheels;
5. With 0-10V signal output, you can use mach3 software to control the spindle motor speed.
6.4 Universal isolation relay drive output interface, which can drive four relays, used to control the spindle start, forward and reverse rotation, pump or other devices;
7. 1 status LED, indicating the connection status on the board.

MHD655

Features:
1. Fully support MACH3 and other computer software that supports parallel port control.
2. USB power supply and peripheral power supply are separated to ensure computer safety.
3. External wide voltage input, 12-24V, and anti-reverse connection function.
4. All input signals are isolated by optical coupling, which can be connected to emergency stop, tool setting, limit, etc., to ensure power
Brain safety.
5. One relay output port can control the spindle switch. The output port is P17 port.
6. A 0-10V analog voltage output isolated by optocoupler can be controlled with corresponding analog connection
The frequency converter of the mouth, controls the spindle speed. The output port is P1 port.
7. Open all 17 ports, which can be connected to drivers with optocouplers, and can control 5-axis stepping motors.
8. P1 is used as a PWM output to control a spindle speed controller with optocoupler input.
9. It can be connected to a driver with a common cathode or common anode and an input level of 5V.

MHD656

Features:
1: Up to 5 axis stepper motor driver
2: Two-stage signal processing
3: 5-channel input interface can define emergency stop, limit, centering, tool setting, etc.
4: Relay output control interface, which can be connected to spindle motor or air pump, water pump, etc.
5: Five-axis work indicator display, visually display the working status of the product
6: Dual output interface, convenient for different drive wiring methods
