There are 3 version:

WVC1200W/WVC-1400W/WVC-16000W (WIFI 433MHZ version)inverter can be compatible with wifi-modem,Note: this price is without modem, just WVC solar grid tie inverter!!!!

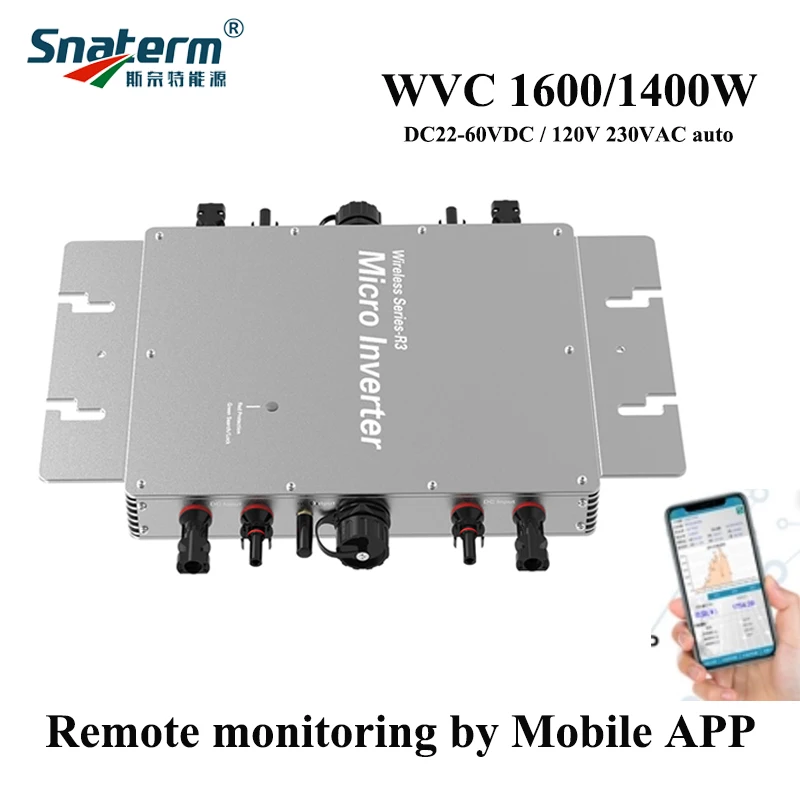

WVC1200W-Life/WVC-1400W-Life /WVC-1600W-Life (Mobile APP) Updated type,Wifi Mode, The Mobile app is obtained through QR code scanning, and the monitoring interface is automatically linked.no need WIFI Modem for remote monitoring .

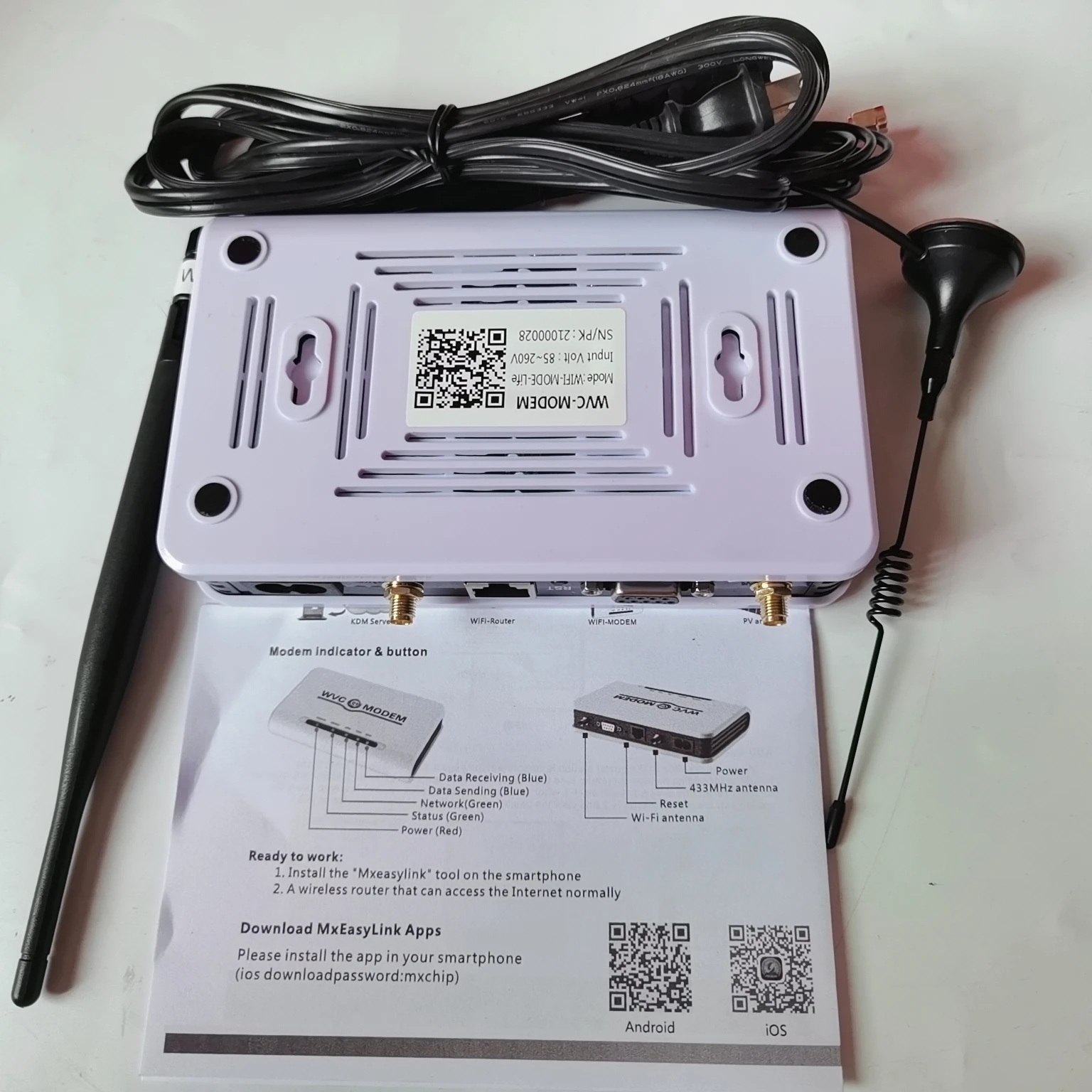

WVC1200W/WVC-1400W/WVC-1600W (with 433MHZ WIFI WVC Modem)Updated type, inverter comes with the new WVC WIFI Modem, can also remote monitoring by Mobile app, better use for Large-scale solar system.

Features:

1.Maximum power point tracking

2.Adaptive voltage/frequency

3.App monitoring system

4.Teverse power transmission

5.Internal high precision meter

6.Forward full-bridge topology

7.I/O,fully isolated

8.Voltage mode microgrid

9.No installation,no maintenance

10.Multiple parallel stacks

11.5G lot platform management

Inverter Installation Steps:
Step 1: Fix the inverter on the bracket of the photovoltaic panel with the screws attached to the machine.
Step 2: Connect the positive and negative poles of the DC connection plugs on the photovoltaic panel to the DC input terminals of the inverter.
Step 3: Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug.
Step 4: Connect the AC output line to the AC main cable;
Step 5: Repeat steps 1 to 3 to install and connect all inverters;
Step 6: Connect the AC main cable to the mains grid to start your green energy journey.
Note: Before installing WVC series micro-inverter products, please read this manual first and pay attention to the installation details.
This manual contains important instructions that should be followed when installing and maintaining Kadant Micro-inverters. In order to reduce
When reducing the risks of electric shock and ensuring safe installation and operation, always follow the following safety symbols present in this document to indicate dangerous situations and important safety instructions.

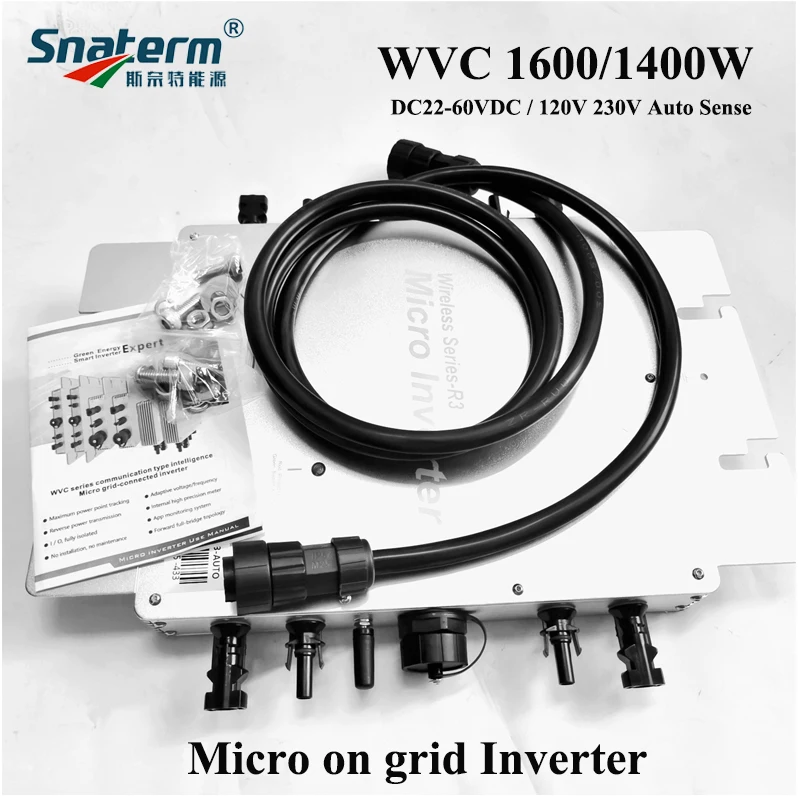

Package List:

1 x Micro Inverter

1 x Cable

1 x English Manual

2 x Accessory Kit (4 x Screw, 4 x Nut, 8 x Accessory)

Grid-connected system

The biggest feature of the photovoltaic grid-connected system is that the DC power generated by the photovoltaic array is converted into AC power that meets the requirements of the commercial power grid through the grid-connected inverter, and then directly connected to the commercial power grid. The power generated by the panel array in the grid-connected system is preferentially supplied to the AC At the load side, excess power is fed back to the grid. On rainy days or nights, when the photovoltaic array does not generate electrical energy or the generated electrical energy cannot meet the load demand, it is powered by the grid.

Because the electric energy is directly input into the power grid, the configuration of the storage battery is eliminated, the process of storage and release of the storage battery is eliminated, and the power generated by the PV square array can be fully utilized to reduce the energy loss and reduce the cost of the system. However, a dedicated grid-connected inverter is required in the system to ensure that the output power meets the requirements of the grid power for voltage, frequency and other indicators. Because of the inverter efficiency, there will still be some energy loss. Such systems are usually able to use the mains and solar photovoltaic arrays in parallel as the source of local AC loads. Reduce the load power shortage rate of the entire system. And the grid-connected PV system can play a peak-shaving effect on the public power grid.

In response to the characteristics of the grid-connected system, we has developed the first generation of micro-grid inverters as early as 2008, specifically for the recycling of electrical energy of various profit and loss. Provides a preliminary route for our product development and design direction, and overcomes a series of technical problems on the grid-connected system. Until now the fifth generation WVC series R3 version of the inverter.

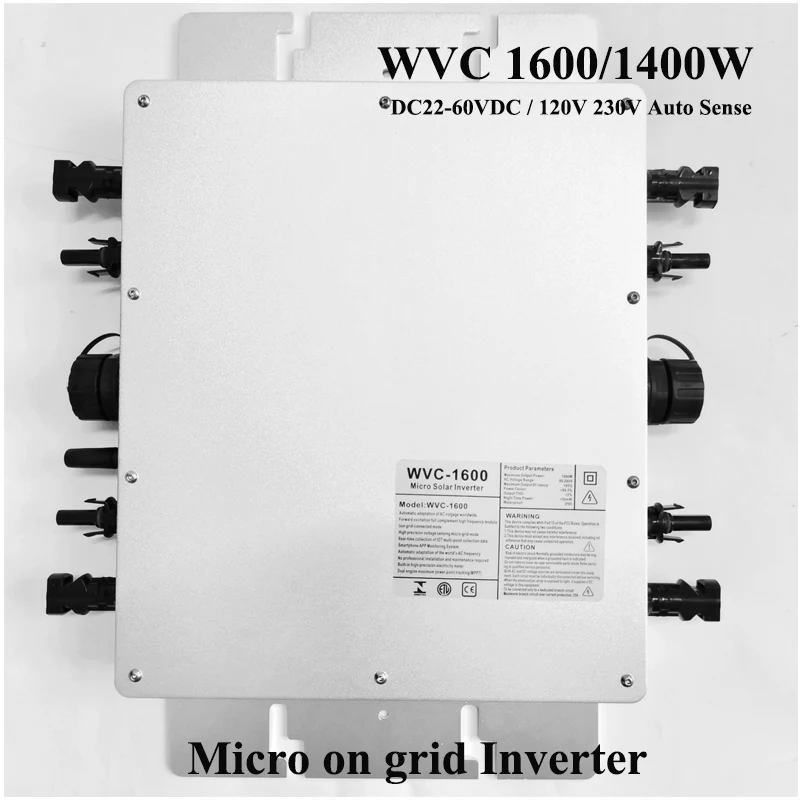

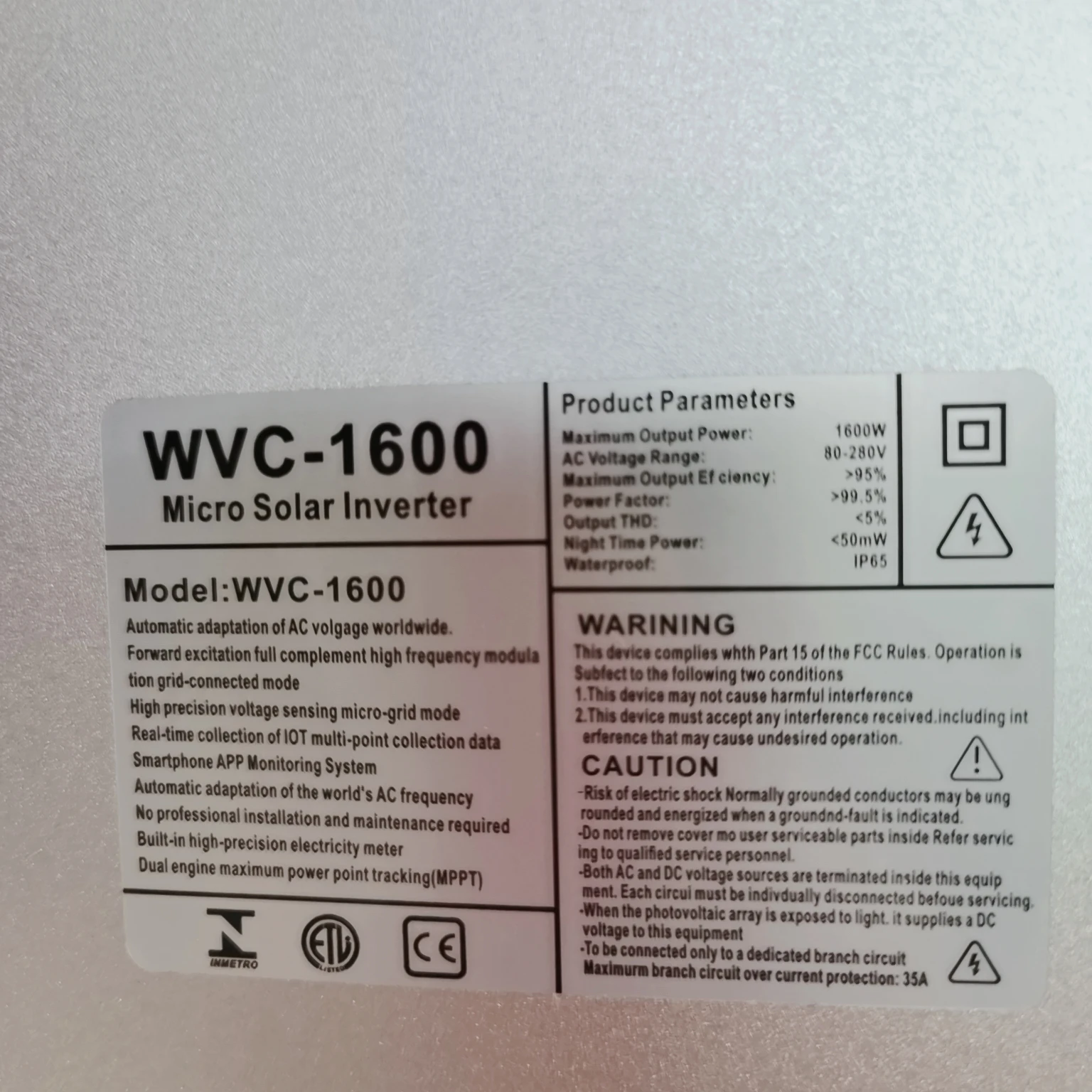

Product pictures :

installation of micro inverter

Step1Installation for fixed the inverter on the PV holder with the screws attached is as following:
