MCDFL DIY Quartz Silent Wall Clock Mechanism Movement Kit for Hours 3d Machinery Watch Table Desk Clocks Clockwork Home Tools

This is a big bonus of 2 clock movement kit from MCDFL for you to pick out the style that look best to keep your favorite clocks running at no additional charge.
MCDFL diy clock mechanism for wall hours provides quick and easy fix for your clock, you too can be a clock maker. Save an expensive clock and your old clock is now running again in your house with wonderful memories.
Fit for cross-stitch, three-dimensional embroidery, craft clock, table clock, quartz wall watch and DIY frame-less draw clock, etc.
Good handwork material to make a 3d clock by yourself, perfect DIY clock kit, clock parts accessories, clock accessories.

Specification

Clock Mechanism Case Size: approx. 56 x 56 x 16 mm (2.2 x 2.2 x 0.63 in)

Second Hand Motion: Sweeping

Accuracy Within ± 30 seconds deviation each month (in normal temperature)

Battery: One 1.5V AA Carbon battery (not included)

Please DO NOT USE Alkaline battery, Rechargeable batteries, they will damage the clock movement.

Features:

Good clock replacement:
We have 8 different shaft length clock mechanism for you to choose. It can be a replacement for your broken clock.

Simple style clock movement:
It can match to diverse colors, patterns, shapes clock panel, it will not stand out, good quartz movement will work well. Simple design, easy to use.

Wide application:
You are enable to use it to repair, replace or make a home clock; Applicable to cross-stitch, three-dimensional embroidery, desk clock, craft home clock, frame-less draw clock, clockwork, etc. Perfect DIY clock kit, clock accessories, clock parts accessories, quartz mechanism for clock, silent tools.

Accurate Time Keeping and Quiet Motor

The long shaft clock mechanism silent clockwork offers great accuracy and dependability, equipped with sweeping motion, no ticking and will provide you with a quiet environment.

We Have 8 Different Shaft Length Movements

If you want to replace your old clock movement clockwork, carefully measure the clock movement shaft length. Clock mechanism long shaft can fits more thicker clock dial.

If you still can't confirm which one is right for you. Please refer to our picture, take a photo of shaft part and hands size, we will help you confirm.

Total Shaft Length: 9 mm (0.47 inch)
No Thread
Suitable for: 1 - 2 mm ( 0.04 - 0.08 inch ) thickness clock panel
(Snap In Type Clock Movement, with no thread.
Please note that our package does not include the plastic washer, brass washer, brass nut, metal hook and mounting hook)

Total Shaft Length: 12 mm (0.47 inch)
Thread Length: 6 mm (0.24 inch)
Suitable for: 1 - 2 mm ( 0.04 - 0.08 inch ) thickness clock panel

Total Shaft Length: 15 mm (0.59 inch)
Thread Length: 8 mm (0.32 inch)
Suitable for: 2 - 3 mm ( 0.08 - 0.12 inch ) thickness clock panel

Total Shaft Length: 18 mm (0.71 inch)
Thread Length: 11 mm (0.43 inch)
Suitable for: 3 - 7 mm ( 0.12 - 0.28 inch ) thickness clock panel

Total Shaft Length: 20 mm (0.79 inch)
Thread Length: 13 mm (0.51 inch)
Suitable for: 4 - 8 mm ( 0.16 - 0.32 inch ) thickness clock panel

Total Shaft Length: 22 mm (0.87 inch)
Thread Length: 15 mm (0.59 inch)
Suitable for: 9 - 13 mm ( 0.35 - 0.51 inch ) thickness clock panel

Total Shaft Length: 28 mm (1.1 inch)
Thread Length: 21 mm (0.83 inch)
Suitable for: 12 - 16 mm ( 0.47 - 0.63 inch ) thickness clock panel

Total Shaft Length: 32 mm (1.26 inch)
Thread Length: 24 mm (0.95 inch)
Suitable for: 16 - 21 mm ( 0.63 - 0.83 inch ) thickness clock panel

Shaft Length and Thread length is different

Please make sure that you understand correctly and make the correct choice carefully before purchase.

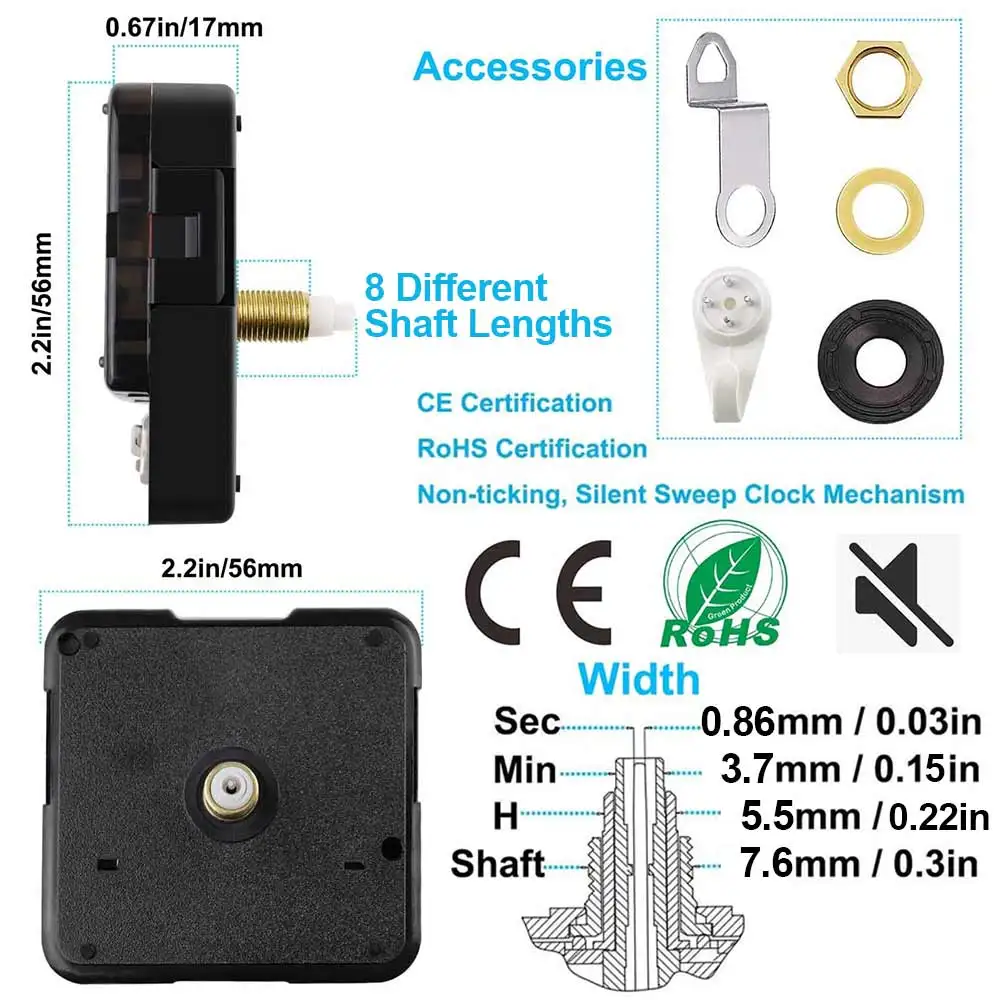

If you don't know what shaft diameter is, please refer to the picture below

Hour Hand Shaft Diameter: 5.5 mm / 0.22 inch
Minute Hand Shaft Diameter: 3.7 mm / 0.15 inch
Second Hand Shaft Diameter: 0.86 mm / 0.03 inch
Thread Diameter: 7.6 mm / 0.3 inch

Snap In Type Clock Movement, with no thread

Please note that our package does not include the plastic washer, brass washer, brass nut, metal hook and mounting hook

How to Get the Right Replacement

We have 8 different clock movements.

They have the same shaft diameter.

But their shaft length are different.

If you don't know what the shaft length and shaft diameter are, please refer to the picture above.

Why choose MCDFL clock movement?

2 set/lot high precision clock movement kit meet your small batch needs.
You can pick out suitable shaft length clock mechanism to keep your favorite clocks running at no additional charge.
With MCDFL quartz clock mechanism kit that provides a quick and easy fix for your clock, gift choice for clockmaker lover. Perfect DIY clock kit, clock home parts accessories.

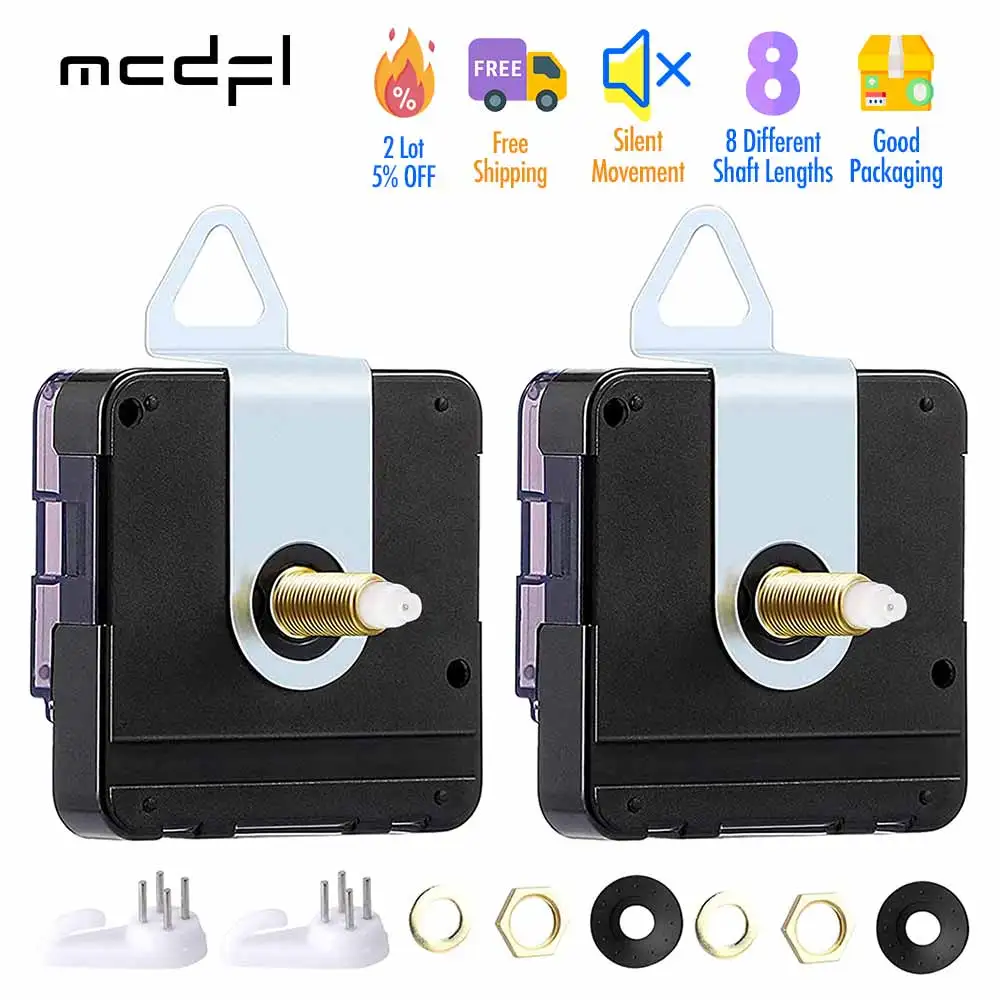

Package Included:

2 x Quartz clock movement
2 x Rubber gasket
2 x Brass washer
2 x Brass hex nut
2 x Metal hook
2 x Mounting hook

(for Snap In Type Clock Movement, with no thread.
Please note that our package does not include the plastic washer, brass washer, brass nut, metal hook and mounting hook)

Installation Steps

1. Place metal hook over shaft.
2. Place plastic washer over shaft.
3. Insert shaft through clock face.
4. Place dial plate brass washer over shaft.
5. Attach dail fixing brass hex nut.
6. Gently press hour hand onto shaft at 12:00 position.
7. Place minute hand over shaft at 12:00 position.
8. Gently screw minute nut in place.

Snap in Type Clock Movement

Installation Steps
1.Insert shaft through hole in clock surface.
2.Gently press hour hand onto shaft at 1 2:00 position.
3.Gently press minute hand onto shaft at 12:00 position
4.Press on second hand at 12:00 position.

Notes:

- please check the size before buying.
- Please peel off the resist film of the clock hands.
- Be careful not to bend the hands with too much pressure.
- When you install them, please keep the hour hand and minute hand parallel
- Do not tighten the brass hex nut too tight
- Press hard to get all clock hands in place
- Please do not use Alkaline battery, rechargeable battery, or they will damage the clock movement.

The pointers are made of thin aluminum or iron plate after one time punch, although the packaging is good, but still can not avoid being bent during long-distance transportation. If it occurs the situation, please slightly smooth it straight by fingers. It doesn't affect usage.

The installation of pointers is skillful. Three needles should be installed separately and do not overlap as much as possible. Otherwise it will affect the performance that these pointers may not walk. Please read the notes carefully before your purchase.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, Thank you.

About Battery

Please Do Not use a battery more than 1.5V or a high electric current battery, such as a rechargeable battery.

The Best Option is a Carbon, Alkaline Battery or a low electric current battery (less than 500 ma)

Why we should use Carbon, Alkaline Batteries or low electric current batteries on most of home clocks?

Most of clocks only need very low electric current, especially for quartz clock for home. If use a high electric current battery such as
a rechargeable battery, it may damage the clock movement, cause inaccurate time, or even burn out the clock movement, affecting the service life.

Buyer Questions & Answers

Question: Is the second hand ticking or smooth?
Answer: Smoothly goes and does not tickle-Super! without noise!

Question: Is there a Battery cover with this?
Answer: This is no battery cover. Battery is held in tight via the springiness of the contacts. Additionally, when the clock is hung, the back of the quartz clock movement mechanism will be against the wall.

Question: Does the quartz movement snap in?
Answer: Not exactly. Your clock will have a small hole that the movement shaft will fit into. It then screws to a bolt provided with the kit. Make sure that you order a wall clock movement with a shaft that will be long enough for your clock for home.

Question: Can this wall clock mechanism kit be made to run backwards (counterclockwise)?
Answer: Hello, it can not run backwards (counterclockwise). Thanks.

Question: What is the diameter of hole needed in the clock panel?
Answer: IIRC it's a standard 5/16" center.

Question: Can i buy replacement parts for this product? Specifically the very last nut on the assembly
Answer: It’s cheap, just buy the whole thing. Save it to your wish list.

Question: What size battery please?
Answer: 1.5 V AA battery. Please DO NOT USE Alkaline battery, Rechargeable batteries, they will damage the machinery clock wall.

Question: What are shafts? I’m so confused I dont know which one to get. My home clock hour hand is 2 inches.
Answer: The shaft is the piece that goes through the clock and to which the hands attach. Measure the existing shaft and compare.

Question: Will this work for a radio controlled clock?
Answer: I would think not. This is a simple, battery-operated silent clock mechanism silent for clock like most clocks today. We have a large, decorative wall clock that cost $150+ and were dismayed when it stopped working. This was a cheap, effective fix and, so far, so good :-)

Question: Can the unit be installed without the metal hanging hook?
Answer: Yes it can be used with or without.

Question: I cannot get the hour or minute hands on to the shaft. They are the original hands from the clock. Why not ??
Answer: You have to make sure shaft width of clock movement is correct, match your old hands, If you are not sure, you can contact the seller, they will help you

Question: Can this be purchased with a metal hook for hanging?
Answer: Yes, will come with a metal hook

Question: Why can’t you use alkaline batteries?
Answer: Because the high-power alkaline battery will damage the quartz movement

Question: Can i use my own clock hands? (just use the clockwork mechanism for clock to replace an old one?)
Answer: Please ensure that the diameter of the shaft is matched with your clock hands.
