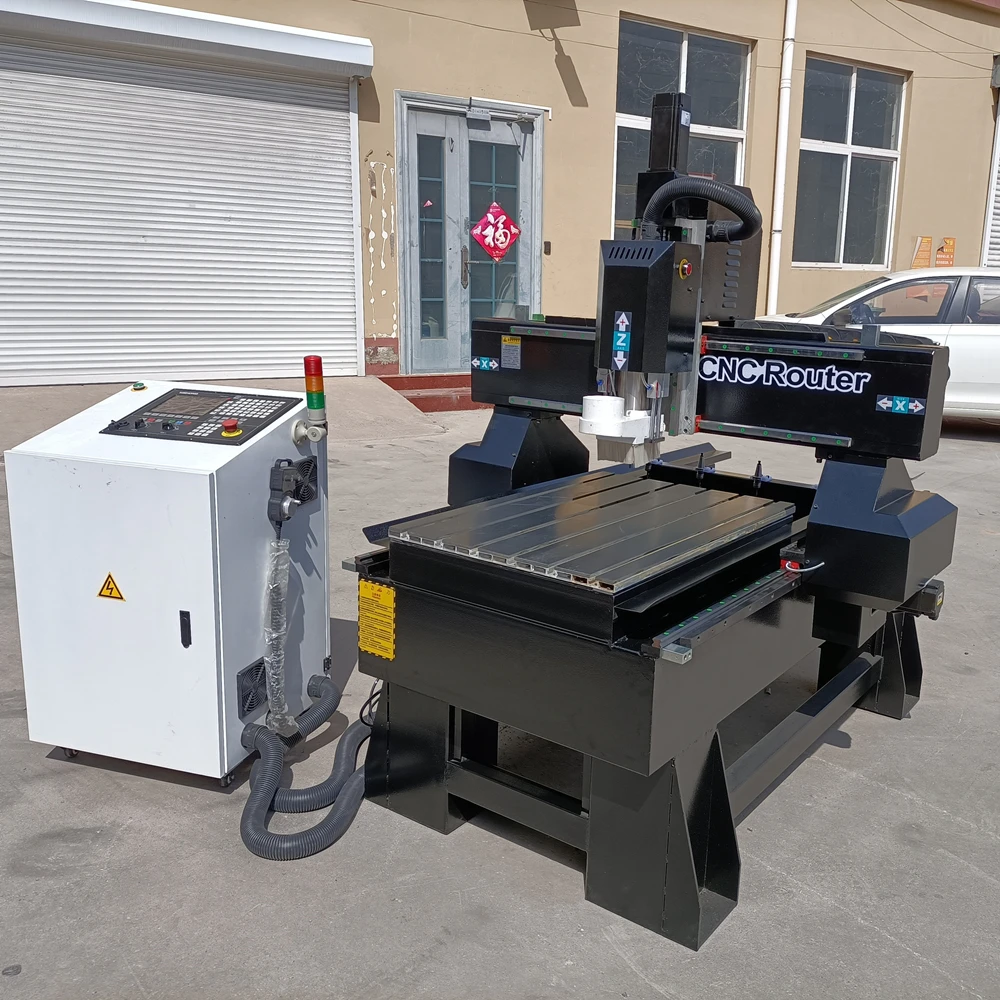

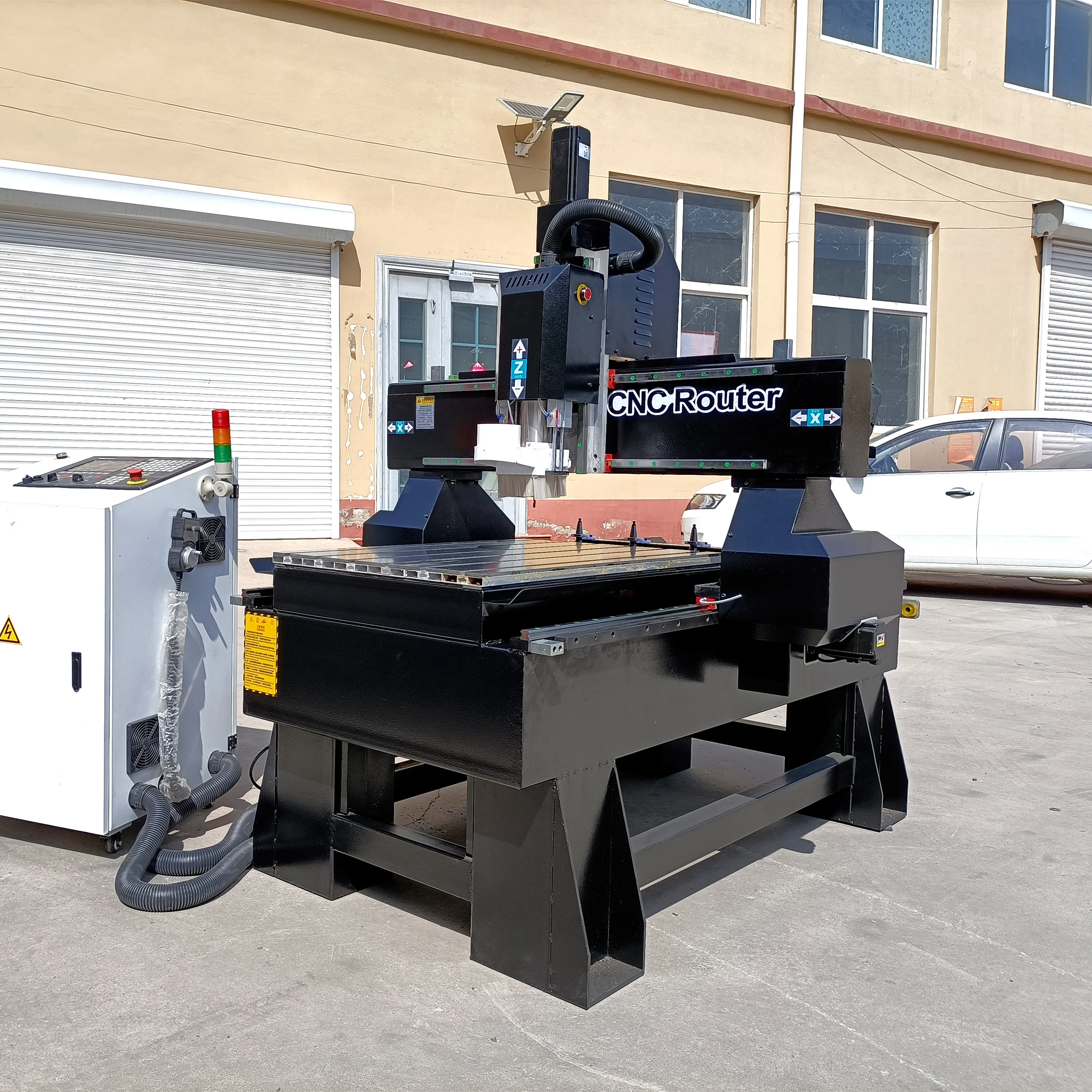

Простая в эксплуатации стойка передача тяжелый 9060 ATC ЧПУ роутер с

Простая в эксплуатации стойка передача тяжелый 9060 ATC ЧПУ роутер с

Model

RTM-6090H

X,Y Working Area

600*900mm

Z Working Area

200mm

Table Size

750*1150mmmm

Resolution

0.01mm

Lathe Structure

Cast iron Structure

X,Y Structure

Rack Pinion drive,

Taiwan Hiwin square guide rails

Z Structure

Taiwan TBI ball screw,

Taiwan Hiwin square guide rails

Max. Idling Speed

16m/min

Spindle

2.2 KW water-cooling ATC spindle

Spindle Speed

0-24000r/min, variable speed

Working Voltage

AC380V/220V

Motor and driver

Leadshine(YASKAWA optional)

Working Mode

Servo

Command

G code (HPGL,U00, mmg, plt)

Operating System

Mach3 control system

Diameter of Cutter

φ3.175-φ12.7

Cooling Mode

water-cooling

Dust-collect Function

Yes

Work Holding

By suction or clamp

Tool Magazine

Linear-style auto-tool changer system with 6 pieces of tools

Net Weight

650KG

>>Applicable Material:Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

>>Applicable Industry:Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.

1.Service before order:our salesman will try to know more about your demands ,  including the max working size, main processing materials and the thickness , so we will offer you suit machine.

2.Service during production: we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.

3.Service before shipping: the machine parts will be installed and tested by our professional.

technician, send the test video according to customer’s processing materials for customer confirmations.

4.Service after shipping: we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

5.Service of training: the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.

6.Service of warranty: we guarantee the machine forTwo Years, some machine parts ( quality problems ) can be free charge to replace it within warranty.
