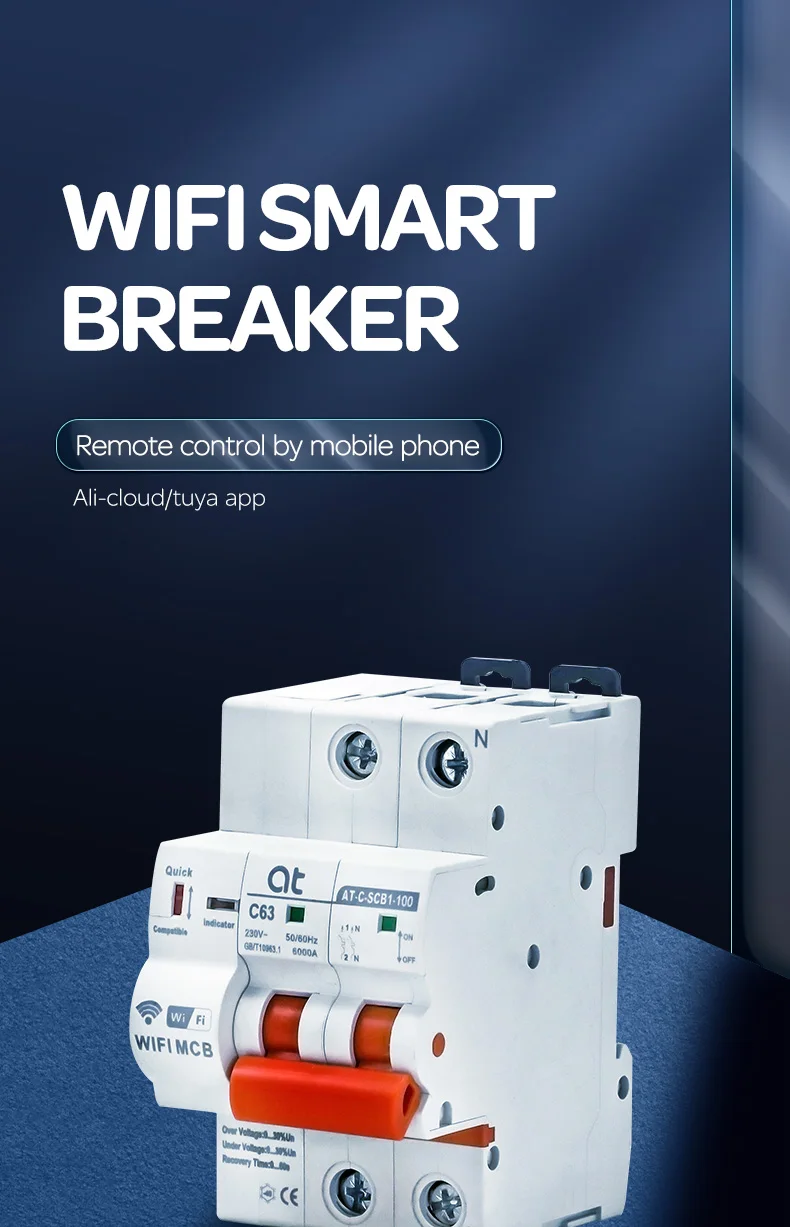

Smart Life(tuya) app WiFi Smart Circuit Breaker Timer Remote Control Wireless Intelligent Automatic Smart Switch

Function:

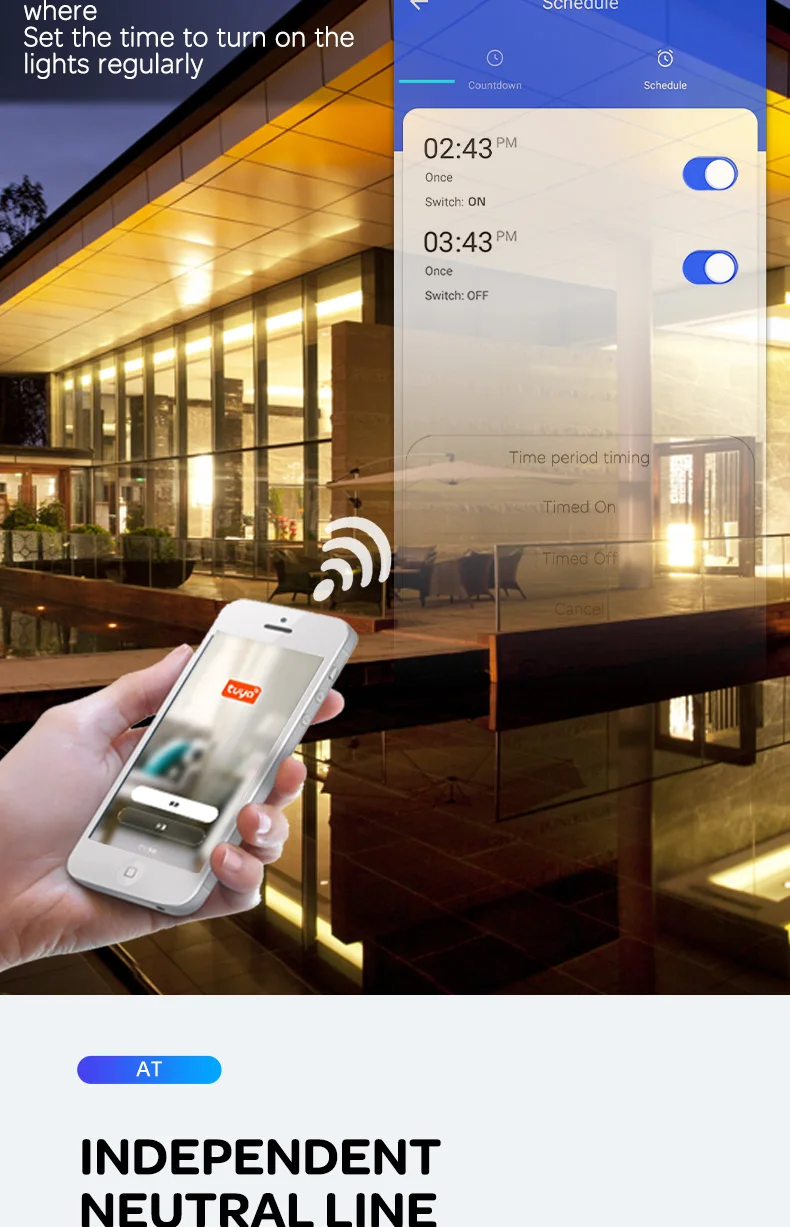

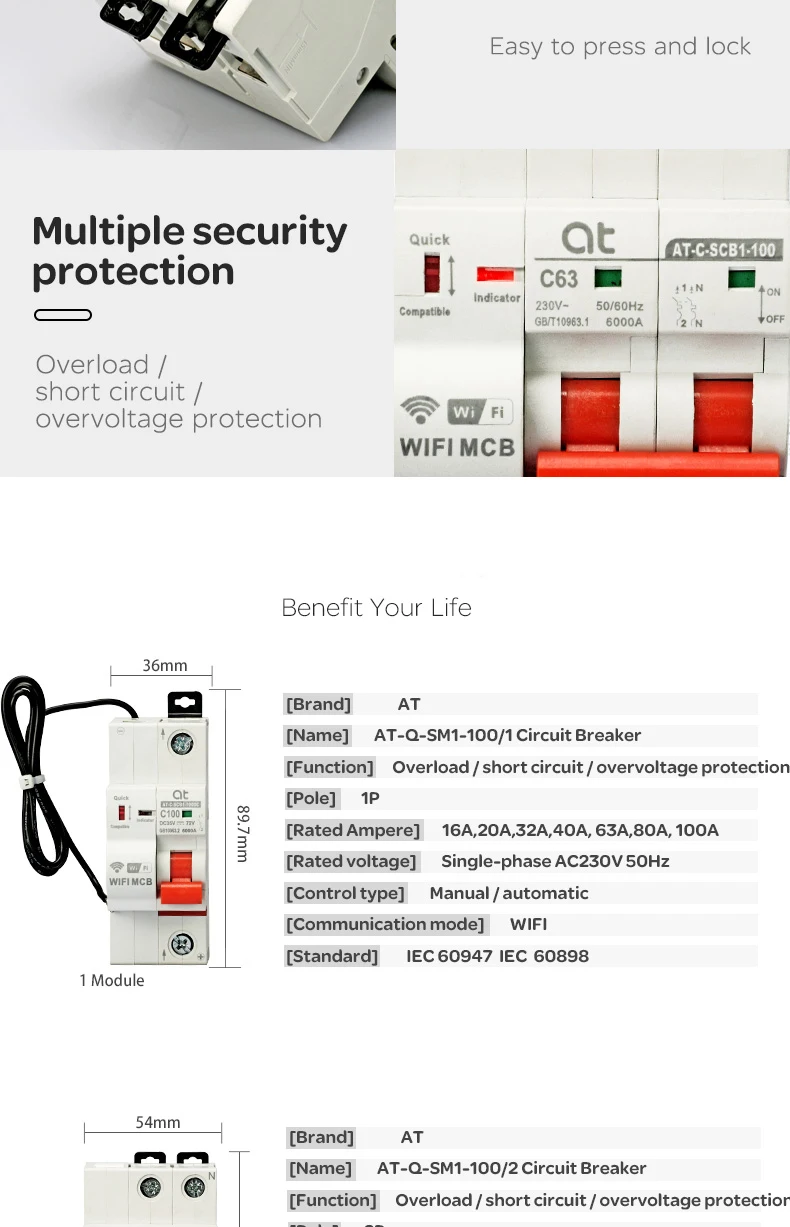

Global control,Scedule/Loop timer/timer,Voice control.Overload protection,Short-circuit protection,over-current protection,Over-voltage protection.There is no leakage protection and metering function, if necessary, please contact customer service.

Warm Notice!!!!

1、This product only support above input, down output.Please don't reverse, otherwise the handle can't push up,Some customers have a distribution box at home, the input line is below, and the output is above.his situation needs to turn our circuit breaker upside down.



2、Different country has different voltage ,Such as Japan、Brazil、Amercia、Canada、Columbia、Mexico and so on,Our breaker 1P,2P is 220V 50HZ,3P,4P is 380V 50Hz.


3、Check if the WIFI router is 5G or 2.4G. This product supports 2.4G (if it is dual band router, please upgrade to 2.4G.)

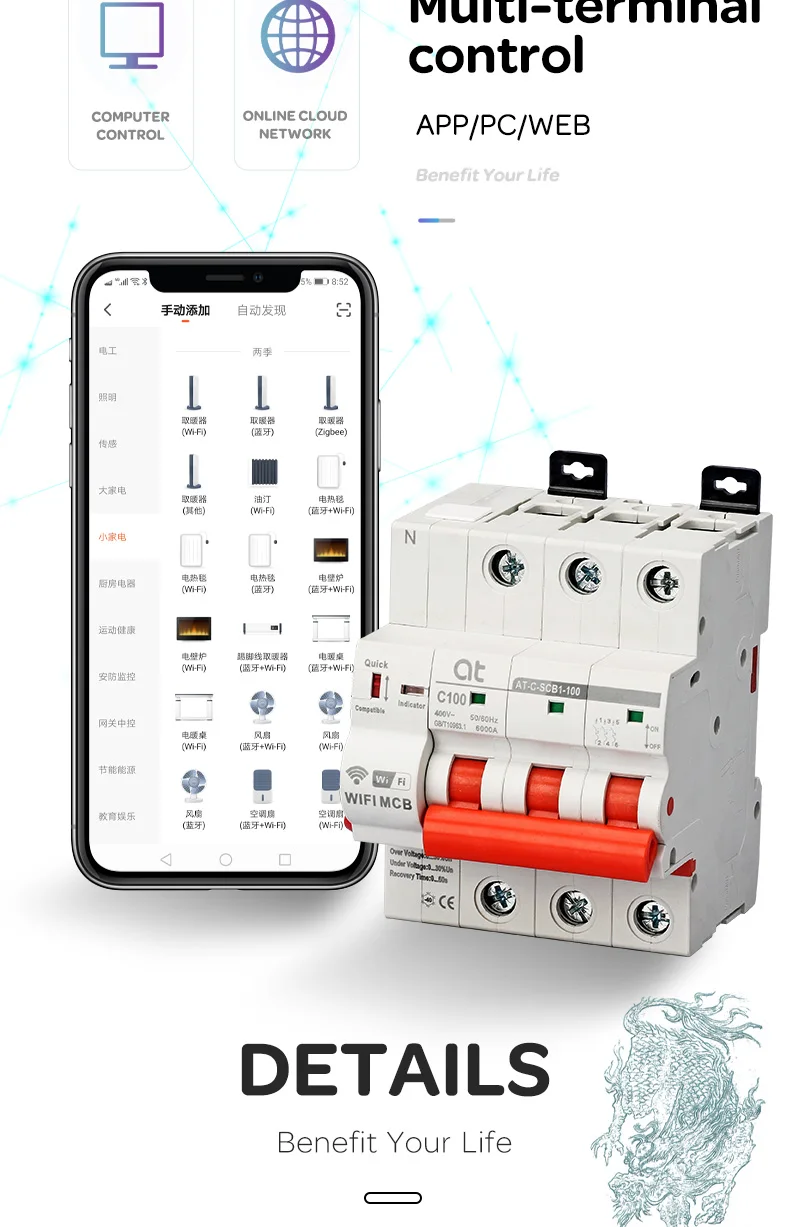

4、Remote control:by smartphone application anywhere ,our breaker need to in the WIFI condition.(the smartphone must connect to the internet in WiFi or 3g / 4g)

Application:Tuya(Smart Life)

Built-in chip (ESP8266/ESP8285) to improve the stable transmission and reception of WIFI signals, to avoid congestion interference.
Professional CE-EMC,CE-LVD test to ensure safe and reliable communication process.
Work with: Alexa, google home, IFTTT.One phone can connect 200pcs our breaker.

Feature

Rated voltage: 1P, 2P AC230V / 3P, 4P AC400V (Note: voltage can be customized, contact service)

Rated frequency: 50Hz (Note: frequency can be customized, contact service)

Instant trigger form: C (Note: B and D types can be customized, contact service)

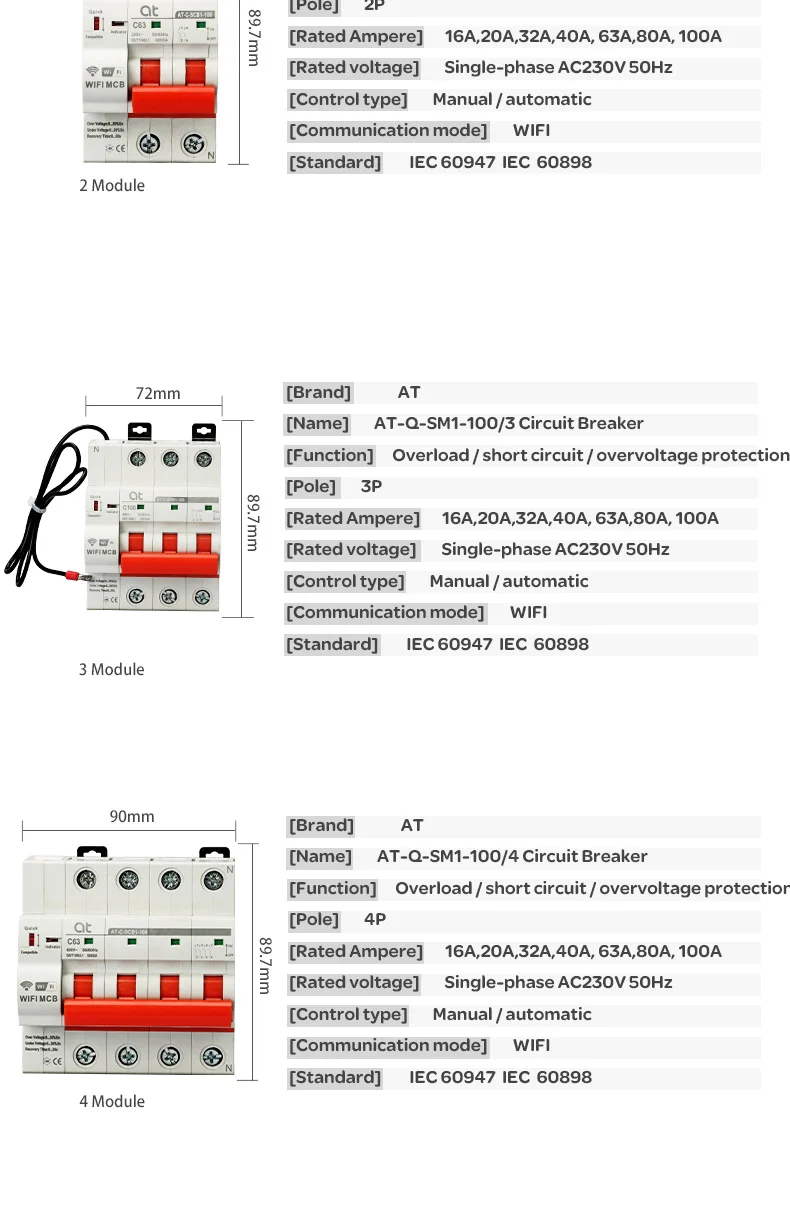

Number of poles: 1P, 2P, 3P, 4P

Rated current: 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A

Pollution degree: Level 2

Grade: IP20

Rated impulse withstand voltage: 6000V

Executive standard: GB10963.1, IEC60898-1, GB/T21706

Control mode: working mode, pairing mode

Drop test: in line with GB/T4857.18

EMC test: in line with GB/T18499-2008

Nominal short-circuit breaking capacity: nic = 6kA Ics = 6kA

Working temperature: -25℃～+65℃

Mechanical life: Comply with GB10963.1≥10000 times

Electric life: Comply with GB10963.1≥6000 times

Installation category: 1, ll

Temperature rise test: ≤60k

Salt spray test: in line with GB/T 2423.1724h
