Thermoregulator for heating the ceiling, warm floor and other heating devices for electricity. We recommend for infrared warm floor.

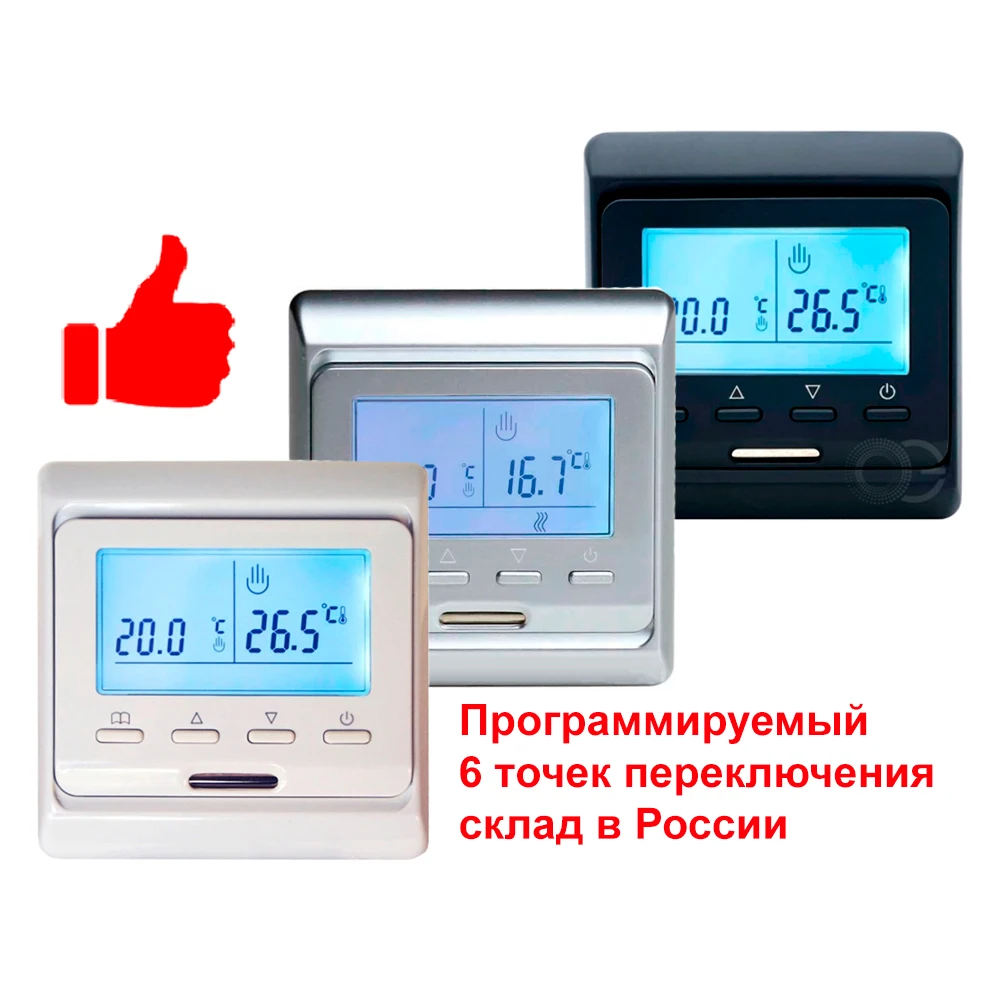

Programmable thermoregulator E 51716 performs the function of control and control in the heating system with the help of warm floors and ceilings. When using sensors, it constantly controls the temperature state of the room, gives commands for turning on or off heating devices. Designed for indoor use and designed for operation at ambient temperature-5/+ 50 ° C.

In the programmable E51, 716 there are three modes of operation:

Automatic(Temperature maintained in the corridor)

Hand Made(User-provided commands)

Programmable(Individual mode).

E 51716 has a convenient LCD display, six modes of temperature change during the day, the possibility of programmable adjustment of heating devicesWeek.

The E 51 716 thermoregulator is small in size (86x90x46mm) and is integrated into a standard mounting box. Liquid Crystal Display s main parameters of operation.

The type of thermoregulator is electronic.

Installation type-Built-in.

Programmable mode-yes.

Voltage, unom-220 V, 50Hz.

Load power, Max 3520 W.

Load current, max-16 A.

Power consumption thermoregulation-2 vt.

Temperature control range-5-55 ° C.

Error adjustment-± 0,5 ° C.

Built-in temperature sensor-yes.

Remote temperature sensor-Yes (NTC, 10 kOhm), cable length 3 m.

The degree of protection is IP 20.

Color-white.

All dimensions-86x90x43mm.

Full weight-330g.

Warranty 1 year.

Country of origin-China.

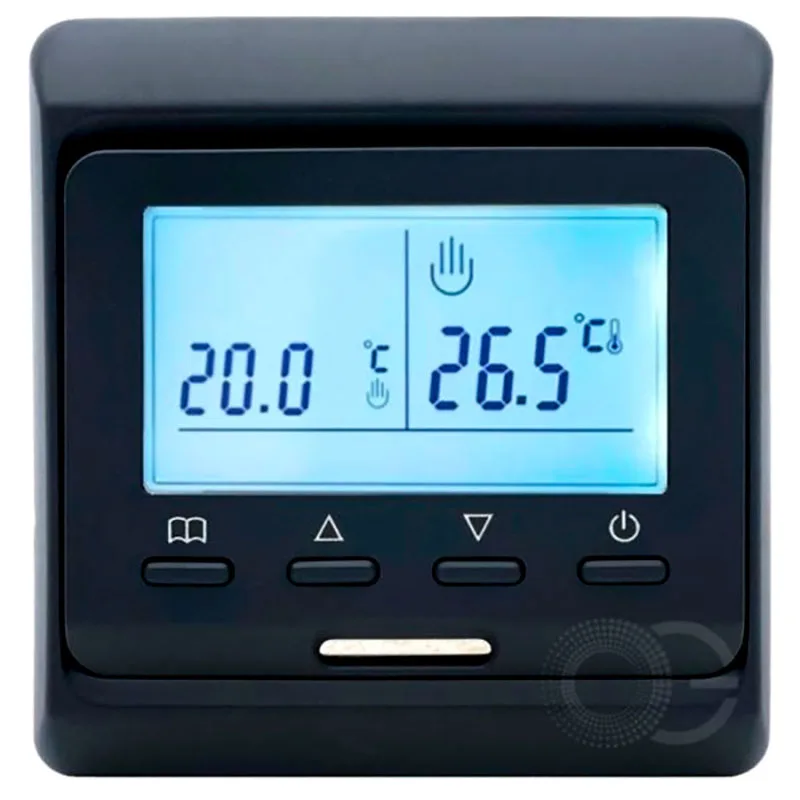

The device has an attractive design, equipped with an information LCD screen with a blue backlight. Convenient buttons placed on the front panel allow you to easily make the necessary settings. The lock function, which is provided in E 51716, protects the device from accidental pressing and pampering of children.

In order to avoid loss of information during temporary power failure, the developers of the device provided a battery (battery). After restoring the power supply, the device returns to the specified settings.

Below is the decryption of the symbols with the main controls e 51716.

When connecting e 51716 of the thermoregulator to the heating system "heating ceiling" based on infrared film heaters, the following scheme is used.

Moving from electric shield, the phase wire is fixed for contactNumber 1 meter. Wire "zero" connects toPin #2. Phase wire goes to heaters connects toContact No 4. The zero wire from the electrical panel is connected toDirect Wired network.

Please note!Before connecting, you need to consider the calculation load of infrared heating. If above10 A, It is not recommended to directly connect the thermoregulator. Despite the fact that the manufacturer indicates the permissible maximum load in size16.To avoid possible problems and improve system safety, our specialists recommend including a modular contactor in the circuit.

Below is an example of a connection circuit that uses a remote sensor that controls the floor temperature. Connection scheme for warm floor.

Thermoregulator E 51716-this is a built-in device. For its installation (when using a standard box), standard mounting boxes (brands K-201, UKHL 4, 068tt) are ideal. Holes for fasteners are located horizontally. If you need an overhead installation of the device, a special box for it will have to purchase additionally.
