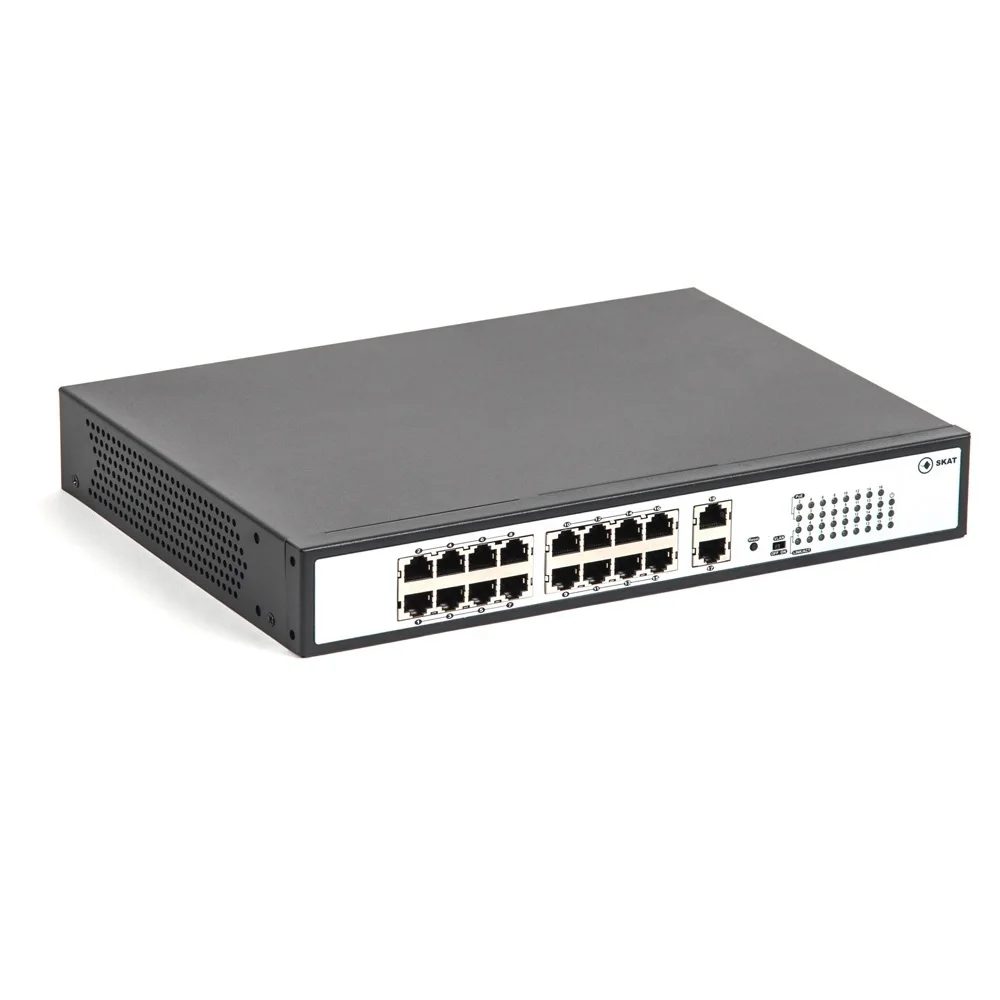

Switch on the 16 PoE ports Skat poe-16e-2g | Компьютеры и офис

The Skat poe-16e-2g is a specialized unmanaged PoE Plus Switch for use in video surveillance and security systems. It is characterized by high reliability of operation due to protection from electrostatic discharges and voltage changes, it allows to organize high-quality transmission of information in the Ethernet network.
The product is designed for 24-hour working hours in rooms without adverse operating conditions (increased humidity, dust and harmful substances) at ambient temperatures of 0 °c to + 55 °c and relative humidity of up to 95% °c (at 25 °c).
Features SKAT PoE-16E-2G


16 10/100 Mbps Ethernet ports with Poe support (IEEE 802.3af, IEEE 802.3at);
2 uplink 10/100/1000 Mbps ports;
Compliance WITH IEEE802.3, IEEE802.3ab, IEEE802.3ad, IEEE802.3u, IEEE802.3az, IEEE802.3z, IEEE 802.3af IEEE 802.3at;
Poe support in the end-span option;
Support VLAN function (security and increase data transmission range up to 250 m)
A reset function that allows you to resolve network failures;
Real-time indication;
High noise resistance, lightning protection up to 2 square meters;
Easy installation on horizontal and vertical surfaces (fastening included);
No need to configure before use.

Technical specifications Skat poe-16e-2g





N/A


Product Name parameter


The value of



1.

Mains voltage ~ 220 V, 50Hz with outside, IN


96. 264



2.

Product power consumption, W, no more


10



3

Chain


Ports


16 Ethernet (10/100 Mbps, 10 Mbps VLAN mode) 2 huplink (10/100/1000 Mbps)




Maximum Ethernet port transmission range


100 m (250 m in VLAN mode)




Maximum port transmission range Uplink


100 m




Packet buffer size, MB


4




MAC address table size


16384




Hardware bandwidth, Gbps/C


8,8




Packet service speed, MP/s


6,5472




Transfer method


Store and forward




Applicable standards


IEEE802.3, IEEE802.3ab, IEEE802.3ad, IEEE802.3u, IEEE802.3az, IEEE802.3z



4

Poe


Maximum power per port, W


30




Total power, W


250




Power supply mode


End-Span




Applicable standards


IEEE 802.3af, IEEE 802.3at



5

Cable for connecting to Ethernet ports, Uplink


UTP Cat5e/6 * Cable



6

Protection against electrostatic discharges, KV


2/2 (IEC61000-4-2)



7

Lightning protection, SQ


2.



8

Overall dimensions W x H, no more, mm


Without package


440 х292х43,




In the package


481 х360х115



9

Weight, net (gross), not more than, kg


2,5 (2,8)



10

Operating temperature range, °c


0... + 55



11

Relative air humidity at 25 °c, %, no more than


95





ATTENTION! The presence in the air of conductive dust and steam of aggressive substances (acids, alkali, etc. P.)



12 V

Degree of shell protection according to gost 14254-2015


IP20



13

Working hours for refusal, H, not less


50000
