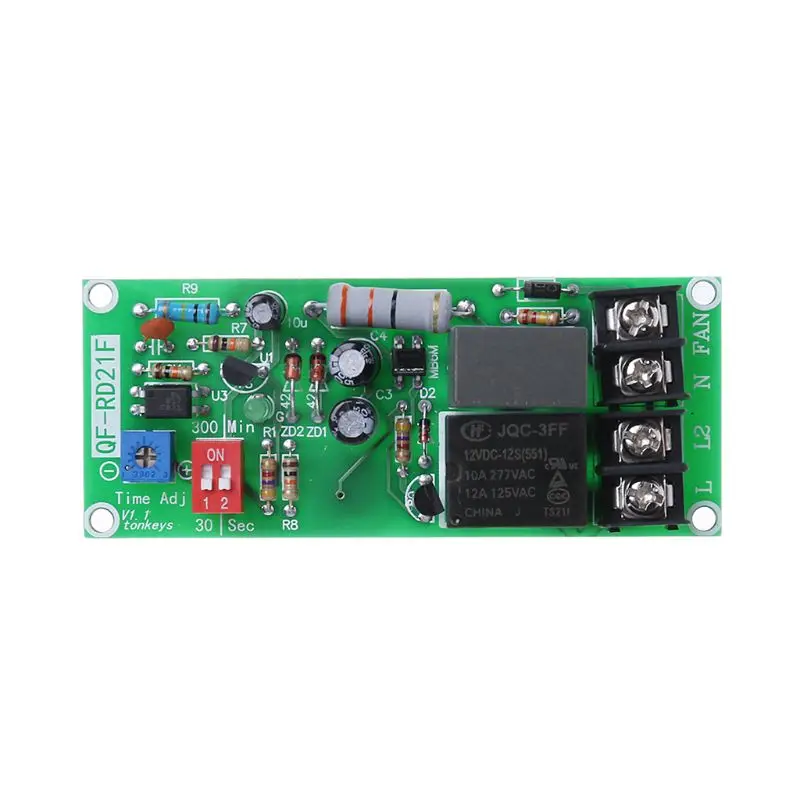

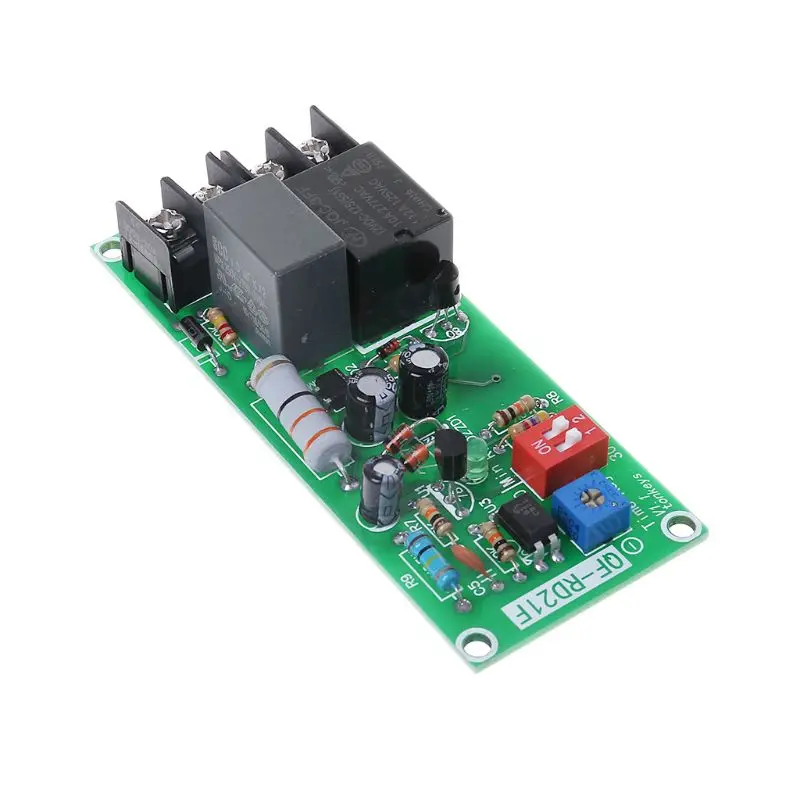

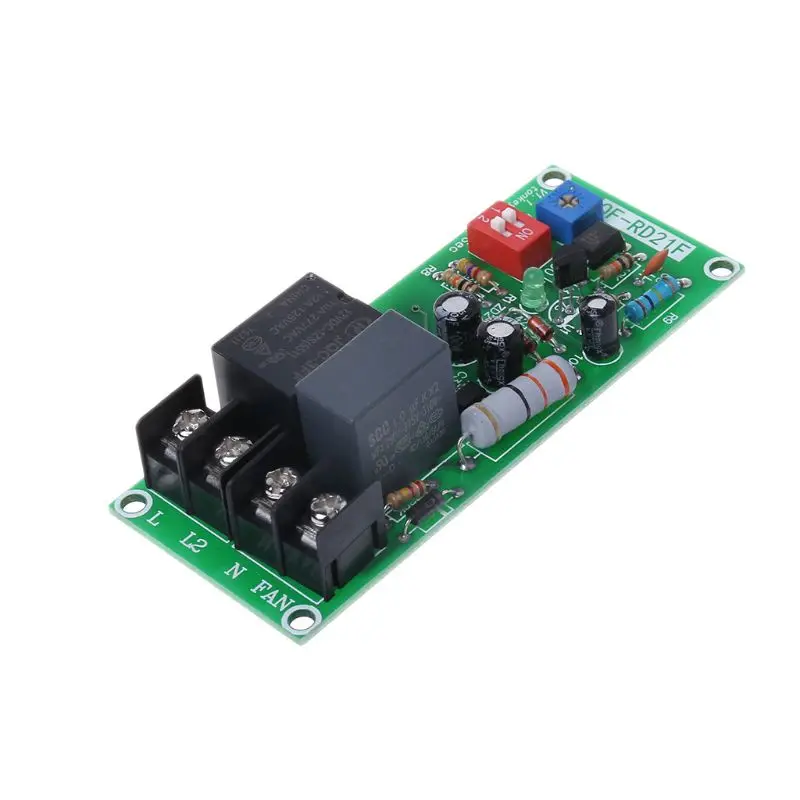

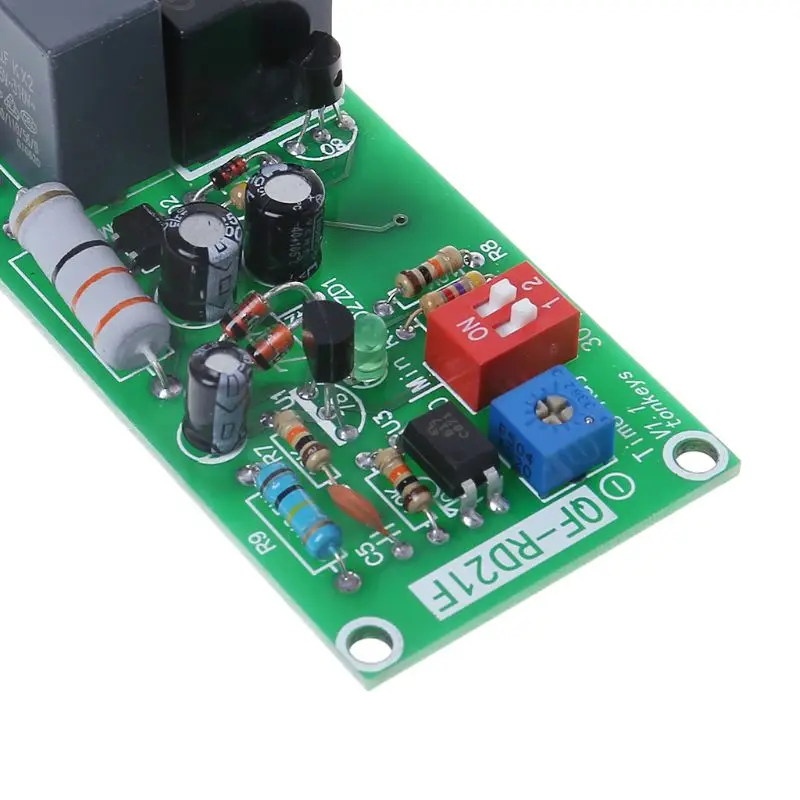

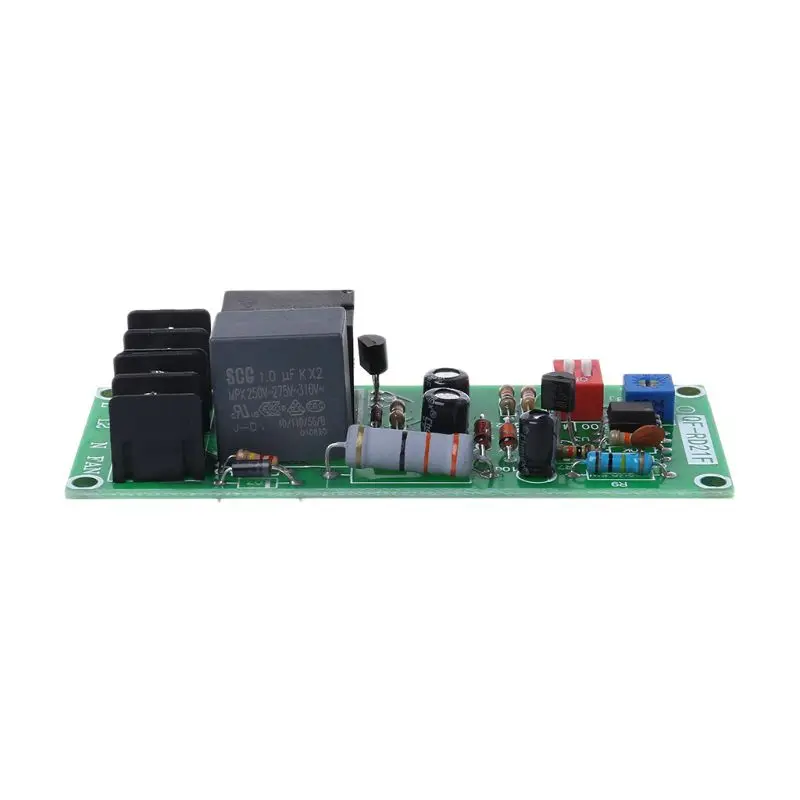

AC100V-220V Adjustable Timer Control Relay Module Turn Off Delay Switch Board For Exhaust Fan
OOTDTY

100% brand new and high quality

Features:
It is a timer relay module with high precision, stable and reliable performance.

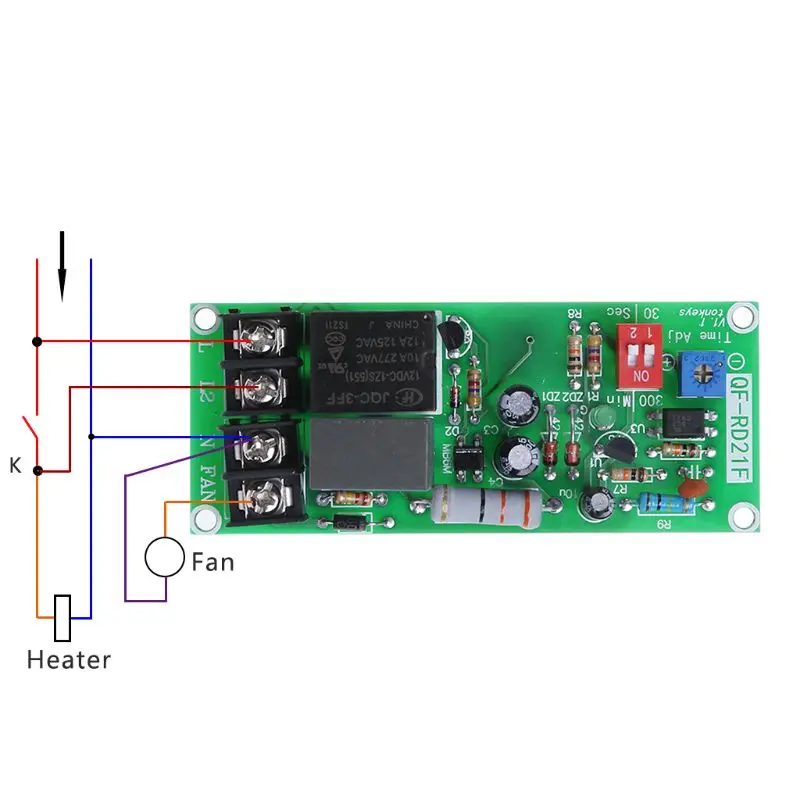

Power off delay disconnect module, is special for delay of cooling fan, exhaust fan, etc.
Function: Turn on the output when there is a signal, and turn off the output after the signal disappears.
Fine workmanship and good performance. Long service life.

Specification:
Voltage: AC 100V-220V
Power consumption:
Time range: (4 gears, selected by switch)
First gear: range 0.2-30 seconds, accuracy: 0.1 seconds
Second gear: range 0.2-300 seconds (5 minutes), accuracy: 0.3 seconds
Third gear: range 0.2-30 minutes, accuracy: 1.8 seconds
Fourth gears: range 0.2-300 minutes (5 hours), accuracy: 18 seconds
Output: The output voltage is the same as the input voltage, and the maximum power supply capacity is 10A.
Lifetime: 100,000 movements
Dimensions: 8.2x3.1cm/3.23x1.22inch
Color: As shown
Quantity: 1 Pc
Note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Relay Module
