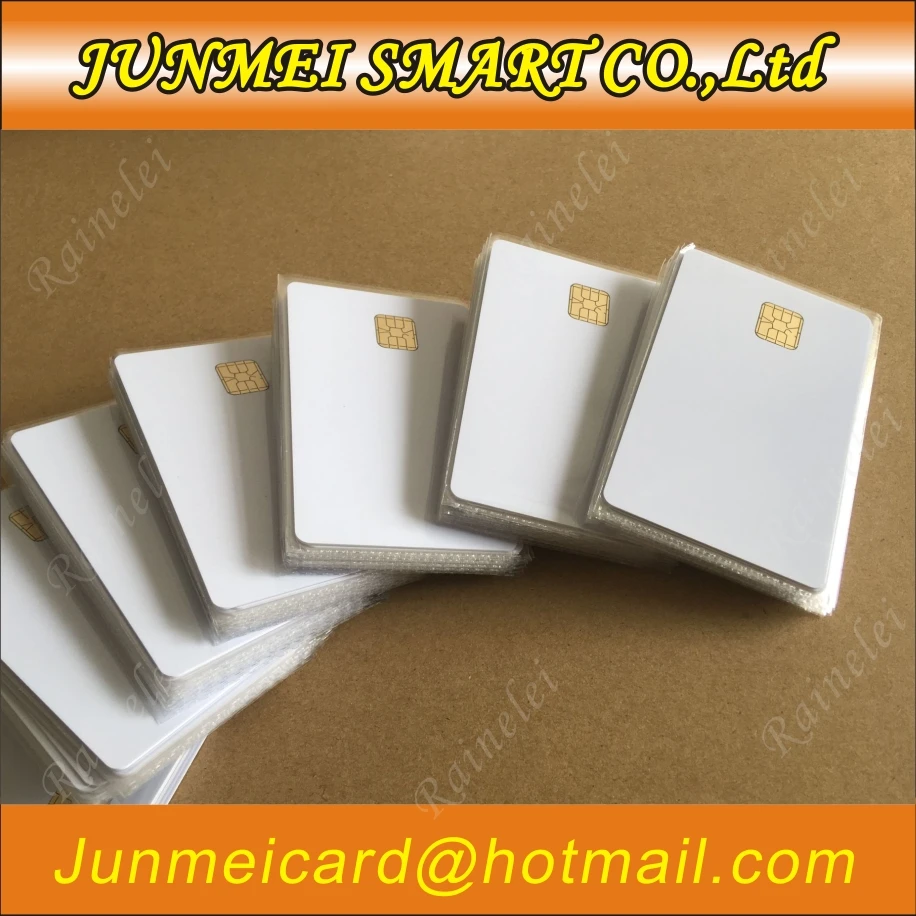

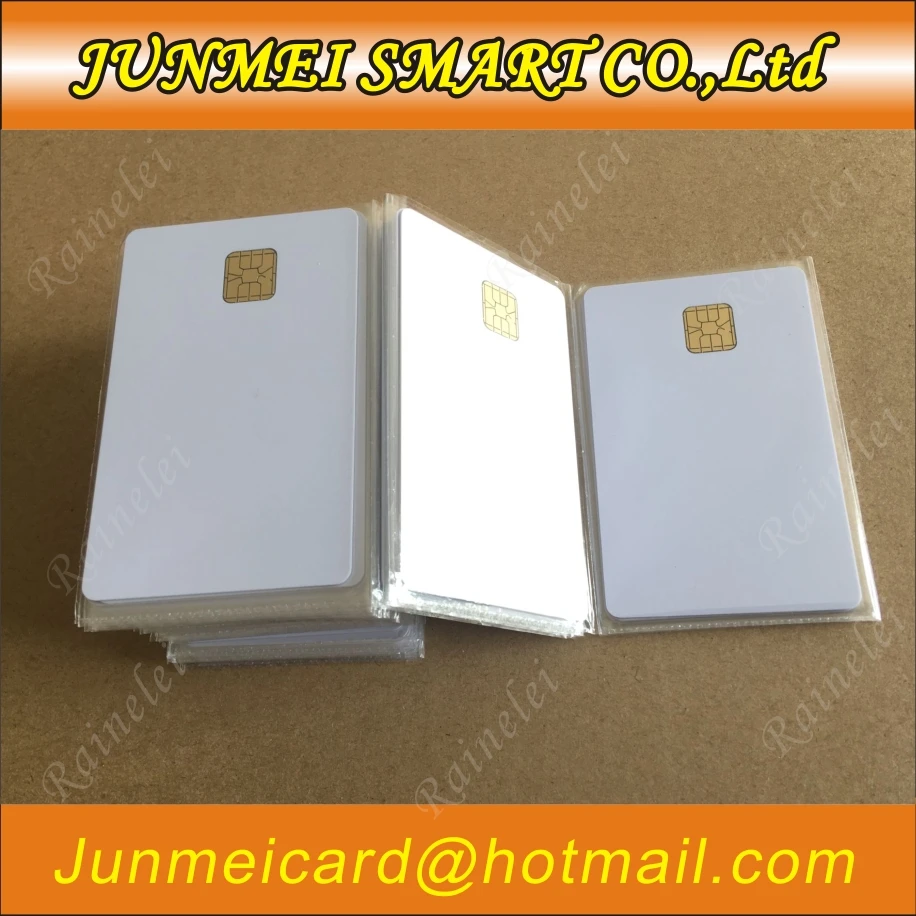

200pcs SLE 4428 Contact IC Big Chip White PVC Smart Card 30mil Glossy For ACR38U BMC Reader Writer | IC/ID

200pcs SLE 4428 Contact IC Big Chip White PVC Smart Card 30mil Glossy For ACR38U BMC Reader Writer | IC/ID

The SLE4428 is a standard, low-cost EEPROM memory smartcard with 1K bytes of available storage, with an irreversible write protection feature and a 2-byte programmable security code. Additionally to the above functions this version has a PSC verification logic. All the memory, except for the PSC, can always be read. The memory can be written or erased only after PSC verification. The error counter can always be written. After eight successive incorrect entries the error counter will block any subsequent attempt at PSC verification and hence any possibility to write and erase.

Features :

Product ID : SLE4428

Color : White

Dimension 85 x 54 x 0.8 mm

1024 x 8 bit EEPROM organization

Byte-wise addressing

Irreversible byte-wise write protection

Serial three-wire bus

End of programming indicated on data output

erase cycles more than 100,000 times

Each write / erase time 5MS

Data retention for minimum of ten years

Contact configuration and serial interface in accordance to

Temperature -20 to 80c

ISO standard 7816 (synchronous transmission)

Additional Feature of SLE 4428 Smart Card :

1)Data can only be changed after entry of the correct

2)2-byte programmable security code (PSC)

Note:It can't work on inkjet card printer.
