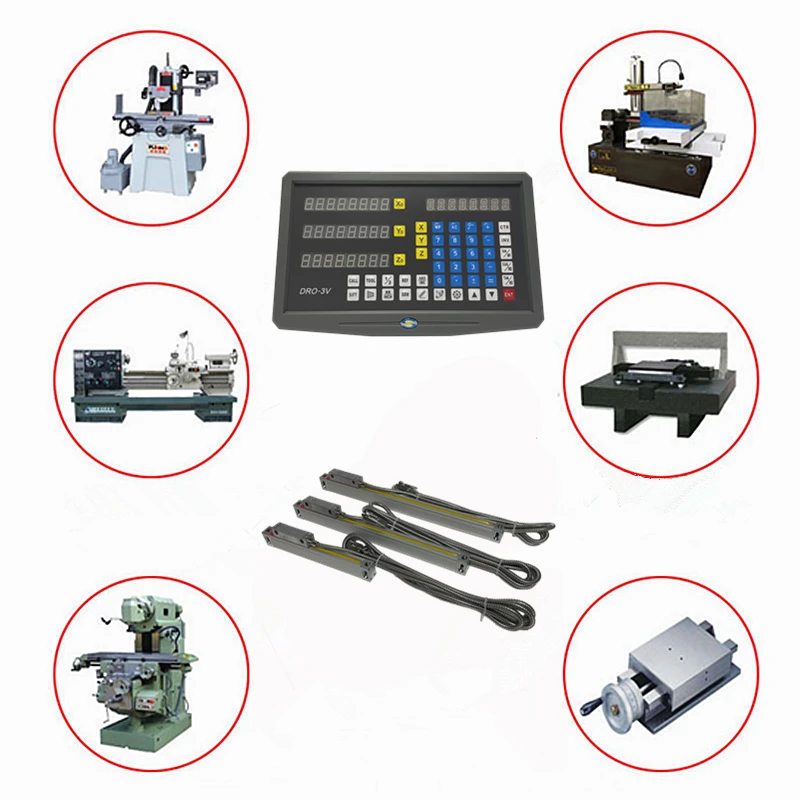

2 3 Axis DRO Digital Readout AC110V/220V Display and 0-1000mm Linear Scale Encoder for CNC Milling Lathe Machine on переводится как:2 3 Оси цифрового датчика DRO AC110V/220V дисплей и 0-1000мм линейный кодировщик шкалы для фрезерных токарных станков ЧПУ.

2 3 Axis DRO Digital Readout AC110V/220V Display and 0-1000mm Linear Scale Encoder for CNC Milling Lathe Machine on переводится как:2 Оси цифрового датчика дисплей и 0-1000мм линейный кодировщик шкалы для фрезерных токарных станков ЧПУ.

Unavailable in

2axis 3Axis LCD Digital Readout DRO 150-1000mm Glass Linear Scale Encoder Sensor For CNC Milling Lathe machine

if you need stroke 700mm 750mm 800mm 850mm 950mm, please clink here to buy:
https:/item/1005002440462818.html?spm=5261.15091090.table_row0_column0_item8.1.47fa4edfFivXak

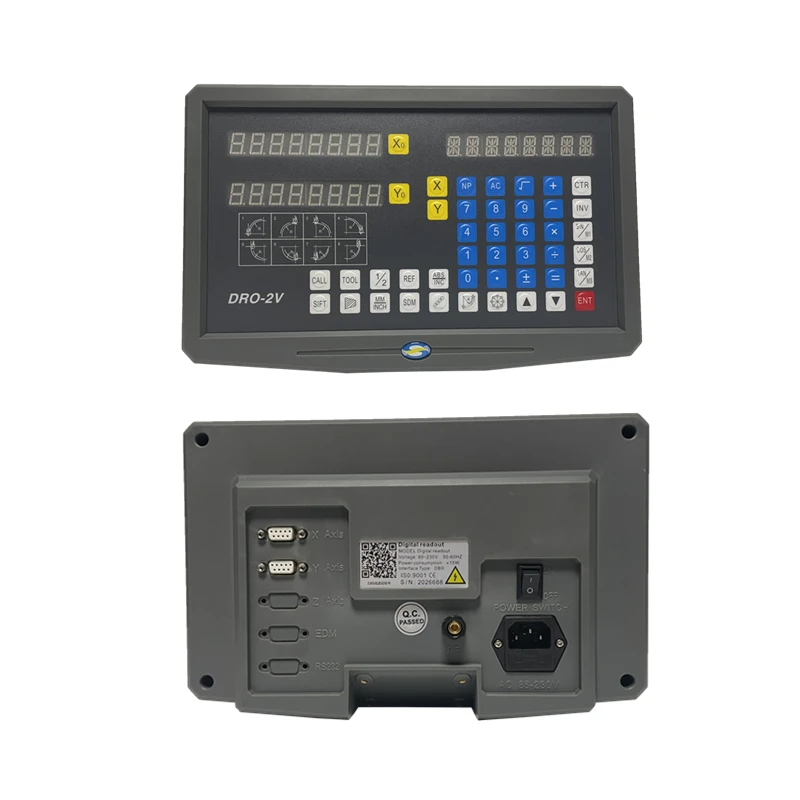

DRO Specification

Product Features

English language display

Self-motion middle parted function

Metric/imperial conversion function

Absolute/relative counting transformation function

1000 groups of zero memory function

Function calculator operation function

Arc surface processing function

PCD function

Cant processing function

PLD function

Machine tool error compensation function

EDM function(option with extra)

Techincal Parameters

1.Voltage range:AC 85V-250V/50Hz-60hZ

2.Power consumption:25VA

3.Coordinates:1/2/3/4

4.Display:8-bits digits display

5.Input signal: TTL square

6.Input signal frequency: 100KHZ

7.Reading resolution: 10um,5um,2um,1um,0.5um

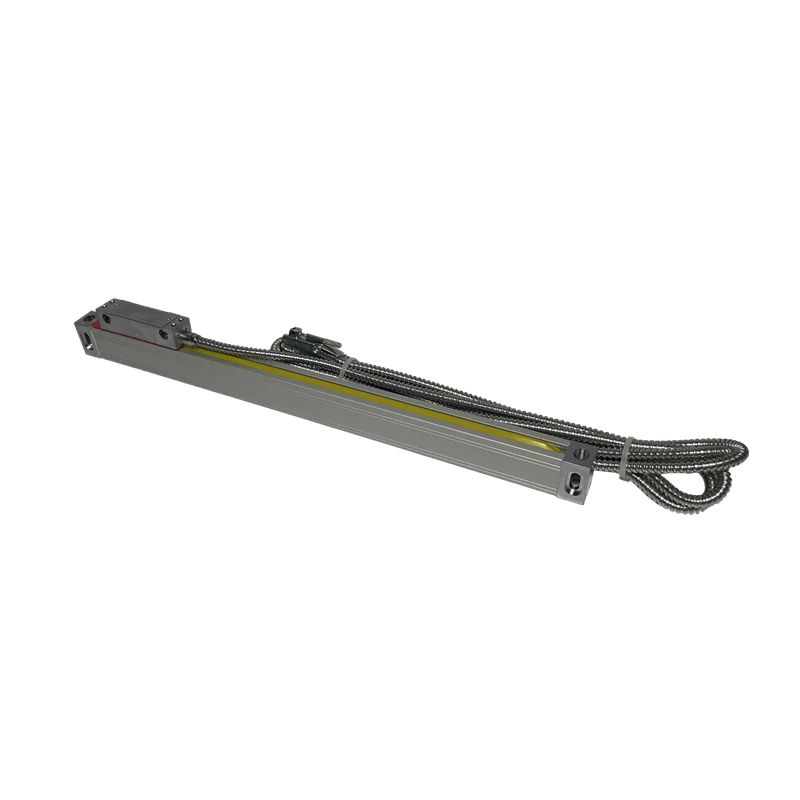

Linear Scale Specification

Parameter

Product name:precision glass grating lenear transducer

Resolution: 0.005mm

Cross section:21mm*33mm

Output signal:TTL(RS422 option)

Input voltage:DC 5V +/-5%

Available measuring distance:0-1000mm

Overall length: available measuring distance + 142mm

Working speed:60m/min

Working temprature:0-50

Cable length:2.5m-3m(longer option)
