7-дюймовый комплект системы видеоинтеркома BUS 2 Wire для дома с 1 единицей монитора и 1/2/3/4 камерами с ночным видением.

7-дюймовый комплект системы видеоинтеркома BUS 2 Wire для дома с 1 единицей монитора и 1/2/3/4 камерами ночным видением.

7 Inch BUS 2 Wire Video Door Phone Intercom systems Kit for home 1 Units 1/2/3/4 Camera Apartment Night Vision

The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable, non polarity, central power supply. Use Plug-in connectors and DIP switchers for rapid installation.Integrated Multi functions with simple operation makes the system more attractive, Flexible cable connection to wire, support in-out, branching and mixed mode.

Features:

1.The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable.
2.Using integrated power suppply,max support 2 outside unit and 4 indoor monitors
3.Little rain and oxidation-proof for the durable aluminum alloy outdoor unit. with White Led Night Vision
4.7" color TFT LCD without radiation, low power consumption and high definition.
5.To unlock 2 locks simultaneously
6.Handfree intercom.
7.Mute indoor intercom function.
8.Monitoring the outside of the door.
9.Volume, brightness and contrast adjustable.

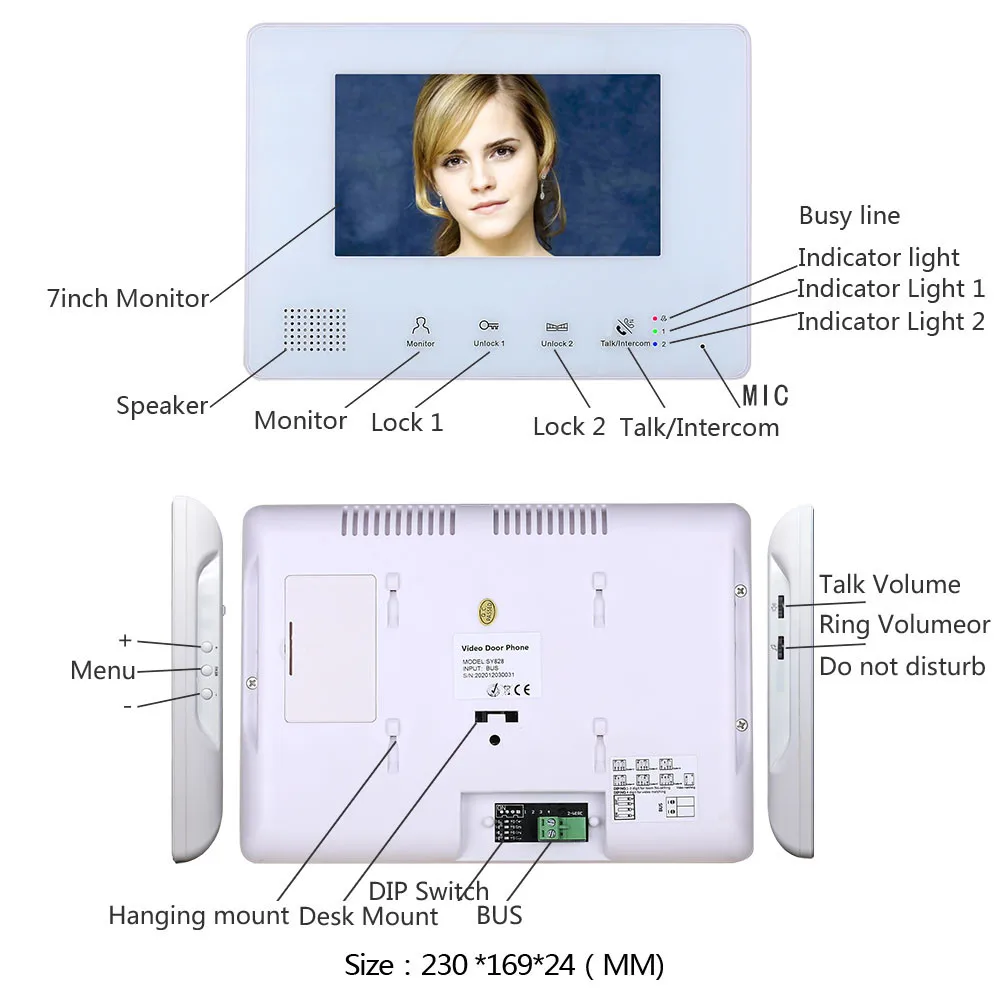

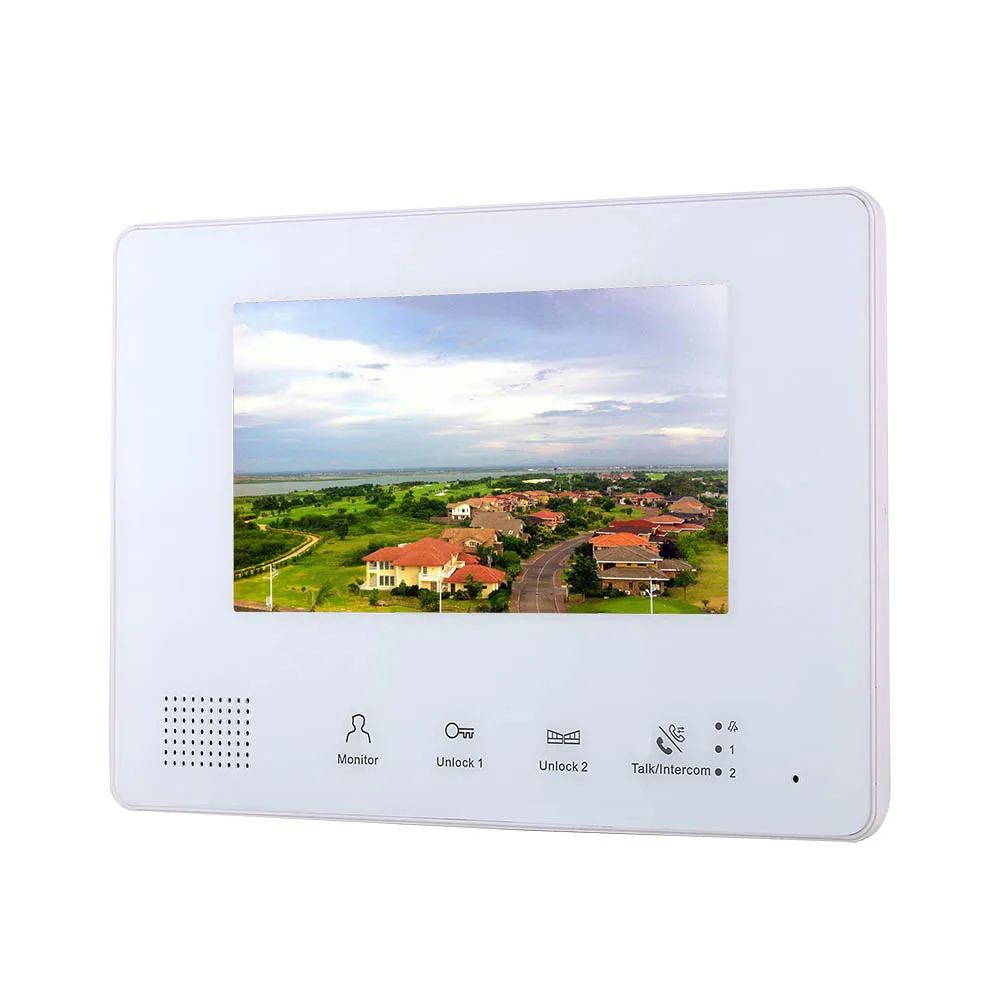

Monitor：

1.Screen: 7inch LCD
2.Effective pixels: 800 * 480
3.Connection way: BUS 2-wire
4.Dimensions: 151 * 80 * 38(MM)
5.Package size: 29 * 19* 12cm

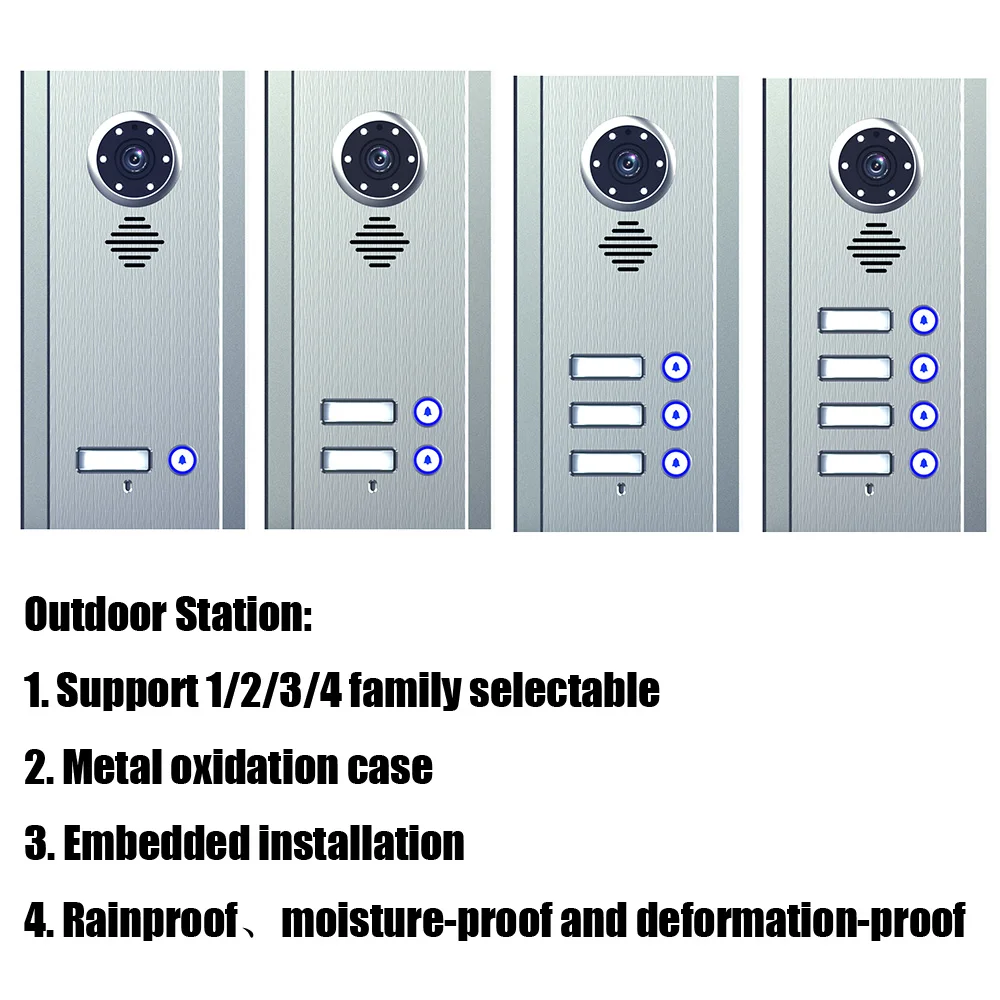

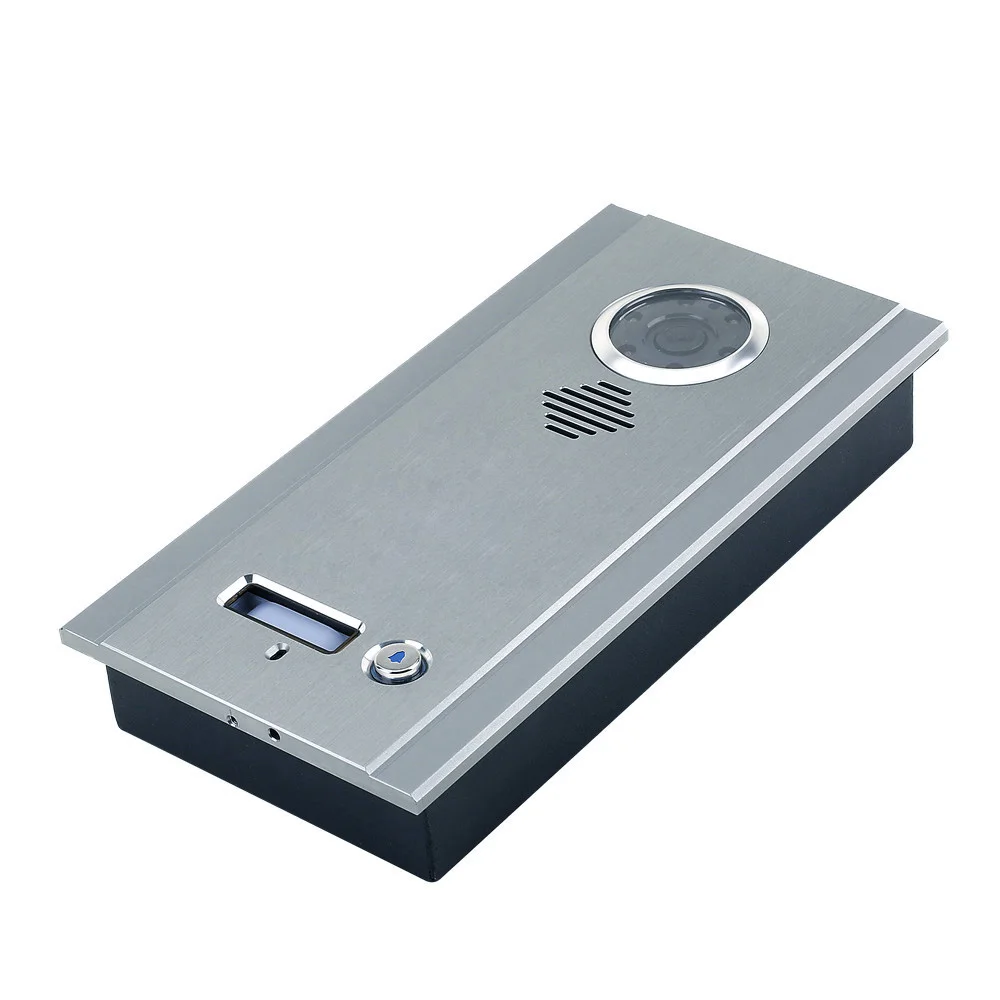

Outdoor Camera：

1.Aluminum alloy outside unit with White Led Night Vision
2.Camera: 1/3" CMOS 1000TV line
3.View angle: 130°
4.Connection way: BUS 2-wire
5.Installation: Embedded mounted
6.Size:238*141*41mm
7.Material:Aluminum alloy

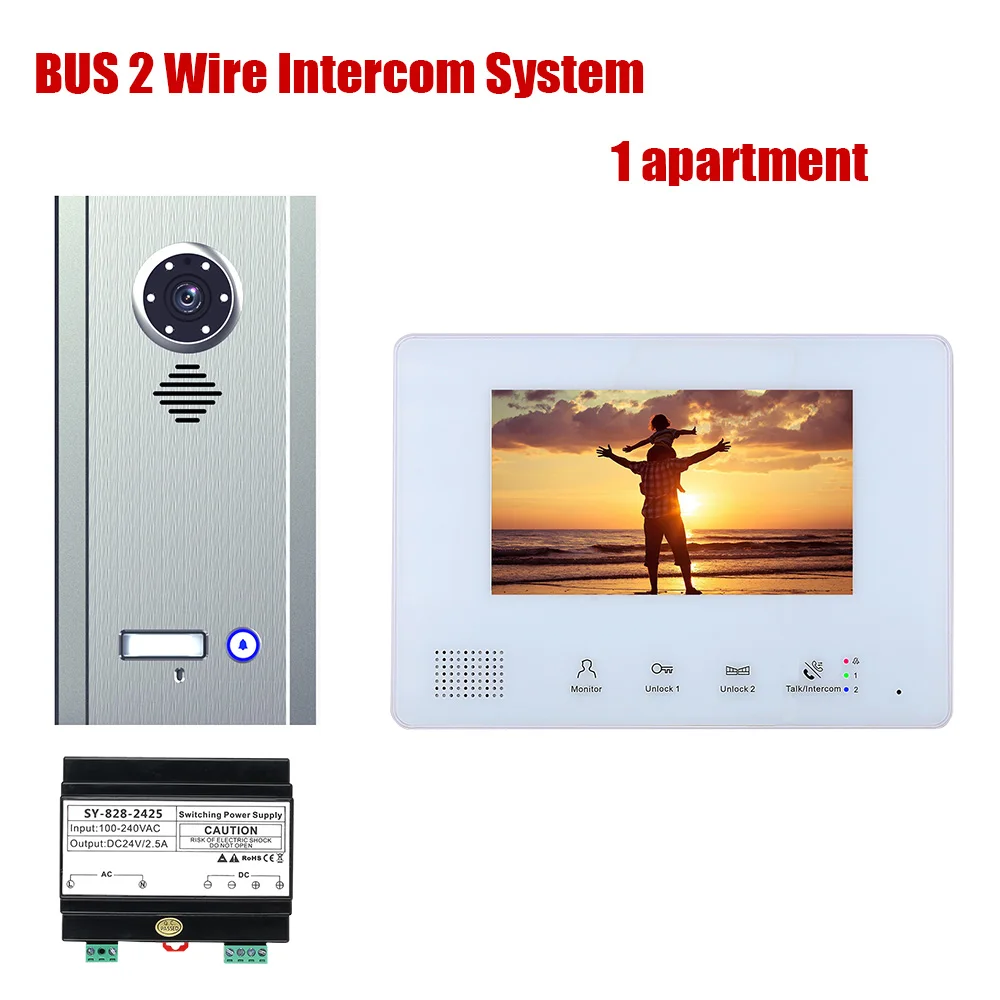

SY828NMJA1：

Package includes:
1 * Outdoor Unit (Embedded mounted Camera)
1 * Indoor Unit (Monitor)
1 * DC24V2.5A power suppply
1 * 2.5*2P 2-core Connection terminal wire
1 * Screws
1 * User Manual

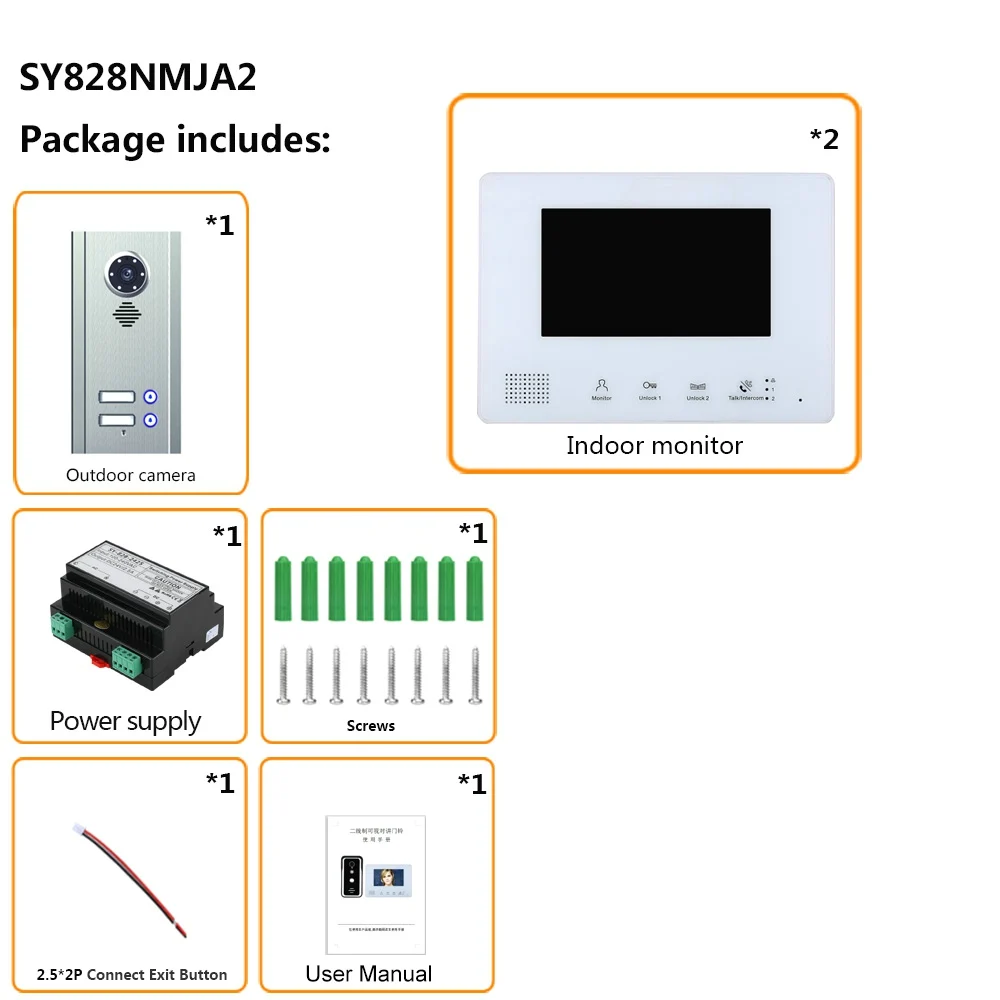

SY828NMJA2：

Package includes:
1 * Outdoor Unit (Embedded mounted Camera)
2 * Indoor Unit (Monitor)

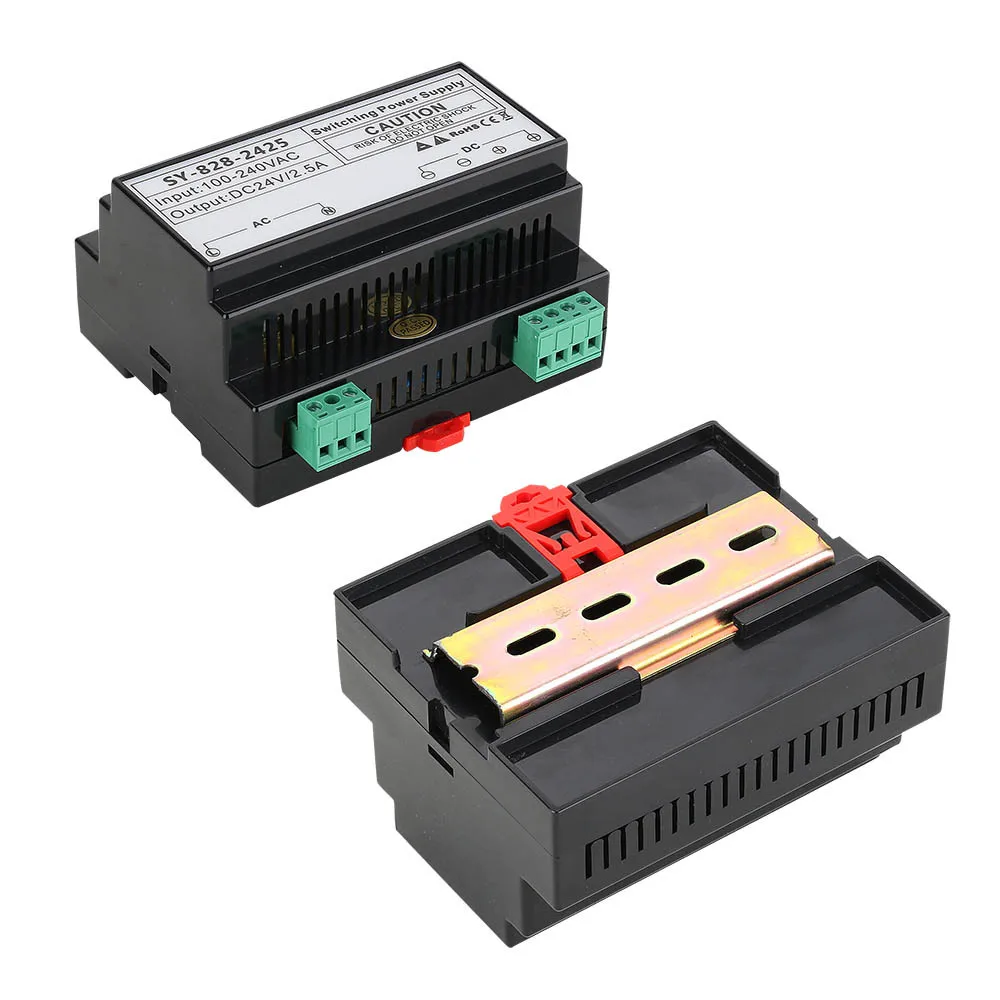

1 * DC24V2.5A power suppply
1 * 2.5*2P 2-core Connection terminal wire
1 * Screws
1 * User Manual

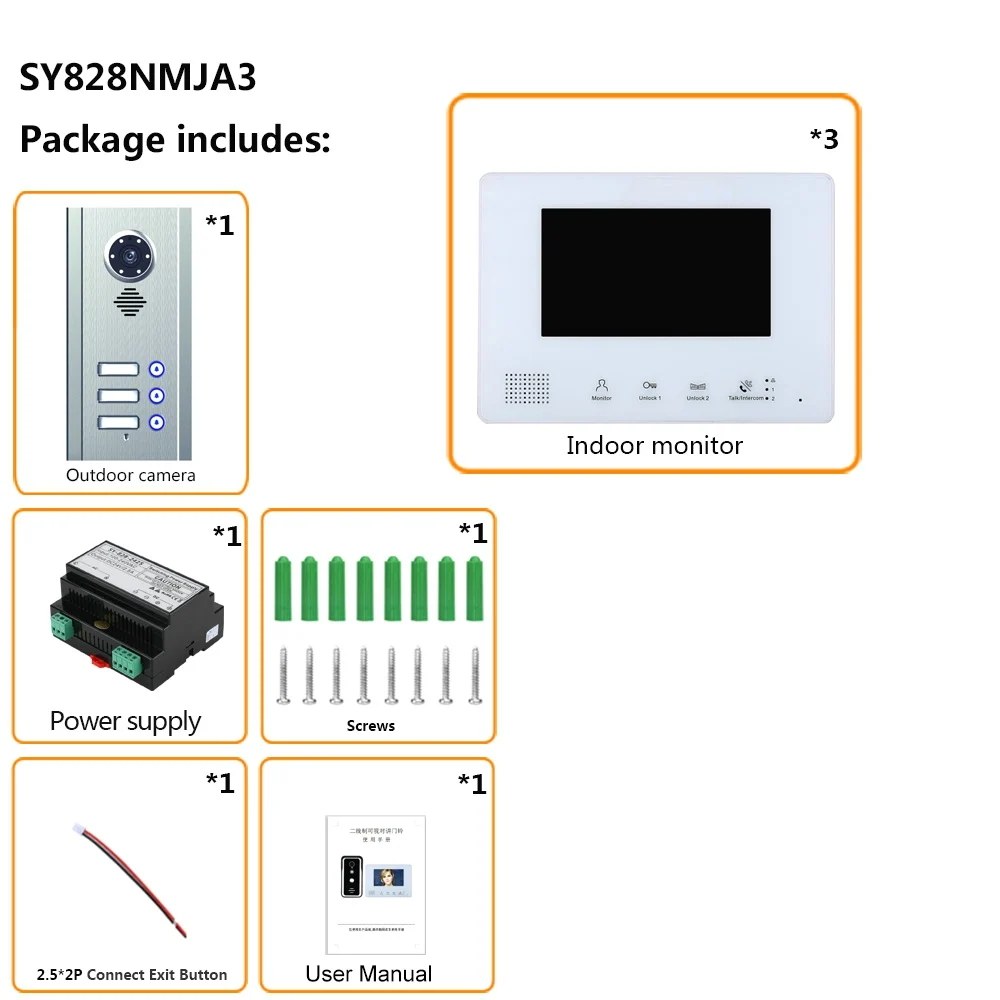

SY828NMJA3：

Package includes:
1 * Outdoor Unit (Embedded mounted Camera)
3 * Indoor Unit (Monitor)
1 * DC24V2.5A power suppply
1 * 2.5*2P 2-core Connection terminal wire
1 * Screws
1 * User Manual

SY828NMJA4：

Package includes:
1 * Outdoor Unit (Embedded mounted Camera)
4 * Indoor Unit (Monitor)
1 * DC24V2.5A power suppply
1 * 2.5*2P 2-core Connection terminal wire
1 * Screws
1 * User Manual

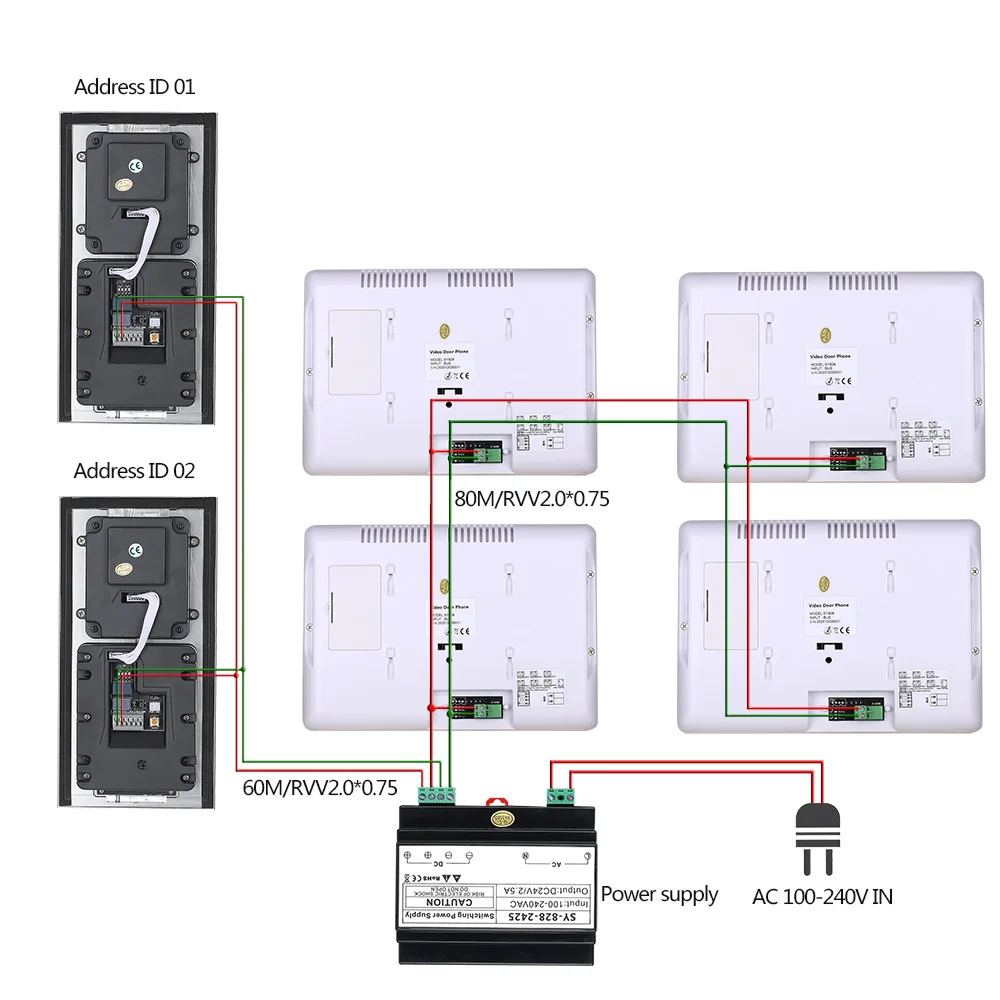

Connection diagram (for reference only)
