Электрический соленоидный клапан DN8 DN10 DN15 DN20 DN25 1/4" 3/8" 1/2" 3/4" 1" N/C пневматический для воды масла воздуха 12V/24V/220V/110V включен.

Электрический соленоидный клапан DN8 DN10 DN15 DN20 DN25 1/4" 3/8" 1/2" 3/4" 1" N/C пневматический для воды масла воздуха 12V/24V/220V/110V включен.

 Package include:1PCS

Product description

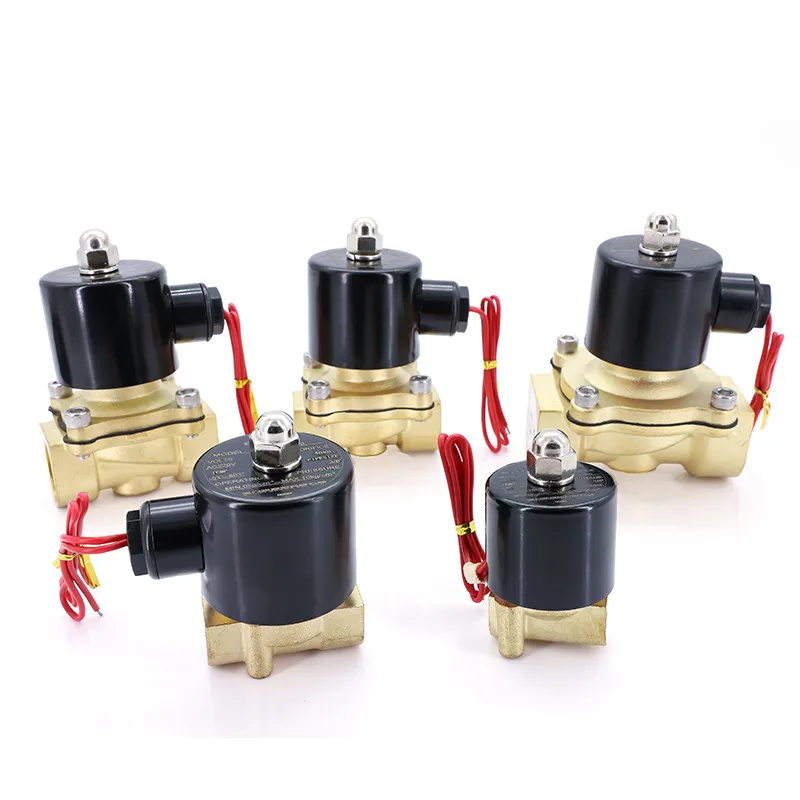

Name: Electric Solenoid Valve

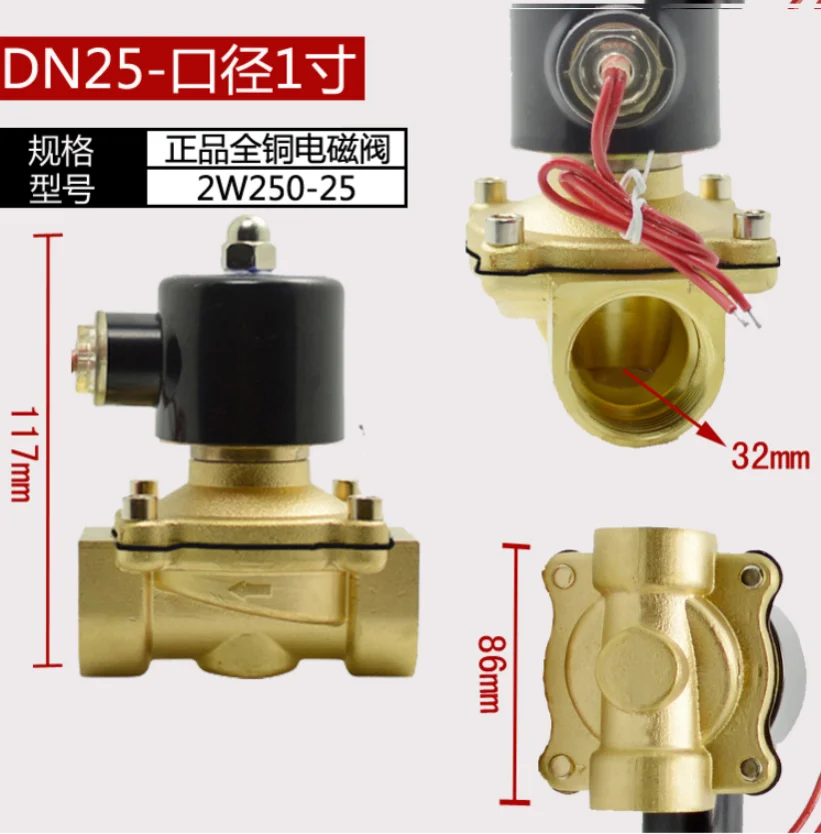

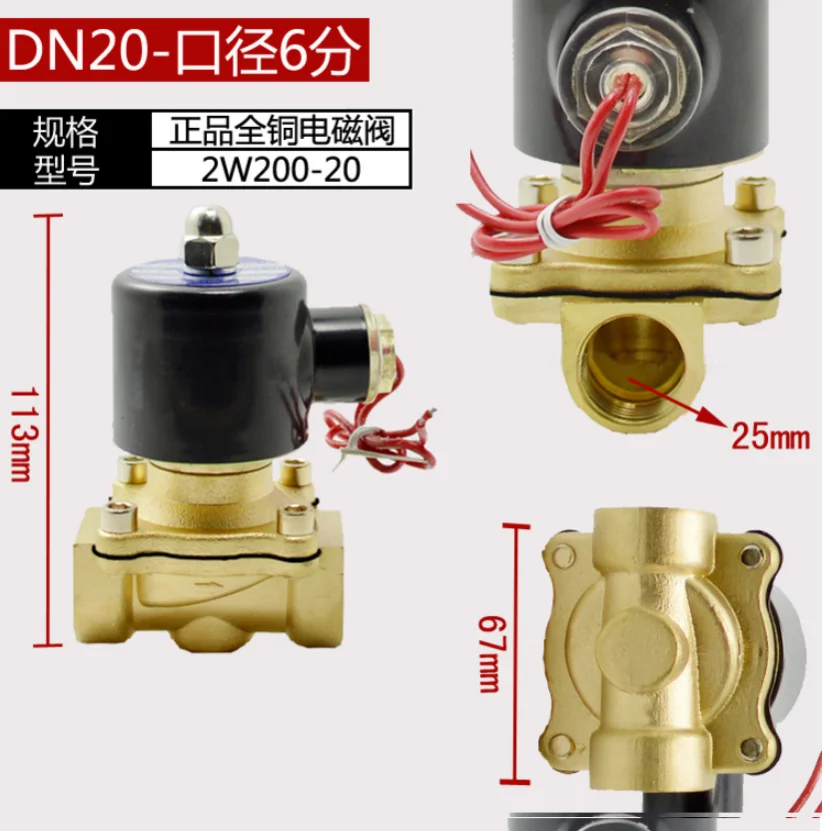

Model: 2W025-08,2W040-10,2W160-15,2W200-20,2W250-25

Material: Brass

Color: Black + Gold

Voltage: AC220V AC110V DC24V DC 12V

Type: Normally Closed type(N/C)

Acting Motion: Direct action

pecs and Descriptions

2W160-10NO

2W160-15NO

2W200-20NO

2W250-25NO

2W350-35NO

2W400-40NO

 2W500-50NO

Port Size

G3/8''

G1/2''

G3/4''

G1''

G1-1/4''

G1-1/2''

G2''

CV Value

4.8

4.8

7.6

12

24

29

48

Connecting Format: Inside thread

Working Medium: Air, Water, Oil

Features:
- Two-position, one-way, normal close switch, magnetic solenoid water valve.
- High-quality aluminum alloy gravity casting, hard and durable, non-corrosive, the product has the direction of water inlet and outlet.
- Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
- Easily replaces broken valves for use with pipelines in water, air and diesel-gas applications.

Note:this solenoid valve is not suitable for continuous opening for 24 hours,Or the coil maybe burn!!!
