1080P Borehole Inspection Camera Deep Underwater Drain Detection Pipeline Sewer Inspection System

Model :  D2C5065

it with 4 in 1 output signal, you can transfer the output signal by press the button.

but the light is always lighting, can not control.

Main features :

*The camera is deep water inspection camera , double waterproof ring design ,

can withstand 500m deep water pressure ,  50Mpa

·2.0 Megapixelhigh-performance Sony CMOS

·Analog HD output, up to 1080P resolution

·Support AHD, TVI, CVI and CVBS video output

·LED, 12pcslight source

·Low illumination, 0.001Lux F1.2 (color) / 0.0001Lux F1.2 (B/W)

·90 degreeswide angle FOV

·WaterproofRate: IP 68

·Stainless steelhousing: firm and durable.

·Small size and light weight.

·Cable length: Standard: 0.5m;

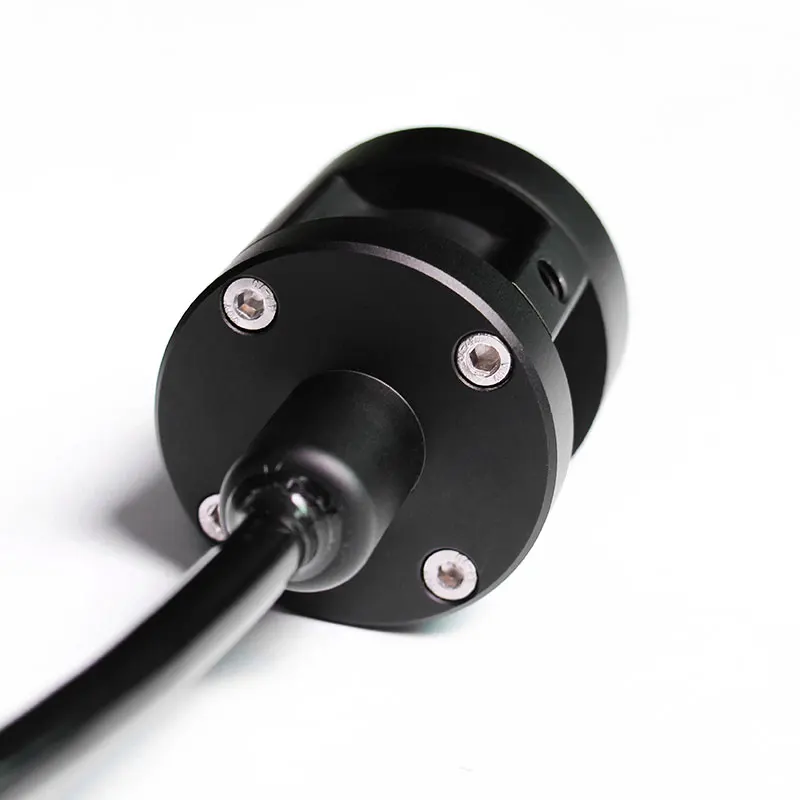

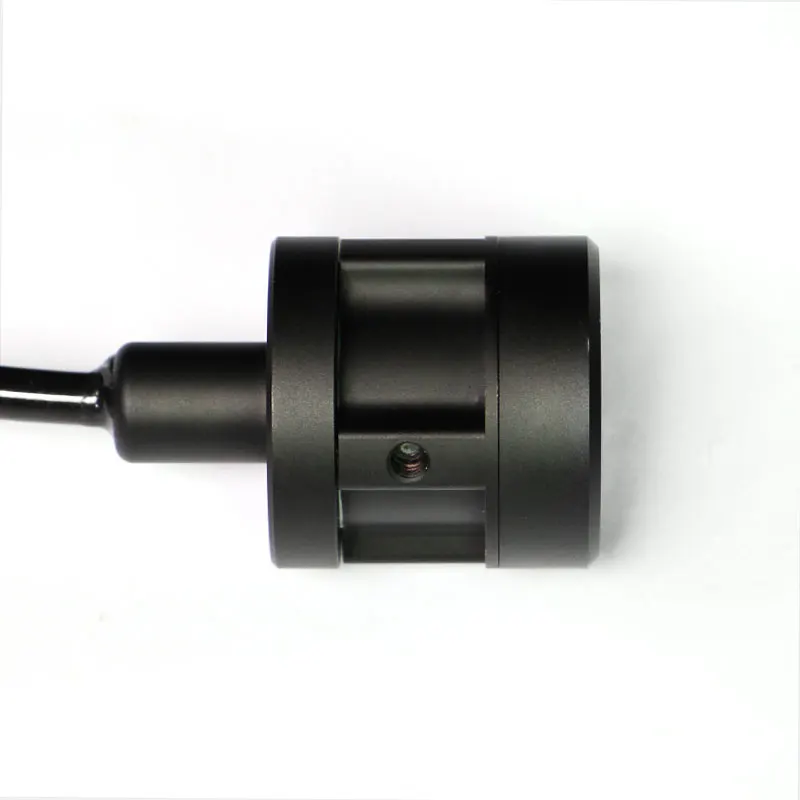

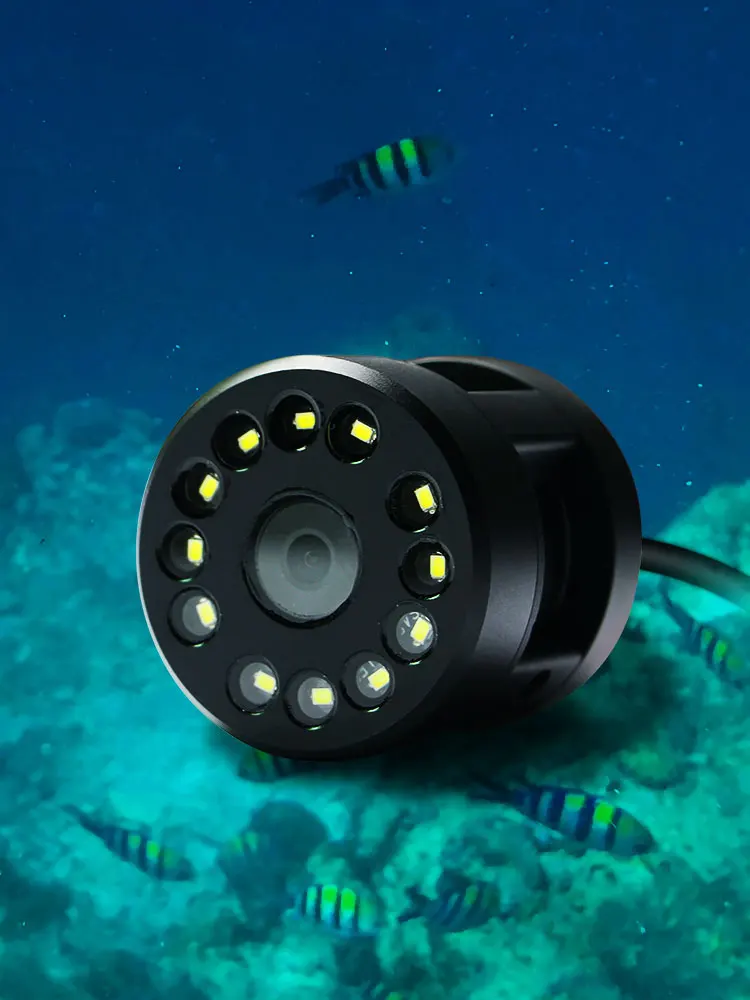

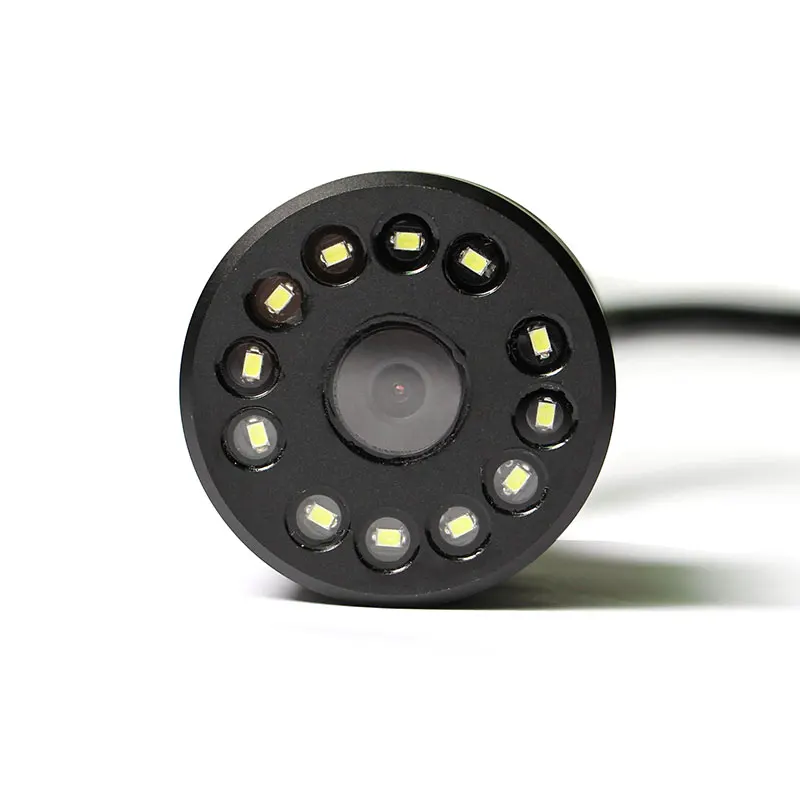

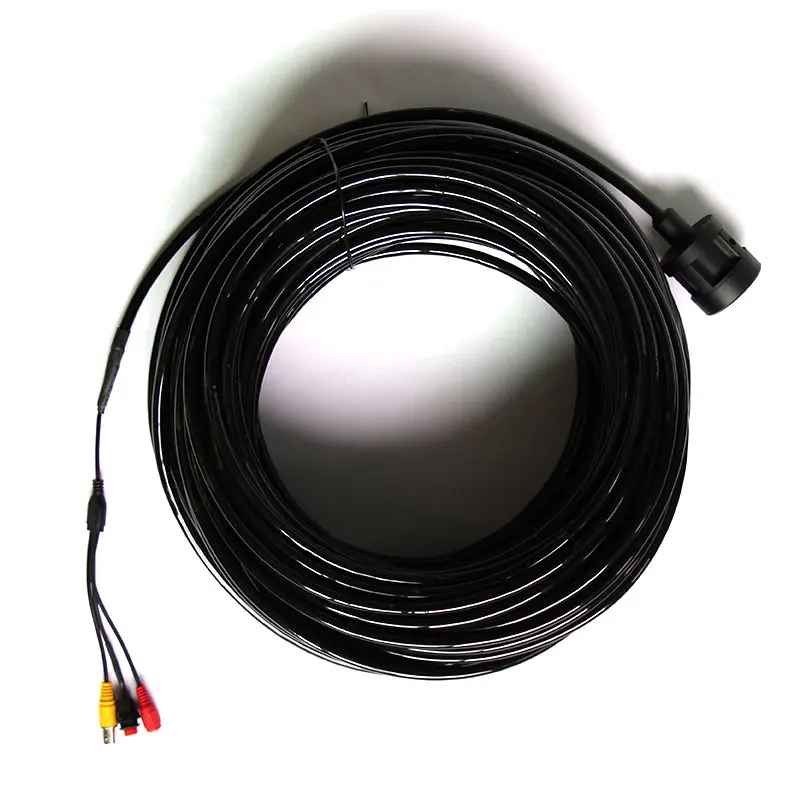

Detail pictures of deep underwater drain inspection camera

1080P Borehole Inspection Camera Deep Underwater Drain Detection Pipeline Sewer Inspection System

Specifications of drain pipeline sewer inspection camera

Image Sensor

2MP SONY Image Sensor

Signal System

PAL/NTSC

Effective Pixels

1920(H)*1080(V)

Min. Illumination

0.0001Lux @ F1.2

Shutter Time

1/25(1/30) s to 1/50,000 s

Angle of

120°

Light source

12 pcs LED, IR850/IR940nm

Housing Material

Aluminium alloy housing

Video Frame Rate

PAL: 1080p@25fps

NTSC: 1080p@30fps

HD Video Output

HD TVI, CVI,AHD, CVBS

CVBS Video Output

1.1Vp-p Composite Output(75Ω/BNC)

AGC

Support

Auto White Balance

Auto

D/N Mode

Auto

Operating Conditions

-20 °C - 60 °C

Power Supply

DC5-12V

Power Consumption

1W MAX

Waterproof rate

IP68

Dimension

50mm×48mm

Weight

180g
