The Parts of 3D Wall Inkjet Printer Direct To Wall Printing Machine

If you need know detail quotation of each part and machine,please contact Jane at any time WhatsApp:+86 15072328606

Product Description:

Maxwave Laseris a professional manufacturer of high quality and high accurancy direct to wall printing machine.Professional and excellent team and advanced production technology is our guarantee of quality products.

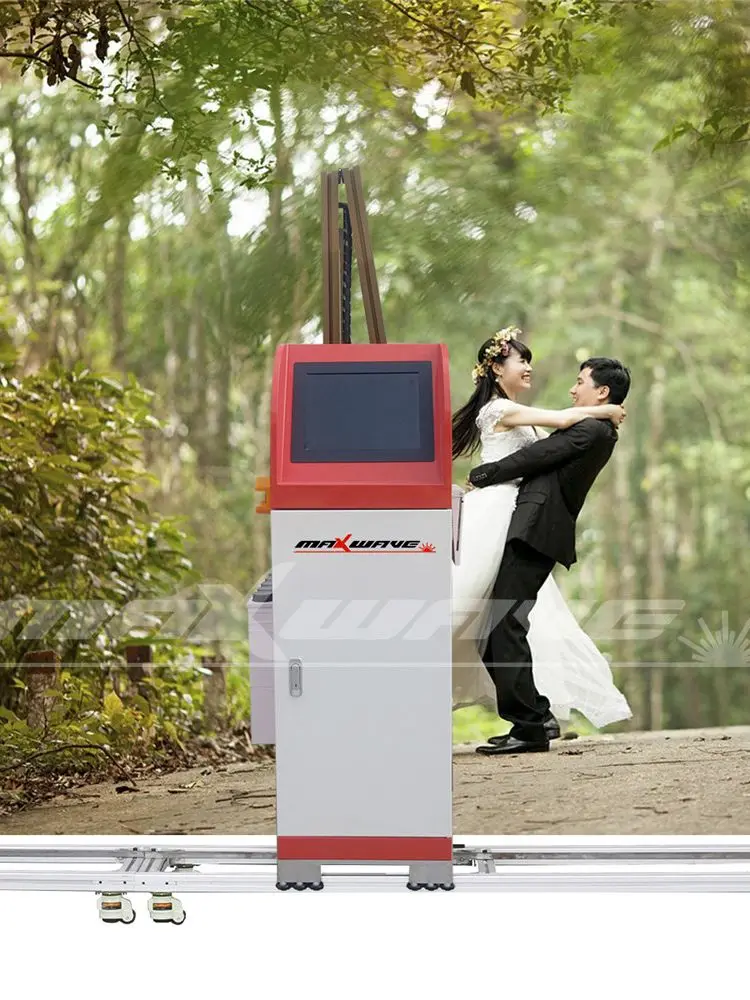

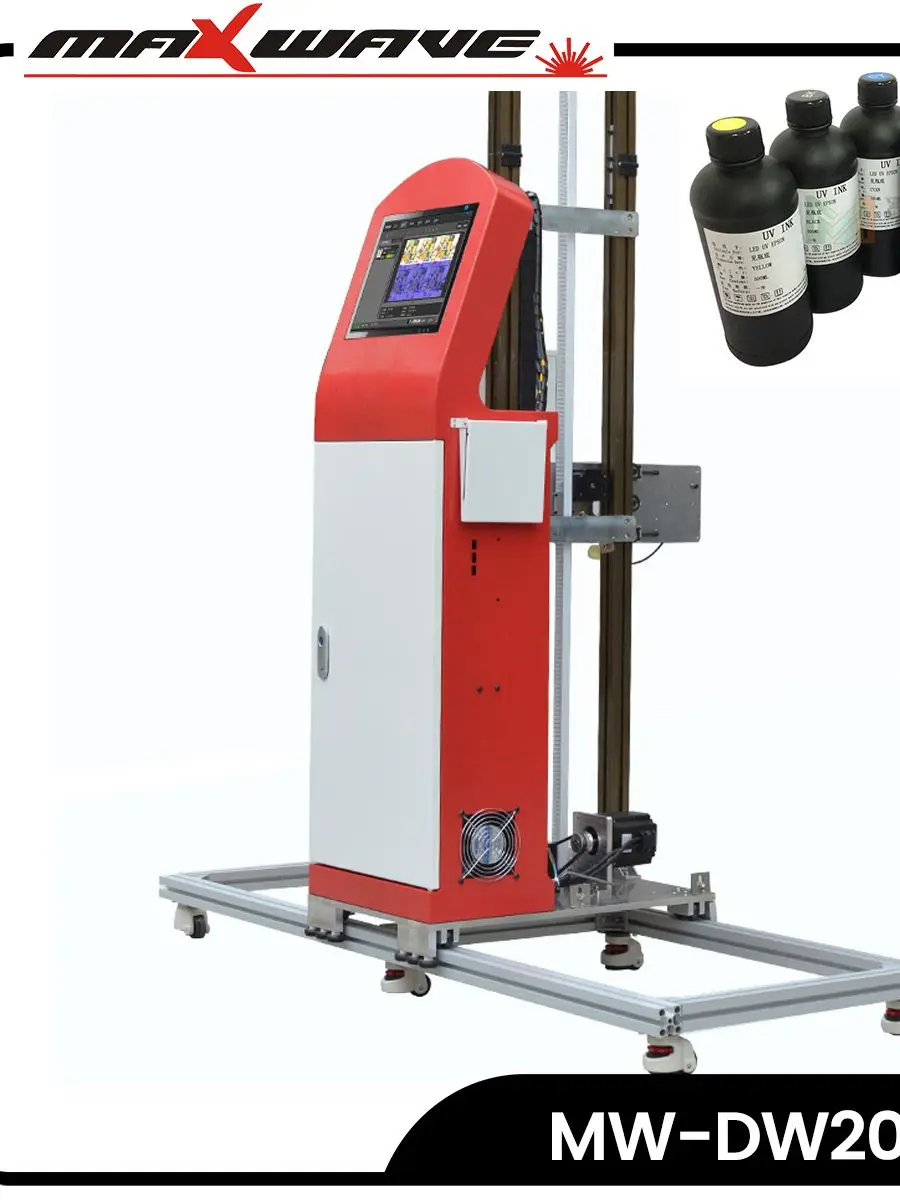

Maxwave Laserlaunched this vertical type version of wall printing machine price.To meet the various demands for large format painting in the advertising and other industries, the direct to wall printer can print on wall directly.Our customers just need to connectwall printing machinewith laptop, input the picture to it. Then the picture can be painted on the wall automatically. It leads to a new trend of customized wall decoration.This direct towall decal printingis with higher precision and faster speed, present perfect quality of painting for you.

Brand name

Maxwave

Ink

Special ink for synthetic pigment wall painting

Assembly method

Self steering fastener, pulley, track fastener, quick disassembly and assembly

Control mode

Wired handle, wired control

Motor technology

DC brushless servo motor, vector positioning technology, five star grating

Feeding system

Negative pressure automatic feeding, 340 ml pigment library, multi-color one, special color for, with a sealed plug and dust cover

Painting speed

High, medium, low, three-speed adjustable

Painting resolution

360*720dpior720*720dpior720*1080dpior720*1440dpi

Picture type

Support JPG, BMP, TIFF, PDF, AI, PSD, CDR and other files (some formats need to be converted)

Actual painted size

Height 2100mm, wide width can be extended

Power Supply

AC110V(90-132V)/AC220V(180-264V)AC,47-63HZ

Power consumption

No-load 20W, general 75W, Max to 250W

Noise

Standby <20dBA, drawing <50dBA

Operation

-10℃-60℃(14℉-140℉)10%-80%relative humidity, non condensable state

Storage

-30℃-60℃(-22℉-140℉)10%-80%relative humidity, non condensable state

System platform

Windows XP/Win 7/Win 8//Win 10

Motherboard configuration

Dual coreCPU,512MBmemory,USB2.0/3.0data interface

Machine language

Chinese,English(Customizable)

Print mode

Pass

Speed (per square meter per hour)

Quick mode

A

6Plane / hour

Production model

B

4Plane / hour

Quality model

C

3Plane / hour

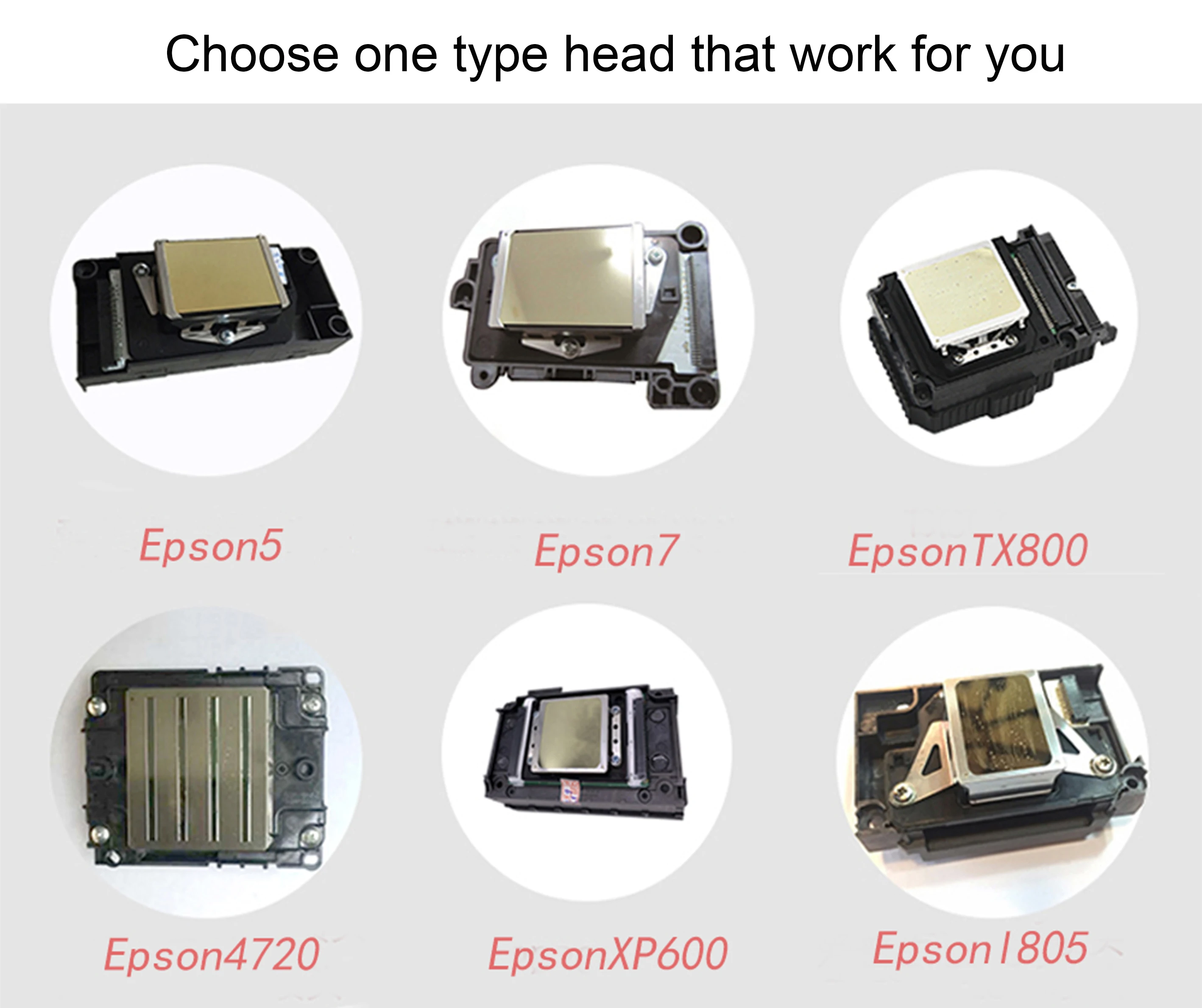

1. This is direct to wall inkjet printer adopts imported Japan piezoelectric nozzles.

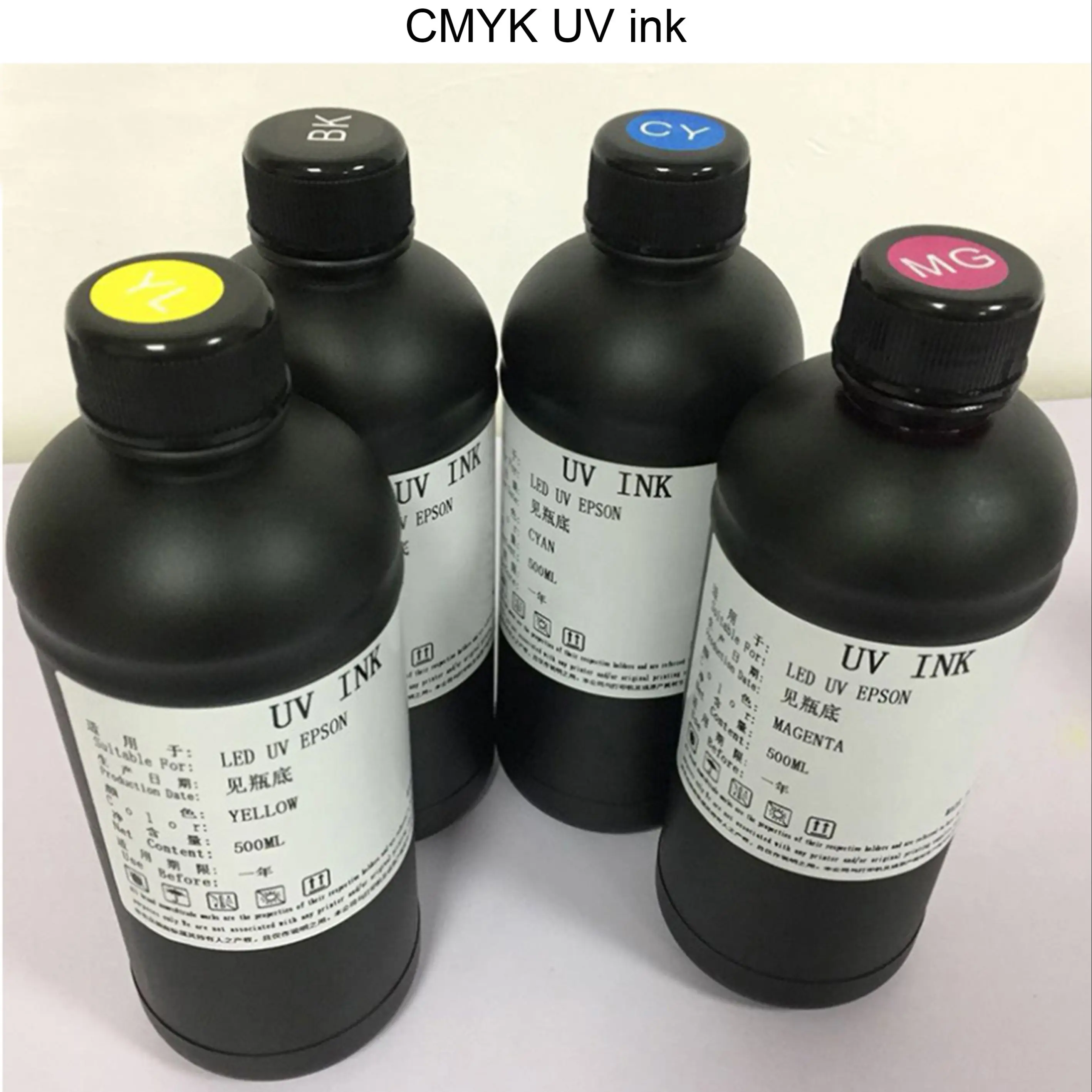

2. Horizontal wall printer use the Perfect Laser wall painting specific ink, no need to heat at minus 10 ℃ to zero 60 ℃ in the normal work environment, no ice, and constantly inking.

3. Single base color, one-way ink supply channel. Even for the system of automatic pressure supply, 340ml pigment library, multi-color one, easy to take, and the screen of the horizontal wall printer is clear and bright.

4. The body design of horizontal wall printer lines smooth, without a large chassis, the program software all integrated to facilitate the demolition and handling, to work under any environment.

5. This wall mural printer printing resolution is of 360 * 720dpi or 720 * 720dpi or 720 * 1080dpi.

6. Inkjet screen actual size of the wide format printing machine: high 2100mm wide 1700mm, wide more than 1700mm of the screen need to do seamless stitching, seamless splicing will not affect the overall effect of the screen.

Our service

1.Core technology. When we were a small factory, we have focused on the development of core components such as laser power supplies and optical path. Unlike other suppliers, they only sell through assembly equipment.

2. Independent research and development department. This means we can offer our customers customized machines and improve the equipment according to market changes.

3. Dealer support plan. In the early stage of customers' market development, we provide technical parameters for the installation and use of equipment free of charge, share good marketing methods, help customers win the market and achieve success.

4. Strict testing. All of the suppliers we work with come from world-class manufacturers. Before the delivery, each machine needs to be tested and inspected for 48 hours (marking machine, welding machine) and 4-7 days (cutting machine) to ensure quality and safety.

5. Timely delivery. Each machine has an accurate assembly process and strict time control to ensure that customers receive goods in a timely manner.

6. After-sales service and guarantee. We offer a 2-year warranty and any problems occur during the period and we have a responsibility to resolve them. If any part of the machine is broken, we will repair it for free and send free accessories.

Our attitude

Committed to providing the most professional solutions, using laser technology to create value for customers.

Please contact JANE get the latest price and more information about machines and the parts.
