HMC253 DC-2.5GHz RF однополюсный восьмипозиционный переключатель с MMIC SP8T, без отражения сигнала, выбор активной антенны на канале.

HMC253 DC-2.5 GHz RF single-pole eight-throw switch RF
switch Antenna selection Channel selection

Description:

Features:

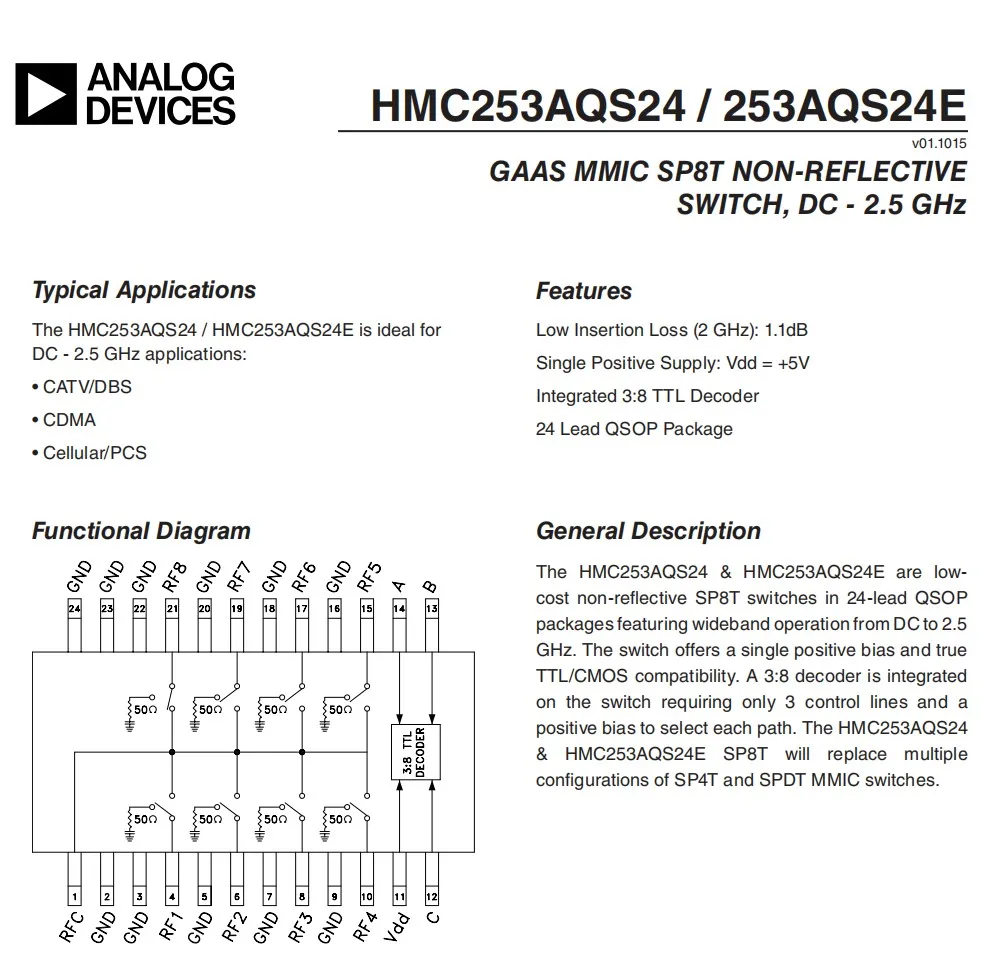

I. Overview
The HMC253AQS24E is a low cost, non-reflective SP6T switch
in a 24-pin QSOP package with a wide operating frequency
range from DC to 2.5 GHz. This switch provides single
positive bias and true TTL/CMOS compatibility. The switch
integrates a 3:6 decoder that requires only three control
lines and one positive bias to select each path. The
HMC253AQS24E SP8T replaces multiple configurations of SP4T
and SPDT MMIC switches and logic drivers.

Second, the characteristics
1. Low insertion loss (2 GHz): 1.0 dB

2, single positive power supply: VDD = +3V to +5V

3, integrated 3:6 TTL decoder

Third, the application
1, base station

2, CATV / DBS

3, MMDS and wireless LAN

4, test equipment


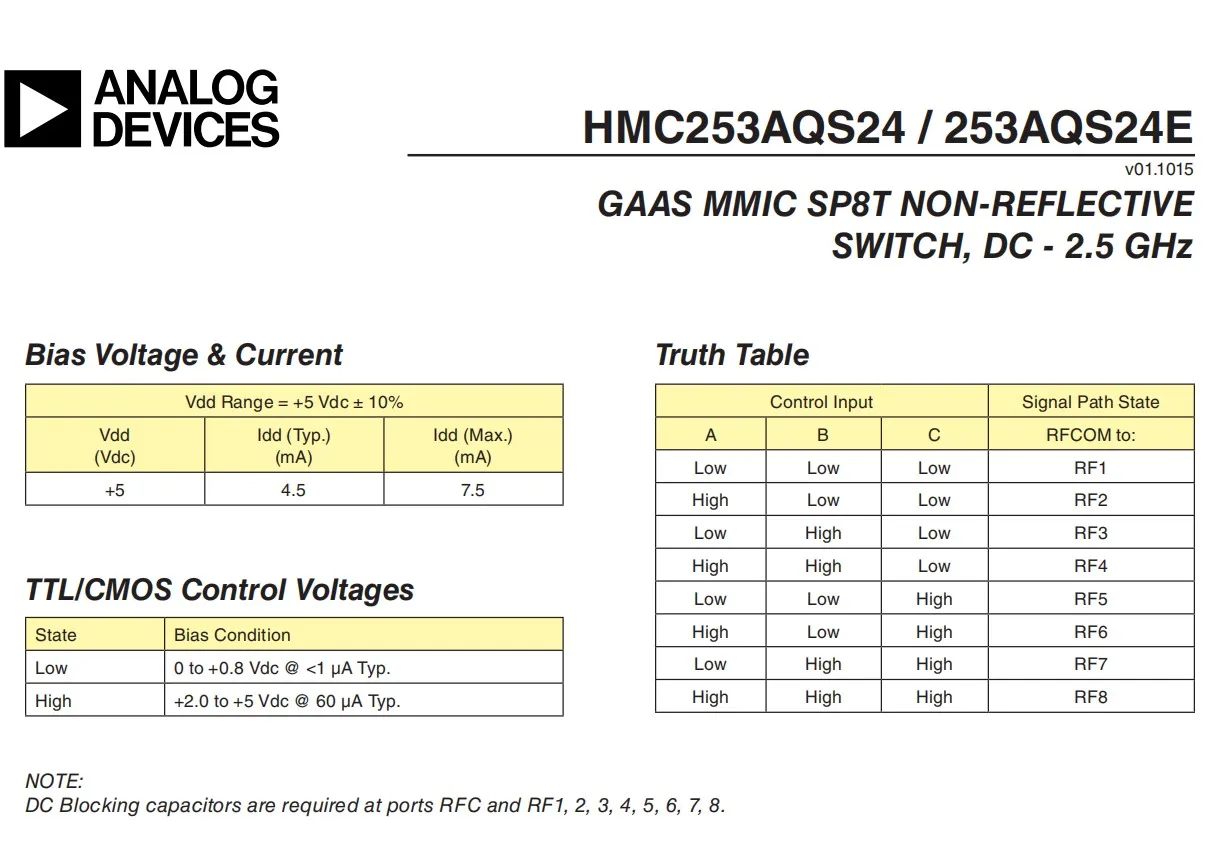

Fourth, the circuit description

Supply voltage: 3V-5V
Frequency: DC-3GHZ

Five, test pictures

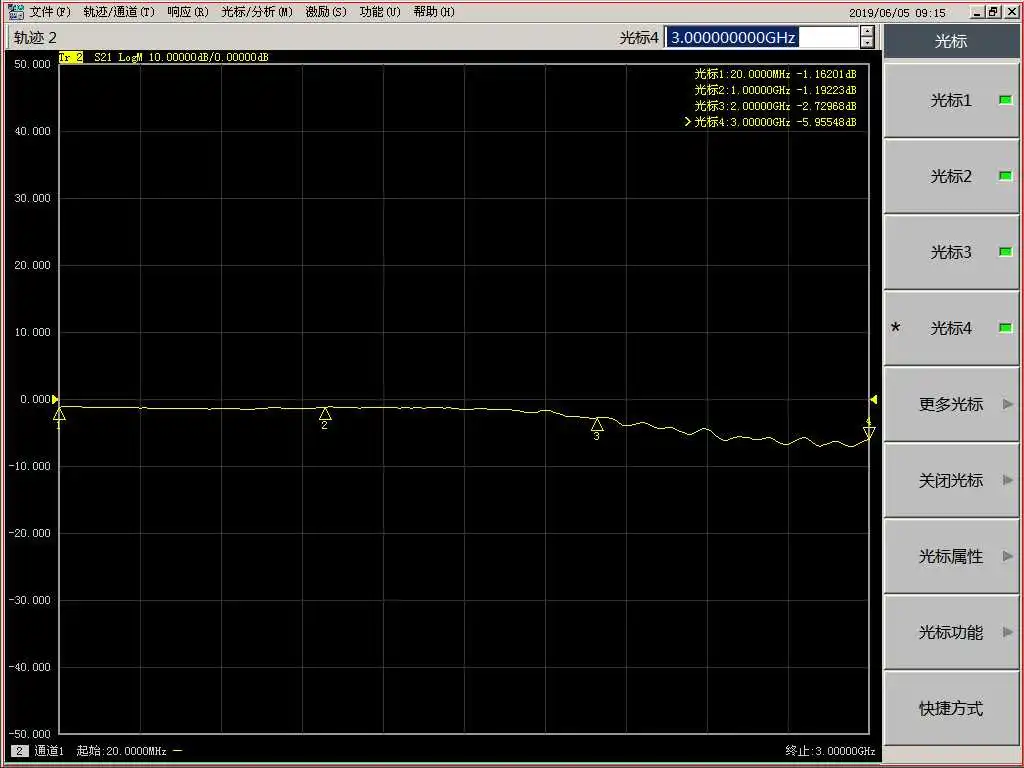

1. The conduction S21 curve from RFC to RF1 is as follows:

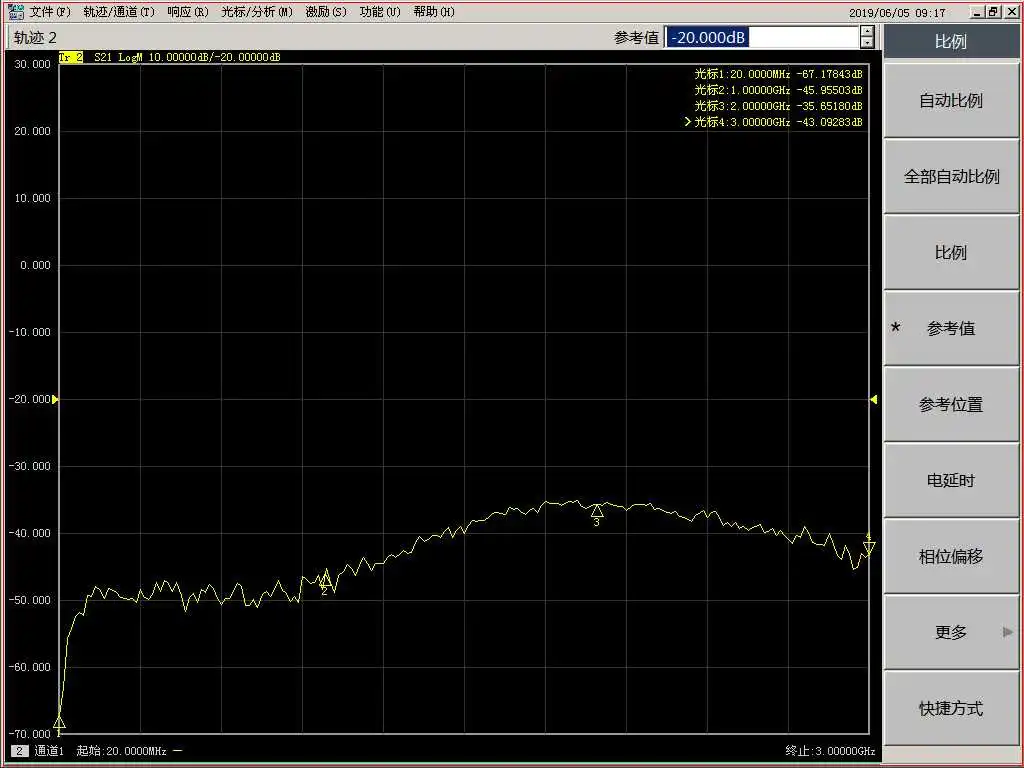

The disconnected S21 curve from RFC to RF1 is as follows:

---
