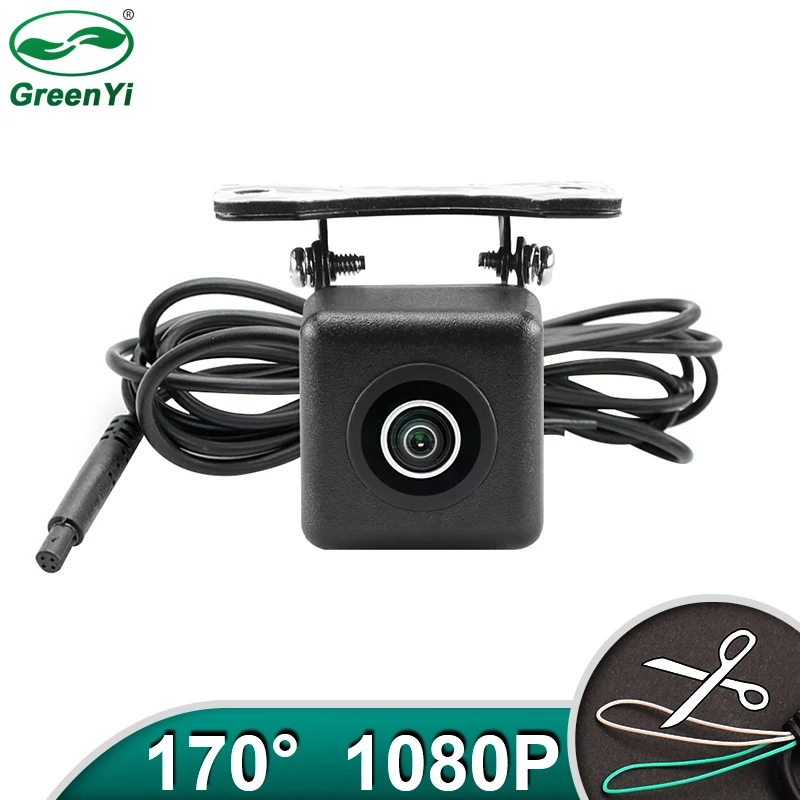

GreenYi 1080P 170° AHD Vehicle Rear View Camera Fisheye Lens No LED Car Reverse Black Night Vision Waterproof Universal | Автомобили и

GreenYi 1080P 170° AHD Vehicle Rear View Camera Fisheye Lens No LED Car Reverse Black Night Vision Waterproof Universal | Автомобили и

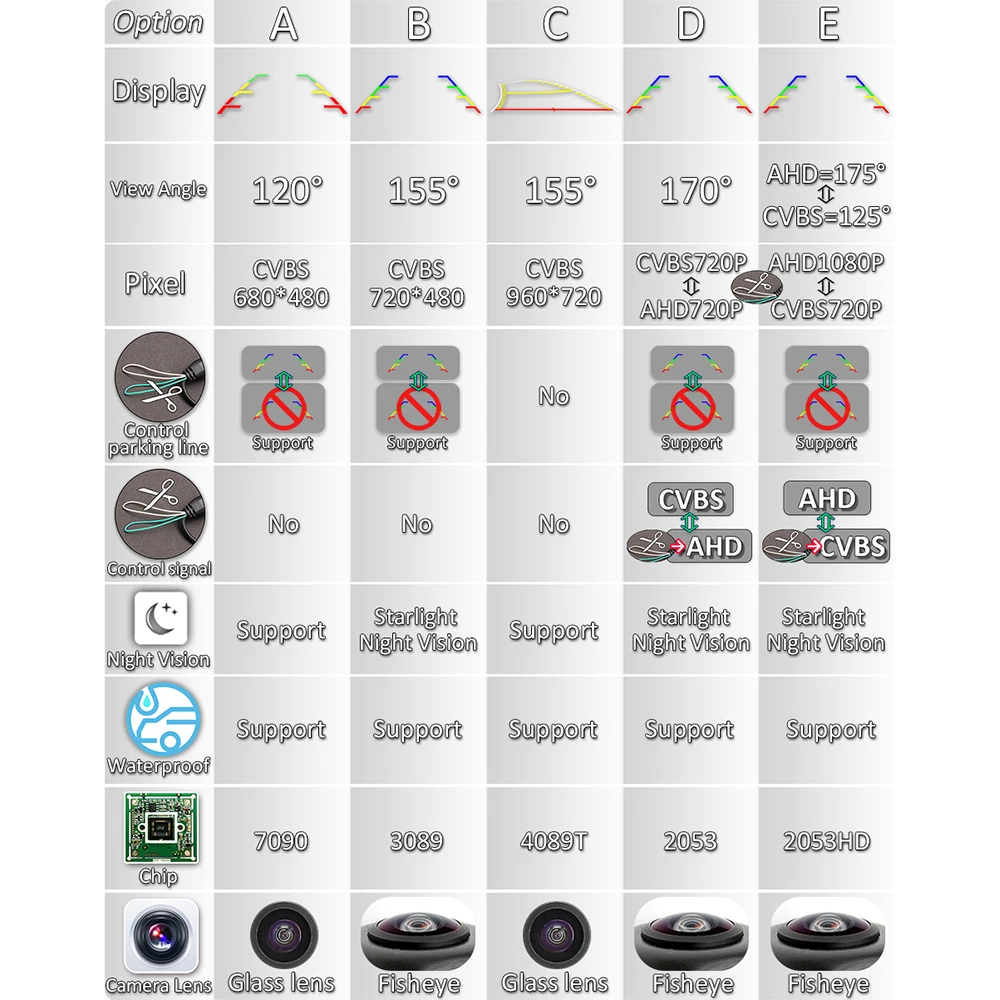

5 Cameras Optional

Tips, About E options:

Please check whether the Android unit supports AHD1080P camera!

If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

Cameras with CVBS video signal is universal for all monitors, but AHD will only work with AHD monitor!

How to check whether the Android unit supports AHD camera?

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD

Installation method

Installation method

↓↓ 170° View Angle (Option D, E)

• Real 170° wide viewing angle. the display looks like fisheye, glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.

↓↓ 1280*720P Top Starlight Night Vision (Option D, E )

• Low-light Level Night Vision, 15m visible distance for night. Exclusive military low-light camera, the industry's most cost-effective camera, excellent night vision effect, less interference, special shielding, the best quality camera!

↓↓ 2020 AHD Camera, Analog High Definition Technology (Option D,E)

• AHD1080P / AHD720P Optional
• If AHD1080P cannot be selected, AHD1080P cameras are not supported!
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• Highly integrated AHD front-end chip, high-definition quality products.

↑↑ Support video signal control AHD/CVBS (Option D, E)

Through signal control, it can support CVBS and AHD displays.
• D camera
( CVBS )+( 1280x720 )+( 170° )
Cut the white cable→( AHD )+( 1280x720 )+( 170° )
• E camera
( AHD1080P )+( 1920x1080 )+( 175° )
Cut the white cable→( CVBS )+( 1280x720 )+( 125° )

↑↑ Support parking reference line switch on/off (Option A, B, D, E)

Some monitors come with a parking reference line that coincides with the camera's reference line and interferes with the line of sight.

↓↓ Support Intelligent Dynamic Trajectory (Option C)

• Not need CANBUS or OBD interfaces, camera built-in reversing Tracks module, just connect the power.
• Not support steering wheel control.
• Adjust the track automatically according to the moving position and speed of car body and angle, help you make parking easier.
• 155° wide viewing angle.

Support Waterproof

Display effect

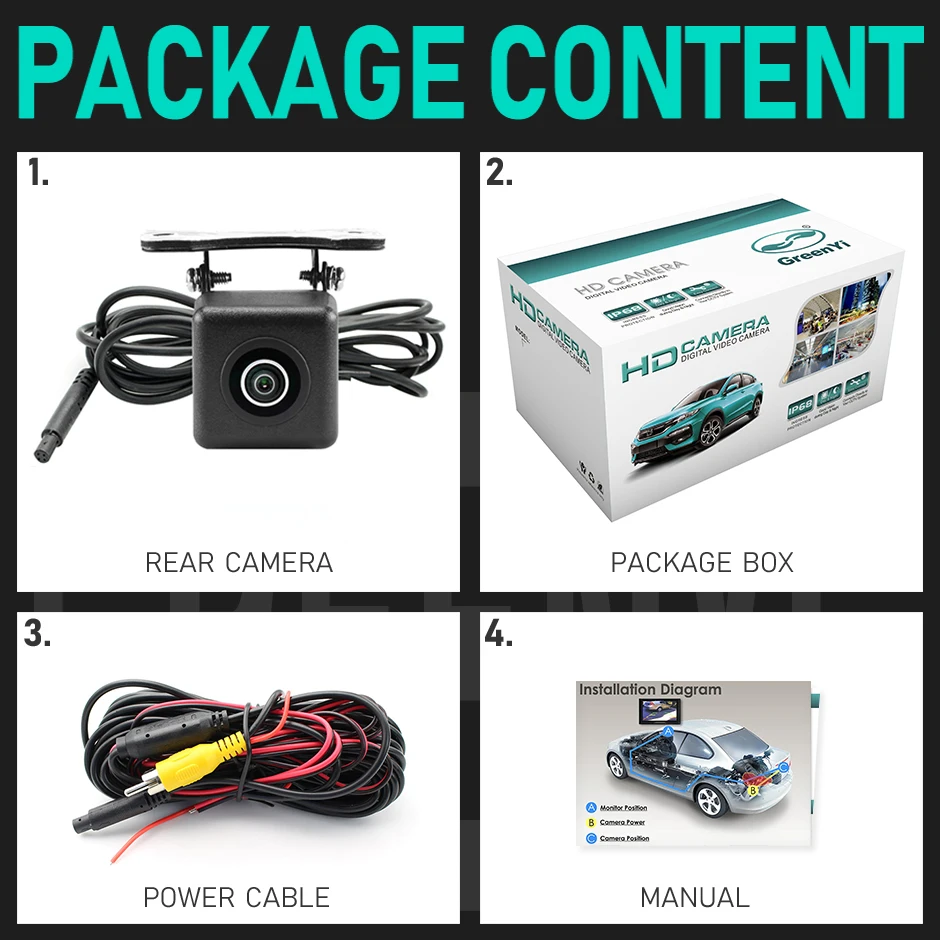

Package list

1. Rear view camera
2. Package box
3. 6m Video cable
4. Power cable
5. Manual

Installation Diagram

Warranty

• All our items are tested to ensure working properly before shipping and come with a 12-month Manufacture Warranty.
• If this item has any problem when arriving, please feel free to contact us and give us chance to solve your problem.
• This link support " no reason to return goods within 15 days". The goods returned by the buyer shall not affect the secondary sales of the merchants.For the expenses incurred in returning and returning goods, the principle of responsibility shall be followed.
