DC6006L 60V 6A 80W Desktop Mini Power Supply DC-DC Voltage Current Step-down Mini Power Supply Buck Voltage Converter Voltmeter

Features:

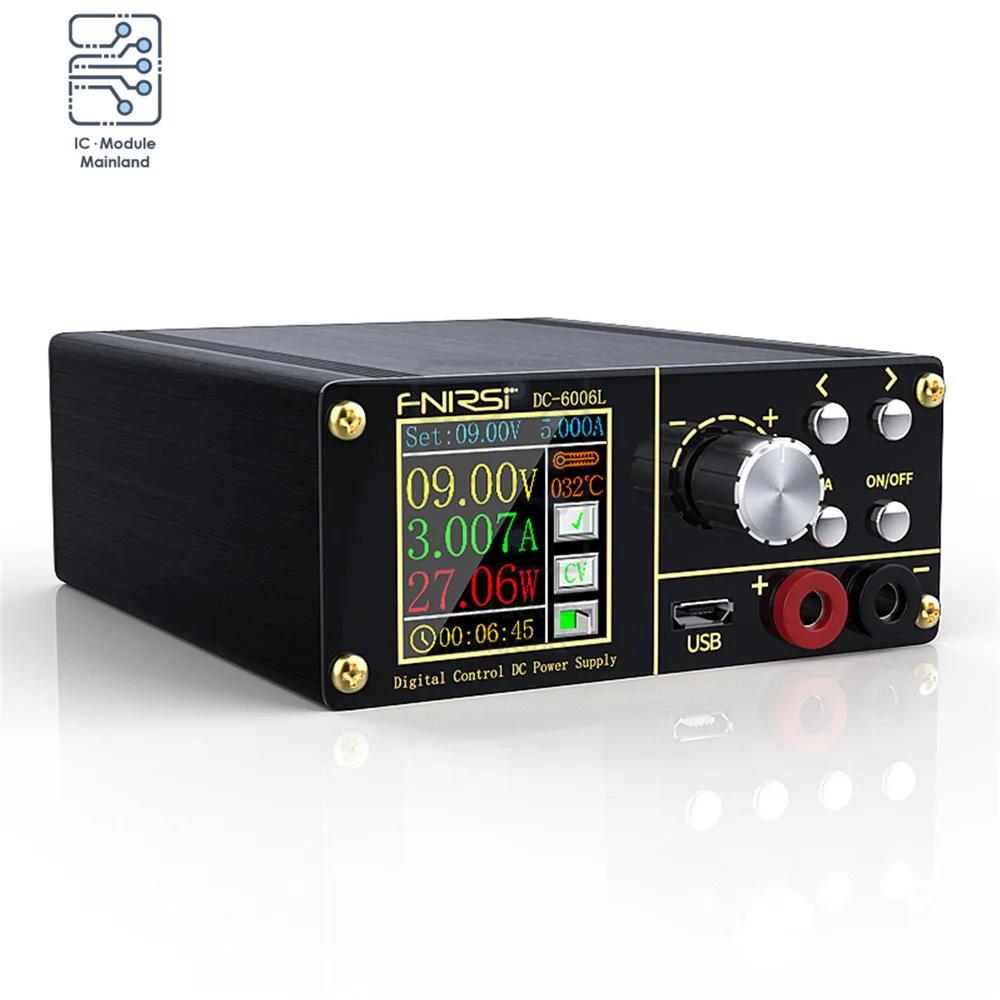

1.44-inch high-definition color screen information is comprehensive at a glance

Basic voltage, current, power parameters, temperature, running time, and equipment status.

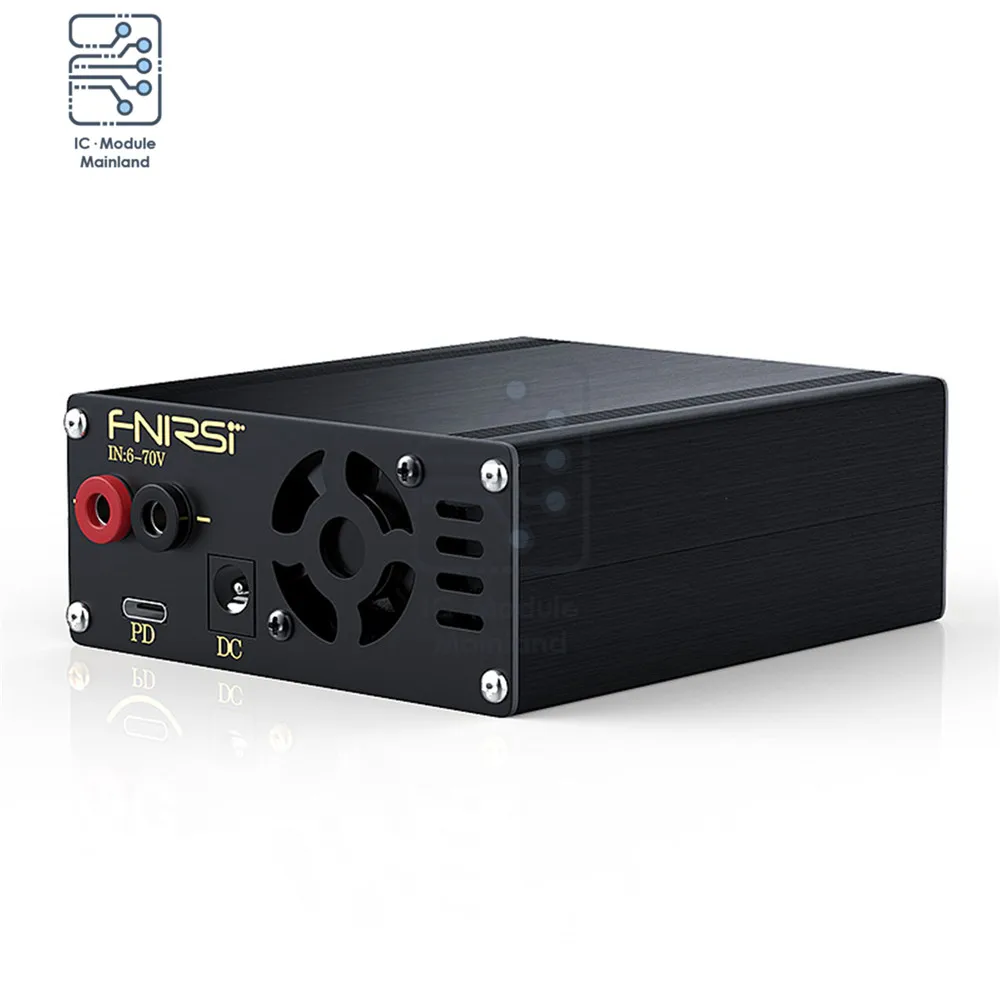

The input interface is comprehensive: DC, PD, banana interface (two or more interfaces are prohibited from being connected at the same time).

Intelligent temperature control and powerful heat dissipation performance.

Real-time detection of equipment temperature and power,

When the temperature is greater than 40 degrees Celsius and the power is greater than 100W, the fan starts automatically.

Set CNC power supply, support a series of functions such as waveform pause, zoom, data export, firmware control, etc., friendly interface, powerful, convenient and fast(Only supports WIN7 and above systems)

Comprehensive protection, safe and reliable.

Input anti-reverse connection, adjustable over-voltage protection (OVP), over-current protection (OCP),

A series of protection measures such as over power protection (OPP), over temperature protection (OTP), overtime protection (OHP), etc.; once the protection measures are triggered, the output will automatically stop.

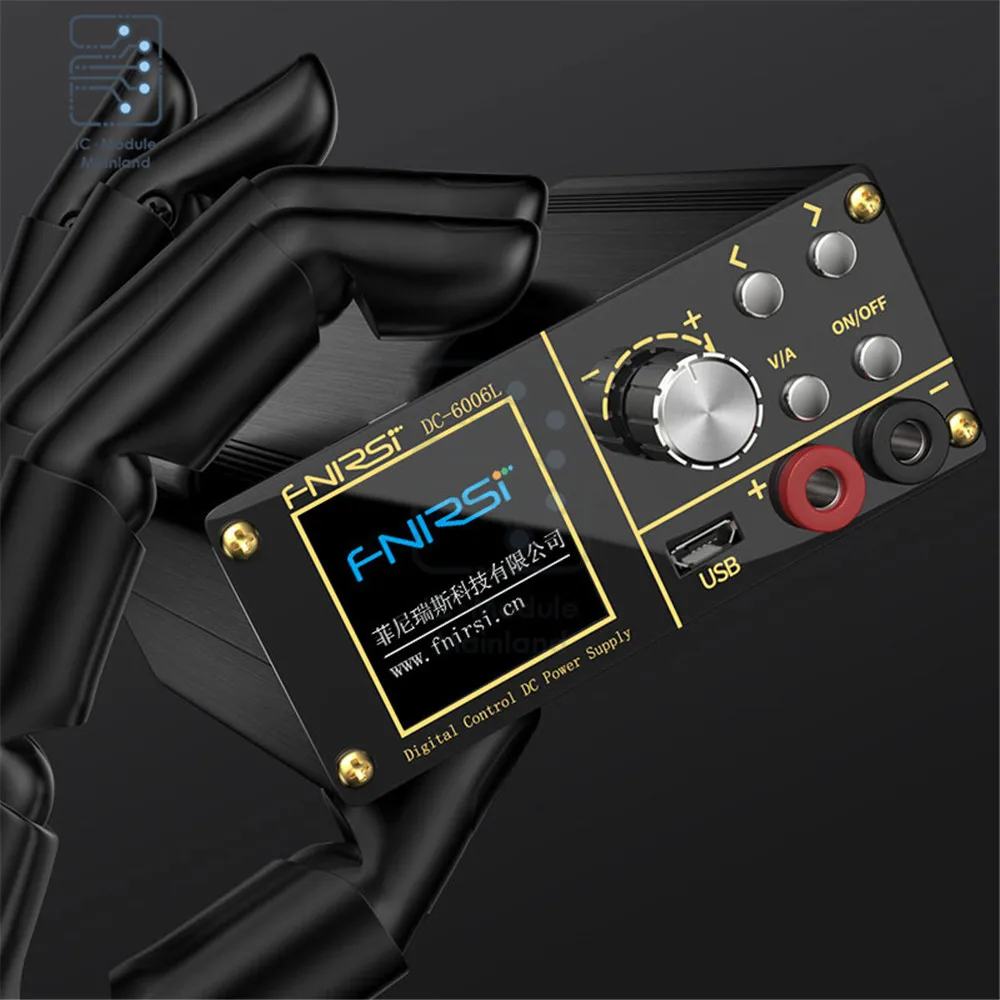

CNC power supply that can be held in your hand.

The weight is equivalent to an ordinary mobile phone, and the mini size is portable.

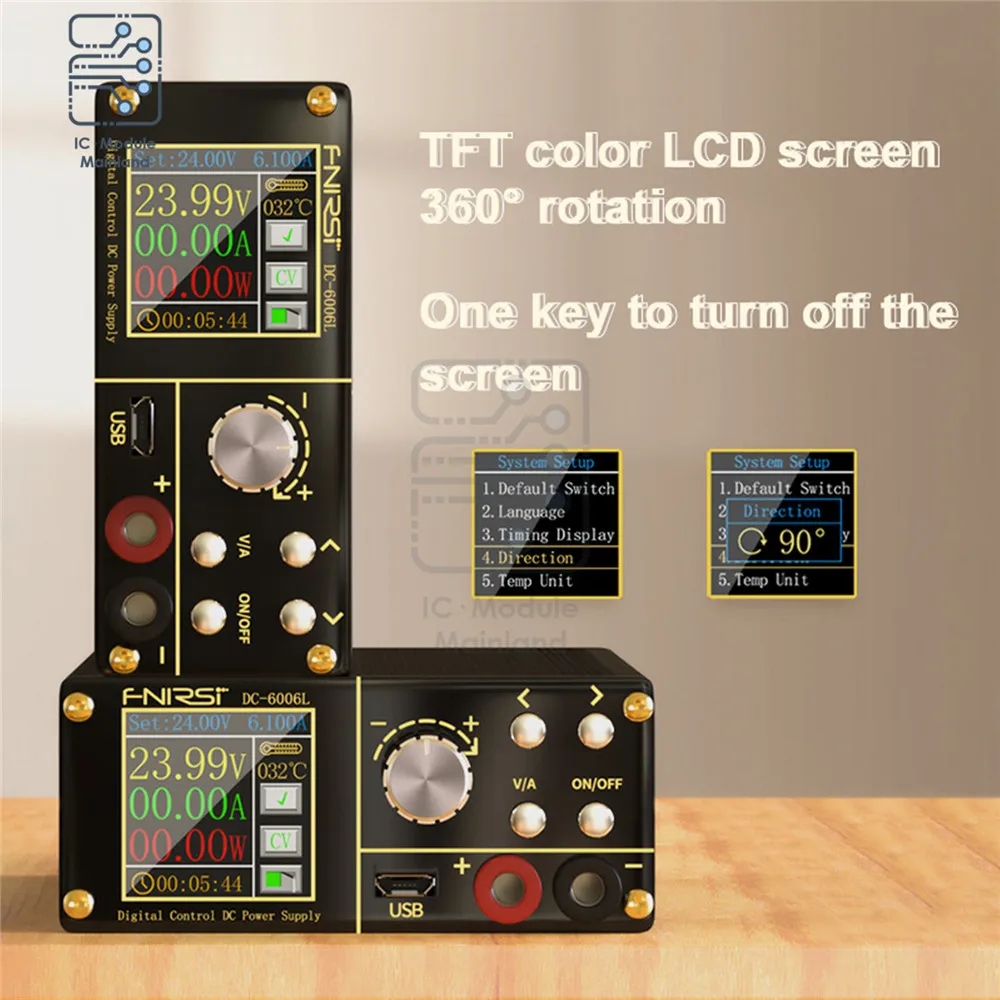

One key to turn off the screen to make the design more humane

Long press the power button to realize one-key screen-off operation, and the keys are locked to prevent accidental touch when the screen is off.

Note:

The voltage display error in the load mode is caused by the internal resistance of the wire, which is a normal phenomenon.

Parameter:

Size: 102*88*38mm

Input voltage: 6V-70V

Output voltage: 0-60V (note: ensure that the input voltage is greater than 1.1 times the output voltage)

Output current: 0-6A

Output power: 0-36OW

Voltage resolution: 0.01V

Accuracy: ±0.3%+3 words

Current resolution: 0.001A

Accuracy: soil 0.5% + 5 words

Output ripple: 100mV peak-to-peak value typical

Package included:

1 × DC Adjustable Step-down Power Module
