1.8v 3v 5v 6v 7.2v 12v 2A 30W DC Motor Speed Controller (PWM) 1803BK Adjustable Driver Switch |

Description

Welcome to our store.

Our products have affordable prices and good quality. We support dropshipping and wholesale. If you want to work with us for a long time, please contact us and we will give you a very favorable price.Best Regards!

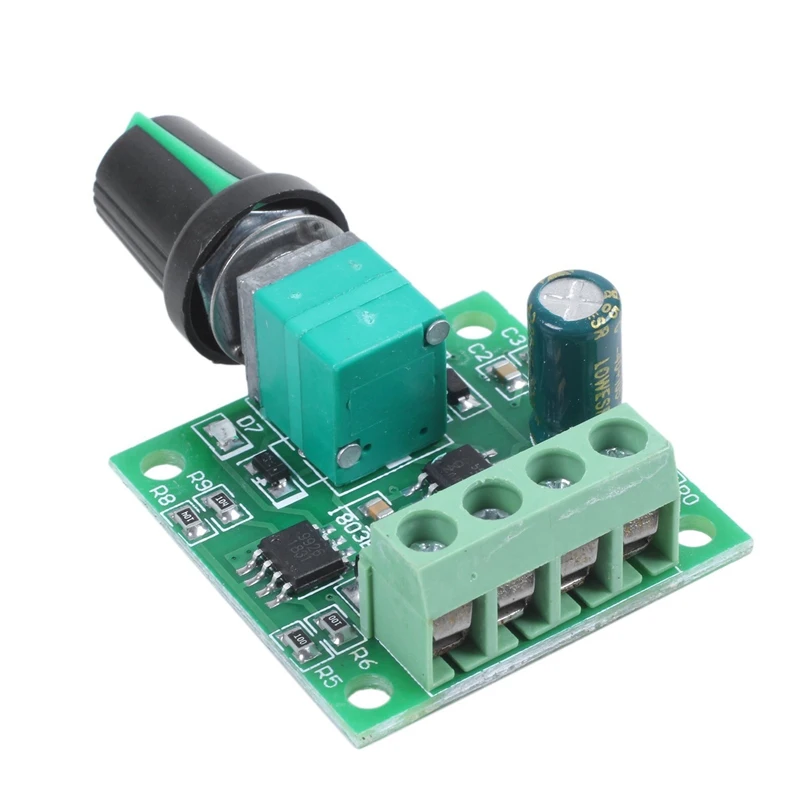

1803BK DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
The input power range is DC 1.8-15V .
Use a 2A resettable fuse to protect the controller.
Potentiometer with switch function.
Operating instruction: Before you attempting to wire the controller, make sure power is off.
WARNING: TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
Connect wires refer to the "wiring diagram" (NO.5 picture).
Turn on the power, and adjust the potentiometer.
The LED indicates the power up and the speed of motor.
Input supply voltage: 1.8V-15VDC;
The maximum output power: 30W
The maximum continuous output current: 2A
Duty Cycle adjustable: 0%-100%
Material: Plastic
Colour: Green
Item size: 1.3 x 1.3 x 0.6 inches; Net Weight: 0.5 ounces
Package Content: 1 x DC Motor Speed Controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

---
