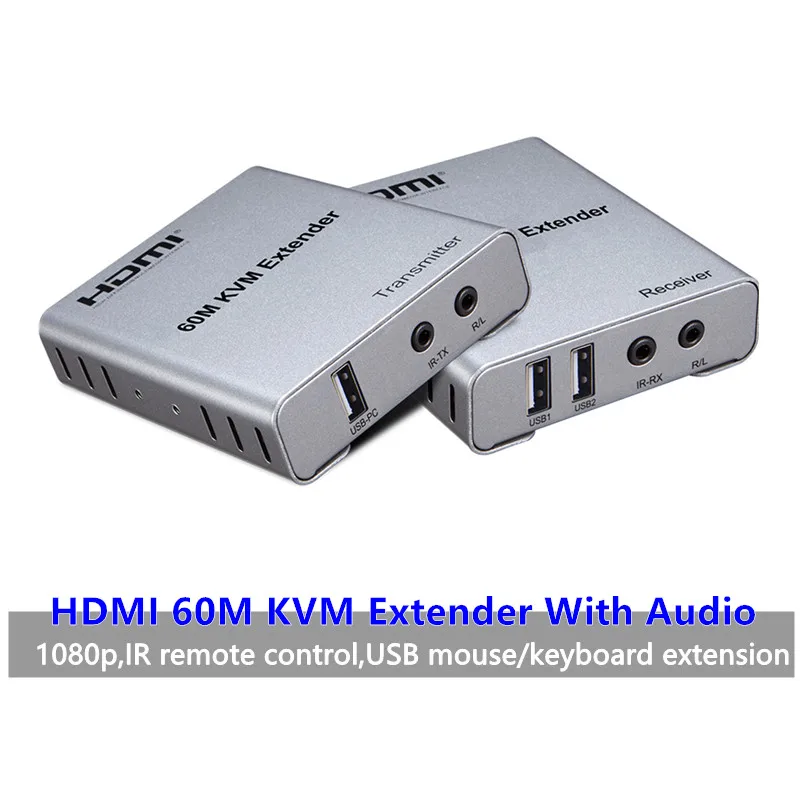

KVM HDMI Extender 60m USB mouse/keyboard Extension by Cat5/6/RJ45/LAN/UTP Network cable IR Control TX/RX 3.5MM R/L Audio output |

Description

HDMI KVM Extender USB mouse/keyboard Extension 60M by Cat5/6/RJ45/LAN/UTP Network cable,IR Control,TX/RX 3.5MM R/L Audio output

The Extender uses single cat5e or cat6(recommended)cables instead of HDMl cable to transmit high definition signal up to 60 meters,cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal

Features

1: Support highest video resolution 1080p/60Hz;
2: 60M long distance transmission:
3: Both the TX and RX support 3.5MM left and right audio output;
4: Low power consumption, low temperature and high safety;
5: Support IR remote control;
6: Support USB mouse and keyboard extension.

  Specifications:
Length of CAT-5E/6 cable between RX and TX........ Up to 60 meters
HDMI Input.......1080p/1080i720p/576p/576i/480p/480i
HDMI Output...1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth.........150MHz
Max baud rate .........4.5Gbps
Input video signal ......0.5~1.5Volts p-p
Output DDC signal.........5Volts p-p (TTL)
Input HDMI cable distance.......................≤10m AWG26 HDMI standard cable
Output HDMI cable distance.....................≤15m AWG26 HDMI standard cable
TX max working current .........300mA
RX max working current .....300mA
Power adapter format...........Input:AC (50HZ,60HZ)100V-240V;
Output: DC5V/1A Operating temperature range..........(-15 to +45C)
Operating humidity range.............5 to 90%RH (No Condensation)
Dimension (LxWx H).....................94x84x24(mm)
TX weight .....220g
RX weight ......220g

The Package includes:
1. TX Extender   1pcs
2. RX Extender    1pcs
3. IR cable 1pair
4. 5V DC Power adapter  2pcs
5. User Manual   1pcs
