Inverter ElectroLite MMA-200 (20-200A 140-250V 2 7kW 1.6-4mm 2.5kg.) Welding machine equipment Arc Tools Home Use Welders | Инструменты

Inverter ElectroLite MMA-200 (20-200A 140-250V 2 7kW 1.6-4mm 2.5kg.) Welding machine equipment Arc Tools Home Use Welders | Инструменты

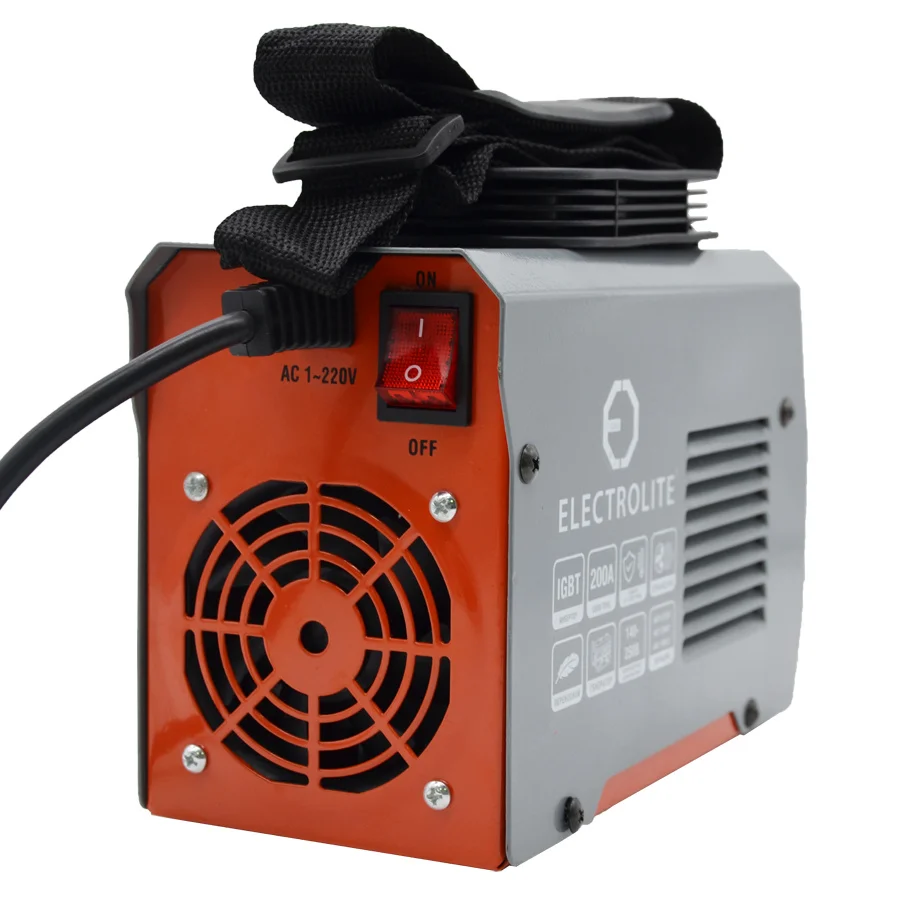

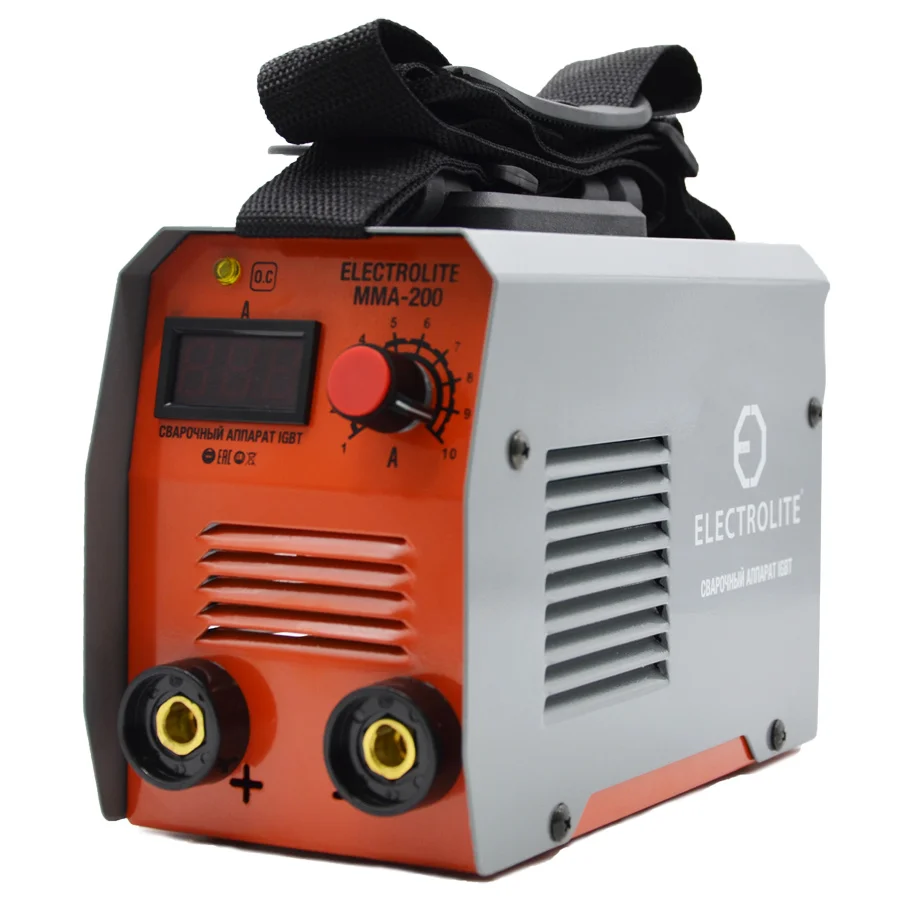

Welding inverter machine electrolyte mma-200-a machine for MMA-welding melting electrodes. It is made by modern IGBT-technology, which allows you to maintain a compact size and weight less than 5 kg. The maximum current is 200 A. Suitable for welding steels, copper, non-ferrous and black metals, etc.

The "hot start" function dramatically increases the Start current. The arc lights up quickly and easily, works at a bad voltage, from 140 v. The "anti stick" function interrupts the current supply when the electrode is poured. The electrode is removed from the workpiece, without violating the smooth seam. Forced tunnel cooling protects the inverter from overheating.

The form of ventilation holes prevents the locale from entering the inverter. The device will not suffer from metal splashes. When the working temperature is exceeded, the welding machine will interrupt the operation. Internal nodes will not suffer from overheating.

Features:

Welding type MMA (RDs, electrode)

220 volt power supply voltage

Welding current, Max. 200 amp

Input voltage, min. 140 Volt

Input voltage, Max. 250 volt

Output current type constant

Power 2.7 kW

Rivers power generator 5 kW

PV at maximum current 60%

Electrode diameter, Min 1.6mm

Electrode diameter, Max 4mm

Idle voltage 65 volts

Protection IP21S

H class insulation

Hot start: Yes

Antistick (electrode anti-pour) Yes

Fast and Furious arc Yes

Dimensions, length 30mm

Dimensions, width 18mm

Dimensions, height 20mm

Weight 2.5 kg
