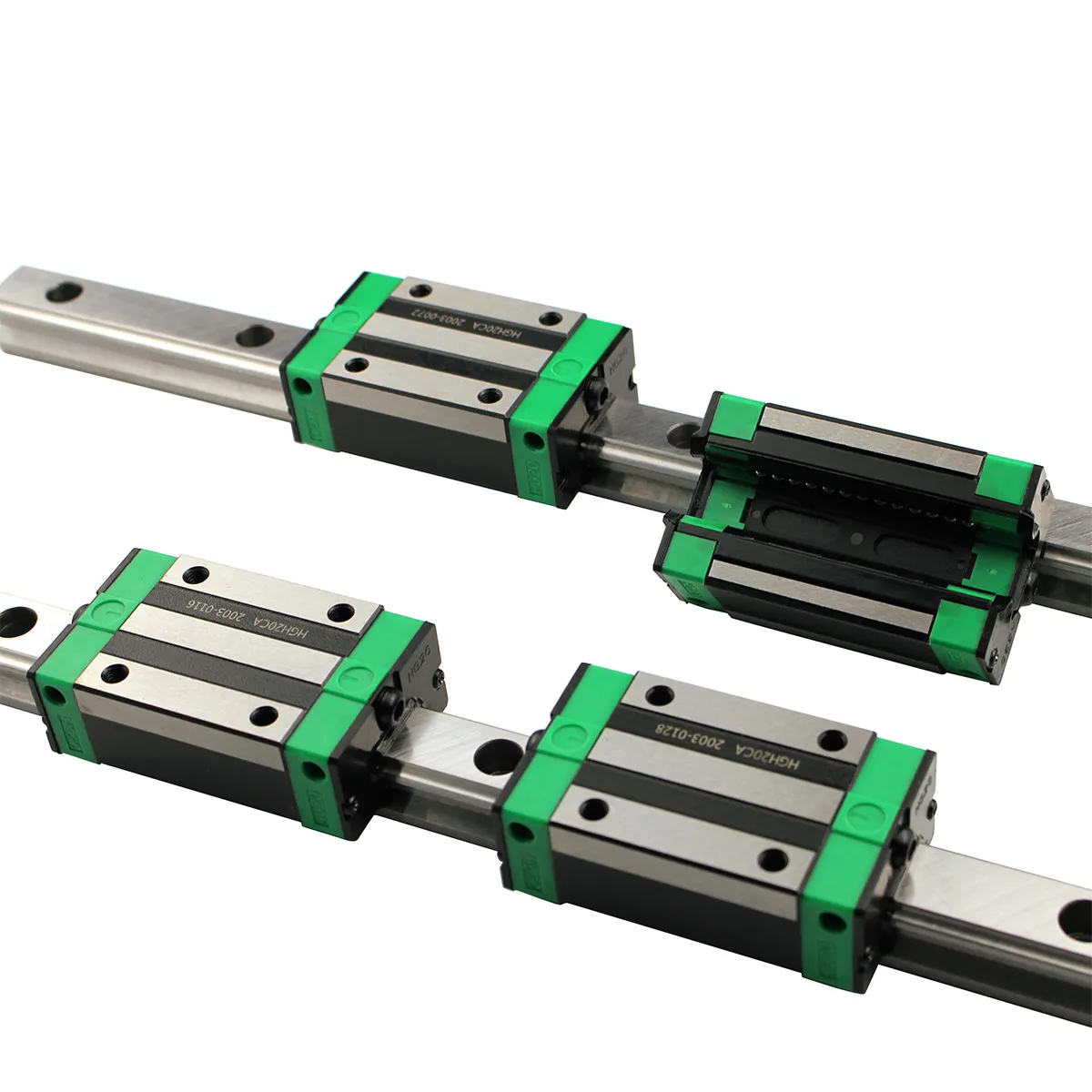

2PCS HGR15 HGR20 Square Linear Guide Rail + 4PCS HGH15CA HGH20CA / HGW15CC HGW20CC Slide Block Carriage for CNC Router Engraving |

2PCS HGR15 HGR20 Square Linear Guide Rail + 4PCS HGH15CA HGH20CA / HGW15CC HGW20CC Slide Block Carriage for CNC Router Engraving |

Features:

Linear bearings made of quality bearing steel. Beautiful and anti-rust surface treatment ensures durability, high hardness, and stiffness. Smooth running, low noise and non pollution.

Linear guides and rails provide a smooth, precision, guiding surface on which the rolling element of a linear bearing rides. It helps to build an economical linear guiding system and designed to achieve high precision linear motion, low friction coefficient.

Fit for: Semiconductor manufacturing equipment, printed circuit board IC assembly equipment, medical equipment, machine arm,precision measuring instruments, office automational equipment, other small linear sliding devices.

HGR15 Linear Guide Rail

Guide Rail Height: 15mm

Guide Rail Width: 15mm

Fixed Bolt Size: M4*16 (mm)

HGR20 Linear Guide Rail

Guide Rail Height: 17.5mm

Guide Rail Width: 20mm

Fixed Bolt Size: M5*16 (mm)

Slide Block

Model: HGH15CA / HGH20CA / Flang HGW15CC /Flang HGW20CC

Block Mounting: Mounting from Top

Package included:

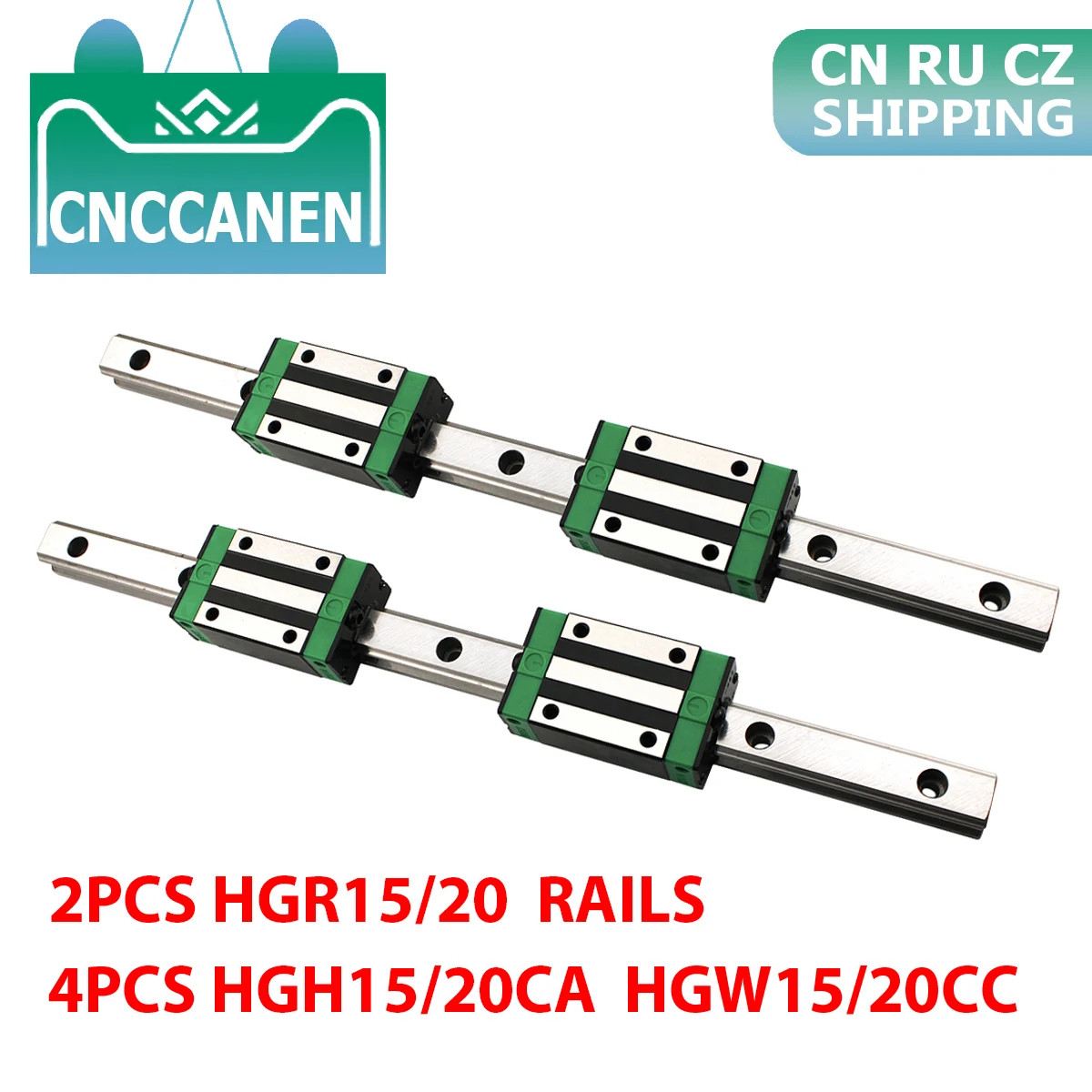

2 x HGR Linear Rail + 4 x HGH-CA / HGW-CC Slider Block

Note:

1. Please buy with our linear rail together. This carriage can only work with our linear rail.

2. Please allow minor error due to manual measurement. Thank you! Due to the difference between different monitors, the picture may not reflect the actual color of the item.

3. The plastic spacer inside the bearing block should be pushed out by the rail as you install it onto the rail; Removing this spacer prior to installation on the rail can cause bearings to be lost.
