Purchase Notes:The price of the product determines the quality and service of the product. For the door of the home or factory, it is generally 200kg-400kg, so we choose the DC24V motor, which is a basic voltage. Of course, the input voltage is your home line. If you have any questions, I suggest to communicate with the seller first.

packing list:

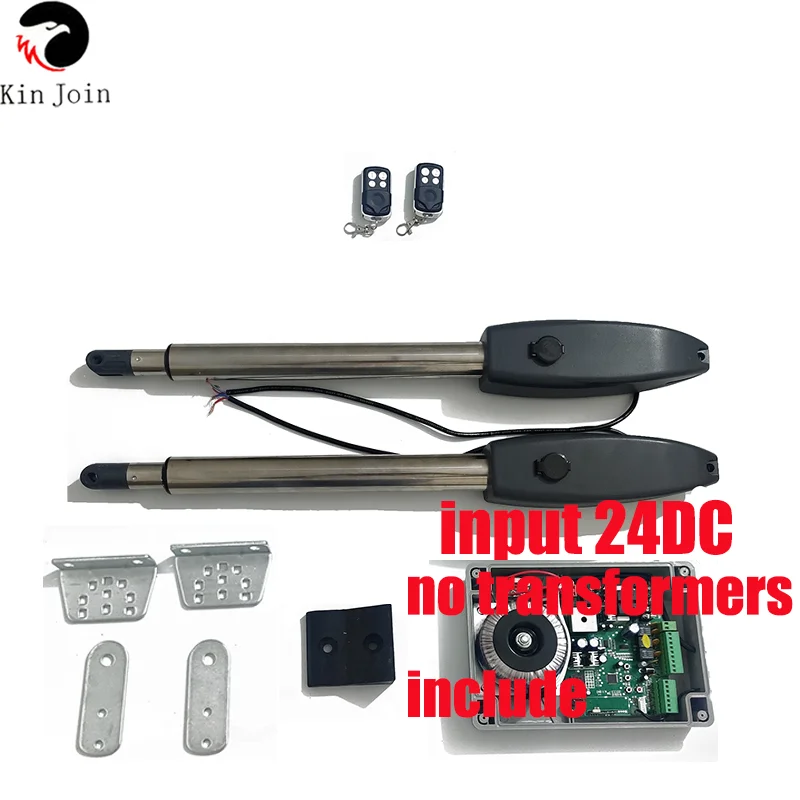

kit 1:1 full set DC24V input motor with 2 pcs remote control

kit 2:1 full set AC110~AC240V input motor with 2 pcs remote control

kit 3:1 full set AC110~AC240V input motor with 3 pcs remote control

kit 4:1 full set AC110~AC240V input motor with 4 pcs remote control

kit 5:1 full set AC110~AC240V input motor with 5 pcs remote control

kit 6:1 full set AC110~AC240V input motor with 6 pcs remote control

kit 7:1 full set AC110~AC240V input motor with 7 pcs remote control

kit 8:1 full set AC110~AC240V input motor with 8 pcs remote control

kit 9:1 full set AC110~AC240V input motor with 9 pcs remote control

kit 10:1 full set AC110~AC240V input motor with 10 pcs remote control

kit 11:1 full set AC110~AC240V input motor with 2 pcs remote control 1 sensor photocells 1 lamp

kit 12:1 full set AC110~AC240V input motor with 3 pcs remote control 1 sensor photocells 1 lamp

kit 13:1 full set AC110~AC240V input motor with 4 pcs remote control 1 sensor photocells 1 lamp

kit 14:1 full set AC110~AC240V input motor with 5 pcs remote control 1 sensor photocells 1 lamp

kit 15:1 full set AC110~AC240V input motor with 6 pcs remote control 1 sensor photocells 1 lamp

kit 16:1 full set AC110~AC240V input motor with 7 pcs remote control 1 sensor photocells 1 lamp

kit 17:1 full set AC110~AC240V input motor with 8 pcs remote control 1 sensor photocells 1 lamp

kit 18:1 full set AC110~AC240V input motor with 9 pcs remote control 1 sensor photocells 1 lamp

kit 19:1 full set AC110~AC240V input motor with 10 pcs remote control 1 sensor photocells 1 lamp

kit 20:1 full set AC110~AC240V input motor with  pcs remote control 1 sensor photocells 1 lamp 1 Wireless password keyboard

Technical Specifications
Motor voltage: 24VDC 60W
Input power:AC110~240V±10%
Rotational speed:300 RPM
Arm's extended speed:2.4 cm/s
Arm's max travel:300 mm
Continue running time: 5 minutes
Max single-leaf length: 2.5meters
Max single-leaf weight:400 KG
Environment Temperature:-40°C ~ +55°C
Protection Class:IP55
Max gate open angle: 90 degree
Dual Swing Gate Gross weight : 18kg

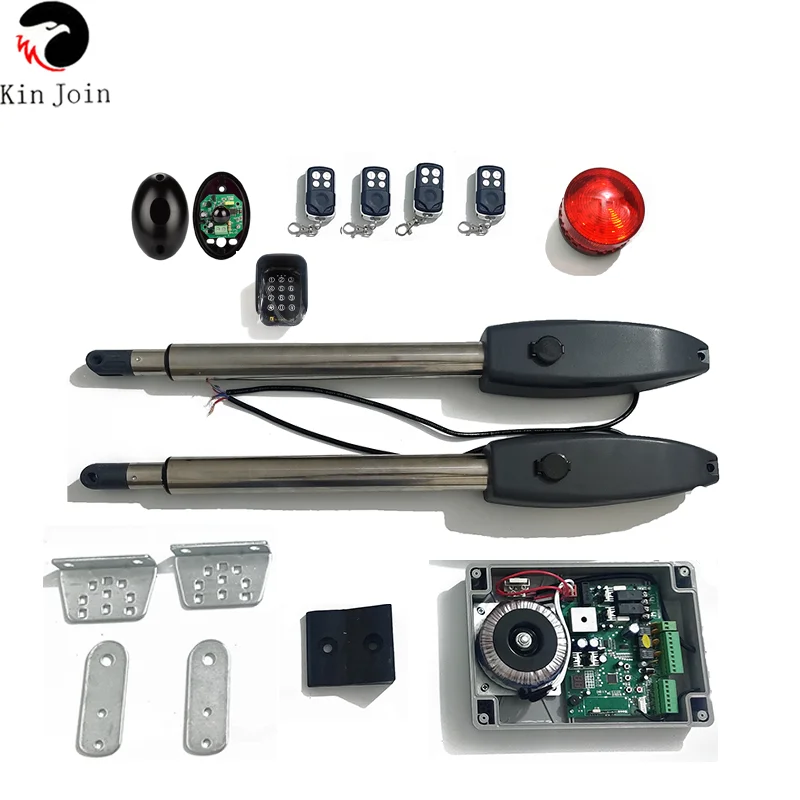

Standad kit components:

①2* Arms Gate Openers(drive motor)
②1* Control Box
③1* A set of Hardware Accessories
④1*Rubber stopper
2* Remote Control

1* Manual
Package Include:a standad kit with a pair of photocell and a waring lamp a in the car remote control

In some countries the cold climate, we add antifreeze oil inside the motor, It can work in cold environment.

Control Box details

Solar power system

Solar panel, solar charge controller and back up battery can make your motor operate with out traditional power supply.
Battery Capacity: 12V 5AH
Soalr panel
Max. Power 20.0W
Max. Voltage 17.0V
Max. Cureent 1.18A
Open Circuit Voltage: 21.6V

Features
1. The photocells should be installed at height of more than 20cm above the ground.
2. The distance between transmitter and receiver should be more than 50cm.
Wireless Keypad

Touch Sensor Bottons or Digital keys
Compatible With Most Of Fixed Codes&Rolling Codes
Two Channel Output
LED Indicator&Backlight
Security Lockout
IP Rating 53

SWING GATE OPERATOR
