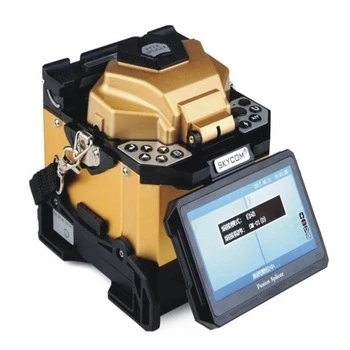

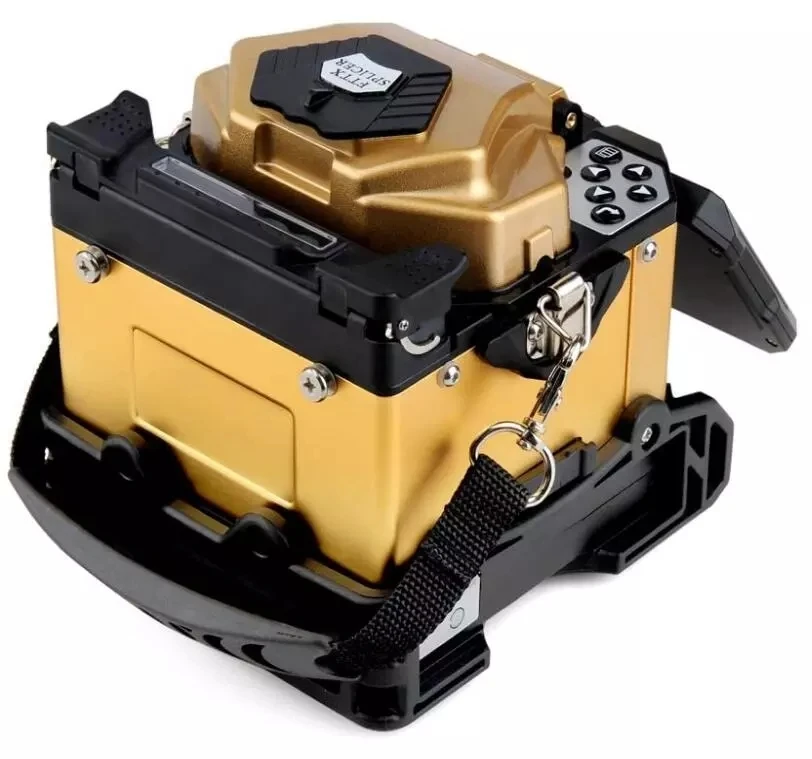

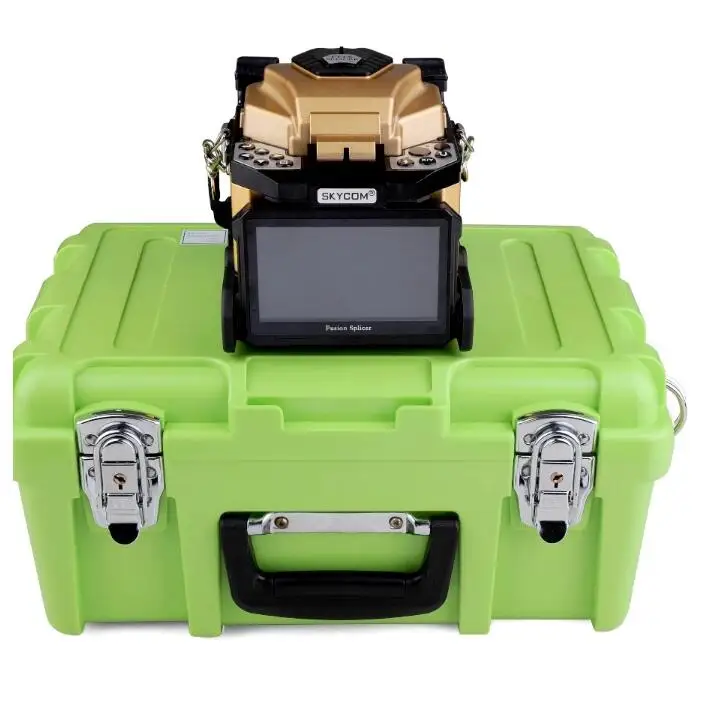

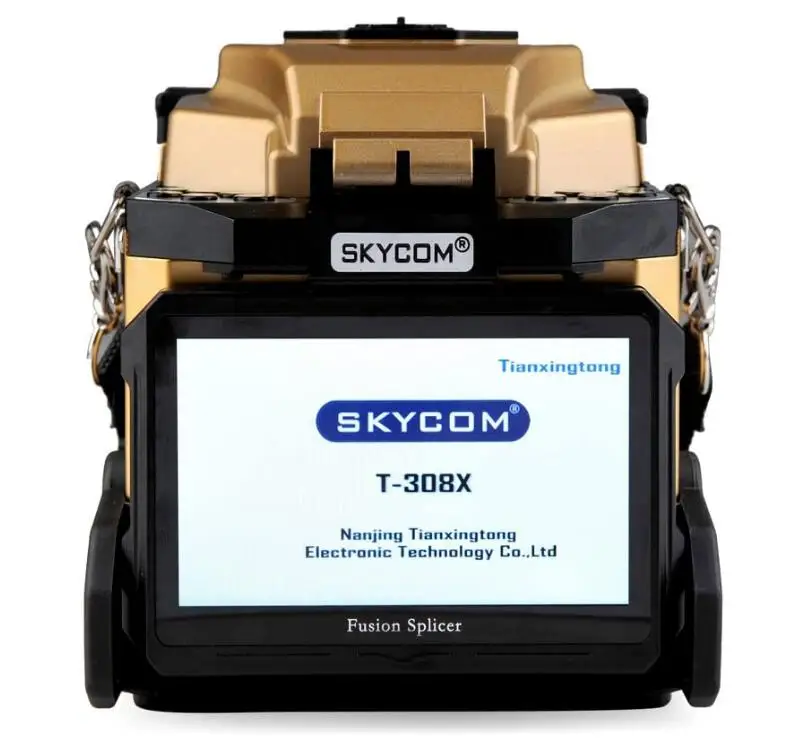

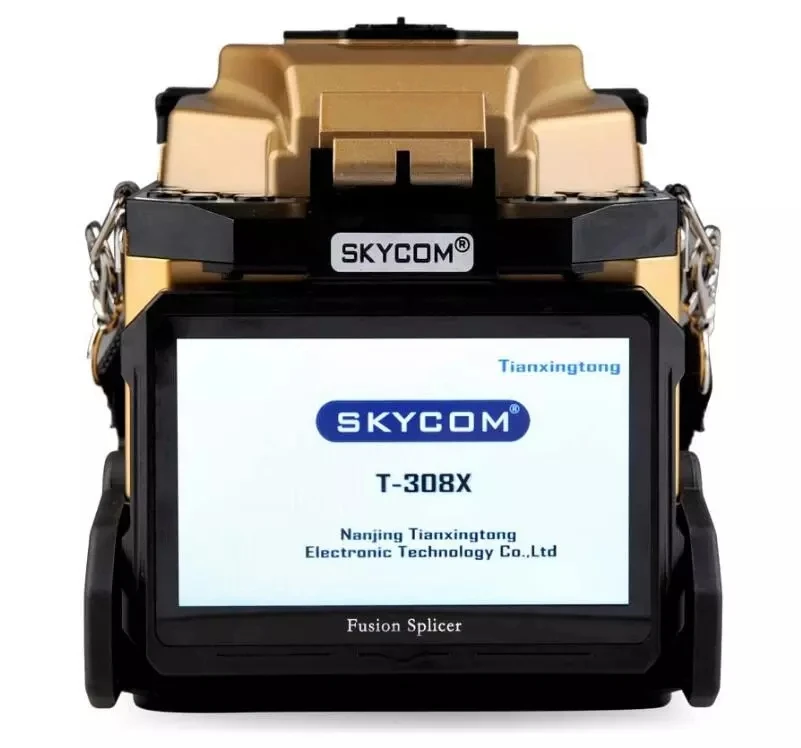

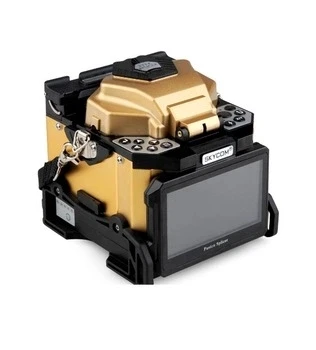

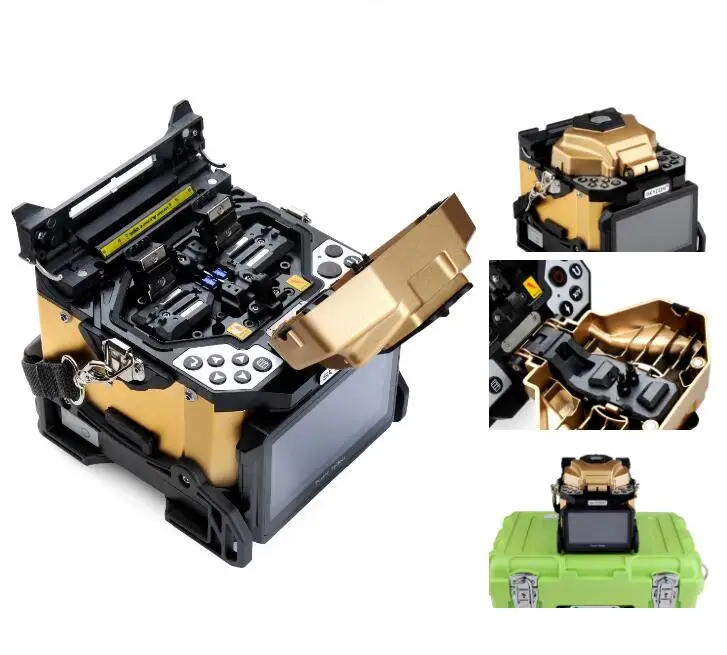

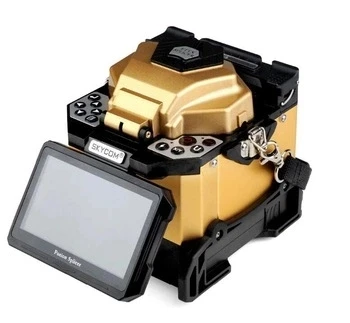

FTTH Optical Splicing Machine SKYCOM T-308X Manufacturer Fusion SplicerFusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself. > We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SKYCOM T- 307 are our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.
Features1. Full digital processing technology, auto core to core alignment.
2. 9 seconds splicing, 28 seconds heating
3. 300X fiber magnification
4. Simultaneous X and Y view, or X/Y view
5. Multi alignment mode: cladding alignment, core alignment.
6. Storing 5000 splice results
7. Storing electrode discharge times
8. USB support data transfer
9. 3.7 inches high resolution color LCD screen
10. The new gloopy cover with nice appearance provide more dustproof & windproof
11. User-friendly operating system, smart menu design
12. Battery capacity indication and auto power off in low battery
13. 9000mAh high-capacity Li-BatterySpecificationApplicable FibersSM, MM, NZ-DS, EDF , Pigtail, Cable,( Rubber-insulated wire SC/LC/FC connector (optional function)Average Splice Loss0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)Return Loss≥60dBTension Test2.0N(200gf)(Standard)Typical splicing time6 secondsSplicing Program50 groupsProtection Sleeve Length20mm, 40mm, 60mmOperating LanguageChinese, English, French, Portuguese, Spanish, ItalianOperating Conditions-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)Power SupplyAC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) / 12V 8AH lithium batteryMonitor4.3 inches high resolution colorful LCD displayFiber image magnificationSimultaneous X and Y views with 520 times magnificationStorage of splice result6,000 groups of latest splice resultsSplicing ModelAuto & Manual&Full-AutoOptical Fiber Fixture3-in-1 cutting fixture; Multipurpose 1+N fixture (Optional for SC/LC/FC connector)Dimensions120(W)*120(D)*130(H)mmWeight1.29kg(without battery )
