3650 2300KV Brushless Motor & ESC Radiator with Program Car Combo for 1:8/1:10 RC Boat Part |

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; }

Light weight, Easy to use, Portable design,Programming Card for RC Car ESC Brushless Electronic Speed Controller, which
was specially designed for Brushless Electronic Speed Controller selled in our store.
It is made of Aluminum Alloy and Plastic combined,with fan cooling and stainless steel protecting net cover
A replacement for RC 1:10 Car 540 3650 3660 3670 Motor Heatsink
motor outdiameter is 36MM can be suitable
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode:Medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%
Motor Specifications:

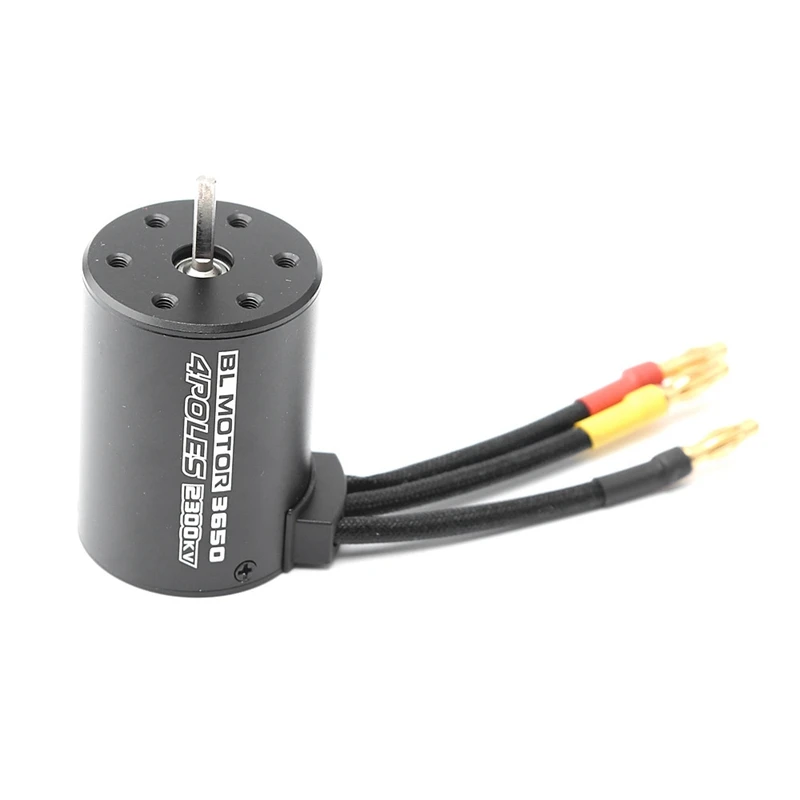

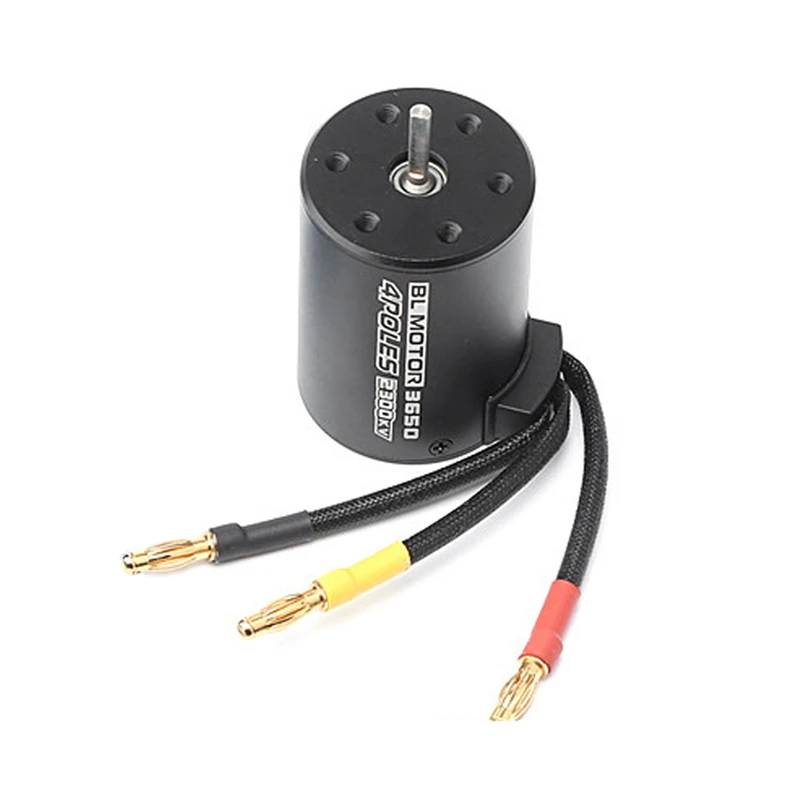

3650 2300KV Motor
Watts: 900W
Max voltage: Less than 22V
Max Amps: 41A
KV(RPM/Volt): 2300KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
80A ESC Specifications:
Continue Current: 80A / 120A
Burst Current: 480A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power Supply Plug: T Plug Male
Motor Plug: 4mm Banana Female Plug
size:10 x 8 x 5cm
Material:Plastic + Metal
colour:Blue+black

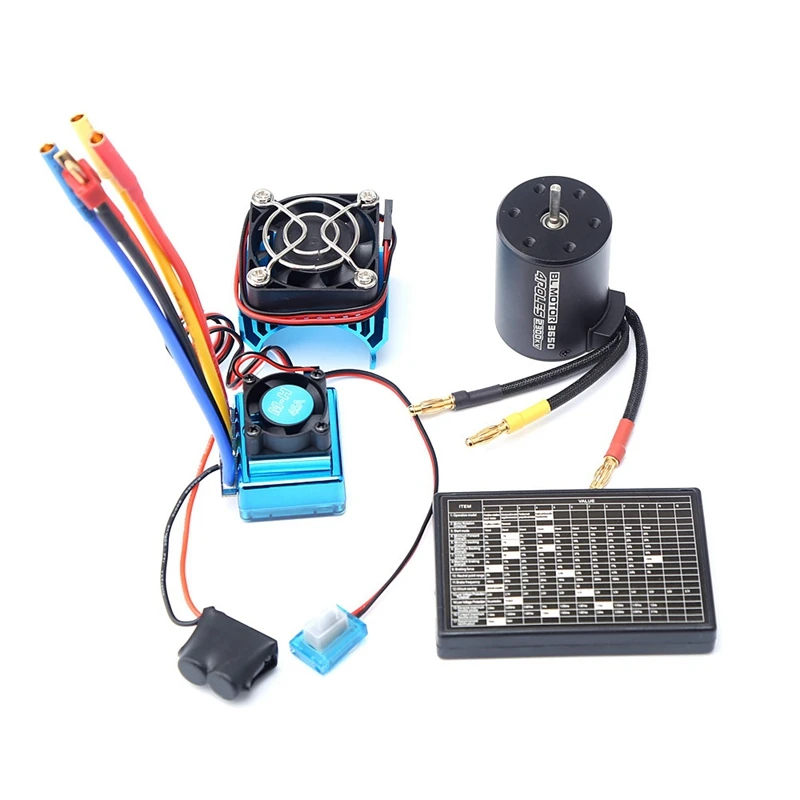

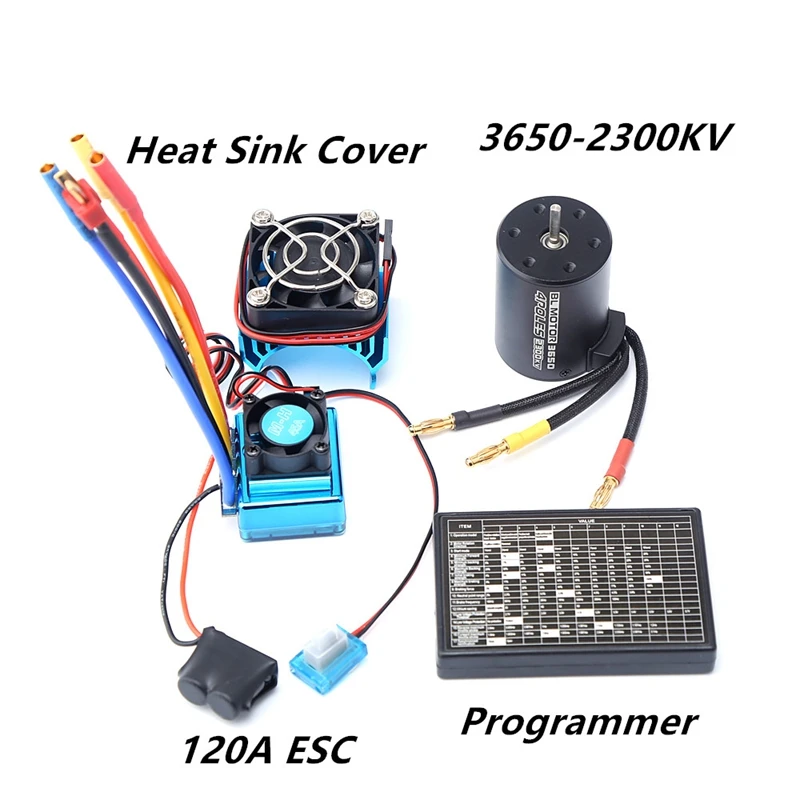

Package Contents:
1 x 3650 2300KV Motor
1 x ESC
1 x Programming Card
1 x Motor Heat Sink
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
