NOTE

------Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.

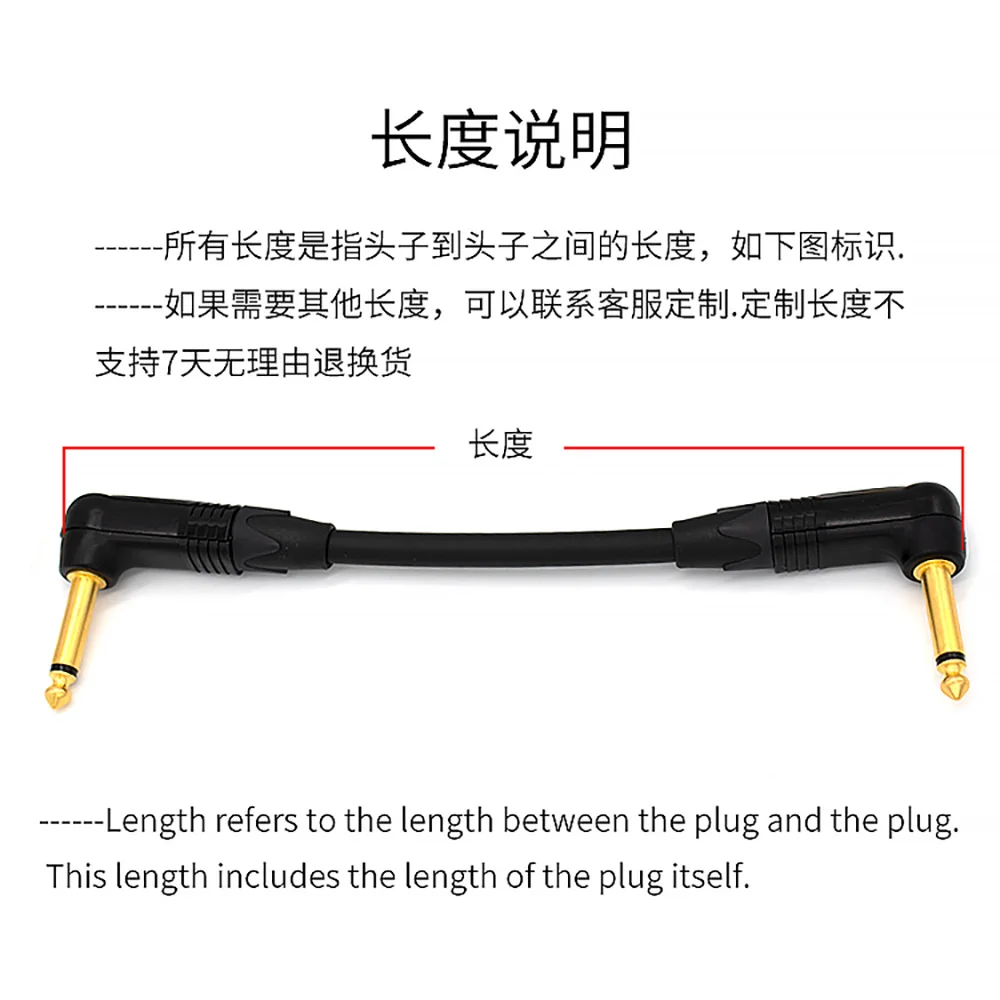

------Length refers to the length between the plug and the plug. This length includes the length of the plug itself.

Specifications

Interface type：6.5 male to 6.5 female Wire：mogami 2524 Wire diameter：5.0mm Wire material：OFC（Oxygen free copper） Plug：NEUTRIK/YONGSHENG Plug material：Copper Welding：Hand soldering using 5% silver solder ------If you are unable to find the length and type of cable you are looking for, please feel free to contact us, we will strive to assemble the required cable for you.

Packing List

1piece*6.5 to 6.5 cable

Introduction

▲Most musical instrument sound pick-ups such as those in electric guitars are comprised of high impedance circuits driven by voltage, in other words by very small electrical current flow. Therefore, so-called MICROPHONICS (noise) becomes a critical problem. (Microphonics means noise that is generated when the cable is moved and or tapped when the cabling circuit is a high impedance link.) Guitar cables must be counter-measured against this, so, a conductive PVC layer is placed under the shield conductor in most cases even though it may have a bad affect on audio sound quality. Therefore, the conductive PVC (black carbon PVC) layer must be removed together with the shielding conductor when wiring, otherwise we receive a strange claim that the cable is shorting.

▲Cable No.2524 Guitar cable high impedance transmission cable.

① The shielding layer adopts ultra-high density spiral oxygen-free copper shielding, which effectively shields electromagnetic and radio frequency interference. Avoid annoying background noise, hum, hum. ② The conductive polymer shielding layer can effectively solve the noise problem caused by the pulling and swinging of the cable when the musician walks back and forth on the stage during the performance. ③The insulating layer uses XLpE (cross-linked polyethylene). This material has very good electronic properties and can prevent the shrinkage of the wire when it is welded at high temperature. ④Oxygen-free copper inner core, the copper content is up to 99.99%, the sound is purer, the degree of reduction is higher, the details are richer, and the dynamic is greater.

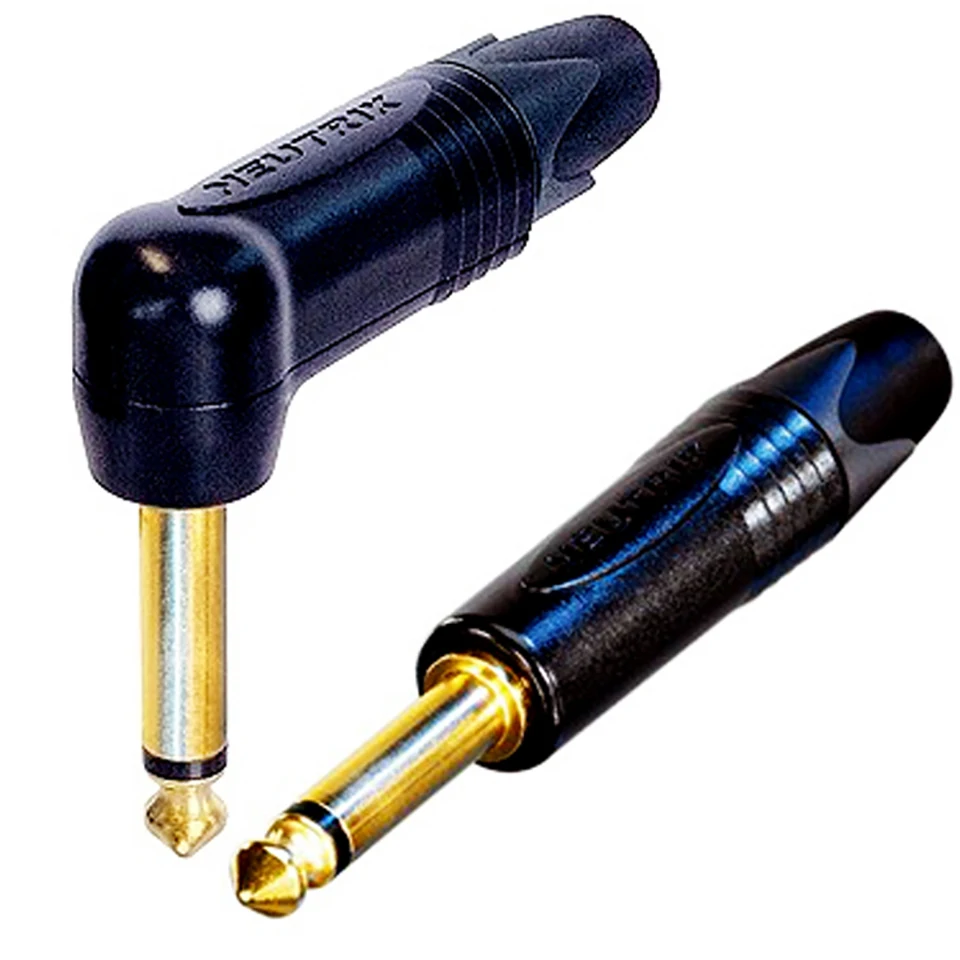

------The brand of connector we used for this custom cable assembly: The NP2X-B is the latest and the highest-end offering by Neutrik AG-Liechtenstein, the world's leading brand for professional audio connectors.PX series offers greater reliability, improves contact integrity and reduces cable strain, comes in a Black metal housing and features Gold plated contacts.

ATTENTION!

------For use with instrument (guitar) applications only. Damage may occur if connected to amplifier output. ------Please note that the signal isn't muted with some types of active electric guitars which are equipped with tip-ring-sleeve jacks that tap to activate the guitar power supply.

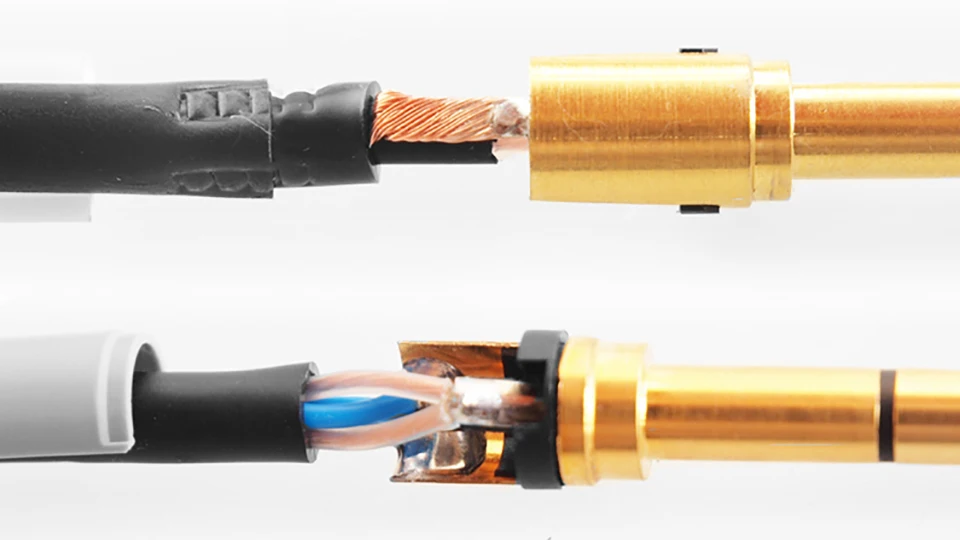

------The welding is purely manual welding, and the solder joints are made of lead-free solder containing 5% silver with constant temperature welding, and each solder joint is full and smooth. -------Each welding point is sealed with a heat shrinkable tube after welding to improve the oxidation resistance of the welding point and ensure a long sound -------The same, while improving the tensile resistance and durability of the wire.

SPECIFICATIONS

▲Part No. ：2524 ▲No. of Conductor Details：50/0.12 OFC Size(mm2 )：0.565mm2 (#20AWG) ▲Insulation Ov. Dia. (mm) ：2.7(0.106") Material：PE Colors：Clear ▲Sub-Shield Ov. Dia. (mm) ：3.4(0.134") Material：Conductive PVC Colors：Black ▲Main-Shield Served-Shield：Approx.57/0.18OFC ▲Jacket Ov. Dia. (mm) ：5.0(0.197") Material：Flexible PVC Colors：Black

Physical display

▲The colors deviation might differ due to different monitor settings.
