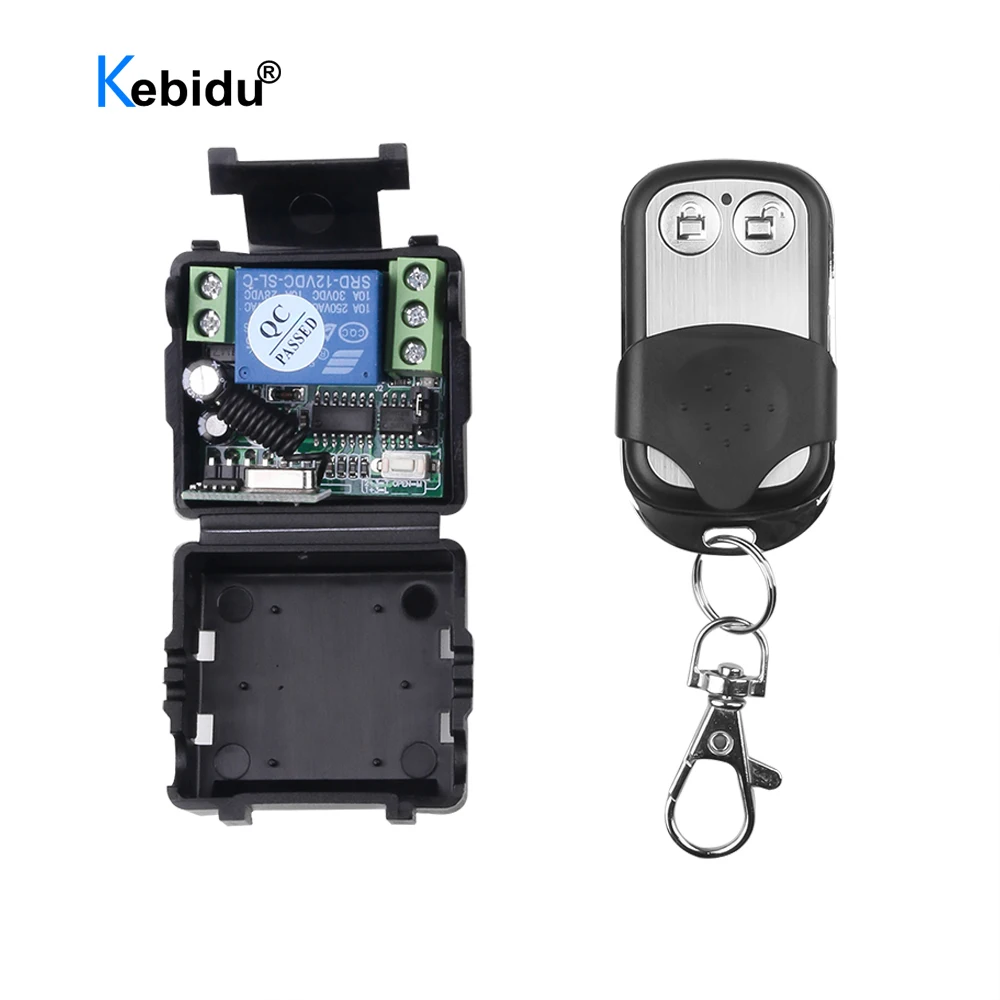

433Mhz Wireless Remote Control Switch 12V 10A 1CH Relay Receiver Module RF Realy Transmitter For Electric Door Car Garage | Электроника

433Mhz Wireless Remote Control Switch 12V 10A 1CH Relay Receiver Module RF Realy Transmitter For Electric Door Car Garage | Электроника

Technical Data:

Input Power:DC10V-14V

Standby Current:<5MA

RF Frequency:315M or 433M

RF working mode:superheterodyne

Receive sensitivity: >97dbm

Transmitting distance: 20 meters above

Decoding mode:MCU software decoding

Remote storage: 25 pcs

Support remote type: Learning code, Fixed code(Rolling code can be design)

Working mode:Momentary, Toggle, Latching Time delay (5s ,10s ,15s )

Wiring type:fixed terminal

Output Terminal :NO , NC , COM

Dimension of PCB:35*30*18mm  (L,W,H)

Wiring diagram 1:

+V : 12V + input ;

- V:  12V - input ;

NO:  Output , normal open;

COM:Output , common ;

NC:  Output , normal close;

About Working mode:

Momentary: Push the remote button , the relay connects, release the remote button , the relay dis-connects.

Toggle: Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .

Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Time delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically .

Clearing the code :

Push the learning button on the receivers for 8 times , the codes will be cleaned .

After clearning the code, all the remote control cannot work any more.

Learning the code : (momentary)

Push the learning key on the receiver once time , it comes into momentary setting mode .

Wait for a moment , the LED will be off , it comes into learning state .

Push the remote button , LED indicator on the receiver board will flash then come off .

After 3 seconds, the LED indicator will be on again , learning successfully .

Learning the code : ( Toggle )

Push the learning key on the receiver twice time , it comes into toggle setting mode

Wait for a moment , the LED will be off , it comes into learning state .

Push the remote button,LED indicator on the receiver board will flash then come off.

After 3 seconds , the LED indicator will be on again , learning successfully .

Learning the code : ( Latching )

Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for ''ON'', the second time learnt for ''OFF''.

For example : button A = ON , button B = OFF

Push the learning key on the receiver triple time , it comes into latching mode .

Wait for a moment , the LED indicator on the receiver board will flash then come off.

Push the remote button A .

LED flash for 5 times .

Push the remote button B .

Led flash for 5 times .

After 3 seconds , the LED indicator will be on again , learning successfully.

A = ON , B = OFF .

Learning the code : ( Time delay mode )

Push the learning key on the receiver forth time , the time dealy for 5 seconds .

Push the learning key on the receiver fifth time , the time delay for 10 seconds .

Push the learning key on the receiver sixth time , the time delay for 15 seconds .

The LED indicator will be off .

Push the remote button , LED flashes and off .

After 3 seconds , the LED indicator will be on again , learning successfully .

NOTE: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost or not working.

Package included:

Receiver module * 1pcs

Remote Control * 1pcs
