10Pcs UK2.5B Electrical Terminals For Cable 2.5mm Wire Strip Plug Screw Termin Electric Connector Din Rail Terminal Block UK 2.5 |

10Pcs UK2.5B Electrical Terminals For Cable 2.5mm Wire Strip Plug Screw Termin Electric Connector Din Rail Terminal Block UK 2.5 |

The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application.For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section

The UK universal screw terminal block series has the typical features which are decisive for practical applications.

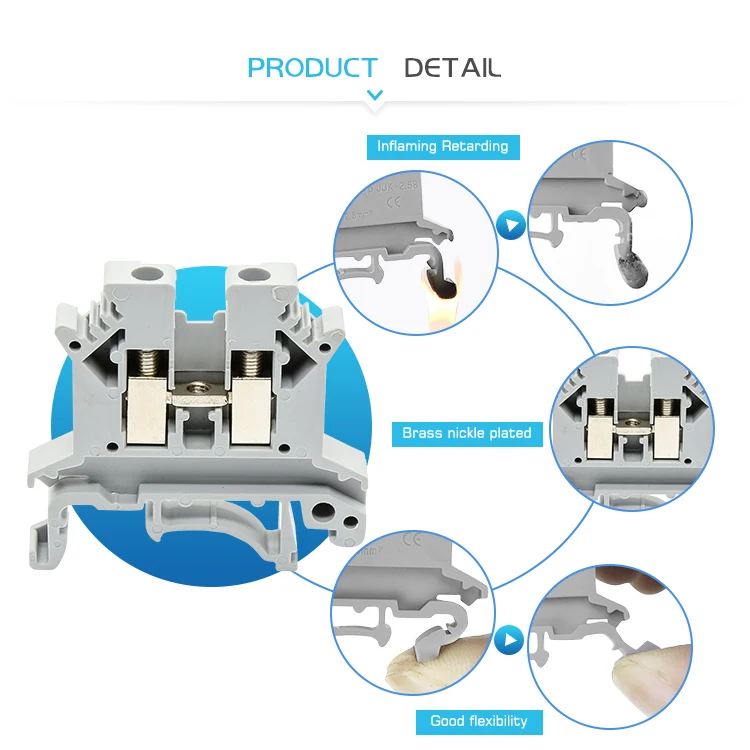

Made from engineering flame retardants nylon PA66 with brass screw metal.

With universal foot which can be installed on Din Rail NS 35.

It can connect two conductors with ease, even large conductor cross sections are not a problem.

Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.

All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.

END COVER
D-UK 2.5

FIXED  BRIDGE
FBI 10-6

PLUG-IN BRIDGE
EB10-6

MARKER STRIPS
ZB6

MARKER CARRIER
B1

MARKER CLIPS
KLM-A

DIN RAIL
NS35-S

END STOP
E-UK

Type No.

Details

Accessories

UK 2.5B

800V/32A
0.2-4mm2/0.2-2.5mm2
L42.5/H41/W6.2 mm

End cover:
D-UK 2.5

Fixed bridge:
FBI 10-6

Insertion bridge:
EB 10-6

Marker strip:
ZB6

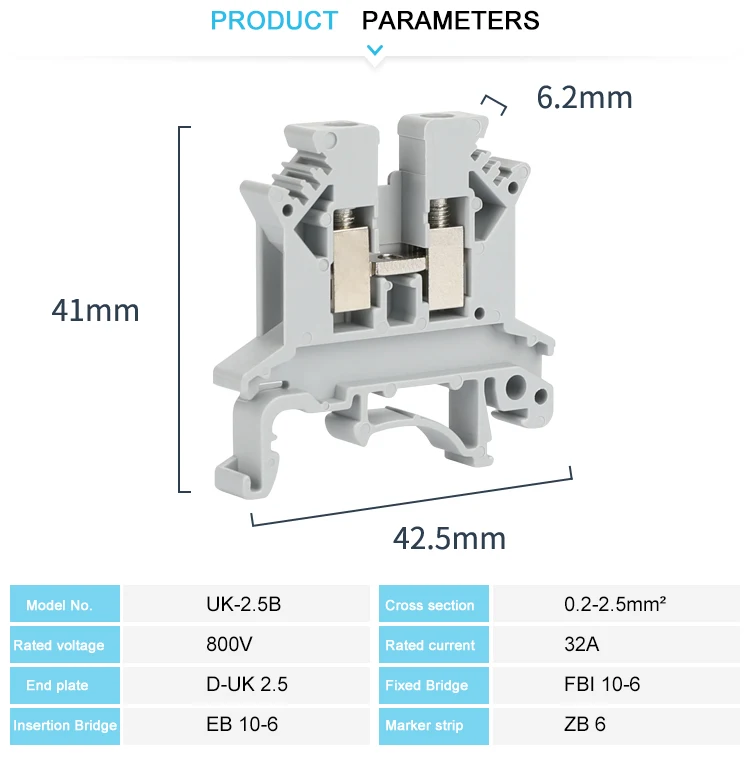

TECHNICAL PARAMETERS

Model Number

UK 2.5B

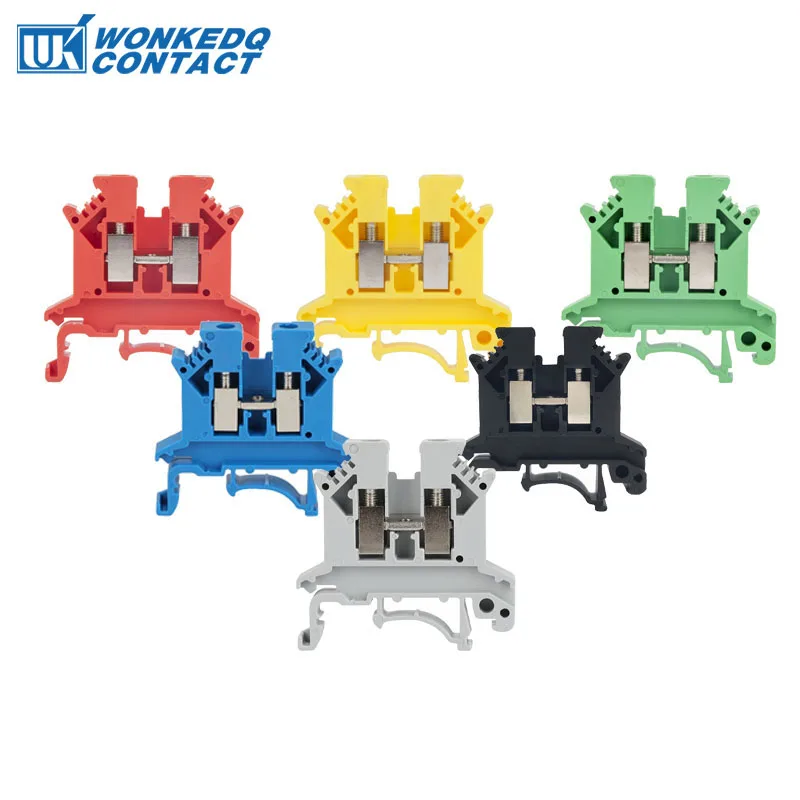

Color

Grey, Blue, other color can be customized

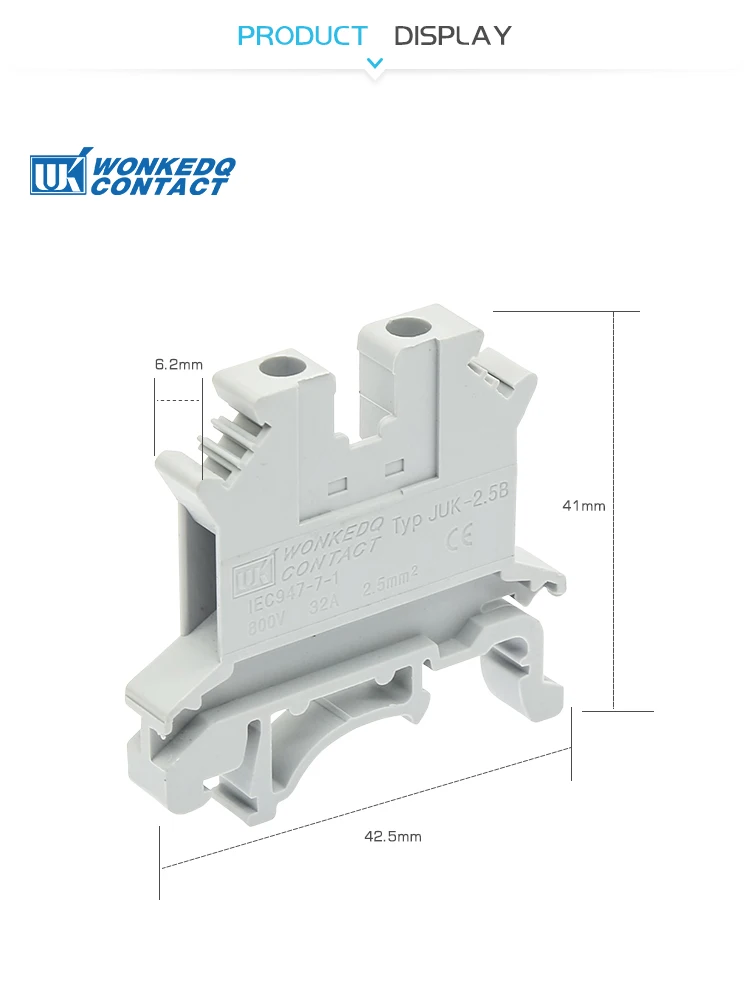

Length/Height/Wide (mm)

42.5/41/6.2

Connection method

Screw connection

Material

Nylon PA66

Rated Voltage/Current

800V/32A

Cross section, solid/soft Cable

0.2-4 mm2/ 0.2-2.5 mm2

Conductor Size

24-12 AWG

Mounting Type

NS 35/7.5

Standard

IEC 60947-7-1

LOGO

Customized logo are supported

Packing Detail

6.9g/pc, 50PCS/BOX,3000PCS/CTN

Certification

CE/RoHS/CQC/ISO 9001
