    GPS Video-Recorder SD card recording security system Support 4CH 1080P AHD camera MDVR for bus Truck mobile DVR Taxi CCTV Car |

    Описание товара

    Video-Recorder

    SDVR004Pro Video Recorder 4 channel GPS SD Card video recorder for truck car Bus Vehicle Mobile DVR video CCTV surveillance support 1080P AHD/Analog Cameras
     IF you need 4G/WIFI model please order this link :
    /item/1005001808538337.html?spm=5261.ProductManageOnline.0.0.7b984edfOAGLw3

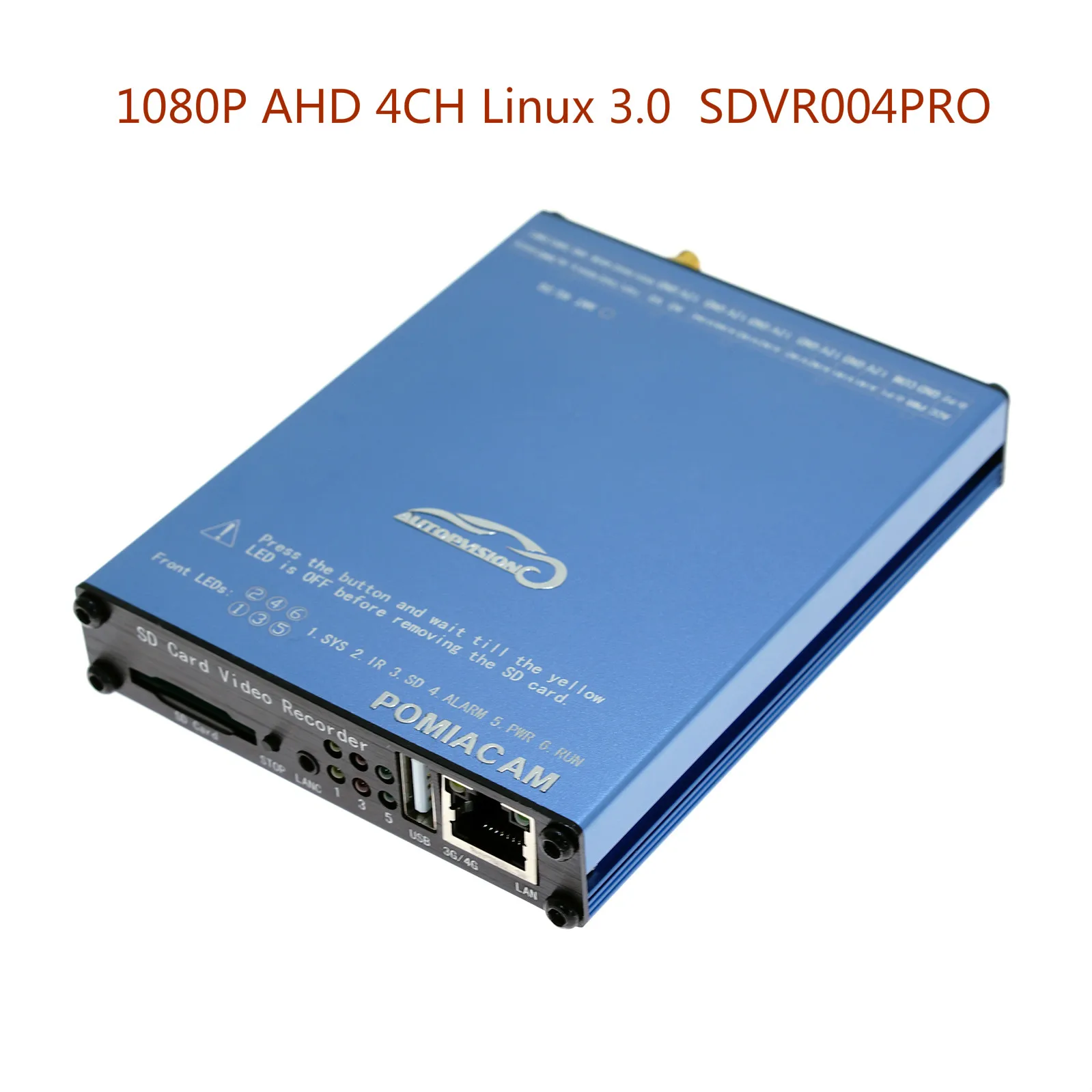

    Model: SDVR004PRO
    System
    Operating system: Linux 3.0
    Boot time: less than 30 seconds (power on to video)
    System language: English/Chinese
    Operation interface: Graphical operation interface

    video
    1.Video input:
    2.Support four-channel 1080P AHD HD camera recording (the package does not include the camera)
    3.Support four-channel 1080P AHDP AHD HD (package does not include camera)
    4.Video output: 2 video outputs (1 HDMI output, 1 CVBS output)
    5.Video resolution: optional 1960*1080, 1280x720, 960x540 (according to the camera model)
    6.Recording mode: boot recording, timing recording, alarm recording
    7.Frame rate: 120fps@1080P

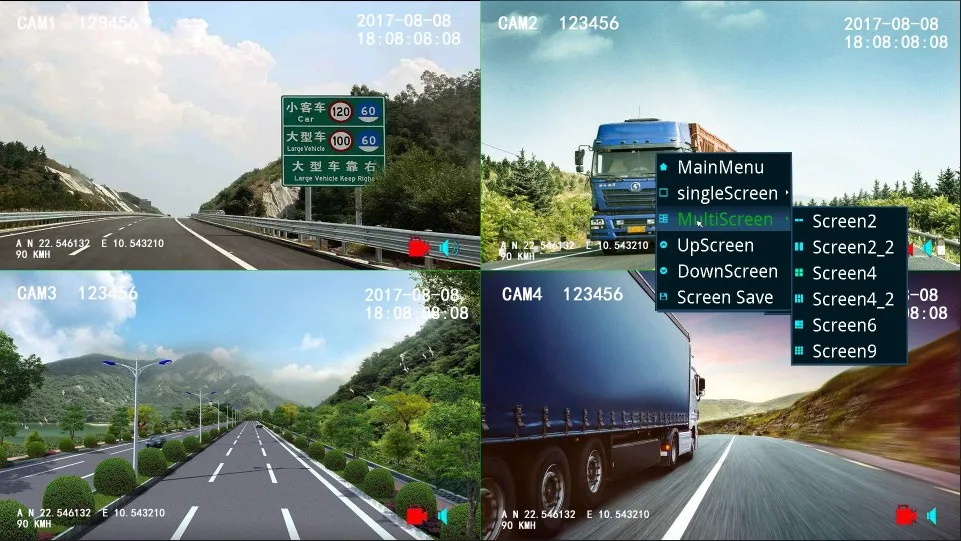

    8.Video preview: Support single picture / two pictures / four pictures
    9.Video compression standard: H.265 /h.264

    Audio
    Audio input: Four audio inputs (if aviation head interface cable, the camera requires a built-in pickup, the package does not include the camera)
    Audio compression: PMC format (according to the pickup, not included in the package)
    Recording method: Support simultaneous recording of sound and video

    Image processing and storage
    Local recording: Support 1960*1080, 1280x720/960x540 resolution
    Video bit rate: Each camera supports 100~8000 kbps
    Data storage: 1 SD card maximum support 256G

    Call the police
    Alarm input: 3 alarm inputs, 1 speed input, 1 ignition signal, 1 G-Sensor, support 1 emergency button (basic model package does not include emergency button, GPS module, if necessary, please choose with GPS model)
    Alarm output: 1 buzzer, alarm output line, alarm display, etc.
    Alarm trigger: video loss alarm, overspeed alarm, collision alarm, storage space alarm, motion detection, remote control alarm

    Communication Interface
    RS232 interface: 1 RS232 interface
    RJ45 network interface: 1 RJ45 100M network interface
    USB 1 USB, can be used for system upgrade, external mouse and other operations


    Global Positioning System (GPS)
    International standard Global Positioning System (GPS): (The basic version does not include the GPS module, if you need this function, please choose the model with the GPS module)
    Support GPS/GLONASS, real-time recording of geographic coordinates, speed data, and wireless upload,

    (need to select GPS/4G module)

    Accelerometer
    G-sensor: Supports three-axis motion detection and the user's setting range is X, Y, Z coordinates
    Software information
    Channel frame rate: Each camera supports 1~30fps optional
    License plate number record: Support editing and matching license plate number information
    Camera naming: Support editing and modifying camera names
    Digital watermark: Support superimposition time, license plate number, camera number, position information, speed information, etc.
    Timetable; h/m/d and other three options
    Automatic coverage: Support automatic coverage
    Image playback: Support local video playback, and manage video files by time, alarm, etc.
    Play speed: support fast/slow playback 1/32 ~ 32 times

    Software (only for 4G models)
     PC playback analysis: Play back the video file on the PC side and analyze the vehicle information in the file at the same time
    CMSV6 platform management software: Support preview/real-time positioning/track playback/central command issuance/system remote upgrade/parameter configuration, etc. (only support 4G products, please order at this link : ( IF you need 4G/WIFI model please order this link : /item/1005001808538337.html?spm=5261.ProductManageOnline.0.0.7b984edfOAGLw3)


    software upgrade
    Software maintenance: This machine supports upgrade via USB interface/SD card upgrade/remote CMSV6 platform upgrade
    Power input: +8~+32V 8~32VDC Before use, please make sure that the vehicle power supply is within this range. If it exceeds 32V for a long time, it will burn the device.
    Power output: 12V 10.5V/1.5A (7 channels)

    ACC testing
    <4.5V shutdown
    >6.2V boot I / O Port
    <0.5V Low level alarm
    >3V High level alarm

    working environment
    Temperature: -25 ~ 55°C
    Humidity : 5%~93%
    Vibration is less than 3 Grms
    Mechanical shock resistance less than 1200 Grms

    Other
    Time Built-in or synchronized GPS
    Dual stream can set different frame rate and bit rate to control the size of video files
    Reverse connection protection to prevent overload, short circuit and reverse connection
    Factory reset can be restored to factory settings
    Indicator lights Power, operation, alarm, video, network and 3G indicator lights
    Synchronized time GPS time can be synchronized
    Size : 115mm (length) x 92mm (width) x 20mm (height)
    Weight : about 0.55kgs



    General Introduction

    The Mobile SD video recorder is a compact, full-featured recording system that uses a SD card as a storage device. The recorder unit and associated accessories are specifically designed for operation in a mobile environment.

    The Mobile SD video record system, used in conjunction with the cameras, records up to four channels of full-motion video and audio data to a removable SD card. The firmware-driven menu system provides a simple method for configuring the unit's operation as well as searching for and viewing previously recorded AV records.

    Product Main Features

    · Embedded operating system, assuring reliability and system integrity.

    · Records up to four channels of full-motion color video with corresponding audio tracks.

    · H.264 and H.265 High Profile video compression.

    · Total Record resource up to 30 frame/second for each channel.

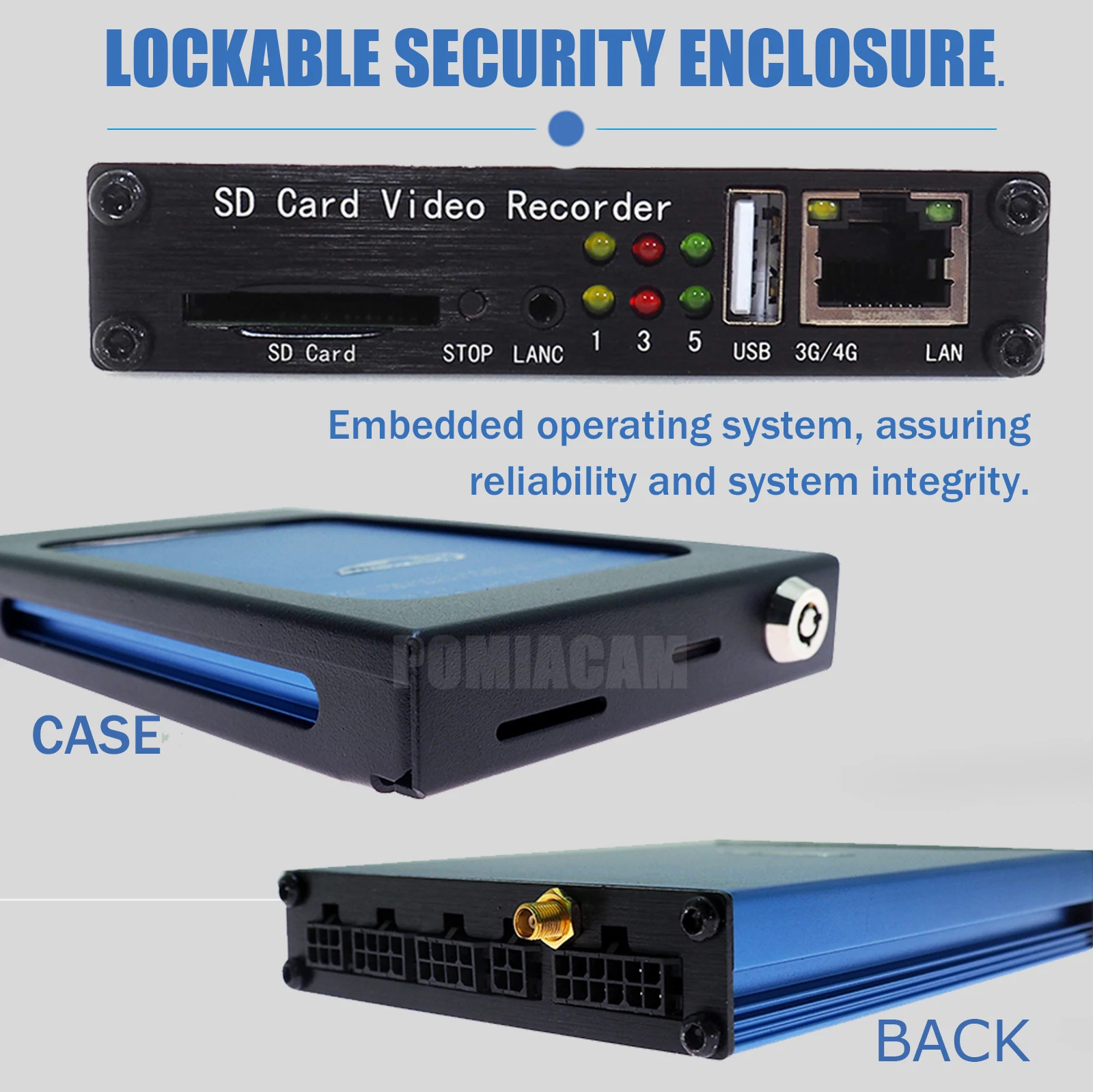

    · Lockable security enclosure.

    · Front panel USB2.0 port for recording to a flash card as an optional storage device.

    · Ignition sense that provides DVR power-on in recording mode when the bus is started.

    · Power-off delay record when the bus is shut-down with operator-selected delay times.

    · Support SAMBA function to share files.

    Video And Audio

    ·  H.264 and H.265 High Profile video compression, real time recording 30 fps for each channel. Frame rate adjustable for each channel.

    · Audio compression: PCM codec. This codec offers high compression with high quality audio.

    · 4 channels 1080P resolution for AHD(or analog) camera.

    · Local video and audio real time playback.

    GPS Time Synchronization & Time Zone

    ·  Synchronize the DVR system time with GPS automatically

    · Support All Time Zones Worldwide

    · Support DST (Daylight Saving Time)

    Power Management

    · Reliable power management, wide voltage: +8VDC~+32VDC; The power input is protected against short positive transient (1500 watts peak pulse power capability with a 10x1000 us waveform); The power input is protected against negative voltage. Applicable for vehicles with +12V or +24V battery.

    · The recorder provides each camera with stable +12V DC power; DVR can detect the short cut on power circuit.

    · Can use ignition to control the power.

    · DVR can monitor battery voltage after Ignition off, and auto into sleep mode when voltage is bellow specified level.

    Recording mode

    ··Continuous record.

    · Support schedule recording.

    · Support alarm recording.

    · Support motion detection recording.

    Speed and Vehicle status recording

    · Record vehicle speed and car id with audio and video.

    · Support 3 sensors, can be connected to return, right turn, left turn light etc.

    · Over-speed alarm.

    · Specified screen can be full screen displayed when return(or left, right) sensor trigged.


    Our server platform landing page PC ( ( IF you need 4G/WIFI model please order this link : /item/1005001808538337.html?spm=5261.ProductManageOnline.0.0.7b984edfOAGLw3)):

    QQ20180804152958_conew1

    5_conew1









    This SD DVR can connect analog cameras or AHD camera . packing not including camera , if you need camera please contact use to buy it .
    The DVR connection cable has 4Ping aviation or BNC  optional, please let me know when you place the order, if there is no message, we will send it by randomly .


    If you need this GPS function, please purchase it with GPS model

    If you need this Control panel function, please purchase it with Control panel model

    The package does not include a monitor, please prepare it yourself .

    GPS /3G/4G/WIFI was optional , pelase order it with GPS/3G/4G/WIFI model if you need it
