Мобильное считывающее устройство для карт малого размера с ISO 7816, USB и IC-чипом - ACR39U-ND.

Мобильное считывающее устройство для карт малого размера с ISO 7816 USB и IC-чипом - ACR39U-ND.

General

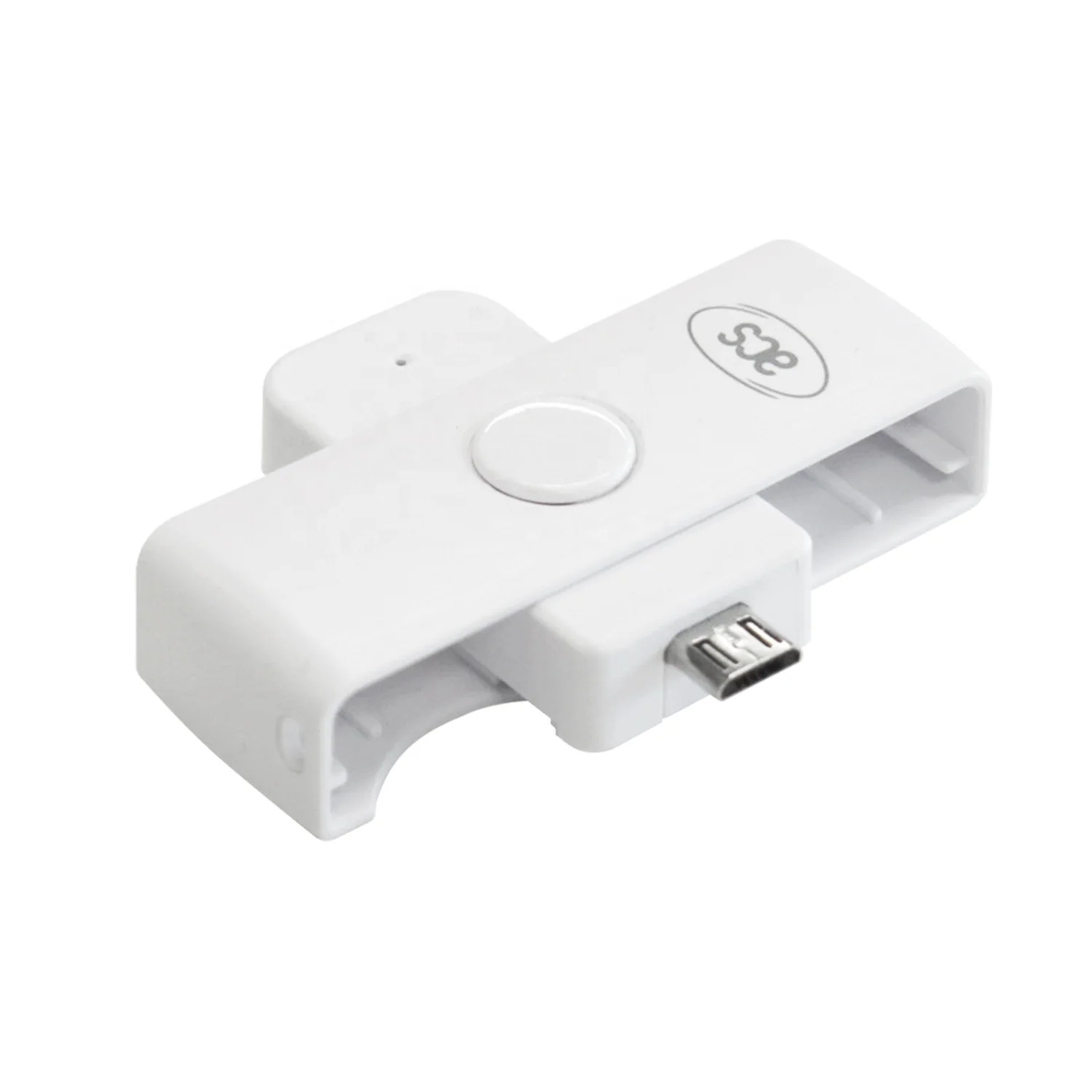

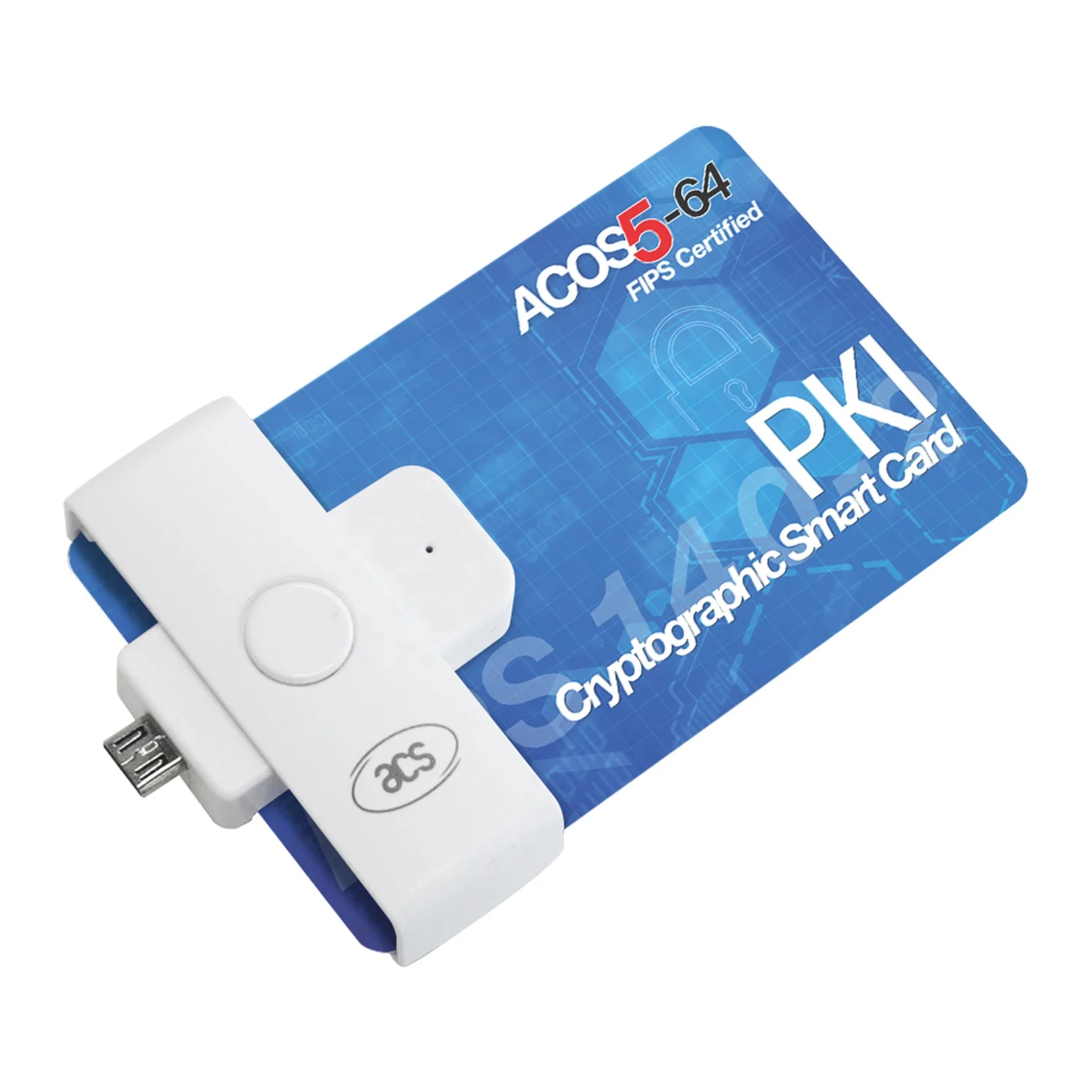

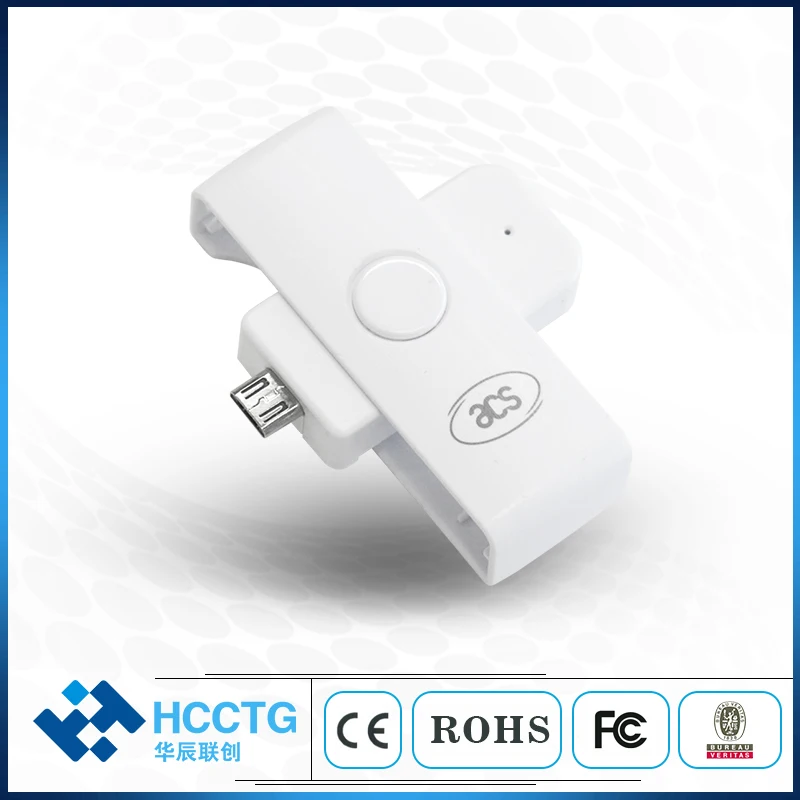

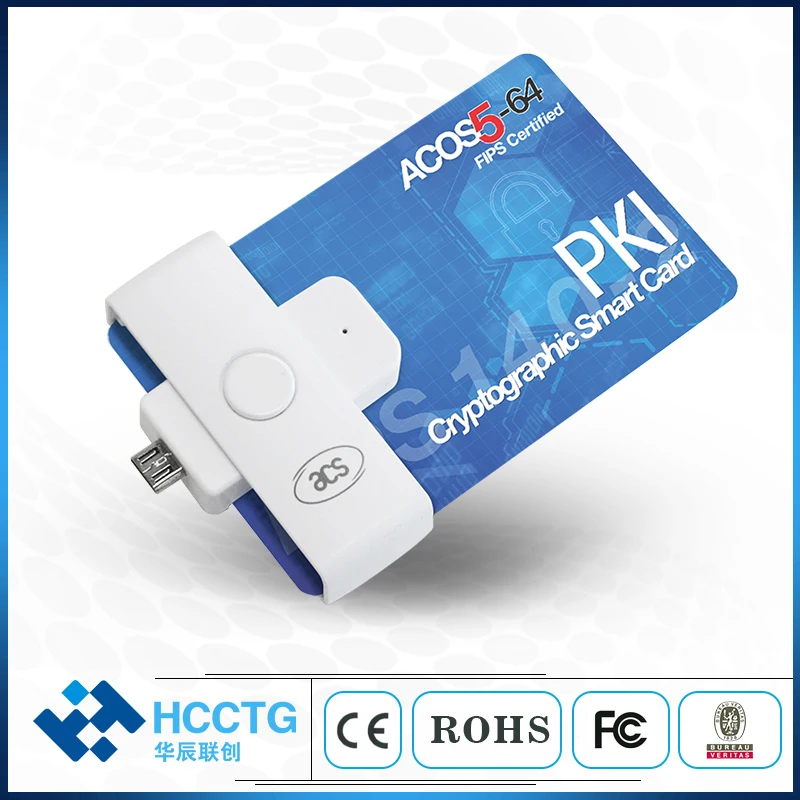

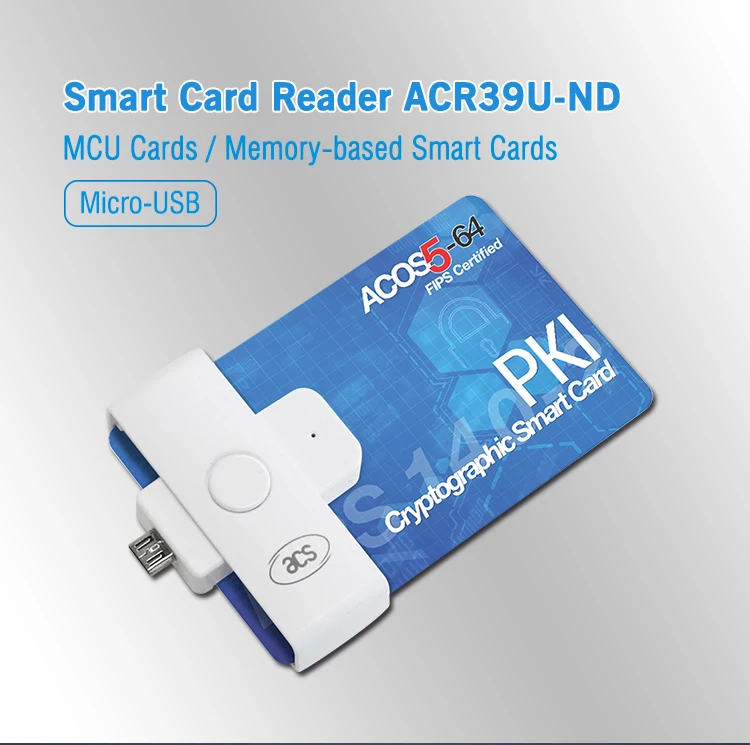

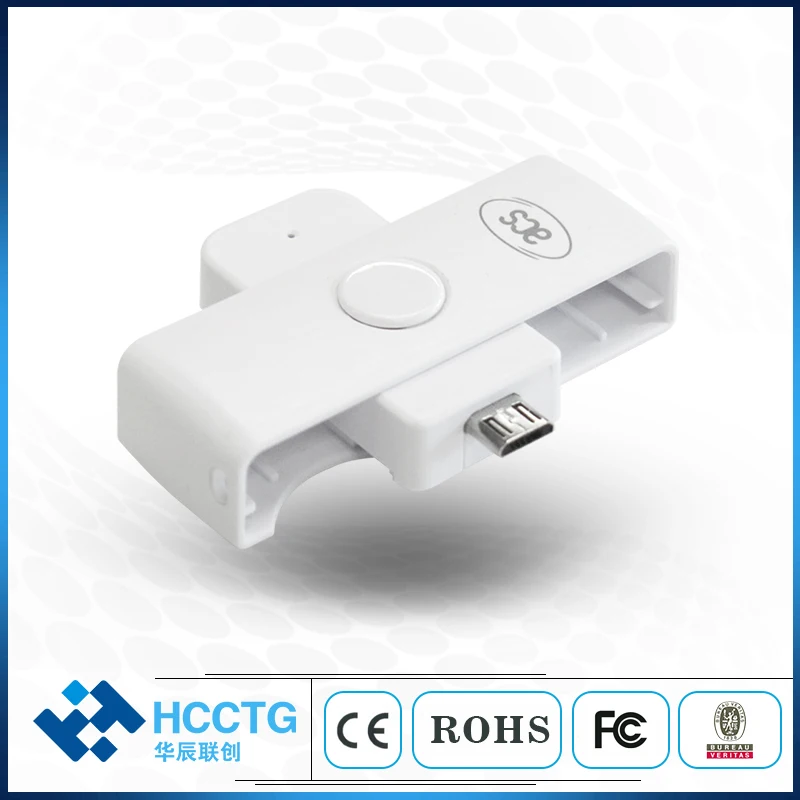

ACR39U-ND is a portable smart card reader that has more to it than meets the eye. As small and elegant looking as it is, this smart card reader is capable of supporting demanding smart card applications using full-sized contact smart cards. It provides the perfect balance between reliable functionality and design aesthetics to meet your security needs in many fields, including e-Banking, e-Payment, and e-Government.

ACR39U-ND (Micro-USB) supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. In addition, it supports a wide variety of memory cards in the market including the Department of Defense Common Access Card (CAC), and SIPRNET Card. This makes it ideal for a broad range of solutions such as PIV Application, Physical and Logical Access Control, Digital Signature, and Online Banking.It connects with computers through its USB Full Speed interface and has a smart card read/write speed of 600 Kbps. This small device proves to be a powerful smart card reader as it houses the ACR39 core, which has been proven to support highly demanding smart card applications.

Feature

Ø USB Full Speed Interface

Ø Micro-USB Connector

Ø Plug and Play - CCID support brings utmost mobility

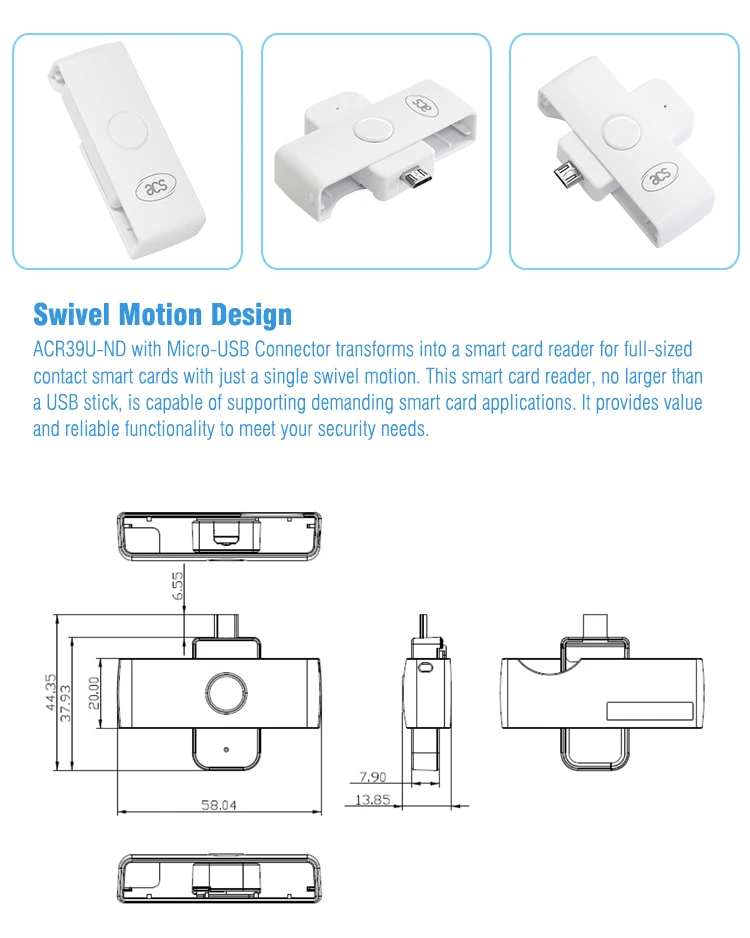

Ø Swivel Motion Design

Ø Smart Card Reader:

Ø Contact Interface:

  Supports microprocessor cards with T=0 or T=1 protocol

Supports CAC

  Supports J=LIS Card

Supports memory cards

Supports PPS (Protocol and Parameters Selection)

Features Short-Circuit Protection

Ø Application Programming Interface:

Supports PC/SC

Supports CT-API (through wrapper on top of PC/SC)

Supports Android™ 3.1 and later

Specification

Dimensions

58.0 mm (L) x 20 mm (W) x 13.9 mm (H)

Weight

9.7g

Color

White

Protocol

USB CCID

Connector Type

Micro B

Power Source

From USB port

Speed

USB Full Speed (12 Mbps)

Supply Voltage

5 V

Number of Slot

1 Full-sized Card Slot

Standard

ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol

T=0; T=1; Memory Card Support

Supply Current

Max. 50mA

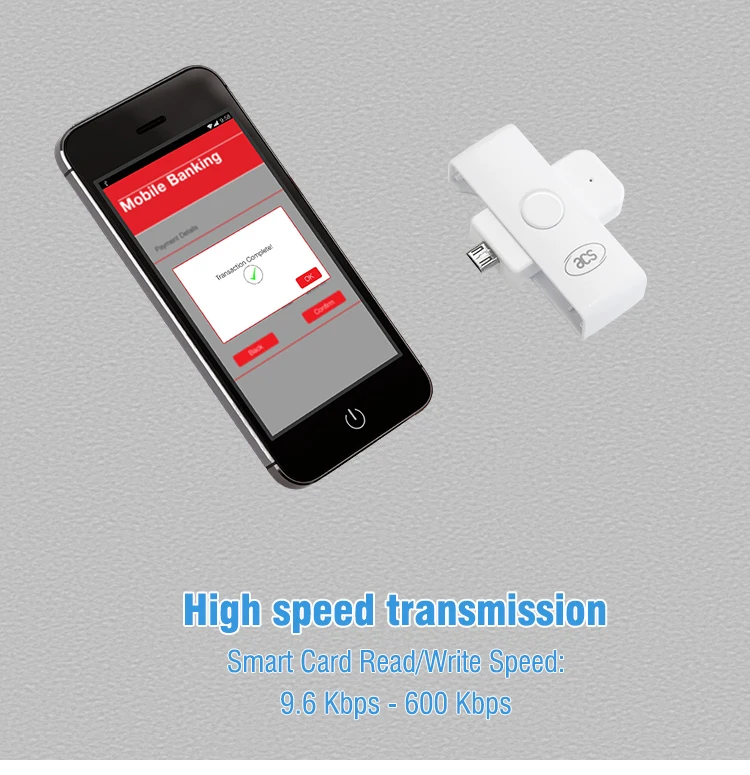

Smart Card Read/Write Speed

9.6 Kbps – 600 Kbps

Short Circuit Protection

(+5) V/GND on all pins

Clock Frequency

4.8 MHz

Card Connector Type

Contact

Card Insertion Cycles

Min. 100,000

LED

Green

PC-linked Mode

PC/SC

CT-API (through wrapper on top of PC/SC)

Temperature

0 °C – 60 °C

Humidity

Max. 90% (non-condensing)

MTBF

500,000 hrs

Certifications/Compliance

EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL

Device Driver Operating System Support

Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016

Linux®, Mac OS®, Solaris, Android™ 3.1 and above

Application

e-Government

e-Banking  and e-Payment

e-Healthcare

Public Key Infrastructure

Network Security

Access Control

Loyalty Program


1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years.

We can provide OEM / ODM customized service according to our customers' various application and demands.

2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.

3. What warranty for the products?

According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts).

As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.

4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

5. Can we get the free sample?

Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.

When they place the mass order, we can return the sample cost to the customers.

6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba)  and so on.

7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.

8.Which way to deliver the goods?

By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.

By Sea: Inform us the Sea Port to check which ship line.

By Air: Inform us the Airport to check which flight.

Or pick up by the customers.

9. What the after sale service?

a. Our all products will provide 12 months warranty;

b. Enough stock spare parts for guarantee;

c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;

d. As for the returned failure products, we will fix it and return to the customers in one week after we received it.
