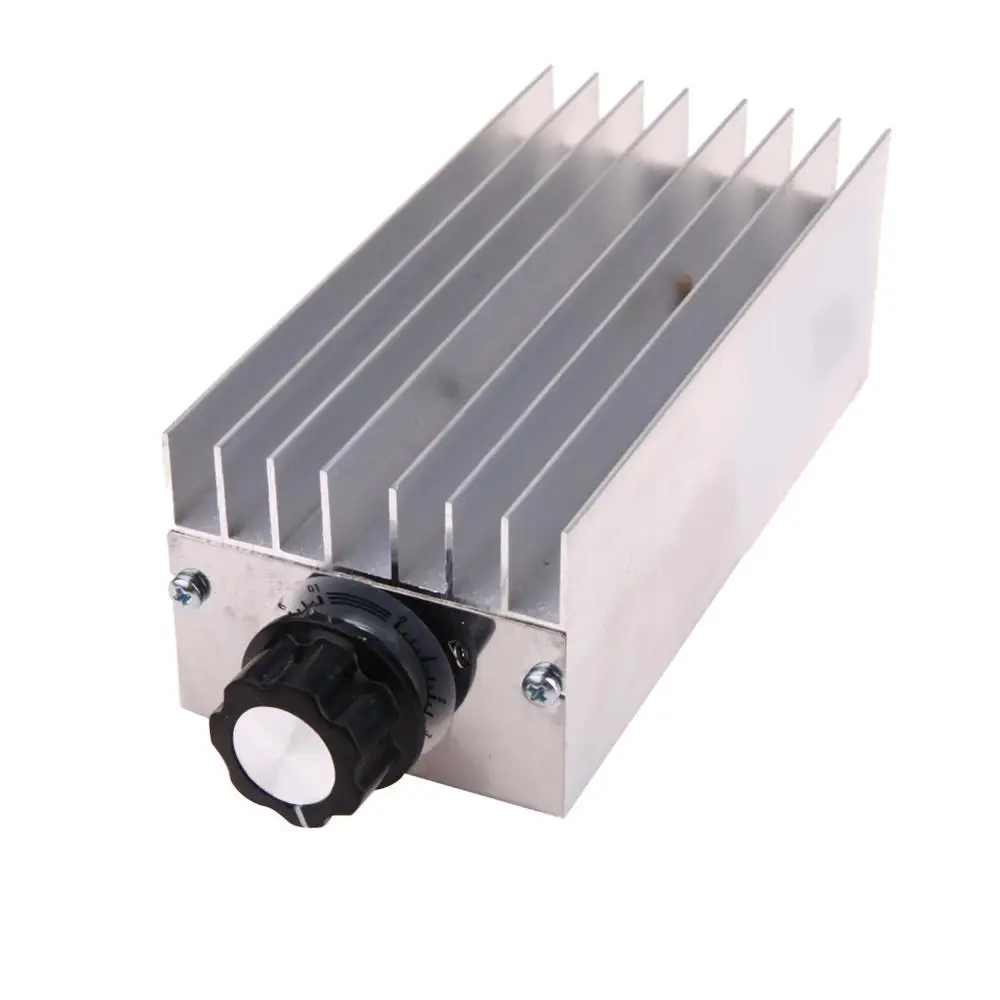

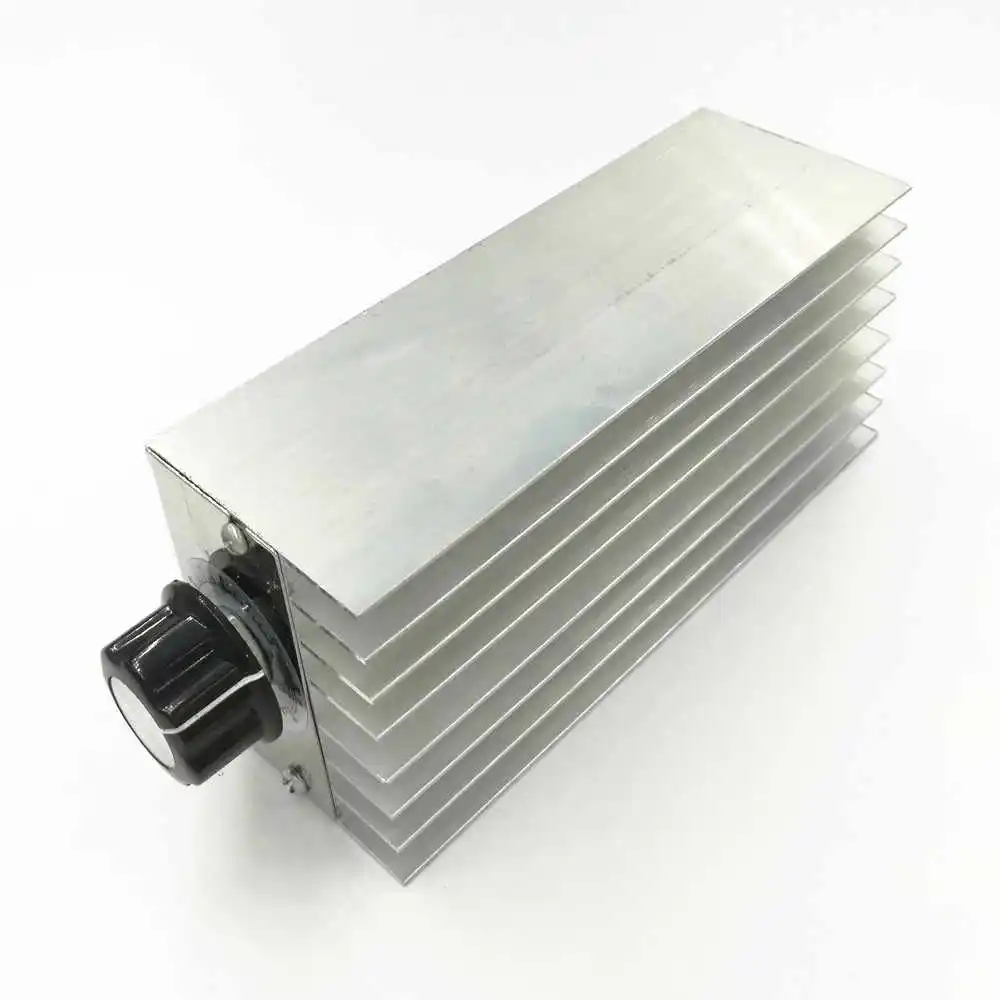

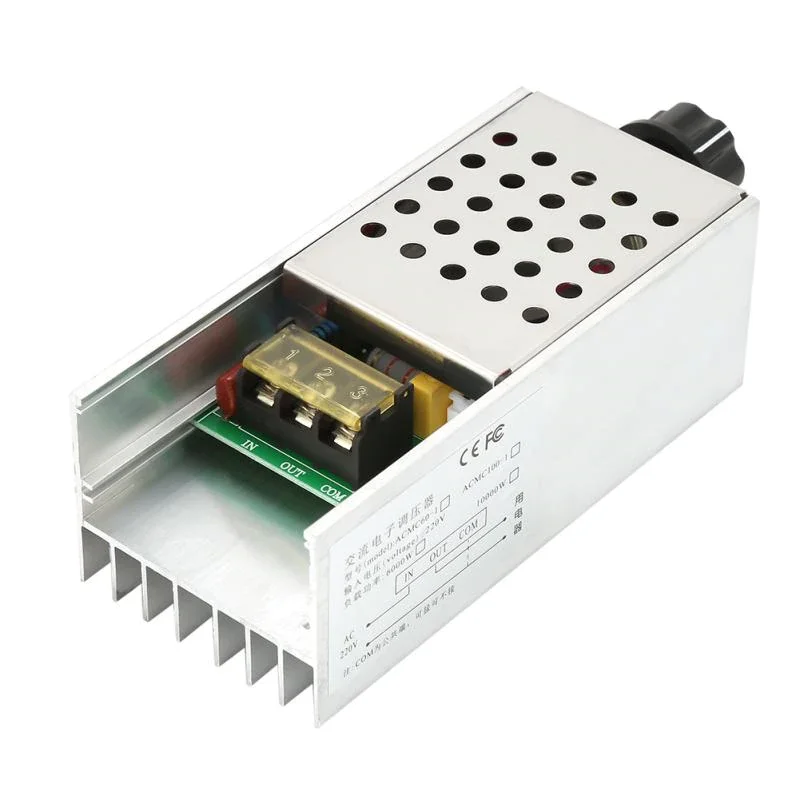

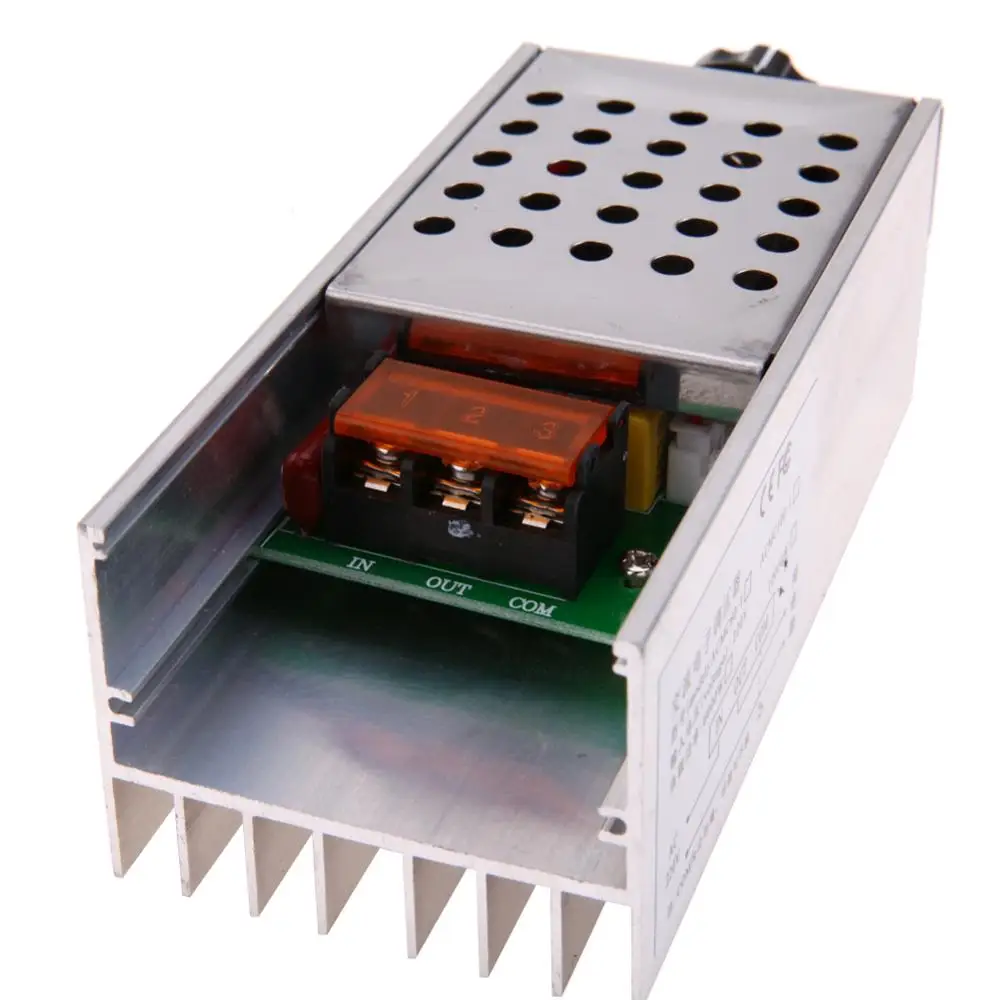

6000 W 220 V AC SCR voltage regulator dimmer electric motor speed controller electronic home improvement Regulators Stabilizers Power Supplies

6000 W 220 V AC SCR voltage regulator dimmer electric motor speed controller electronic home improvement Regulators Stabilizers Power Supplies

Peak power: 6000 W

Power long-term at resistive load: 3000 W

Efficiency:> 90%

Operating voltage: AC 220 V

Voltage adjustment: 0 ~ 220 V

Dimensions: 130*60*47mm

Weight: 195 grams.

Used with electric ovens, tanks and water heaters up to 3 kW, incandescent lamps up to 900 W, electric motors (limited), etc. D.

Voltage regulation: AC 0-220 V

The use of the new double-sided high-power thyristor, because the current up to 40 amps, a good solution for the electric furnace wire in the cooling resistance case is too small to

Large electrical appliances that are used for electric power less than 3000 W due to high power, medium household electrical appliances or small plants are enough. (This regulator is equipped with double-sided high power thyristor, can be used without any additional components, very convenient and practical). Comes with heat sink, buyer can get a hand that can be used

How to use:
The input is connected to a 220 V variable current.
The output wire is connected to the electric stove or the engine of the device.
Rotate the knob for speed, voltage, temperature control.
Note:
The charge does not exceed the maximum power, otherwise it will burn the module and electrical appliances; use the resistive load as much as possible; reduce the capacitive and inductive load of large. (It is best to leave more than half of them).
Error in 1-5mm due to manual measurement is allowed.
The color of the goods in the photos may vary slightly on different computer monitors as the monitors are calibrated differently.

Only the above parcel, other goods are not included.
Note: The lamp and different displays may cause the color of the item in the picture is slightly different from the real one. Error in measurements +/- 1-3 cm is allowed.

Note: Before the regulator, you must connect to the load.
SCR is mainly used for resistive loads (filament lamp electric wire and so on D.), most single phase AC motor can, but can not guarantee, other types of loads buyer to confirm their own. Fuse is not panacea, there is reaction time, if the current is too large, in addition to burning the fuse, the module can also be burned.
Pay attention to the fitting of the plastic cover because of the installation of the case, can not be fully opened, the screwdriver to tighten the side with the point, the other to be careful when the express transportation can also be crushed for wear parts, but it does not affect the module.

The kit includes:
1x6000 W ac220v SCR electronic voltage regulator

1X ручуа adjustment

'
