SFP 1.25G/10G LC 20/40/60км промышленного класса 1310нм SFP+ трансивер совместимый с Mikrotik Cisco on, -40-85.

SFP 1.25G/10G LC 20/40/60км промышленного класса 1310нм SFP+ трансивер совместимый с Mikrotik Cisco on -40-85.

Unavailable in Russian Federation

1.25G/10G dual fiber 1310nm lc 20/40/60km sfp+  cisco compatible
Please leave us a message about which brand your switch is compatible. We  Will send compatible SFP modules as your request. compatible with Mikrotik Cisco

Product Features

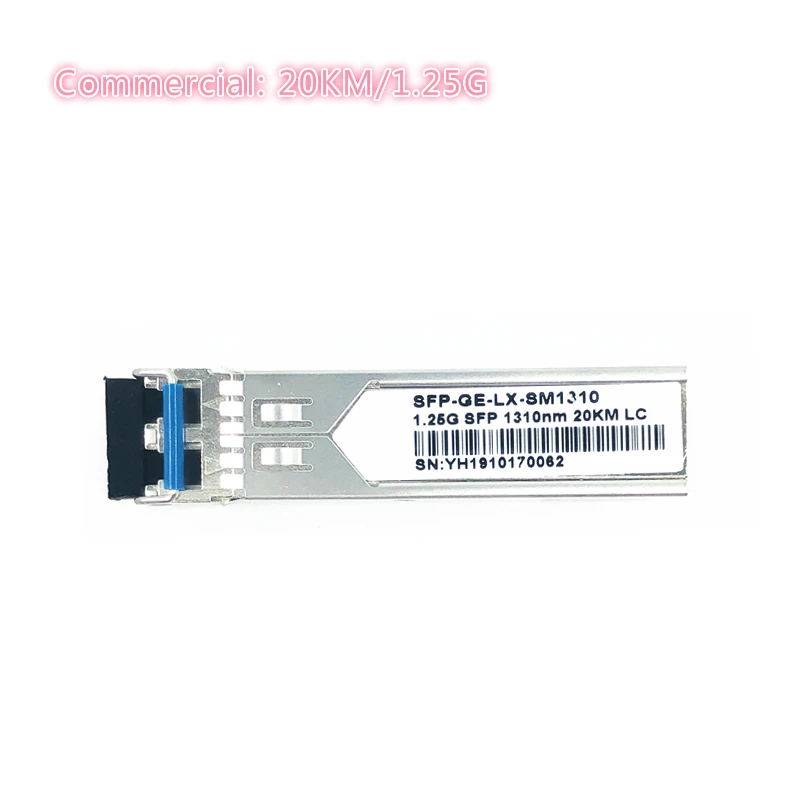

Commercial: 20KM/1.25G
Industrial grade: 20KM/10G
Industrial grade: 40KM/10G

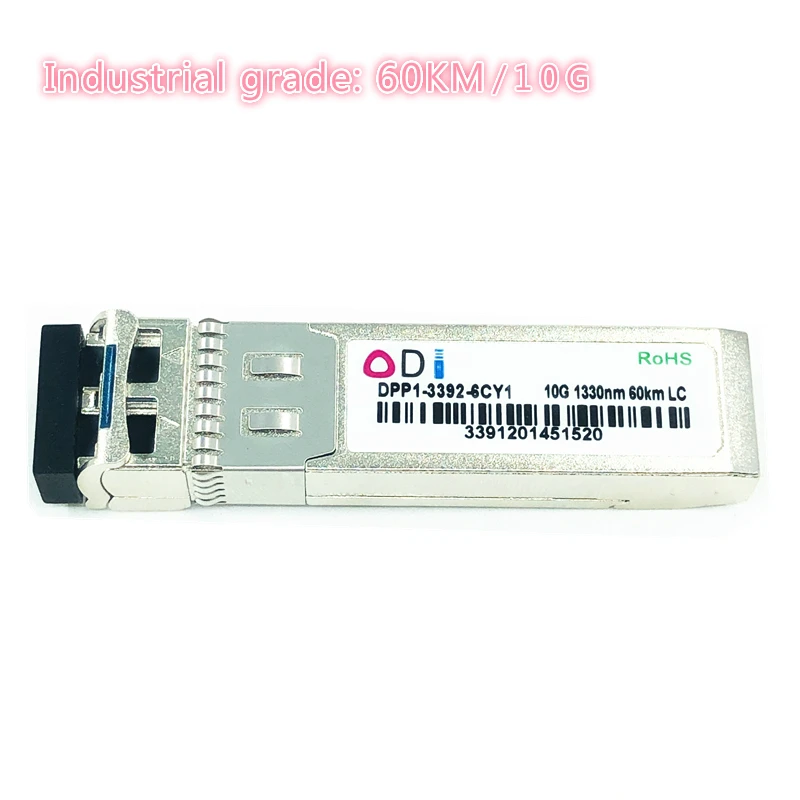

Industrial grade: 60KM/10G

This 1310 nm DFB 1.25G/10Gigabit SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 20/40/60km.The SFP+ LR module electrical interface is compliant to SFI electrical specifications.The transmitter input and receiver output impedance is 100 Ohms differential.  Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.  SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.
10Gb/s serial optical interface compliant to 802.3ae
10GBASE-LR
 Electrical interface compliant to SFF-8431
specifications for enhanced 8.5 and 10 Gigabit
small form factor pluggable module "SFP+"
1310nm DFB transmitter, PIN photo-detector
2-wire interface for management specifications
compliant with SFF 8472 digital diagnostic
monitoring interface for optical transceivers

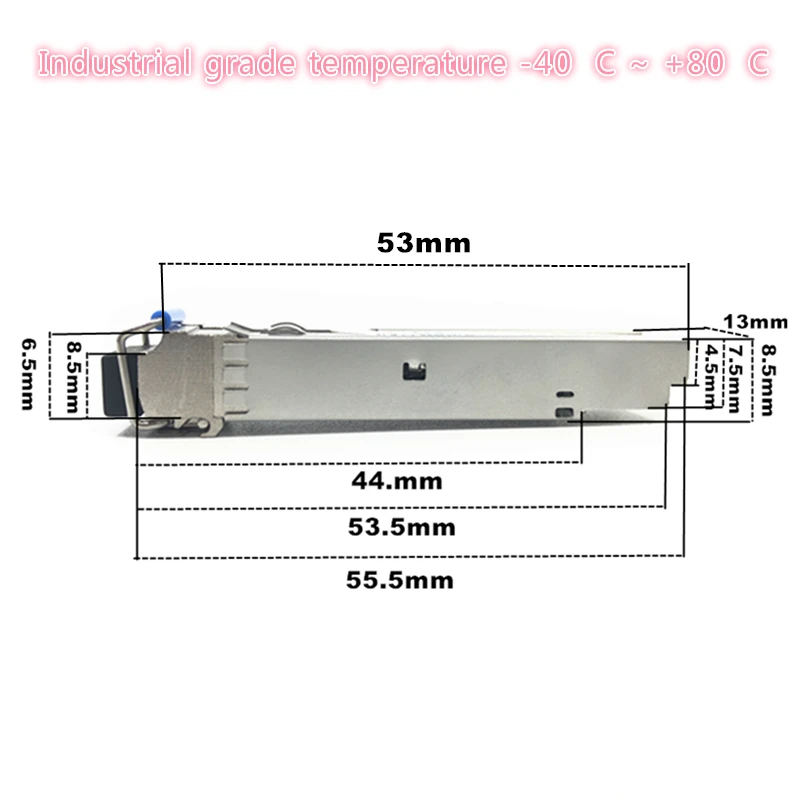

Operating case temperature: -40 to 85 °C

ll-metal housing for superior EMI performance
Low power consumption
 Advanced firmware allow customer system
encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher
port densities and greater bandwidth

Temperature monitor absolute error

DMI_Temp

-3

3

degC

Over operating temp

Laser power monitor absolute error

DMI_TX

-3

3

dB

RX power monitor absolute error

DMI_RX

-3

3

dB

-1dBm to

-15dBm range

Supply voltage monitor absolute error

DMI_VCC

-0.08

0.08

V

Full operating range

Bias current monitor

DMI_Ibias

-10%

10%

mA
