Reverse power supply POE switch IN/OUT5V/12V/24V/48V 155W/3=51.67W 100mbps 802.3AT 45+78- DC5V~48V distance series Force | Компьютеры и

Reverse power supply POE switch IN/OUT5V/12V/24V/48V 155W/3=51.67W 100mbps 802.3AT 45+78- DC5V~48V distance series Force | Компьютеры и

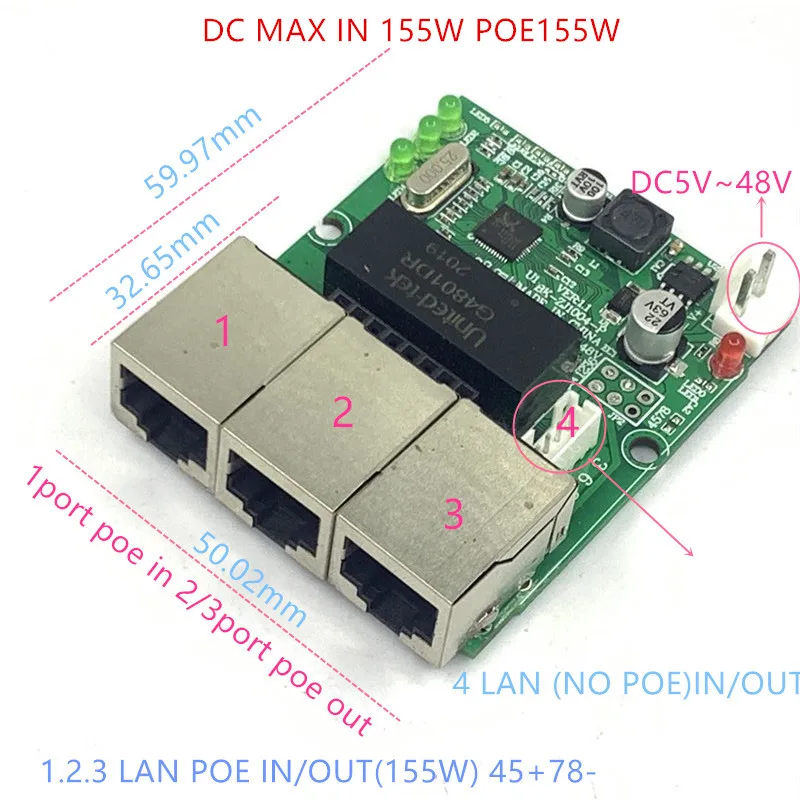

Network port 1: uplink POE IN(52V*3A=155W) or poe out (155W/3=51.67)          network port 2 /3:  1POE IN 2/3 poe out(155/2=78W) or DC IN(52V*3A=155W) poe out (155W/3=51.67)     network port 4 :uplink or LAN (NO poe out)       DC: 5V~48V (maximum 52V*3A=155W)
POE(12V/24V/48V) 2 port poe switch 2*100 mbps POE(12V/24V/48V) poort; 1*100 mbps UP Link poort(POE IN);

Kenmerken:

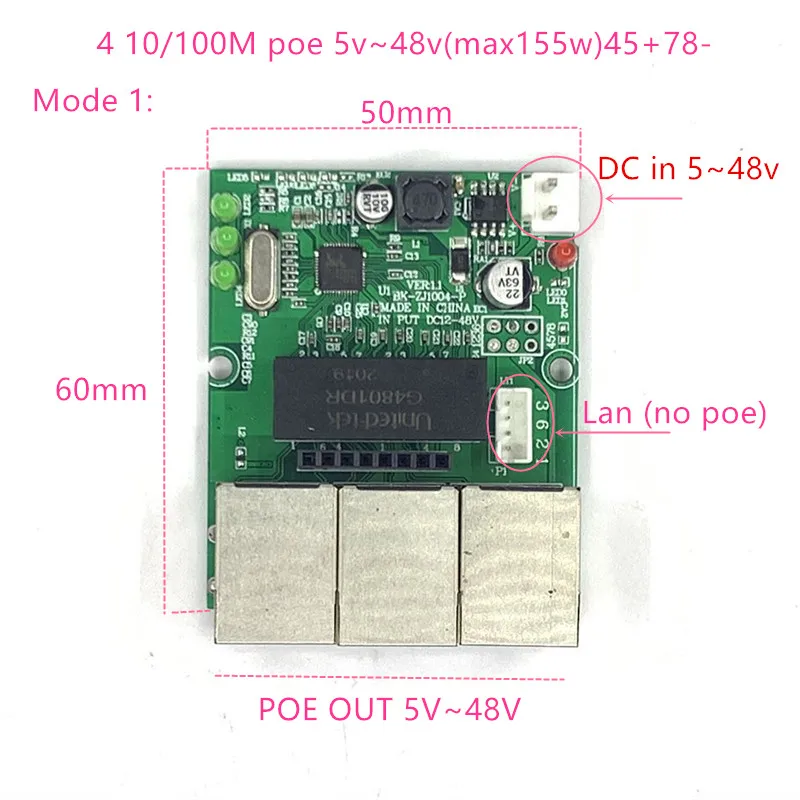

    Mode 1: DC in 5v = poe 1/2/3out 5v 4 lan(no poe)          DC in 12v = poe 1/2/3out12v 4 lan(no poe)                                              DC in 24v = poe 1/2/3out24v   4 lan(no poe)     DC in 48v = poe 1/2/3out48v   4 lan(no poe)                                            Maximum support 52V * 3A = 155W   1/2/3=155W/3=51.67W

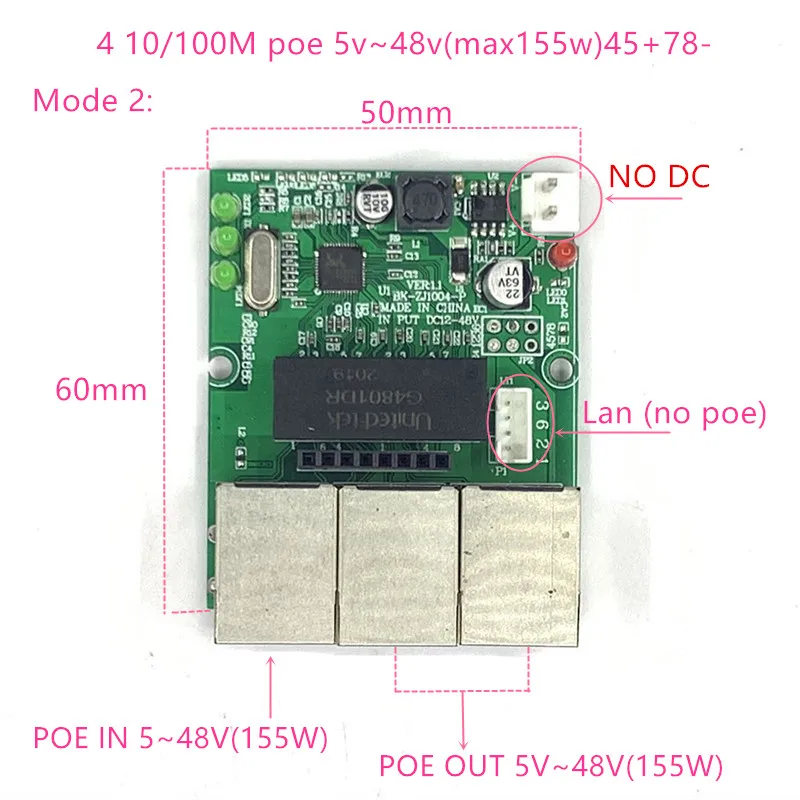

Mode 2: poe1 in 5v = poe 2/3out 5v port 4 lan(no poe)        poe1 in 12v = poe 2/3 out 12v  port 4 lan(no poe)                 poe1 in 24v = poe 2/3 out 24v port 4 lan(no poe)               poe1 in 48v = poe 2/3 out 48v port 4 lan(no poe)

       POE is 45 + 78-mandatory power supply

²2*100Mbps POE poort; 1 mbps UP Link poort(POE in);

²100m Afstand; Can be connected in series

²REALTEK Chipset

²Ondersteuning IEEE802.3AF/AT

²Hele Vermogen: 155w(52v*3A)/3=51.67W

²Alle poort ondersteund deur MDI/MDIX auto flip nl zelf onderhandeling

²Supply 2 10/100 Mpbs adaptieve hoge snelheid forwarding data packet non-verloren poort.

²Ondersteuning IEEE802.3x flow control for a Full-duplex modus en tegendruk for a Half-duplex modus.

²EAch poort max. voeding bereikt 51.67W.

Toepassing:

²Wireless Access Point
