Benewake TF03-180 Lidar IP67 Long-range Distance Laser Sensor Support UART/CAN/RS232/RS485 Communication Interface |

Benewake TF03-180 Lidar IP67 Long-range Distance Laser Sensor Support UART/CAN/RS232/RS485 Communication Interface |

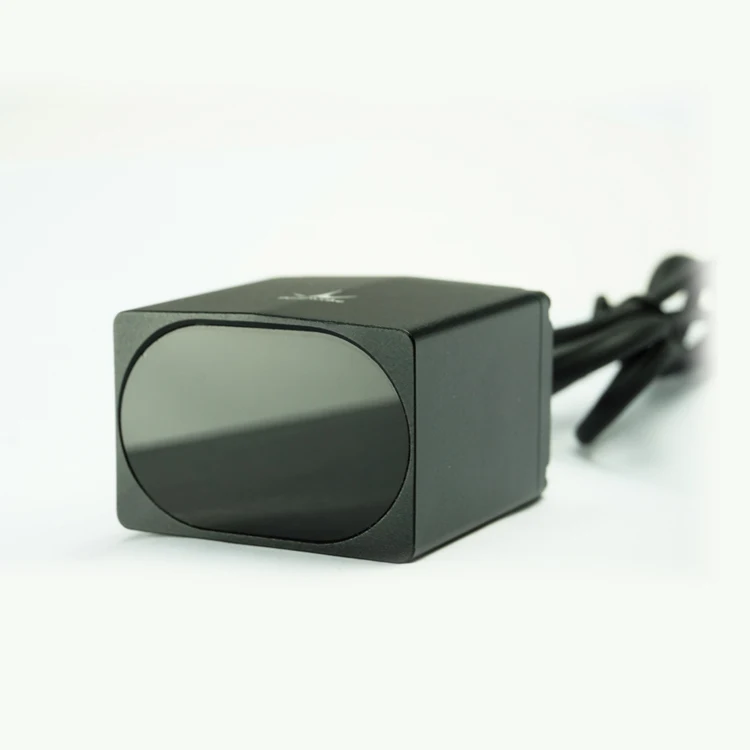

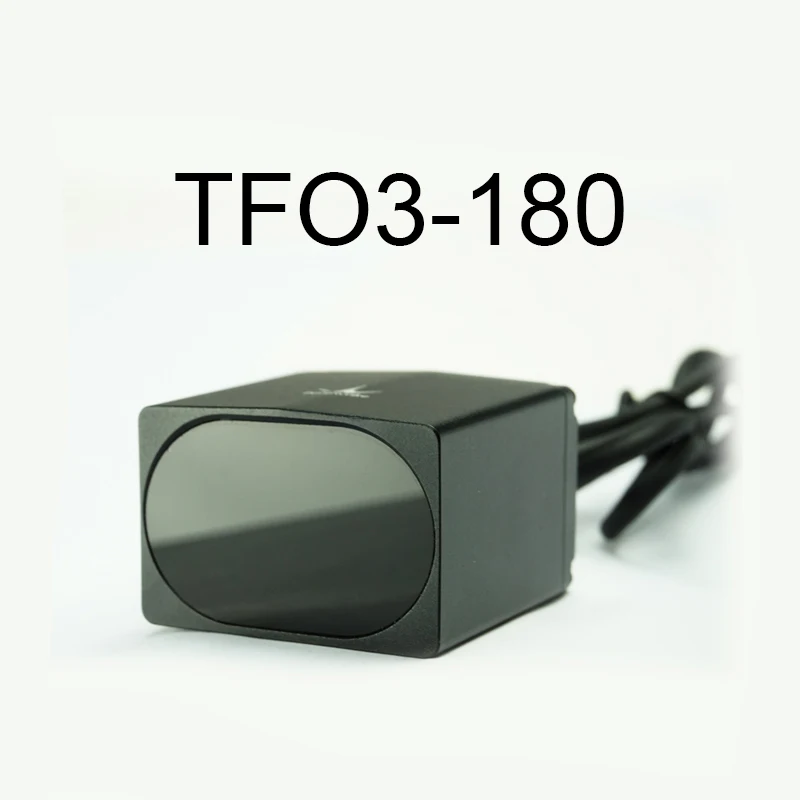

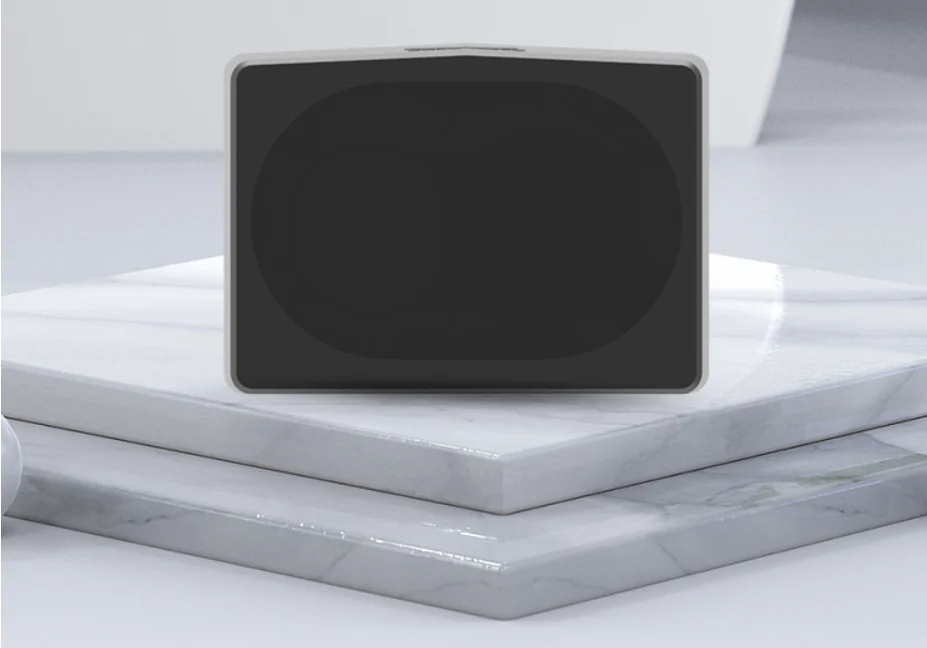

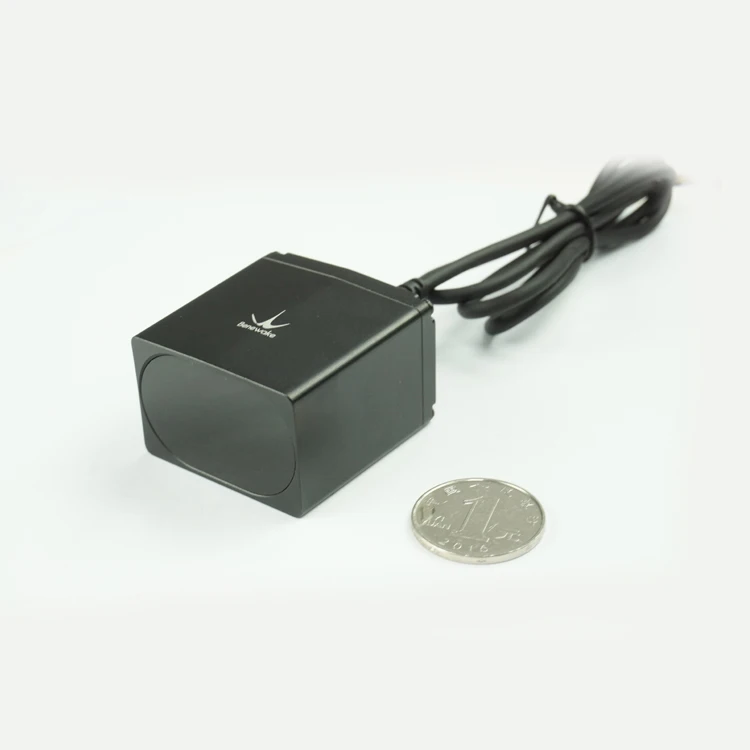

Description: TF03-180 is a industrial high-speed LiDAR, Its ranging distance is 180m. TF03-180 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions. Different built-in operating modes let customers change parameters and configuration to meet their need.

Features

 Industrial Level, Detection Range up to 180m

TF03-180 is a industrial high-speed LiDAR, Its ranging distanceis 180m. TF03-180 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions. Different built-in operating modes let customers change parameters and configuration to meet their need. The product is applicable to the terrain following of drones, the collision avoidance of cars, intelligent transportation and industrial safety warning.

Excellent Performance, Compact Size

TF03-180 adopts the pulsed time-of-flight principle. The unique design of the optical system and the signal processing circuit improved the detecting performance in a compact size. In addition to increasing the range to more than 100 meters, the key parameters also have excellent performance in the whole range, such as distance resolution, accuracy, repeatability and detection frequency.

High Enclosure Rate, Multiple Interfaces

The shell of TF03-180 is made of aluminum alloy and infrared band-pass glass to improve the overall strength. The enclosure rate is IP67, which can be applied in various extreme environments.
The TF03-180 supports multiple interfaces, including UART, CAN, RS232 and RS485, which can satisfy different applications.

Customized Parameters

Multiple parameters of TF03-180 can be configured by customers, including the measuring frequency, baud rate, trigger mode, over-range assignment, etc. TF03-180 is also equipped BootLoader function, enabling users to upgrade product firmware locally.

Specifications

Application

 Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory and trading company.

Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days , it is according to the quantity of the mock up parts .

Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%-50% T/T in advance ,balance before shippment.
If you have any other questions, please feel free to contact 24-hour online customer service.
